Zephyr – Electric Confetti Cannon with Integrated LED Lighting

Power

Output Performance

Lighting

Control

Physical

In The Box

• 1× SurgeFX Zephyr Electric Confetti Cannon
• 1× Wireless Remote Control
• 1× Power Cable
• 1× DMX Cable (3-pin XLR)
• 1× User Manual with DMX channel map

What You'll Need

• Confetti — Tissue, mylar, or metallic formats (sold separately)
• Power Source — Standard AC outlet, 110–240V (1500W draw)
• DMX Controller — If using DMX mode (optional — wireless remote works standalone)

Confetti & Consumables

The Zephyr is compatible with all standard confetti formats. For maximum throw distance and clean dispersion, metallic mylar and tissue confetti perform best. Biodegradable options are recommended for outdoor venues.

• Tissue Confetti — Soft, lightweight, ideal for indoor events
• Metallic Mylar Confetti — High-reflectivity, catches LED and stage lighting dramatically
• Biodegradable Confetti — Approved for outdoor use, eco-conscious venues

Stack the Effects

Combine the Zephyr with other SurgeFX special effects for layered production value:

• Mini Spark Pro — Pair confetti bursts with cold spark fountains for high-energy celebration moments
• Sparknado 360° — Add rotating cold sparks beneath the confetti stream for a dramatic combined effect
• Vortex CO2 Jet — Layer CO2 atmospheric bursts with confetti for a multi-sensory impact
• Aurora Jet Maxx — Haze in the air makes the RGB LED confetti stream visually pop on camera

Multi-Unit Deployment

Running multiple Zephyr units creates synchronized multi-zone confetti coverage across large stages, ballrooms, and festival floors. Each unit supports independent DMX addressing for per-unit control from a single console.

• Dual Zephyr Setup — Stage-left and stage-right positioning for full audience coverage
• Four-Unit Ballroom Array — Corner placement with synchronized DMX trigger for 360° confetti moment
• Truss-Mounted Overhead Rig — Mount 2–4 units above the stage for a top-down confetti cascade effect

Does the Zephyr require CO2 or compressed air?

No. The Zephyr is a fully electric confetti machine powered by a 1500W blower motor. There are no CO2 tanks, air compressors, or canisters required — plug into standard AC power and you're operational.

How far does it throw confetti?

The Zephyr delivers a throw distance of 13–20 ft (4–6m) depending on confetti type. Lighter tissue confetti achieves maximum distance; heavier metallic confetti may reduce throw slightly.

How long does each burst last?

20–30 seconds of continuous confetti output per trigger when fully loaded. This is not a one-second pop — it's a sustained visual moment that fills the space.

How much confetti does it hold?

The Zephyr holds approximately 1.1 lbs (0.5 kg) of confetti per load. That's enough for one extended burst or multiple shorter triggers throughout an event.

What type of confetti can I use?

Standard tissue, mylar, metallic flake, and biodegradable confetti all work. Avoid confetti that's too heavy or irregularly shaped — lightweight, flat confetti achieves the best throw distance and dispersion.

Can I control it without DMX?

Yes. The included wireless remote allows standalone triggering from up to 50 ft away. No console, no cables — just point and fire. DMX control is available when you want full show integration.

What do the DMX channels control?

6 channels total: Channel 1 = Fan (confetti trigger), Channel 2 = LED Auto mode, Channels 3/4/5 = Blue/Green/Red color, Channel 6 = LED Strobe. Full control over both the confetti output and the integrated LED lighting.

How loud is it?

Electric blower operation is quieter than CO2 or compressed air systems. Stage-safe and broadcast-friendly without significant audio contamination. Expect blower fan noise during operation — not silent, but not disruptive.

Can I mount it on truss?

Yes. The Zephyr can be floor-mounted, positioned on stage edges, or rigged overhead on truss for a top-down confetti effect. At 19.8 lbs, it's manageable for truss mounting with appropriate hardware.

How fast can I reload?

Top-load hopper design allows reloading in under 60 seconds between sets. No disassembly required — open the hopper, pour in confetti, close, and fire.

Use the Right Confetti

Lightweight tissue and thin mylar confetti achieve the best throw distance and most dramatic floating effect. Heavy metallic or thick paper confetti reduces throw and falls faster. Match your confetti choice to your venue size and desired visual effect.

Don't Overfill

The Zephyr holds about 1.1 lbs of confetti. Overfilling can jam the blower or reduce throw distance. Load to the fill line, not above it. Multiple lighter loads perform better than one overstuffed load.

Position for Maximum Impact

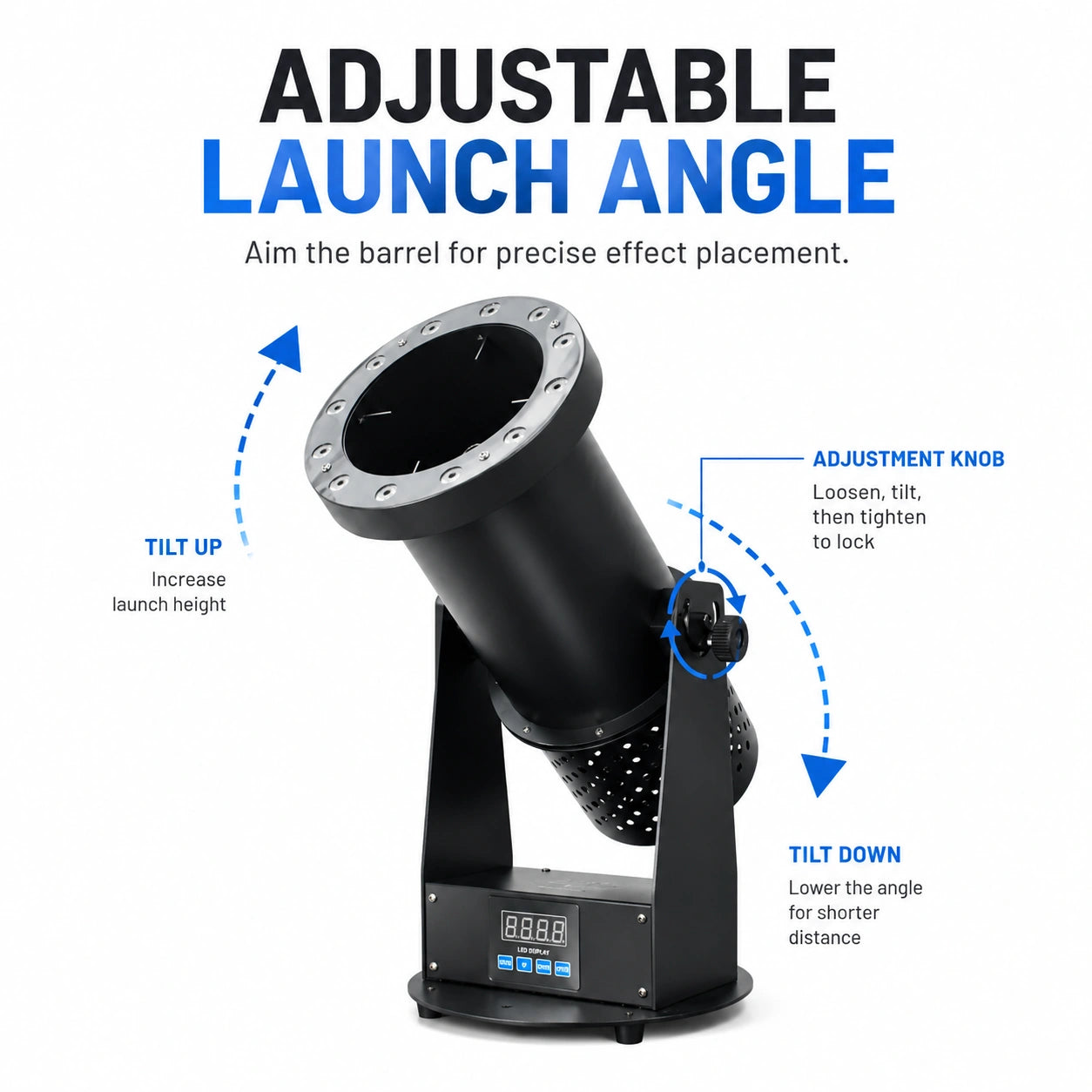

For audience coverage, position the Zephyr at a slight upward angle so confetti arcs over the crowd and floats down. For stage-focused effects, point directly at the performance area. Overhead truss mounting creates dramatic top-down cascades.

Use the LED Colors

The built-in RGB LEDs illuminate the confetti stream as it launches. Match LED color to your event's color scheme — brand colors for corporate events, white for weddings, multi-color party mode for celebrations. The LEDs are visible even in well-lit rooms and dramatically pop in darker environments.

Test Before the Event

Do a test fire before guests arrive. Confirm throw distance, aim, and confetti dispersion pattern. Adjust positioning as needed. Better to discover issues during setup than during the first dance.

Plan for Cleanup

Confetti is fun — until someone has to clean it up. For indoor events, biodegradable tissue confetti is easiest to sweep or vacuum. For outdoor events, biodegradable is the only responsible choice. Some venues have confetti restrictions — check before you fire.

DMX Channel Reference

Quick reference for show programming:

• Ch 1 — Fan (confetti output) — 0-255 intensity
• Ch 2 — LED Auto mode
• Ch 3 — Blue (0-255)
• Ch 4 — Green (0-255)
• Ch 5 — Red (0-255)
• Ch 6 — LED Strobe

Multi-Unit Sync

For synchronized multi-zone confetti, daisy-chain multiple Zephyr units via DMX and assign sequential addresses. Trigger all units on the same channel for simultaneous burst, or stagger addresses for wave effects across the venue.
