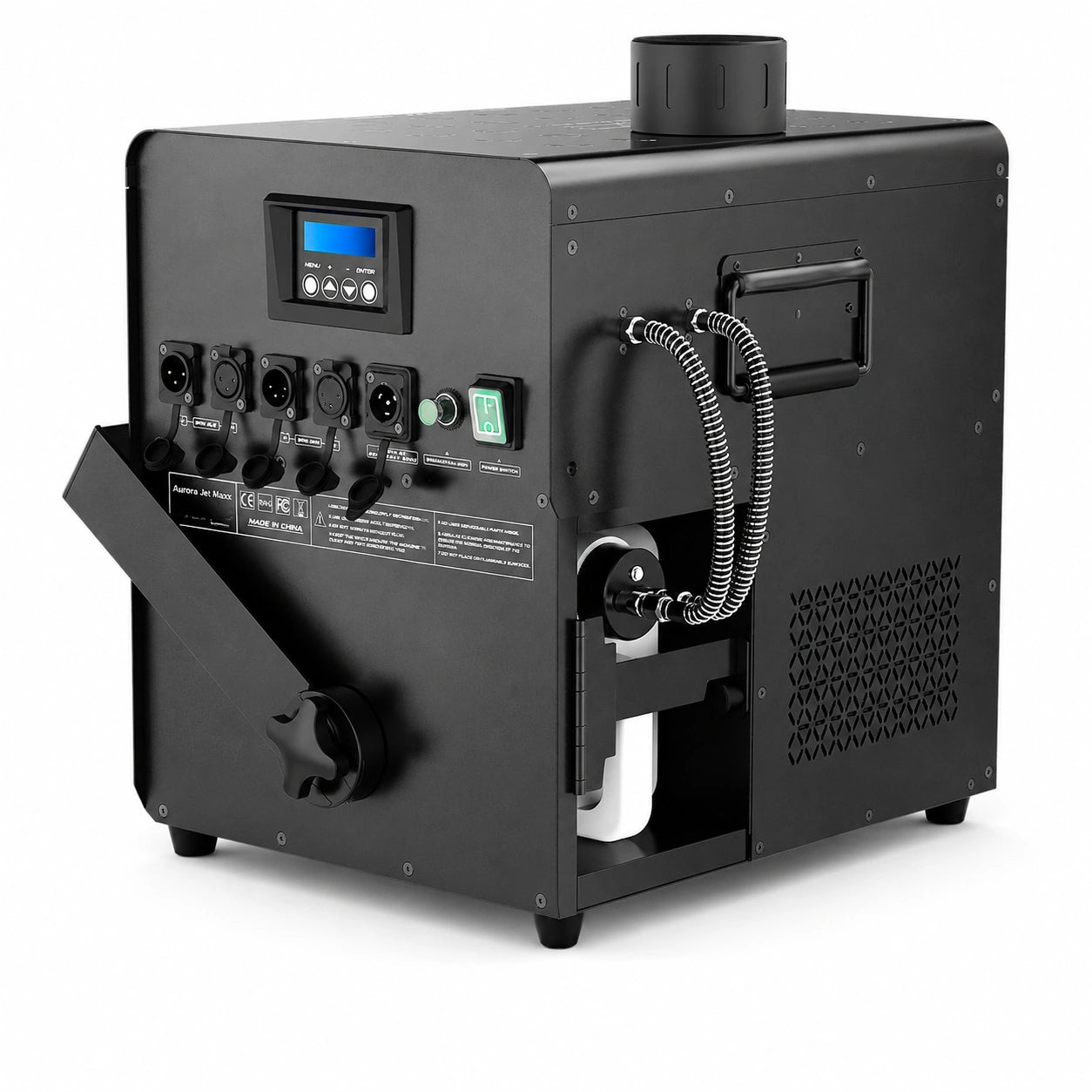

SurgeFX Aurora Jet Maxx – Outdoor RGBA LED Fog Jet Machine

• Concerts & Touring Productions — Arena-level fog jet effects that travel easy
• Music Festivals — High-impact blasts for drops, transitions, and headliner moments
• Nightclubs & DJ Performances — Sync fog jets with beats for explosive energy
• Theme Parks & Attractions — Dramatic reveals and immersive experiences
• Corporate Events & Product Launches — Grand entrances and stage reveals
• Event Production & Rental Companies — Reliable, road-ready effects without CO₂ logistics

Feature	What It Means For You
CO₂-Free Fog Jet Effect	Massive vertical blast look without tanks, regulators, or refill costs
49 ft Vertical Jet Height	Huge visual impact for large stages and outdoor venues (no wind)
24x RGBA LEDs (9W each)	Light the fog column in vibrant red, green, blue, or amber
Fast-Dissipating Output	Clean visual hits that reset quickly — no lingering haze
Rainproof Outdoor Design	Built for indoor or outdoor events with weather protection
DMX512 Control (3-pin + 5-pin)	Integrates into professional show programming with 2/9 channel modes
Half-Power Mode	Run longer, lower-intensity effects when needed
Oil-Free Protection Program	Prevents dry firing and extends machine lifespan

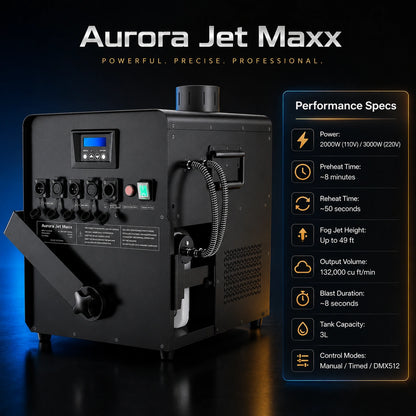

Power & Performance

Power	2000W (110V) / 3000W (220V)
Voltage	110–120V 60Hz OR 220–240V 50Hz
Preheat Time	~8 minutes
Reheat Time	~50 seconds
Fog Jet Height	Up to 49 ft (15m) — no wind
Fog Blast Duration	~8 seconds
Output Volume	132,000 cu ft/min

Fluid System

Tank Capacity	0.79 gal (3L)
Fluid Consumption	~1L every 2.2 minutes
Fluid Type	Water-based fog fluid

LED & Control

LED System	24x 9W RGBA LEDs
LED Colors	Red / Green / Blue / Amber
Control Modes	Manual / Timed / DMX512
DMX Channels	2 or 9 channel modes
DMX Connection	3-pin + 5-pin

Physical

Machine Size	17.8" × 16.1" × 17.7" (with handle)
Net Weight	66.1 lbs (30 kg)
Gross Weight	104.7 lbs (47.5 kg) with flight case
Flight Case Size	21.5" × 19.7" × 24.4" (with wheels)
Weather Protection	Rainproof design

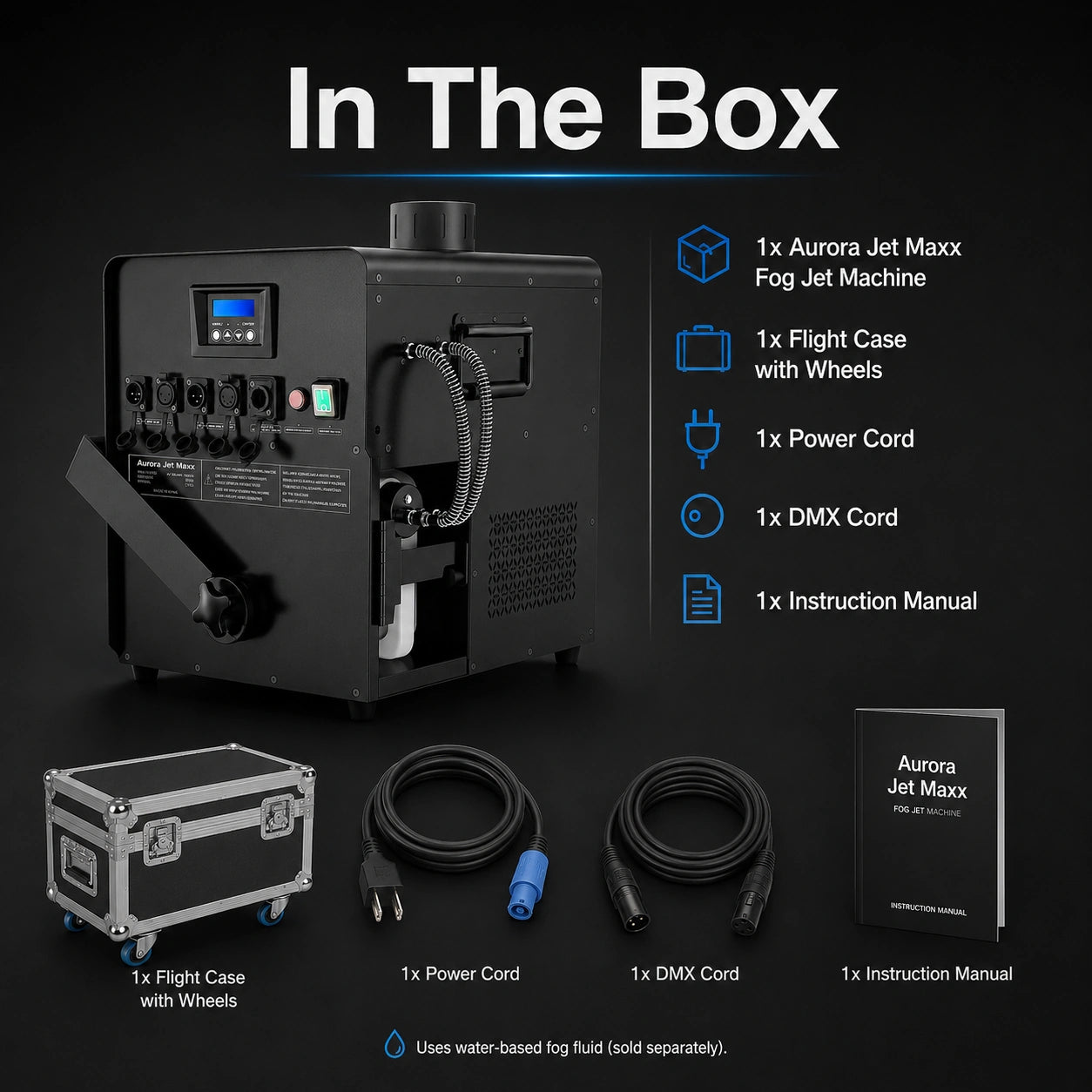

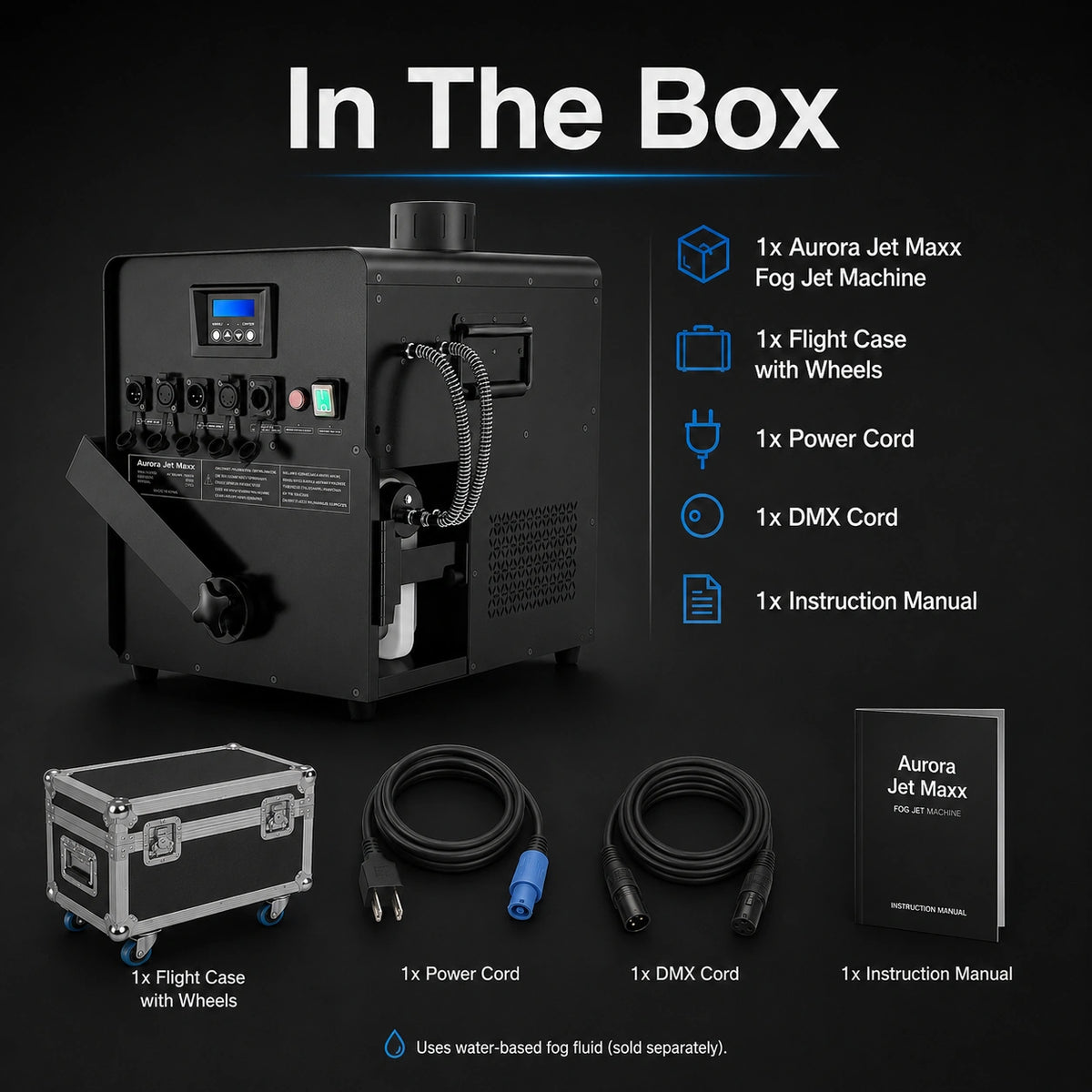

In The Box

• 1x SurgeFX Aurora Jet Maxx Fog Jet Machine
• 1x Power Cord
• 1x DMX Cord
• 1x Instruction Manual
• 1x Flight Case (with wheels)

What You'll Need

• Fog Fluid — Water-based fog fluid (see Nebula™ Fog Fluids)
• Power Source — 110–120V or 220–240V circuit
• DMX Controller — For synchronized show programming (optional for manual use)

Nebula™ Fog Fluids

Aurora Jet Maxx uses standard water-based fog fluid. For best results, use SurgeFX Nebula™ formulas:

• Nebula™ Fog Fluid Collection — Professional-grade fog fluids for consistent output

Stack the Effects

Combine Aurora Jet Maxx with other SurgeFX machines for layered production value:

• Cold Spark Machines — Pair fog jets with spark fountains for ultimate impact
• CO₂ Jets — Add cryo blasts for temperature contrast through fog
• Confetti Launchers — Layer confetti through illuminated fog columns

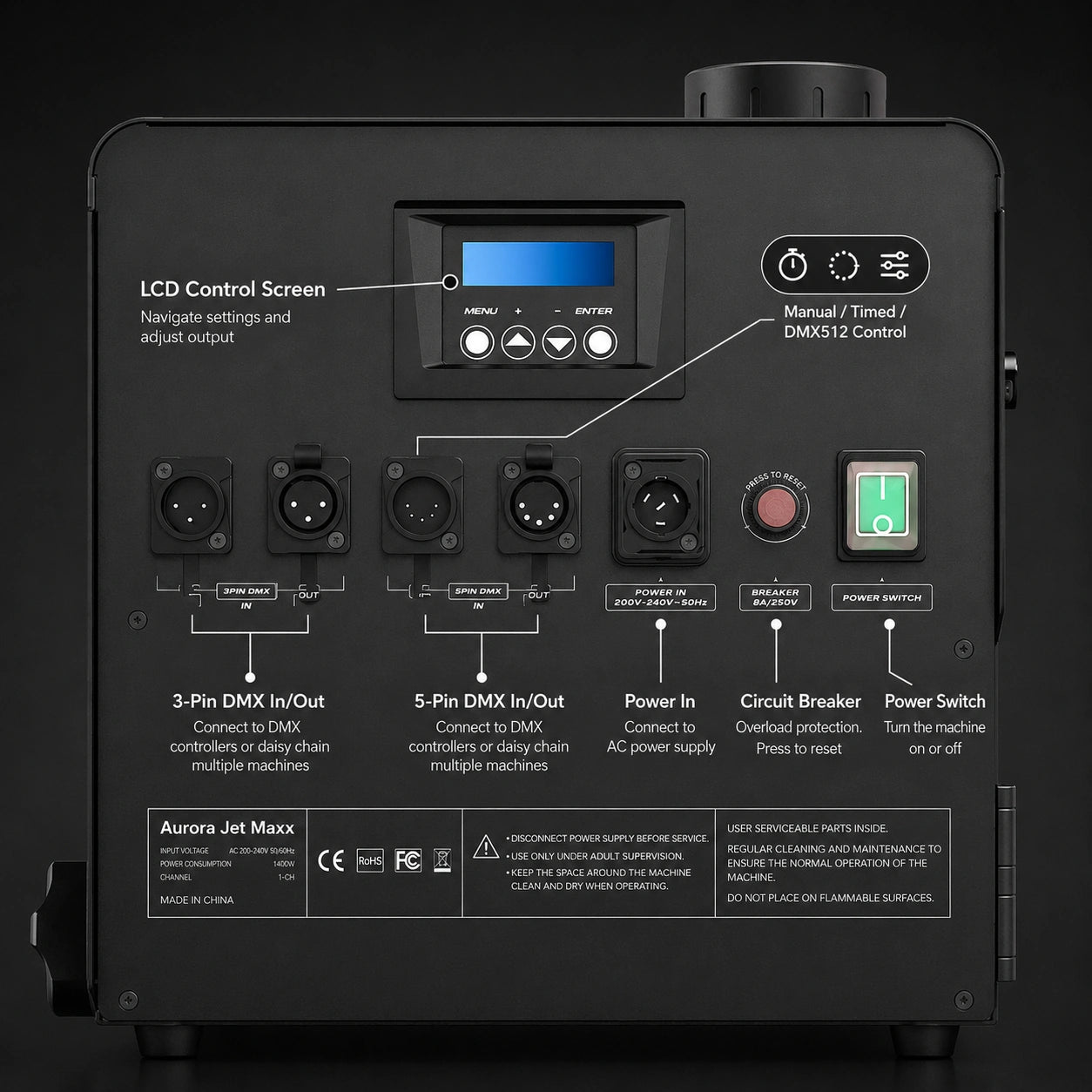

Control

• Any DMX512 controller with 3-pin or 5-pin output

How is this different from a CO₂ jet?

CO₂ jets use pressurized gas cylinders for instant bursts. Aurora Jet Maxx creates a similar visual effect using heated fog fluid — no tanks, regulators, or refills required. You get the iconic vertical blast look with simpler logistics and lower operating costs.

Does it really reach 49 feet?

Yes — in no-wind conditions. Outdoor wind will reduce effective height. For maximum impact outdoors, position in sheltered areas or use during calmer conditions.

How long does the fog last in the air?

Aurora Jet Maxx is designed for fast dissipation. The fog column rises quickly and disperses within seconds — perfect for clean "hit" moments that don't linger or obscure sightlines.

Can I use it indoors?

Yes. The fast-dissipating output makes it suitable for indoor venues with adequate ventilation. The fog is water-based and non-toxic.

Is it really rainproof?

Yes. The Aurora Jet Maxx features a rainproof housing designed for outdoor events. However, avoid submerging or exposing to heavy flooding.

How long can I run it continuously?

With a 3L tank and consumption of ~1L every 2.2 minutes, expect roughly 6-7 minutes of continuous blast time per tank. For extended shows, plan refill breaks or use half-power mode for longer, lower-intensity effects.

What fog fluid should I use?

Use standard water-based fog fluid. SurgeFX Nebula™ fog fluids are formulated for professional machines and deliver consistent output without residue buildup.

What's the oil-free protection program?

The machine automatically detects when fluid is low and prevents dry firing. This protects the heating element and pump, extending the machine's lifespan.

Best for "Hit" Moments

Aurora Jet Maxx excels at short, timed blasts — drops, walkouts, beat hits, reveals, and finales. The fast-dissipating output resets quickly, keeping your show visuals sharp and controlled.

Preheat Planning

Allow 8 minutes for initial preheat. After that, reheat between blasts takes only ~50 seconds. Power up well before showtime and keep the machine warm throughout your set.

Fluid Management

The 3L tank provides 6-7 minutes of continuous blast time. For long shows, designate refill windows or keep a second machine ready. Never let the tank run dry — the oil-free protection will shut down output to protect the heater.

LED Color Programming

The 24 RGBA LEDs are independently controllable via DMX. Match fog jet colors to your lighting design, or program color chases that follow the music. The LEDs illuminate the fog as it launches for maximum visual impact.

Outdoor Positioning

Wind reduces effective jet height. Position machines in sheltered areas or behind stage structures when possible. For festival main stages, coordinate blast timing with calmer wind windows.

DMX Integration

Use the 9-channel DMX mode for full control over fog output, LED colors, and timing. In 2-channel mode, you get basic fog on/off and LED control for simpler setups.

Transport

The included flight case has wheels for easy load-in/load-out. At 105 lbs total weight, it's manageable for a two-person lift or can be rolled on flat surfaces.
