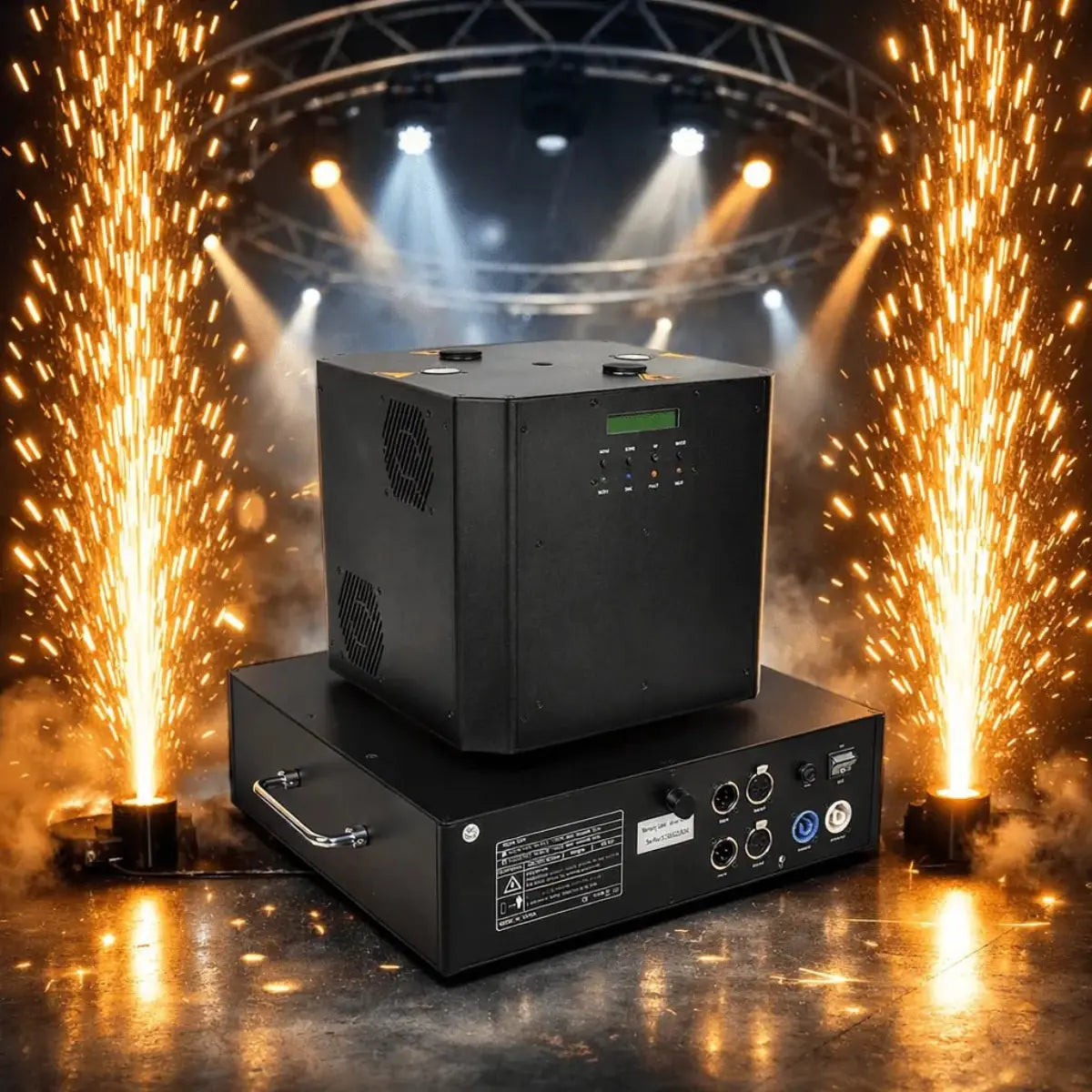

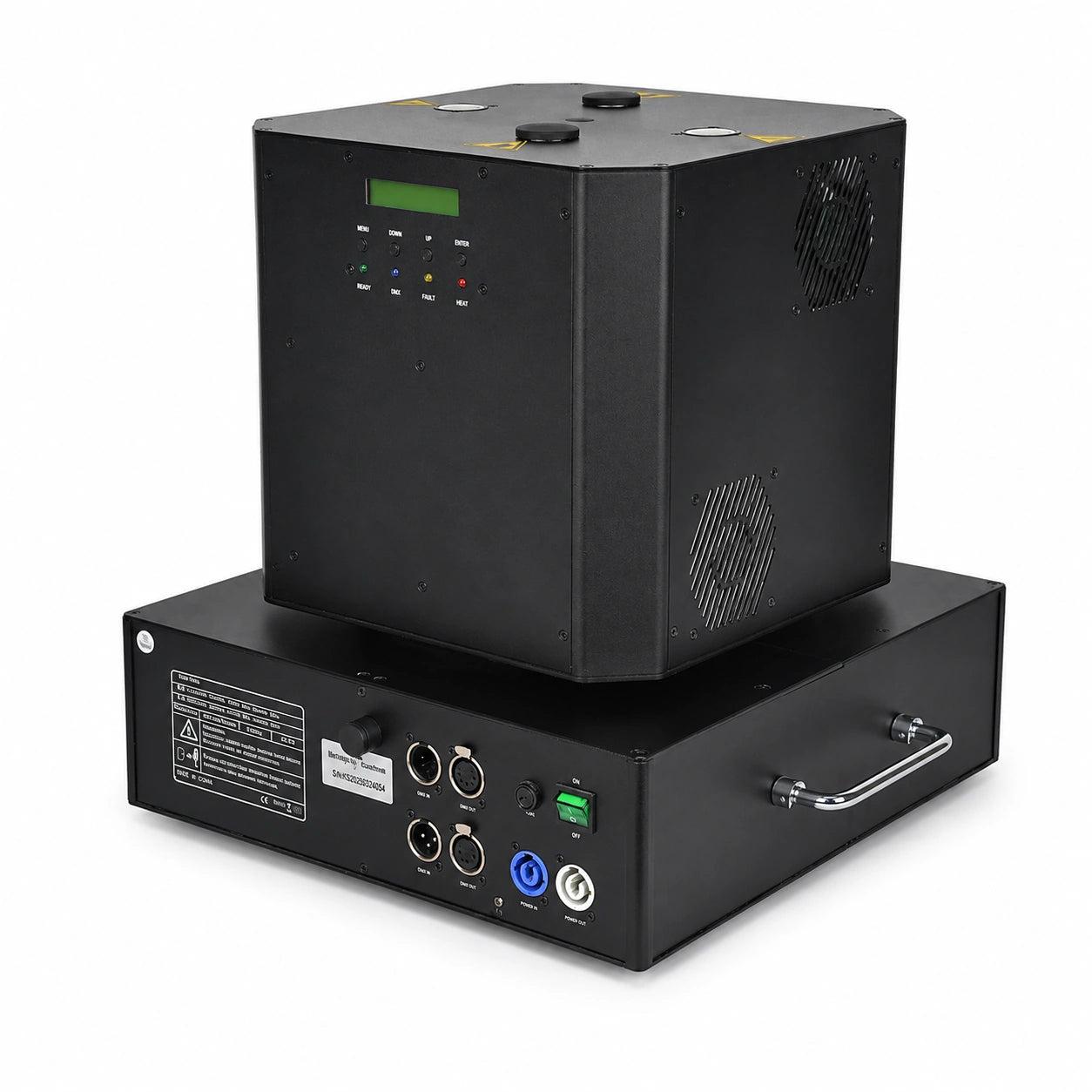

SurgeFX Sparknado – 360° Spinning Dual Nozzle Cold Spark Machine

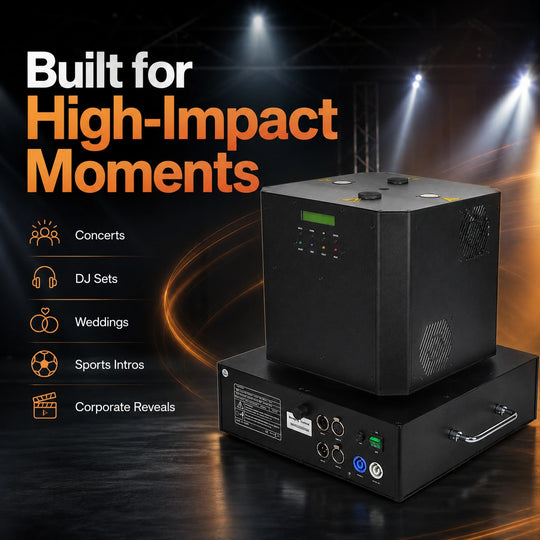

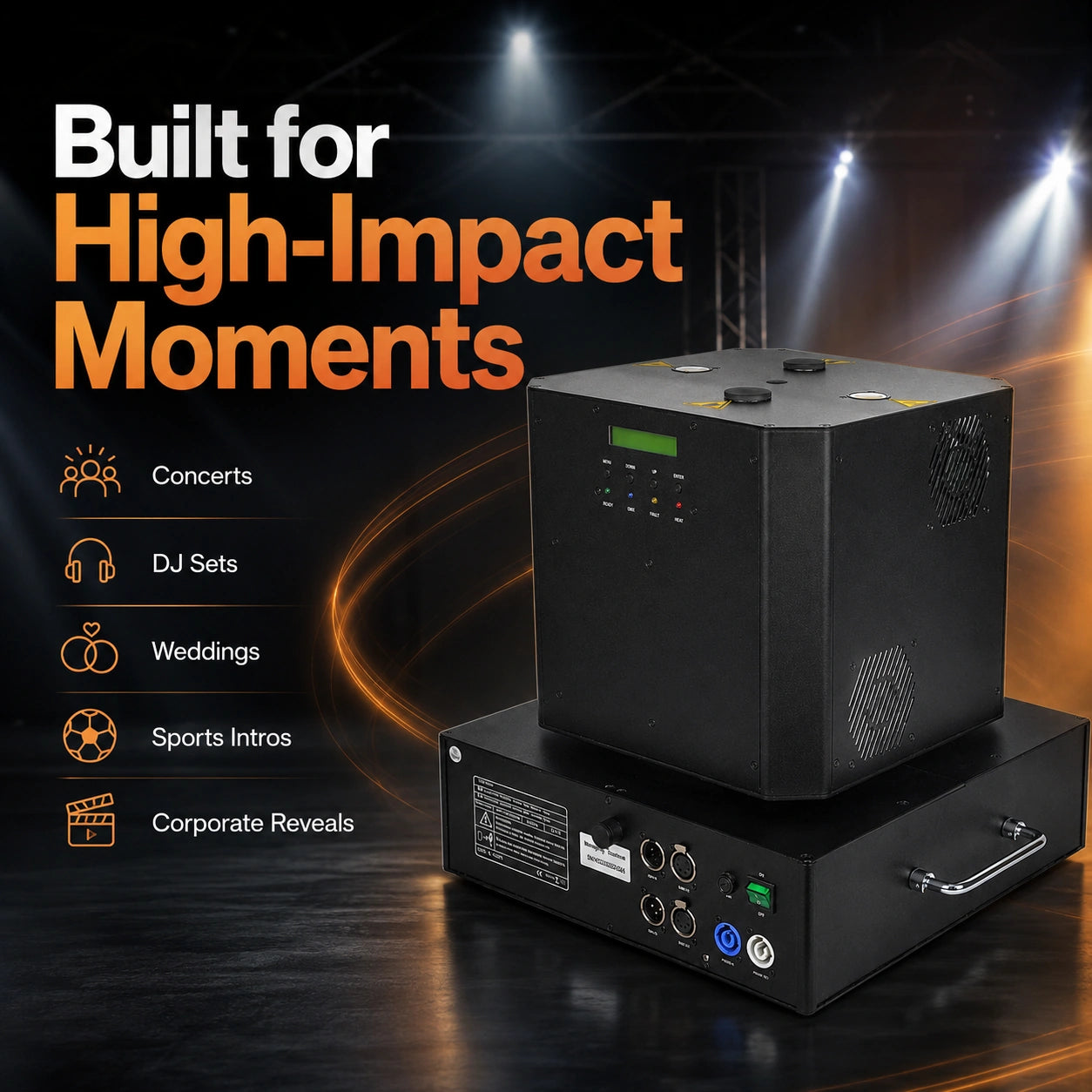

Built For High-Impact Moments

• Concerts & Touring Productions — The spinning dual-fountain effect is visually massive from any seat in the house. Fire the Sparknado during drops, chorus hits, and finales — the 360° rotation means every angle of the audience sees the full effect, not just the people directly in front of the machine. DMX integration lets your lighting tech trigger bursts from the console on exact cue points.
• DJ Sets & Nightclubs — Sparknado turns a standard DJ booth setup into a centerpiece moment. The rotating spark tornado is a natural crowd reaction trigger — fire it on the drop and every phone in the room comes out. At 14.4" × 14.4", it fits on or beside most DJ booths and risers without eating stage space.
• Festivals & Outdoor Stages — Rated for operation from -10°C to 50°C (14°F to 122°F), the Sparknado handles outdoor festival environments including summer heat and cold-weather events. The spinning effect carries more visual presence in open-air settings than static fountains because the rotation creates a wider spark footprint visible from greater distances.
• Weddings & Grand Entrances — Two Sparknados flanking an entrance aisle create a rotating spark tunnel that photographs and films dramatically from every angle. The 360° rotation means the effect looks spectacular from the side (guest seats) as well as head-on (aisle view). Adjustable height keeps sparks proportional to the venue ceiling.
• Sports Intros & Walkouts — Player tunnels, ring entrances, team reveals. The spinning spark tornado reads as pure energy and spectacle — exactly the visual intensity that walkout moments demand. Fire on cue from DMX as the athlete enters the frame.
• Corporate Events & Product Reveals — Spinning cold sparks add production value that separates a product launch from a PowerPoint presentation. The visual is dramatic enough to warrant its own reveal moment — fire the Sparknado as the product drops or the curtain pulls.

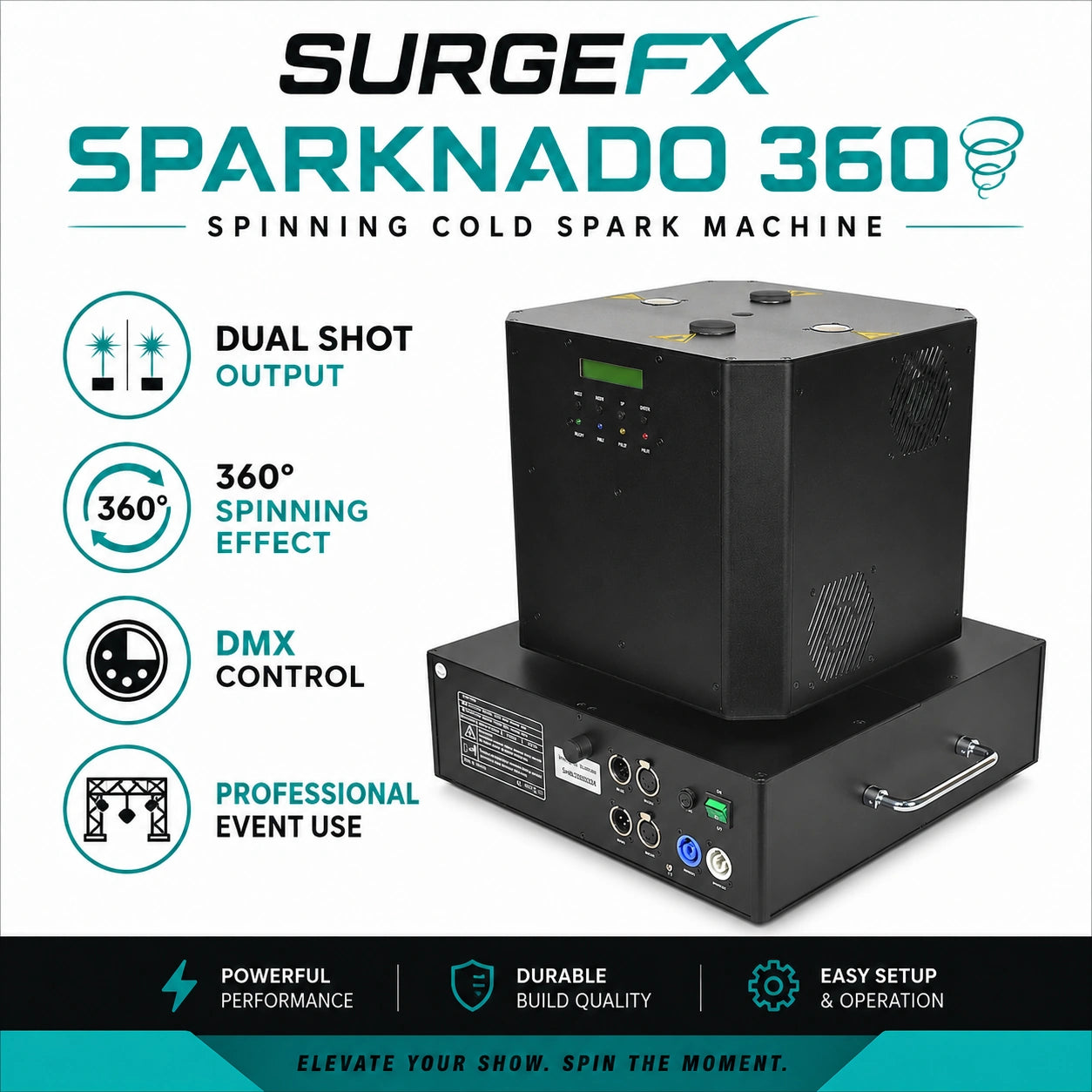

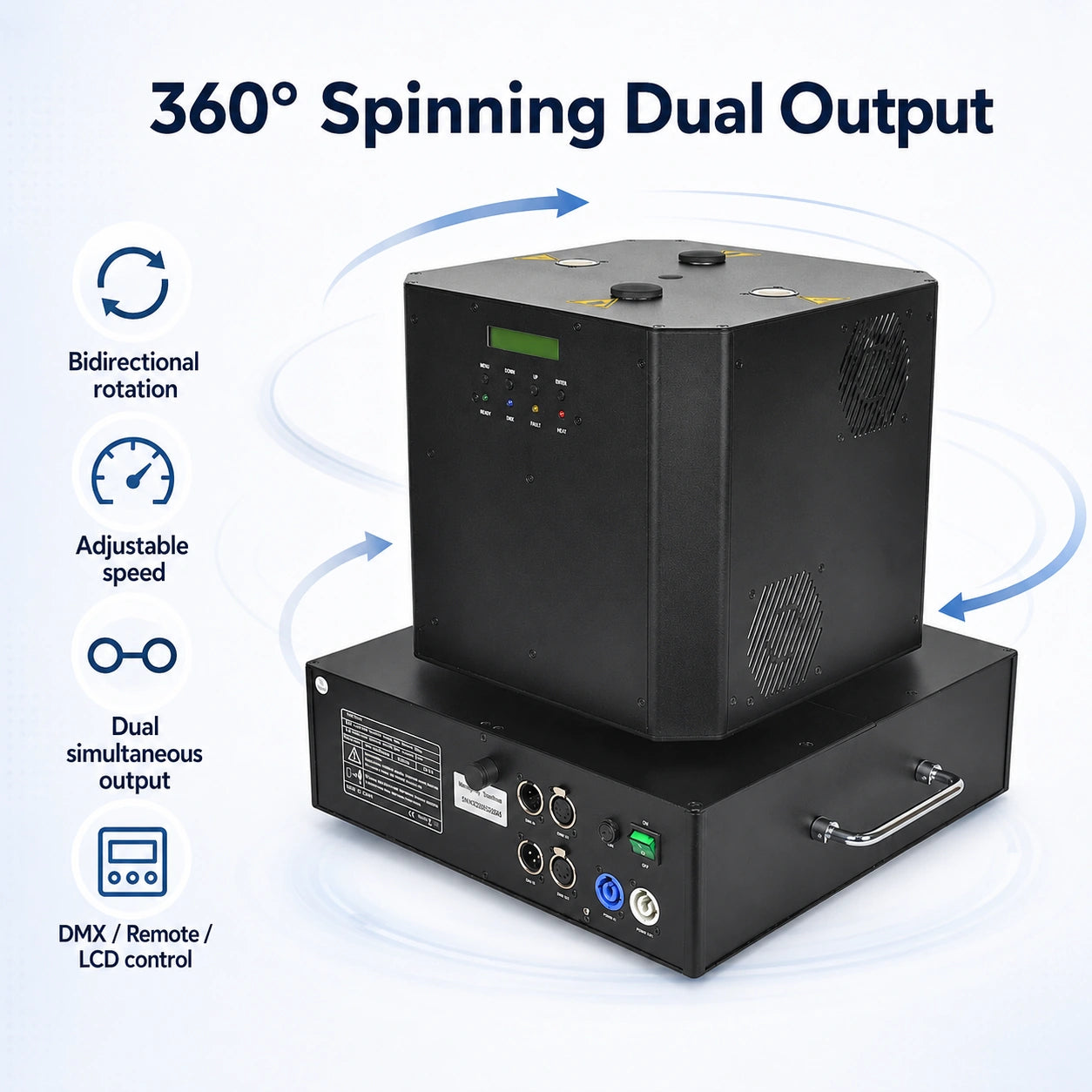

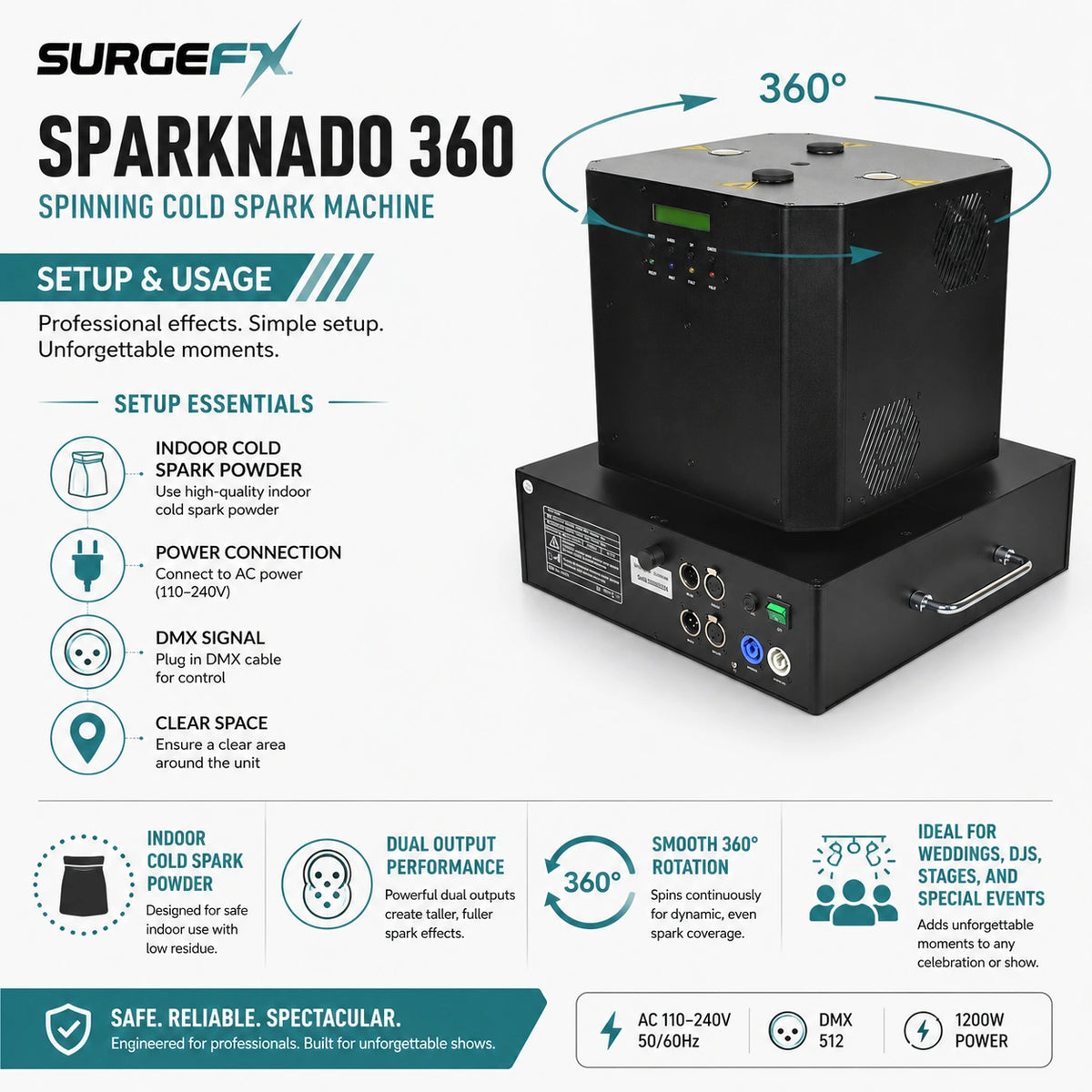

360° Bidirectional Rotation

The Sparknado's defining feature. The dual nozzle assembly rotates through a full 360° arc in both directions — not just a single clockwise or counterclockwise spin. Bidirectional rotation creates more dynamic, unpredictable-looking spark patterns. Rotation speed is fully adjustable via DMX, so you can dial in a slow, dramatic sweep or a fast, aggressive tornado depending on the moment.

Dual Nozzle Output

Two spark nozzles fire simultaneously as the assembly rotates. This doubles the spark density compared to single-nozzle spinning machines and creates the signature tornado visual — two intertwined spiral spark trails sweeping through the full rotation arc. Each nozzle produces adjustable spark height from 3.3 ft (1 m) to 16.4 ft (5 m).

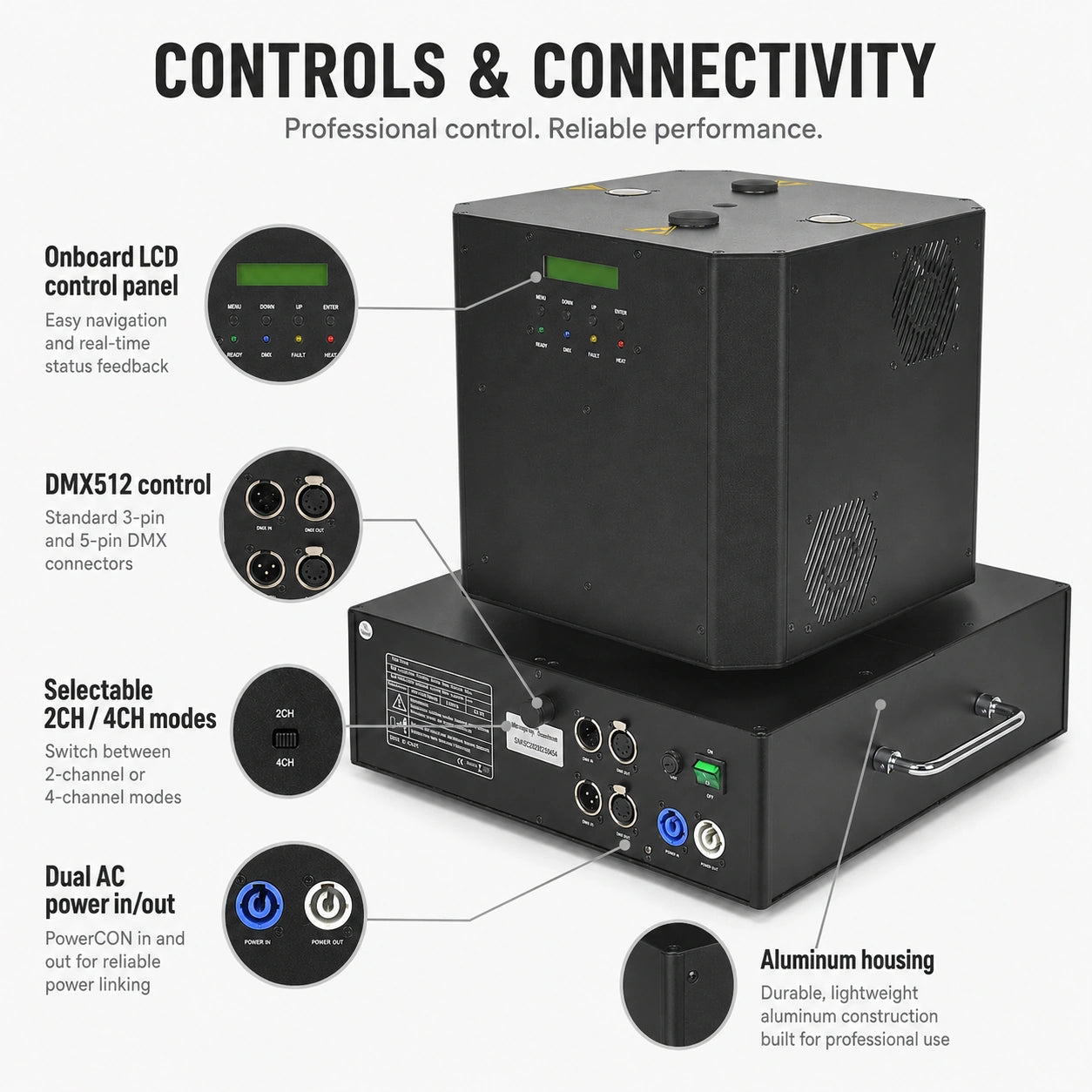

DMX512 Control — 2-Channel or 4-Channel Modes

Selectable DMX modes give you the control depth your production needs. 2-channel mode covers spark output and basic operation. 4-channel mode adds granular control over rotation speed, direction, and spark height — letting your lighting tech build complex cue sequences where the Sparknado's behavior changes dynamically throughout the show. Dual DMX interfaces (IN/OUT) with 3-pin connectors support standard daisy-chain wiring for multi-unit setups.

Wireless Remote Control

Built-in wireless IR receiver allows remote triggering without DMX infrastructure. Ideal for mobile DJs, wedding operators, and single-unit setups where running DMX cable isn't practical. The remote provides start/stop, height adjustment, and the built-in auto-clean function — press CLE on the remote to run a 30-second internal cleaning cycle after each event.

Onboard LCD Control Panel

Full parameter display and manual controls built into the machine. Set DMX address, select 2CH or 4CH mode, adjust settings, and test-fire directly from the unit without needing external controllers. The LCD shows real-time status including heating state and DMX signal connection — the blue DMX indicator flashes continuously when signal lock is confirmed.

Built-In Overheat Protection

The Sparknado's internal protection system automatically stops spark output after 30 seconds per burst. This isn't a limitation — it's engineered safety. Cold spark machines generate significant internal heat during operation, and continuous firing beyond recommended limits causes permanent damage to the heating element. The 30-second auto-cutoff protects the machine while encouraging the timed-burst operation style that produces the most dramatic audience impact. Maximum recommended continuous output: 1 minute.

Aluminum Housing

Full aluminum enclosure provides corrosion resistance, efficient heat dissipation, and impact protection for transport. At 44.1 lbs (20 kg), the Sparknado is substantial enough to be stable during operation but portable enough for single-person load-in. The aluminum body also acts as a passive heat sink — critical for a machine that generates significant thermal load during spark production.

Dual AC Power Interfaces

Double AC power input/output connections allow power pass-through daisy-chaining of up to 6 units maximum. This simplifies cable runs in multi-machine setups — run power to the first unit and chain to subsequent machines without needing separate power drops for each. Do not exceed 6 units on a single power chain — overloading can cause damage or fire risk.

In The Box

• SurgeFX Sparknado Cold Spark Machine — 360° spinning dual nozzle unit, ready to deploy
• Power Cord — 110V US standard
• DMX Cable — 3-pin, for console connection or daisy-chaining multiple units
• Wireless Remote Control — IR remote for standalone operation
• Instruction Manual — Setup, DMX addressing, operation, cleaning, and safety procedures
• 1-Year Limited Warranty — Parts and labor against manufacturing defects

Build Your Cold Spark Production

Cold Spark Powder — Indoor Formula →
The consumable that powers the Sparknado. Each 7 oz bag delivers approximately 10–15 minutes of spark effect. The indoor formula produces sparks that cool faster at shorter distances — required for any enclosed or covered venue. Stock 2–3 bags per machine for a typical event, 4–6 for extended shows.

SurgeFX Cold Spark Machines →
Pair the Sparknado with standard fixed-nozzle cold spark machines for a layered effect — spinning tornado sparks from the Sparknado with flanking static columns from conventional units. The combination of rotating and fixed spark patterns creates more visual depth than either effect alone.

Fog FX →
Spinning sparks cutting through fog create spiral light trails as the particles illuminate the fog from within. The rotation effect is amplified by fog — each spark traces a visible arc through the suspended particles instead of just appearing and disappearing in clear air.

Haze FX →
Haze extends the Sparknado's visual reach across the venue. The rotating sparks illuminate suspended haze particles in a sweeping pattern, making the rotation visible from far greater distances than in clear air. Essential for large festival stages and arena shows.

CO₂ FX →
Vertical spinning sparks combined with horizontal CO₂ cryo jets create a multi-axis effects moment — rotating sparks sweeping overhead while cryo fog blasts across the stage floor. Two effects, two planes of motion, one coordinated impact.

Stage Lighting →
Moving head beams tracking through the Sparknado's rotating fountain create intersecting light-and-spark patterns. Since both elements involve motion, the visual complexity compounds — especially effective when beam movements are programmed to counter-rotate against the spark direction.

Frequently Asked Questions

How is the Sparknado different from a standard cold spark machine?
Standard cold spark machines fire a single spark column straight up from a fixed nozzle. The Sparknado has two nozzles mounted on a rotating assembly that spins through a full 360° arc with adjustable speed and bidirectional rotation. The result is a wide, sweeping spark tornado instead of a static fountain column. The visual difference is dramatic — it's a volumetric effect versus a linear one.

Can I use it indoors?
Yes, with important clearance requirements. The minimum recommended ceiling height for indoor use is 16.4 ft (5 m), and a minimum safe distance of 16.4 ft (5 m) from personnel should be maintained. The rotating nozzles sweep sparks through a wider area than fixed machines, so you need more horizontal clearance as well. Always confirm with your venue's fire marshal before the event. Use indoor formula spark powder for any enclosed venue.

Why does it auto-stop after 30 seconds?
Built-in overheat protection. Cold spark machines generate significant internal heat during operation. The 30-second auto-cutoff prevents element damage and is an engineered safety feature, not a malfunction. To fire again, simply re-trigger from your DMX console or remote. Maximum recommended continuous output is approximately 1 minute — exceeding this risks permanent internal damage.

What DMX channels does it use?
Selectable between 2-channel and 4-channel modes. In 2-channel mode, channel 1 controls spark output (push to top to begin heating, then fire). In 4-channel mode, additional channels provide granular control over rotation speed, direction, and spark height. The auto-clean function is accessed via DMX channel 1 at values 221–239.

How many can I daisy-chain together?
Maximum 6 units via the dual AC power pass-through connections. Do not exceed this limit — overloading the power chain can cause damage or fire risk. For DMX, units chain via the 3-pin IN/OUT connectors using standard DMX daisy-chain wiring with sequential addressing.

How much spark powder does it use?
Consumption depends on spark height setting, rotation speed, and burst duration. The Sparknado uses powder at a similar rate to other 1300W cold spark machines — each 7 oz bag of spark powder provides approximately 10–15 minutes of output. For a typical event with 5–10 timed bursts, 2–3 bags per machine is a solid starting point.

Does it work outdoors?
Yes. The Sparknado operates across a temperature range of -10°C to 50°C (14°F to 122°F), covering most outdoor event conditions. Use outdoor formula spark powder for open-air environments. Wind will affect spark pattern visibility and drift — factor this into placement and clearance planning. The spinning effect actually performs better in light wind than static fountains because the rotation distributes sparks across a wider area.

Can I control rotation speed and direction?
Yes — in 4-channel DMX mode, rotation speed and direction are independently controllable from your console. You can program slow dramatic sweeps, fast aggressive spins, direction changes, and variable-speed sequences within your cue list. In remote control mode, rotation operates at default speed settings.

How do I clean it?
The Sparknado has a built-in auto-clean mode. Via remote, press the CLE button. Via DMX, push channel 1 to values 221–239. The automatic cleaning cycle runs for 30 seconds and clears residual powder from the internal feed path. You can stop the cleaning early by pressing the HEAT button on the remote or returning channel 1 below 221 on the console. After cleaning, pour out any remaining powder for separate storage to prevent moisture absorption.

Do I need to let it cool down after use?
Yes — do not turn off power immediately after firing. The internal cooling fan needs to run with power on to exhaust residual heat from the housing. Shutting off power immediately traps heat inside the enclosure and transfers it rapidly to components and the outer housing surface. Let the fan run for several minutes after the last burst before powering down.

What kind of spark powder does it use?
Standard cold spark powder (titanium alloy granules). Use indoor formula for enclosed venues and outdoor formula for open-air events. Never mix indoor and outdoor powder. Always ensure the machine is off and cool before loading powder, and cover the rubber plug after filling — do not add powder to the wrong fountain hole.

Get the Most From Your Sparknado

Use 4-Channel DMX for Programmed Shows
2-channel mode is fine for basic fire-and-forget triggering. But the Sparknado's real value shows up in 4-channel mode where you control rotation speed and direction independently. Program slow rotation during emotional moments (first dance, award reveal) and fast rotation during high-energy drops. Direction changes mid-cue create a visual "reset" that recaptures audience attention.

Fire in Bursts, Not Streams
The 30-second auto-protection is a hint about how this machine is designed to be used. Short, timed bursts on specific cue points create far more audience impact than continuous operation. A 5-second burst on the drop hits harder than 60 seconds of constant sparks that the audience has already tuned out. Program multiple short bursts across the show rather than fewer long runs.

Pair Spinning + Static for Layered Effects
Place the Sparknado center stage with standard fixed cold spark machines on flanks. Fire the static machines first to establish the spark visual, then trigger the Sparknado for the spinning tornado effect. The contrast between the static columns and the rotating tornado creates a visual hierarchy — the spinning effect reads as an escalation, which is exactly what you want for buildups and peaks.

Account for Wider Clearance Than Static Machines
A static cold spark machine needs clearance directly above. The Sparknado needs clearance in a 360° radius around the unit because the rotating nozzles sweep sparks outward in all directions. Plan your placement with a wider safety perimeter — especially for ceiling obstructions, low-hanging décor, drapes, and overhead rigging that might be within the rotation sweep path.

Run the Auto-Clean After Every Event
Before powering down, run the built-in cleaning cycle (remote CLE button or DMX Ch1 221–239). The 30-second auto-clean clears residual powder from the internal feed path. Then pour out any remaining loose powder into a sealed container for separate storage. Leftover powder sitting in the hopper absorbs moisture between events and causes feeding issues at the next show.

Let the Fan Run Before Powering Down
This is the most commonly skipped step that causes the most unnecessary damage. After the last spark burst, leave the machine powered on for several minutes so the internal cooling fan exhausts residual heat. The temptation to shut everything down and start striking the stage is strong — but powering off immediately traps heat inside the aluminum enclosure and shortens component life.

Respect the 6-Unit Daisy-Chain Limit
The dual AC power pass-through makes multi-unit setups fast to wire. But the maximum is 6 units per power chain — this is an electrical load limit, not a suggestion. For setups requiring more than 6 Sparknados (large festivals, arena productions), run separate power circuits for each chain of 6.

Test Rotation and Height During Setup
Before guests or audiences arrive, fire a test burst to confirm rotation direction, speed, and spark height are correct for the venue. Check clearance from the actual rotation sweep path — the sparks travel in an arc, not straight up, so ceiling proximity matters at the edges of the rotation sweep, not just directly above the machine.
