SurgeFX Mini Spark Pro | 900W DMX Cold Spark Machine

Built For Maximum Impact From a Minimum Footprint

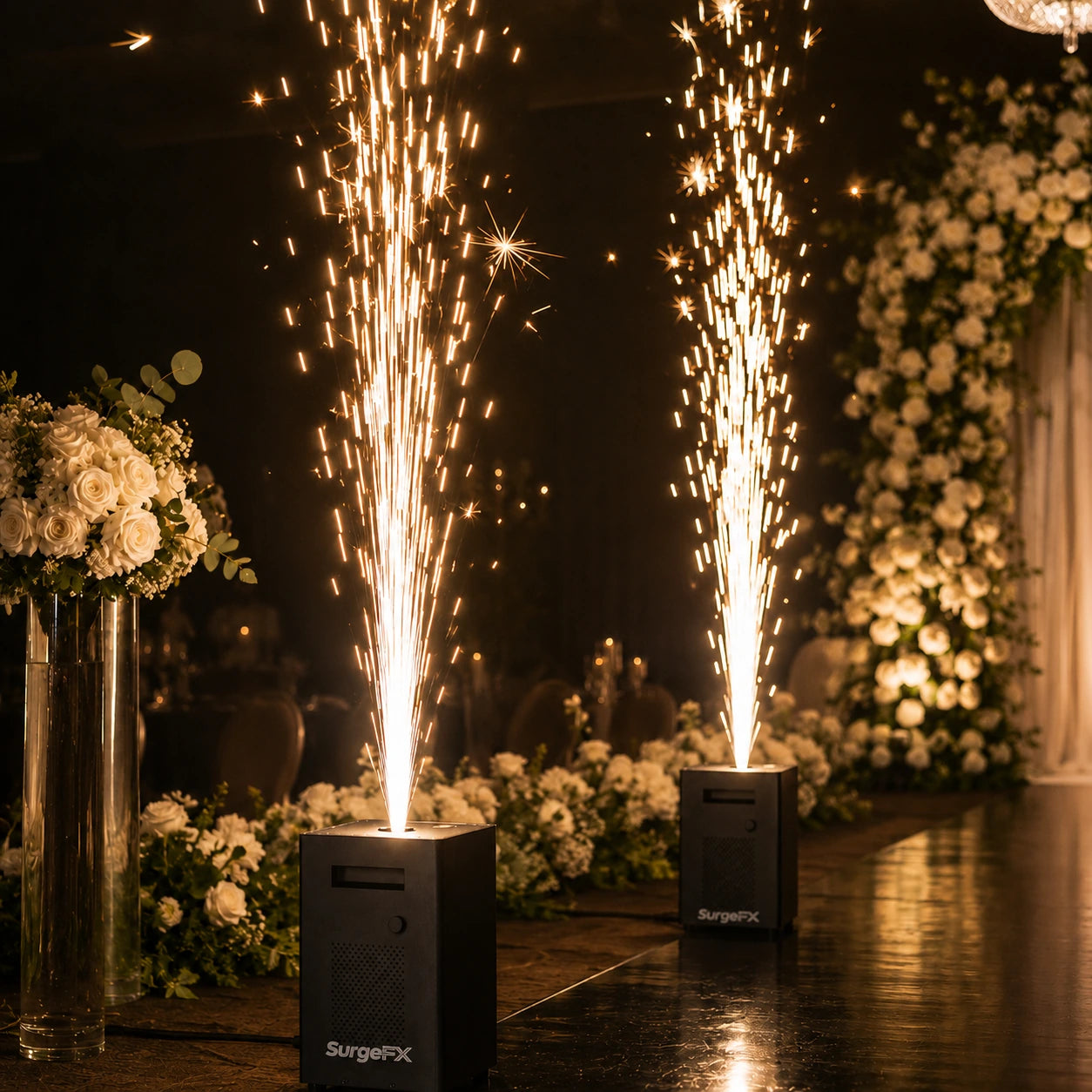

• Weddings & Grand Entrances — The Mini Spark Pro is the most popular cold spark machine format for weddings because it disappears. At 8.7" × 9.8", it hides behind floral arrangements, aisle markers, altar risers, and speaker stacks. But when it fires, the spark column reaches up to 19.7 feet — an instantly dramatic visual that photographs and films beautifully. The wireless remote with 10 preset effects lets a single operator trigger sparkle walkways, first dance moments, and send-off finales without running DMX cable through a decorated venue.
• DJ Sets & Club Events — The compact footprint fits where larger cold spark machines don't — beside the DJ booth, on a riser, behind the CDJs. One machine, one remote, no DMX console required for basic operation. Fire the preset effects on drops and transitions — the 30-meter remote range covers any club floor.
• Concerts & Live Stages — 2-channel DMX integrates the Mini Spark Pro into any show console for cue-based triggering. The lightweight 17.2 lb body means you can reposition between sets or add units to the rig without significant weight or truck space. The 19.7 ft max height delivers stage-scale spark columns from a machine that fits in a carry-on-sized footprint.
• Corporate Events & Product Launches — Cold spark effects add high-end production value without the permitting complexity of pyrotechnics. The Mini Spark Pro's small size and fast 3-minute heat-up mean it deploys quickly in hotel ballrooms, conference centers, and exhibition halls. The anti-tilt safety feature is especially relevant in convention environments where foot traffic near equipment is common.
• Festivals & Outdoor Events — Auto-switching voltage (110V–240V) means the Mini Spark Pro works anywhere in the world on any available power. At 17.2 lbs, it's the easiest cold spark machine to transport in quantity — load 4 or 6 into a vehicle with minimal space and weight impact. Use outdoor formula powder for full 6-meter height in open-air environments.
• Sports Intros & Walkouts — Line a tunnel or entrance path with Mini Spark Pros for a spark gauntlet effect. The compact body lets you place units closer together than larger machines, creating a denser wall of spark columns. DMX chains for timed sequential firing, or wireless remote for manual triggering.

900W Electromagnetic Heating System

The Mini Spark Pro uses electromagnetic induction heating — an internal coil generates a magnetic field that heats the metallic cold spark powder directly, rather than heating a traditional element that then transfers heat to the powder. This approach produces faster heat-up times (approximately 3 minutes to standby) and more consistent spark density throughout each burst. The 900W power output pushes spark height up to 19.7 feet (6 meters) with outdoor formula powder.

Adjustable Spark Height — 10 to 19.7 ft

Spark height is adjustable from 10 ft (3 m) to 19.7 ft (6 m) depending on powder type and control setting. The wireless remote offers three height presets — HIGH 1 (lowest), HIGH 2 (medium), and HIGH 3 (maximum) — for quick adjustment without a console. Via DMX, height is continuously adjustable across the full range using the height control channel. Actual height depends on powder formula: indoor formula produces a 6.5–13 ft (2–4 m) range, while outdoor formula reaches the full 10–19.7 ft (3–6 m).

2-Channel DMX512 Control

Streamlined 2-channel DMX layout for straightforward show integration. Channel 1 handles warm-up, emergency stop, and the auto-clean function. Channel 2 controls spark height — adjustable across 10 DMX height levels (F1 through F10) for precise output scaling from the console. Dual DMX connectors (IN/OUT) support daisy-chaining multiple units with sequential addressing. Maximum 4 units per DMX/power circuit.

Wireless Remote with 10 Preset Effects

The included 2.4GHz wireless remote provides standalone operation with a 30-meter range. Beyond basic start/stop, the remote includes 10 pre-programmed spark display effects — sequential patterns, height variations, and timed burst combinations designed for common event scenarios. A single remote can control up to 15 machines simultaneously, making multi-unit setups possible without any DMX infrastructure.

For multi-machine setups, the remote enables chasing effects — sequential firing patterns like left-to-right, right-to-left, and center-outward bursts across a line of machines. These choreographed patterns turn a row of Mini Spark Pros into a coordinated spark sequence rather than individual columns.

Anti-Tilt Safety System

Built-in tilt detection automatically stops spark output if the machine is displaced beyond a safe angle. The digital display shows an E6 error code when tilt protection activates. This safety feature prevents sparks from firing in unintended directions if the unit is knocked, bumped, or placed on an uneven surface. To resume operation after a tilt event, return the machine to a level position and restart power.

4-Color Status Indicator Lights

Four color-coded LEDs provide instant status visibility from across the stage or venue:

• Red — Heating in progress (temperature displayed on LCD screen)
• Blue — DMX signal connected and locked
• Yellow — Error or warning condition (error code displayed on LCD)
• Green — Ready to fire

No guessing whether the machine is heated, connected, or in an error state — the indicators are readable at a glance during event setup and live operation.

Anti-Flaming ABS Housing

The enclosure is constructed from flame-resistant ABS plastic — rated to resist ignition at the high internal temperatures required for cold spark production. Internal cooling fan and ventilation ports prevent overheating during extended operation. The housing is lightweight and impact-resistant for frequent transport. Observation ports on the side allow visual inspection of internal components without disassembly.

Auto-Clean Mode (CLE Function)

Built-in cleaning cycle clears residual powder from the internal feed path. Activated via the remote control CLE button or DMX channel 1. Cleaning can be performed while the machine is on standby — no disassembly required. Run after every event to prevent powder buildup and moisture absorption between uses.

Burst-Based Operation with Overheat Protection

The Mini Spark Pro fires in approximately 30-second spray cycles. To fire again, re-trigger from the console or remote. This burst-based design protects the internal heating components — do not operate continuously for more than 1 minute, as sustained operation beyond this limit causes rapid internal temperature rise and risks permanent damage to the heating element. Built-in fuses automatically cut power in the event of voltage overload.

In The Box

• SurgeFX Mini Spark Pro Cold Spark Machine — 900W compact unit with anti-tilt safety, ready to deploy
• Wireless Remote Control — 2.4GHz with 10 preset effects, 3 height levels, and chasing modes
• Power Cord — Auto-switching for 110V–240V operation
• DMX Cable — 3-pin, for console connection or daisy-chaining
• Instruction Manual — Setup, DMX addressing (2-channel map), remote pairing, operation, and safety procedures
• 1-Year Limited Warranty — Parts and labor against manufacturing defects

Build Your Spark Production

Cold Spark Powder — Indoor Formula →
The consumable that powers the Mini Spark Pro for indoor events. Each 7 oz (200 g) bag delivers approximately 8–9 minutes of continuous spark effect. Indoor formula produces a 6.5–13 ft spark range — designed to cool faster at shorter distances for safe enclosed-venue use. Stock 2–3 bags per machine for typical events, more for shows with frequent cue points.

SurgeFX Cold Spark Machines →
The Mini Spark Pro excels as a workhorse in multi-unit deployments — its light weight and small footprint mean you can field more machines per event with less transport and setup overhead. Pair with larger specialty machines like the Sparknado (spinning effect) or Rota Spark 750 (directional aiming) as centerpiece effects, with Mini Spark Pros providing the flanking vertical columns.

Fog FX →
Spark columns through fog create illuminated vertical shafts — each spark trail lights up the suspended fog particles around it. With the Mini Spark Pro's 19.7 ft maximum height, the illuminated column reaches higher than any other cold spark machine in the catalog, creating the tallest visible light shaft through a fog layer.

Haze FX →
Haze extends the visual presence of spark columns by making the spark trails visible from greater distances. The 19.7 ft height advantage is especially impactful in haze — taller columns catch more haze volume and remain visible from further back in the venue.

CO₂ FX →
Vertical spark columns paired with horizontal CO₂ cryo jets create a multi-axis effects moment. The Mini Spark Pro's compact footprint means you can place spark machines and CO₂ cannons in tight proximity for coordinated fire-and-cryo combinations without crowding the stage.

Stage Lighting →
Spark columns create natural light catch points for beam and wash fixtures. Aim moving head beams to intersect the spark column — the titanium granules reflect and scatter the beam light, creating a bright focal point where beam and sparks meet.

Frequently Asked Questions

How is the Mini Spark Pro different from the other cold spark machines?
Three things: it's the smallest (8.7" × 9.8" footprint), the lightest (17.2 lbs), and it reaches the tallest (19.7 ft / 6 m with outdoor powder). It's also the only cold spark machine in the lineup with a built-in anti-tilt safety system and the included wireless remote with 10 preset effects. It's a compact workhorse designed for fast deployment and multi-unit setups, not a specialty motion machine like the Sparknado (spinning) or Rota Spark (directional aiming).

Why does it reach 19.7 ft when other cold spark machines top out at 16.4 ft?
The 19.7 ft (6 m) maximum is achieved with outdoor formula powder, which produces hotter, higher-projecting sparks designed for open-air use. With indoor formula powder, the Mini Spark Pro's height range is 6.5–13 ft (2–4 m) — lower than the other machines because indoor formula is specifically formulated to cool faster at shorter distances for enclosed venue safety. The 19.7 ft specification is an outdoor-only capability.

Can I use it indoors?
Yes — with indoor formula spark powder. Indoor formula produces a height range of 6.5–13 ft (2–4 m) with sparks that cool faster and are designed for proximity to people, décor, and enclosed ceilings. The minimum recommended indoor ceiling height is 16.4 ft (5 m) for full-height operation. The anti-tilt safety feature provides an extra layer of protection for indoor environments where the machine may be near foot traffic.

What's the difference between indoor and outdoor powder?
Indoor formula produces shorter-range sparks (2–4 m) that cool faster — required for enclosed venues where sparks are closer to people, ceilings, and décor. Outdoor formula produces taller sparks (3–6 m) with higher projection energy, designed for open-air environments with more clearance. Never use outdoor formula indoors — the sparks burn hotter and cool over a longer distance. Never mix the two formulas.

How long does a load of powder last?
Each 200g load provides approximately 8–9 minutes of continuous spark output. For events with timed bursts on specific cues (which is how most shows are run), a single load lasts through many more minutes of event time since you're firing in bursts, not continuously.

Why does it auto-stop after 30 seconds?
Built-in overheat protection. Each spray cycle runs approximately 30 seconds, then pauses. Re-trigger from DMX or remote to fire again. Do not operate continuously for more than 1 minute — sustained firing causes rapid internal temperature rise and risks permanent heating element damage. The burst-based design also produces better visual impact — short, timed bursts on specific cue points hit harder than continuous streams.

How many can I run from one remote?
Up to 15 machines from a single 2.4GHz wireless remote. The remote's chasing effects feature enables sequential firing patterns across the full group — left-to-right, right-to-left, center-outward, and other patterns that create coordinated spark sequences without any DMX console or cable.

How many can I daisy-chain on DMX?
Maximum 4 units per circuit. This is lower than some other cold spark machines in the lineup — do not exceed it. Running too many machines on a single circuit risks damage or fire. For setups requiring more than 4 units, run separate circuits.

What does the anti-tilt feature do?
If the machine is bumped, knocked, or placed on a surface that's not level enough, the built-in tilt sensor automatically stops spark output and displays an E6 error code on the LCD screen. This prevents sparks from firing in unintended directions. To resume: return the machine to a level position, restart power, and re-trigger normally.

How do I clean it after an event?
Press the CLE button on the remote (or trigger via DMX channel 1) to run the built-in auto-clean cycle. This clears residual powder from the internal feed path while the machine is on standby — no disassembly required. After cleaning, pour out any remaining loose powder into a sealed container for storage. The residue on the floor from spark fallout is non-toxic and non-staining — sweep or vacuum it up.

Does it work on international power?
Yes. The Mini Spark Pro has auto-switching voltage that accepts 110V–240V at 50/60Hz. It works on any standard power outlet worldwide without a transformer or adapter (though you may need a plug adapter for the physical outlet shape).

Get the Most From Your Mini Spark Pro

Use the Right Powder for the Venue
This is the single most important operational decision. Indoor formula for enclosed spaces — it produces 6.5–13 ft sparks that cool faster for safe proximity. Outdoor formula for open air — it reaches the full 19.7 ft maximum. Using outdoor powder indoors creates a genuine safety hazard: the sparks burn hotter, travel further, and cool over a longer distance than an enclosed ceiling allows. Never mix formulas, and never substitute.

Use the Remote's Preset Effects for Weddings
The 10 pre-programmed effects on the wireless remote were designed for exactly this type of event — a single operator running multiple machines without a DMX console. Pair 4–6 Mini Spark Pros along an aisle, link them to one remote, and use the chasing effects for sequential spark patterns during the walk. Center-outward burst for the first kiss. Full simultaneous for the exit. You get a choreographed spark show with one button press per cue.

Fire in Bursts, Not Streams
The 30-second auto-cycle is a feature, not a limitation. Short, timed bursts on specific moments hit exponentially harder than continuous operation. A 5-second burst on a DJ drop creates more audience reaction than 60 seconds of constant sparks. Program multiple short bursts across the event — the machine fires, pauses, fires again. Each burst is a fresh impact moment.

Deploy in Quantity — This Machine Was Built for It
At 17.2 lbs and 8.7" × 9.8", the Mini Spark Pro is designed for multi-unit deployments. Four units fit in the trunk of a sedan. Six fit in an SUV. A single remote controls up to 15. This is the machine you field when you want a wall of spark columns, a spark-lined aisle, a perimeter ring, or a stage front line-up — effects that require many machines, which means each machine needs to be small, light, and fast to set up.

Check the Indicator Lights Before Firing
Green means ready. Red means still heating. Yellow means something's wrong (check the LCD for the error code). Blue means DMX signal is locked. Make it a habit to visually confirm green on every unit before the event goes live — the color-coded indicators are readable from across a stage.

Shake Gently If Output Decreases Mid-Show
If the spark fountain starts losing density during an extended event, the powder may have settled unevenly in the hopper. A gentle shake while the machine is on standby (not during active firing) helps redistribute the powder for more consistent feed. This is a normal characteristic of gravity-fed powder systems.

Run Auto-Clean After Every Event
Before powering down, hit the CLE button on the remote to run the built-in cleaning cycle. This clears residual powder from the internal feed system. Then pour out any remaining loose powder into a sealed container. Leftover powder sitting in the hopper absorbs moisture between events and causes feeding issues at the next show.

Use Observation Ports for Quick Health Checks
The side of the housing has observation ports — remove the rubber plug to visually inspect the internal chain and feed mechanism without disassembling the machine. Make this a pre-event check: quick visual confirmation that nothing is jammed, clogged, or out of position before you heat up and fire.
