Elemental Spark | Waterproof Outdoor Spark Machine

Built for Environments Where Weather Is a Variable

• Outdoor Festivals & Music Events — The core use case. Multi-day festivals can't pull effects equipment every time the forecast shifts. The Elemental Spark's IPX5 rating means it keeps operating through rain — water jets from any direction won't compromise the electronics or the spark output. Stage it at FOH, on the deck, flanking the main stage, or along festival pathways, and leave it in position regardless of conditions. Stainless steel body resists corrosion from sustained moisture exposure that would degrade ABS or painted steel housings over a multi-day run.
• Permanent Outdoor Installations — Theme parks, outdoor amphitheaters, waterfront venues, resort entertainment areas, and architectural installations where the machine lives outdoors full-time. The Elemental Spark is designed for environments where bringing the equipment inside between uses isn't practical. The stainless steel housing and sealed IPX5 electronics are built for continuous outdoor exposure, not just occasional rain tolerance.
• Outdoor Wedding Venues — Garden ceremonies, vineyard receptions, beachfront celebrations, rooftop events. Outdoor weddings are weather-dependent by nature, and the couple isn't canceling their grand entrance because of drizzle. The Elemental Spark lets the production crew commit to cold spark effects in the run-of-show without a weather contingency that pulls the moment. If it rains, the sparks still fire.
• Stadiums & Sporting Events — Goal celebrations, halftime shows, opening ceremonies, player introductions. Stadium environments are fully exposed and operate regardless of weather. The 19.7 ft maximum spark height provides the visual scale these venues need, and the stainless steel body handles the sustained outdoor exposure of a season-long installation.
• Waterfront & Pool Events — Venues near water — marina events, pool parties, lakeside celebrations, cruise ship entertainment decks — create constant humidity and splash exposure that standard cold spark machines aren't rated for. IPX5 handles directed water jets, which covers splash, spray, and rain simultaneously.
• Corporate Outdoor Galas & Product Launches — High-profile outdoor events where the production budget demands effects regardless of conditions. Rain plans exist for tents and guests — now the effects equipment has its own rain plan built into the hardware.

IPX5 Waterproof Rating

IPX5 means the machine is protected against water jets from any direction at 6.3 liters per minute from a 6.3mm nozzle at a distance of 3 meters. In practical terms: rain, sprinklers, splash-back from nearby water features, and accidental hose contact won't affect operation. This isn't splash-resistant or water-resistant — it's rated waterproof to an international testing standard. The sealed enclosure protects all internal electrical components, heating elements, and control circuitry from water ingress during active operation.

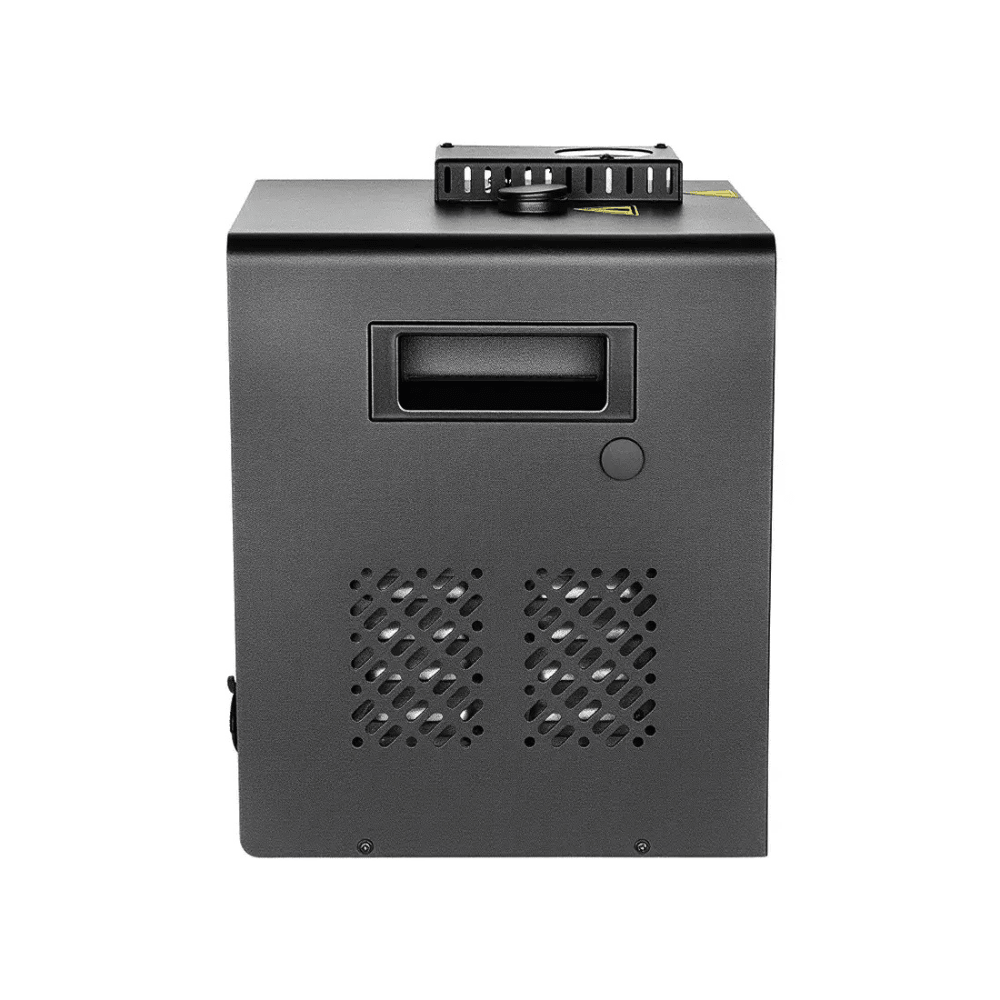

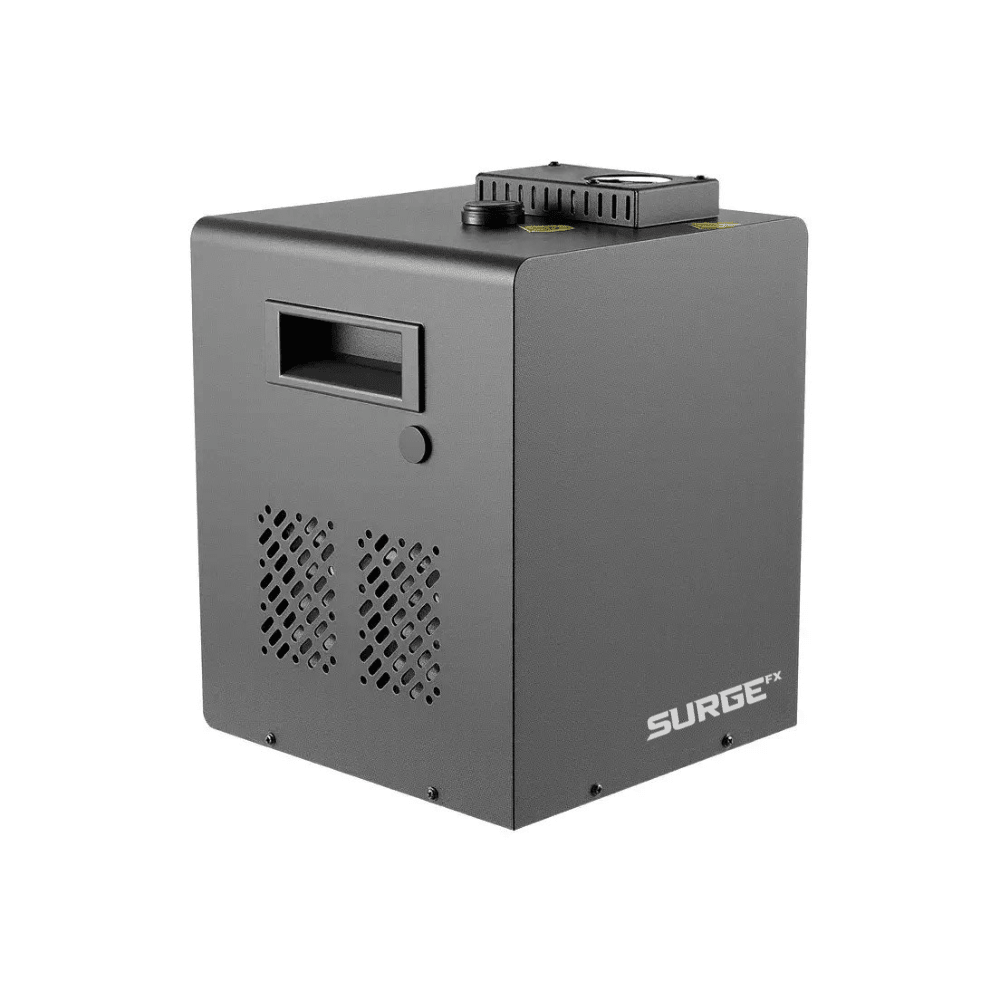

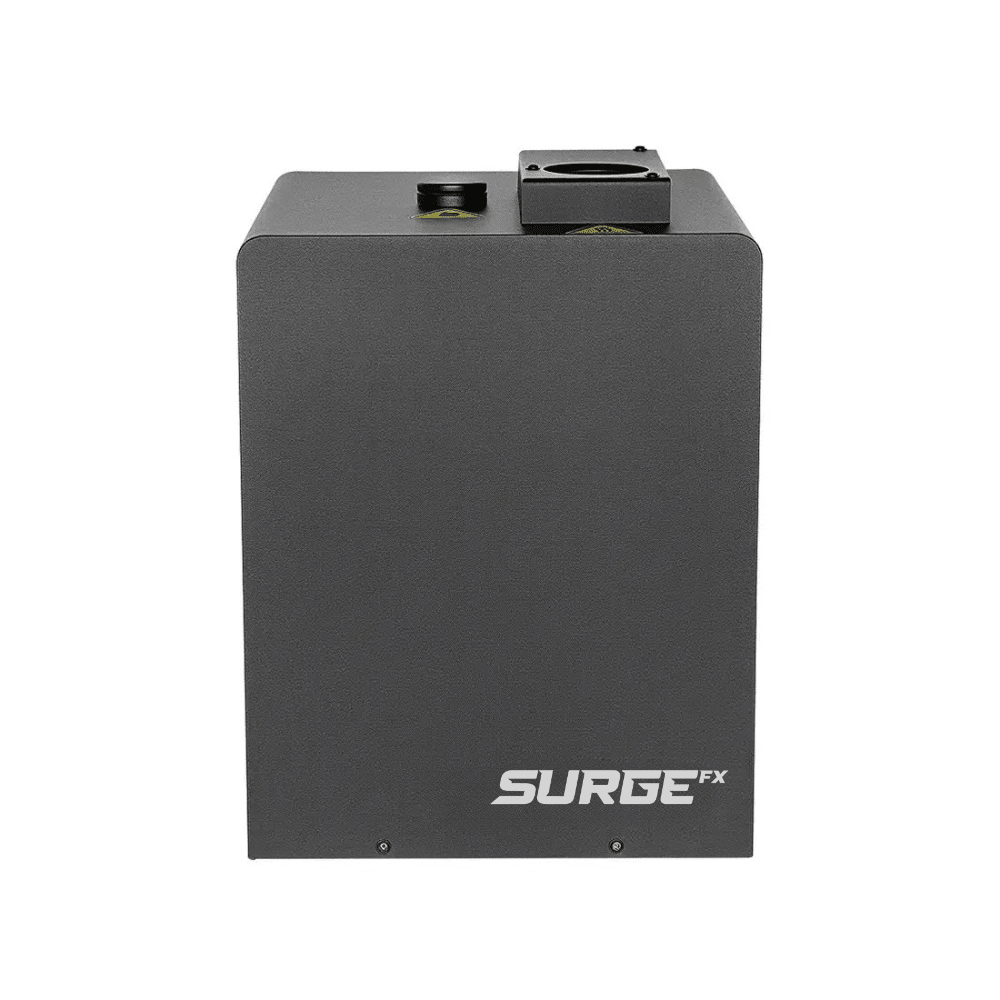

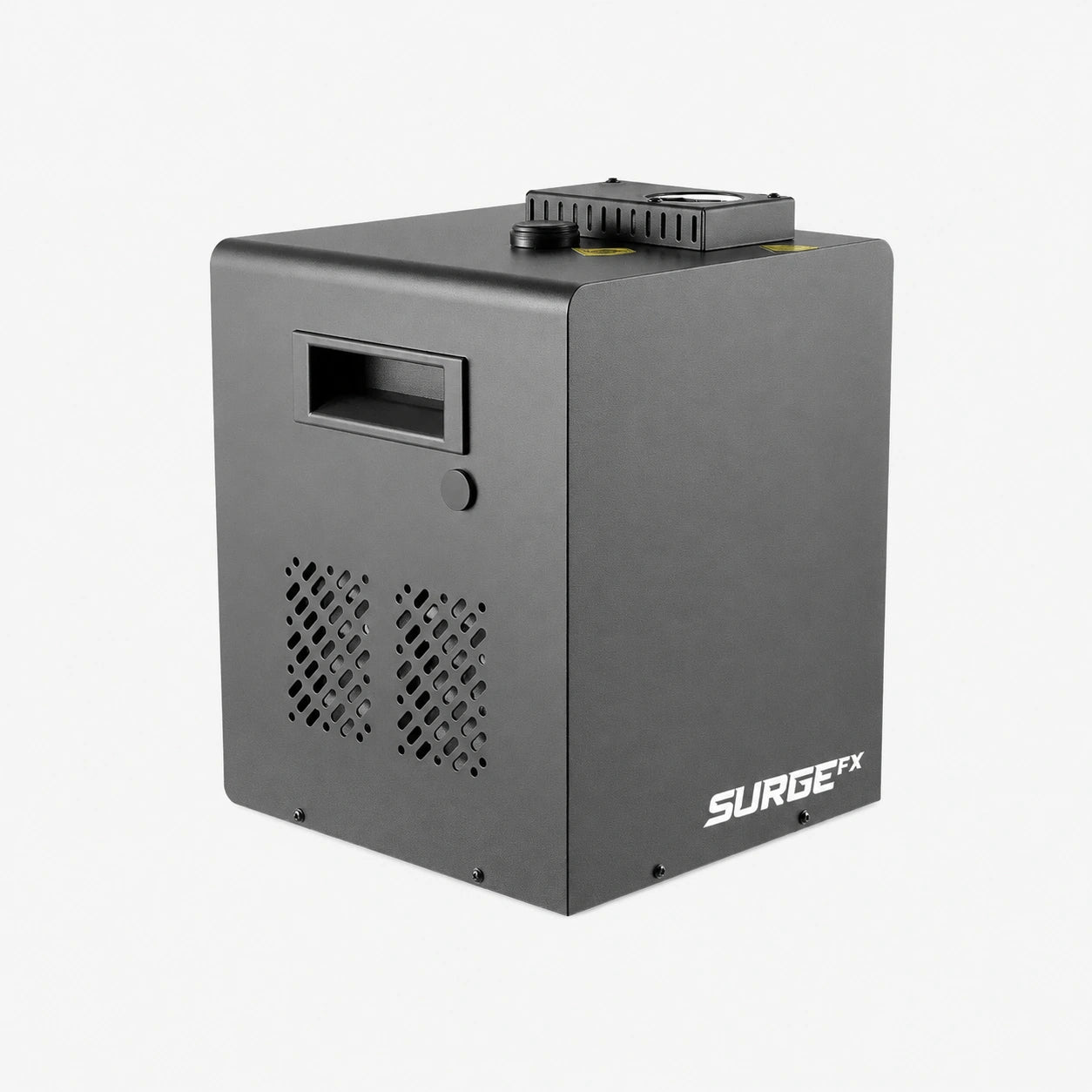

Stainless Steel Construction

The Elemental Spark uses a stainless steel body instead of the ABS plastic or painted steel found on other cold spark machines. Stainless steel resists corrosion from sustained moisture, salt air, humidity, and the oxidizing environment that outdoor installations create. For permanent outdoor placements — theme parks, amphitheaters, waterfront venues — the housing material matters as much as the waterproof rating. ABS degrades under UV exposure; painted steel rusts at joints and fastener points. Stainless steel does neither.

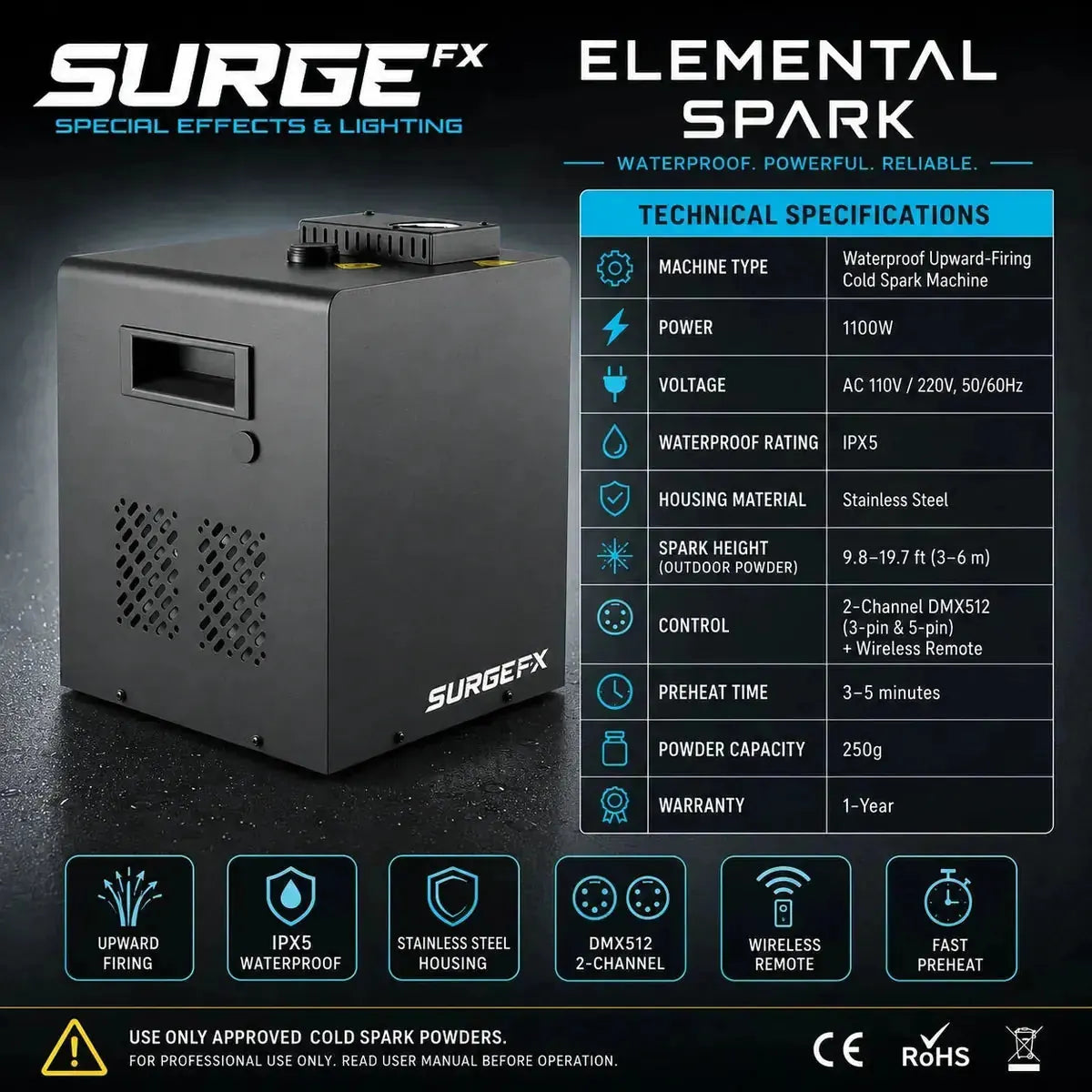

1100W Output — Built for Full-Height Outdoor Performance

The 1100W heating system drives spark output up to 19.7 feet (6 meters) with outdoor powder, with adjustable height control down to 9.8 feet (3 meters). The higher wattage delivers faster, more consistent heating — the internal elements reach operating temperature in 3–5 minutes and maintain stable output across extended show runs, even in cooler outdoor conditions where ambient temperature can slow preheat times on lower-wattage machines.

Three Independent AC Motors with Auto-Clean

The powder feed system uses three independent AC motors rather than a single motor driving the entire mechanism. This provides more consistent powder delivery, better height control resolution, and built-in redundancy — if one motor has an issue, it doesn't take the entire system offline. The integrated auto-clean function runs the motors in a clearing cycle to purge residual powder from the feed path, preventing buildup that causes inconsistent output or blockages over time.

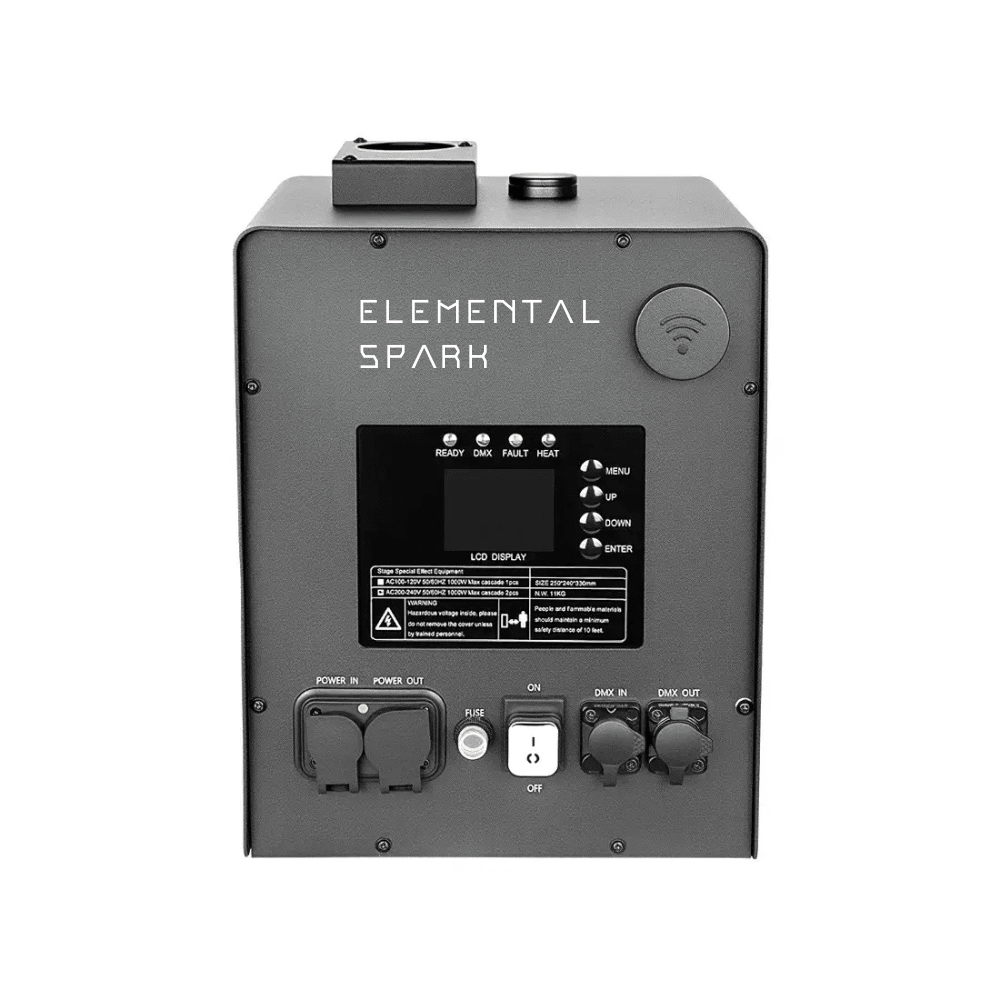

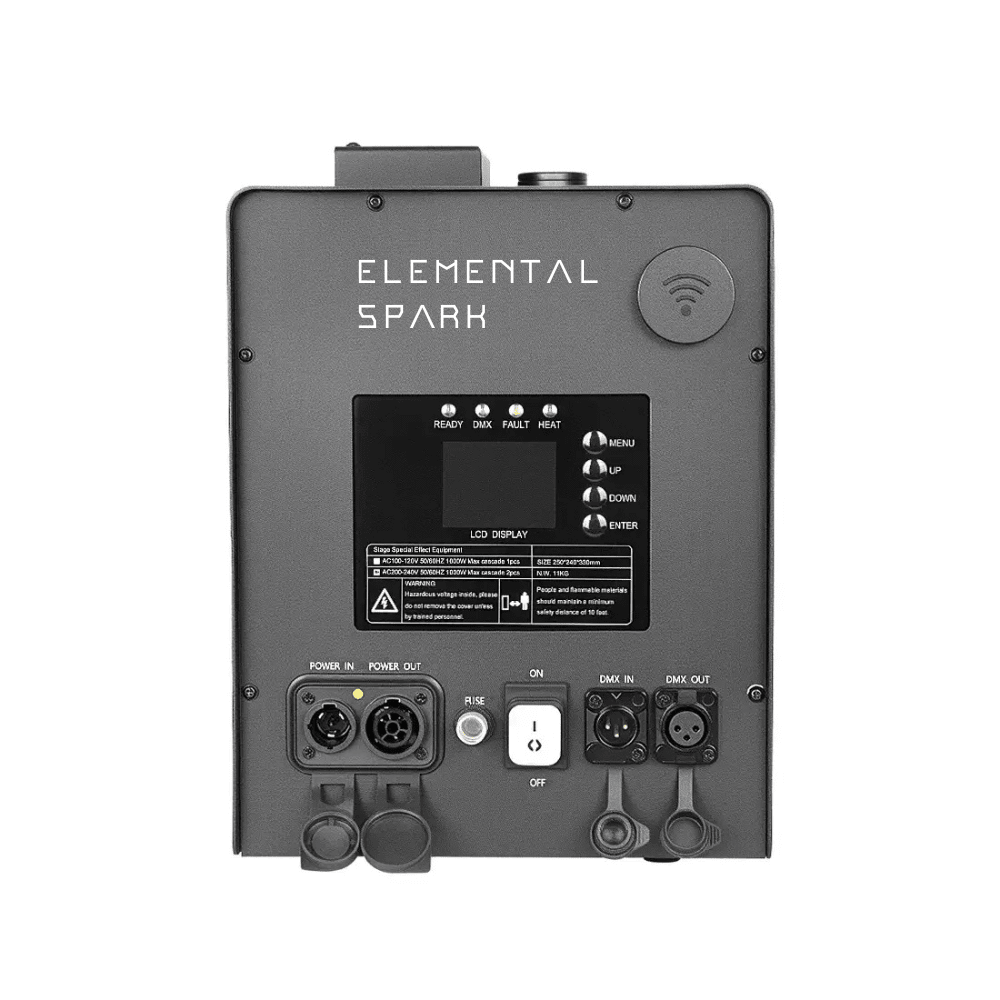

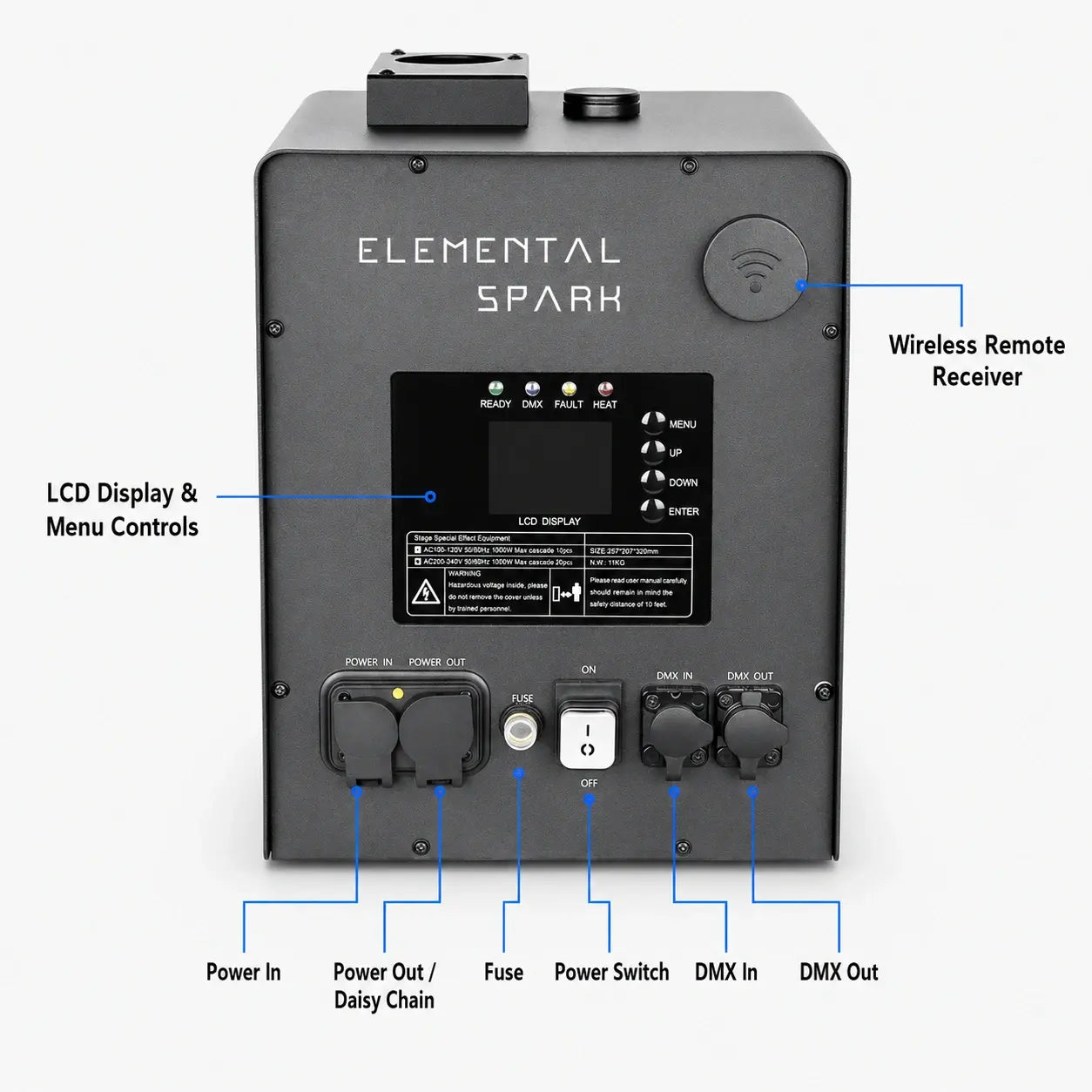

Dual DMX Connectivity — 3-Pin and 5-Pin

The Elemental Spark provides both 3-pin and 5-pin DMX512 connections with IN/OUT for daisy-chaining. Most cold spark machines in this class only offer 3-pin. The dual connector option means you can integrate directly into either wiring standard without adapters — critical for festival and touring rigs where the house DMX infrastructure varies from venue to venue. Connect up to 6 units on a single DMX/power daisy-chain.

2-Channel DMX Control

Simple, effective DMX operation using two channels:

• Channel 1: Warm-Up / Emergency Stop — initiates the heating cycle or immediately kills spark output
• Channel 2: Spark Height — adjustable output from minimum to maximum height

Two-channel operation keeps programming fast and console footprint minimal. For shows running multiple Elemental Sparks, each unit occupies just two channels on the console — you can run a full line of six machines on twelve channels total.

Wireless Remote Control

Included wireless remote provides standalone operation without a DMX console. Adjust spark height, trigger output, and control the machine from approximately 100 feet (30 meters) away. Ideal for events where a full lighting console isn't part of the production — weddings, corporate events, private parties — or as a backup control method for outdoor positions where running DMX cable is impractical.

250g Powder Capacity

The hopper holds 250 grams of cold spark powder per load — the largest capacity in the SurgeFX cold spark lineup. At standard consumption rates, a full load provides approximately 15–20 minutes of intermittent spark output. The larger capacity reduces the frequency of reloads during extended show runs, which matters for outdoor installations where access to the machine between acts may be limited.

In the Box

• Elemental Spark Machine — 1100W IPX5 waterproof cold spark machine with stainless steel housing

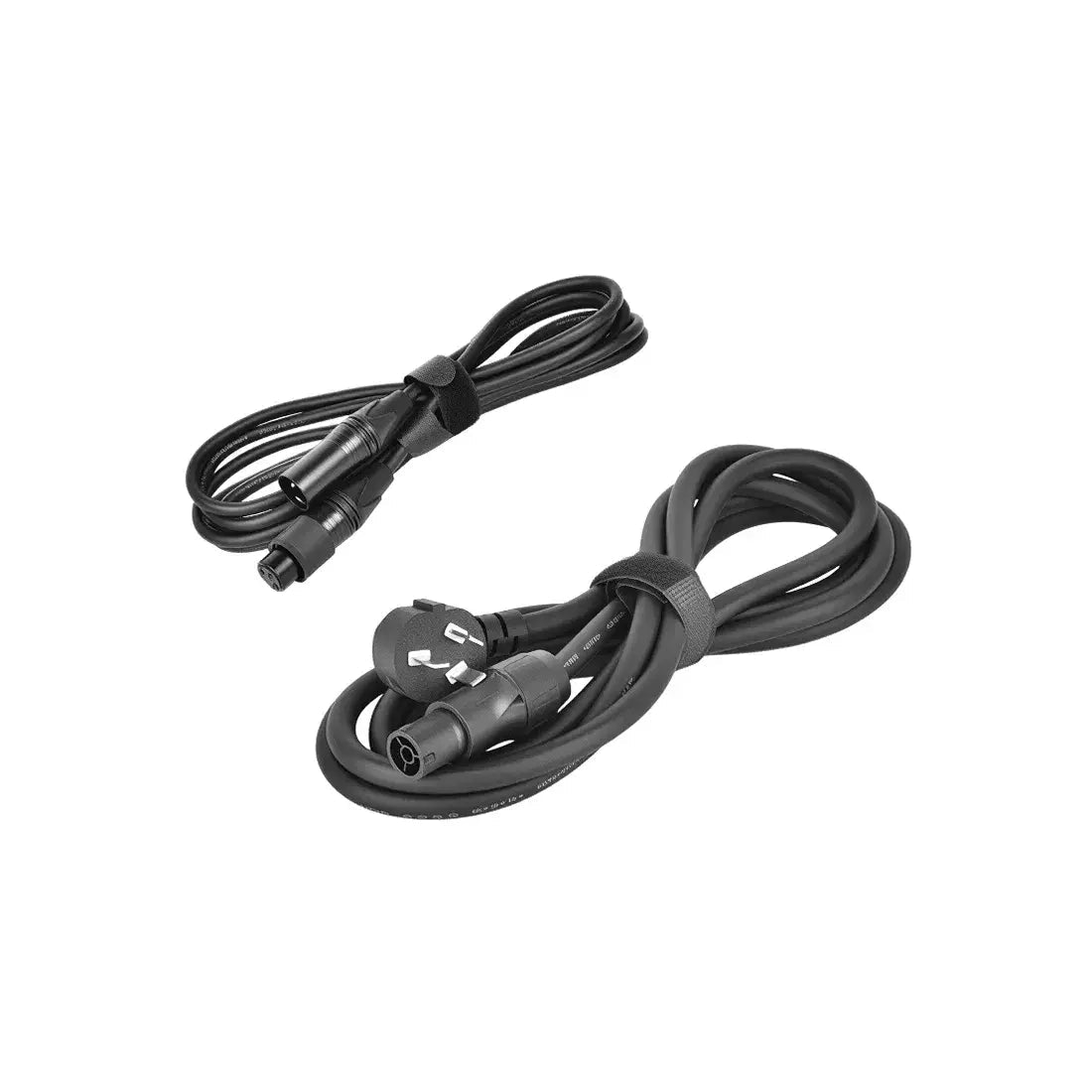

• Power Cord — 10 ft (3 m) power cable
• DMX Signal Cable — for daisy-chain connectivity
• Wireless Remote Control — standalone operation without DMX console
• Instruction Manual — setup, DMX addressing, operation, and maintenance guide
• 1-Year Limited Warranty — parts and labor coverage against manufacturing defects

Build Your Outdoor Effects Rig

Cold Spark Powder — Outdoor Formula →
The Elemental Spark's primary consumable for outdoor use. Outdoor formula reaches the full 9.8–19.7 ft height range and is designed for open-air environments where higher spark temperatures dissipate safely. This is the powder you'll stock for the majority of Elemental Spark deployments.

Cold Spark Powder — Indoor Formula →
For covered venues, tented events, or indoor positions where the Elemental Spark's waterproof rating isn't the primary factor but its 1100W power and stainless steel durability are. Indoor formula produces a lower, cooler spark output (6.5–13 ft) that's safe for enclosed spaces.

Sparknado 360° →
Pair the Elemental Spark's straight vertical columns with the Sparknado's rotating 360° output for visual contrast. Elemental Sparks flanking the stage as steady pillars, Sparknado center-stage as a spinning centerpiece — two different visual textures from the same effect category.

Mini Spark Pro →
Use Mini Spark Pros for indoor venue positions and Elemental Sparks for outdoor positions within the same event. Same spark height capability (up to 19.7 ft with outdoor powder), different environmental ratings — right tool for each position.

Rota Spark 750 →
Add directional moving-head spark effects alongside the Elemental Spark's fixed vertical columns. The Rota Spark's 540° pan and 120° tilt let you sweep and aim sparks while the Elemental Spark provides steady, anchored vertical output.

Fog Machines →
Cold sparks through fog create dramatically enhanced visibility — the sparks become visible light columns cutting through atmospheric haze. Pair the Elemental Spark with the Tempest 3000W for heavy fog or the Hydra for ground-level fog that the sparks rise through. Both effects combined create a production look that neither achieves alone.

Frequently Asked Questions

What does IPX5 waterproof mean?
IPX5 is an international ingress protection standard. The "5" means the device is protected against low-pressure water jets from any direction — specifically 6.3 liters per minute from a 6.3mm nozzle at 3 meters. In real-world terms: rain (including heavy rain), sprinkler overspray, splash from pools or fountains, and incidental hose contact during venue washdown. It does not mean the machine can be submerged underwater — that would require IPX7 or IPX8.

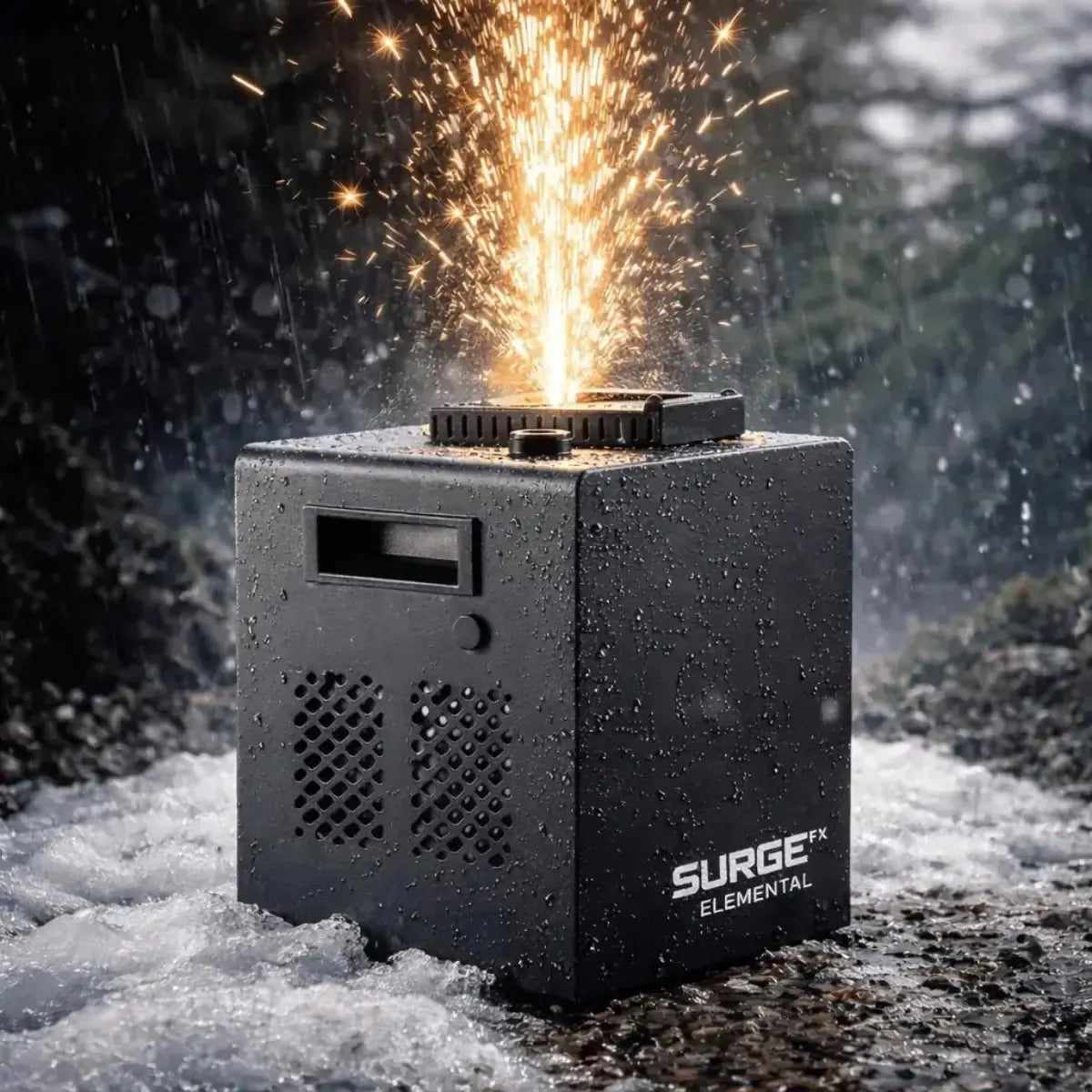

Can it really operate in the rain?
Yes. That's the entire point of this machine. The IPX5 rating and sealed stainless steel construction protect all internal electronics, heating elements, and control circuits from water during active operation. The Elemental Spark is designed to fire cold sparks while it's raining on the machine. No cover, no tent, no weather contingency needed for the equipment itself.

Why stainless steel instead of ABS?
ABS plastic (used on most cold spark machines) degrades under prolonged UV exposure and can become brittle in temperature extremes. Painted steel corrodes at joints, fasteners, and anywhere the paint chips. Stainless steel resists corrosion from moisture, salt air, humidity, and UV — making it the right material for a machine designed to live outdoors. For permanent installations, the housing material matters as much as the waterproof rating.

How is the Elemental Spark different from the Mini Spark Pro?
Both reach up to 19.7 ft with outdoor powder. The key differences: the Elemental Spark is IPX5 waterproof with a stainless steel body (designed for wet and outdoor-permanent environments), while the Mini Spark Pro uses an ABS housing and is not waterproof (designed for portable indoor/outdoor use in fair weather). The Elemental Spark also runs at 1100W vs. 900W, has a larger 250g powder hopper (vs. 200g), and includes both 3-pin and 5-pin DMX connections. Choose the Elemental Spark for outdoor-exposed positions; choose the Mini Spark Pro for portable, multi-unit deployments where weather isn't a concern.

What's the spark height range?
With outdoor powder: 9.8–19.7 ft (3–6 m). With indoor powder: 6.5–13 ft (2–4 m). Height is adjustable via DMX (Channel 2) or the wireless remote. Always use the correct powder formula for your environment.

How long does the powder last?
The 250g hopper provides approximately 15–20 minutes of intermittent spark output per load. Runtime varies by spark height setting and burst duration — lower heights and shorter bursts consume less powder per cycle. For extended events, plan for reloads. Always power off and allow the machine to cool before adding powder.

Can I daisy-chain multiple units?
Yes — up to 6 Elemental Sparks on a single DMX/power daisy-chain. Both 3-pin and 5-pin DMX connections have IN/OUT ports for pass-through. For larger installations, split into multiple chains of 6 or fewer units each.

Does it work indoors too?
Yes. The waterproof rating doesn't limit it to outdoor use — it just makes outdoor use possible. The Elemental Spark works indoors with indoor powder formula, producing sparks at 6.5–13 ft. The stainless steel body and 1100W power are advantages in any environment.

What's the safe distance from people?
16.4 feet (5 meters) minimum clearance from personnel and flammable materials. This is larger than some other cold spark machines in the lineup because of the higher wattage and maximum spark height. Plan your stage layout with this clearance zone in mind.

Why is the safe distance 5 meters instead of the 4–5 feet on other models?
The Elemental Spark is a higher-powered machine (1100W) with a taller maximum output (19.7 ft). The greater safe distance accounts for the larger spark dispersion radius at full height. The falling spark zone extends wider when sparks originate from 20 feet up versus 13 feet. More power, more height, more clearance.

Can I leave it outdoors permanently?
The IPX5 rating and stainless steel body are designed for sustained outdoor exposure. For permanent installations, ensure the power and DMX connections are also weatherproofed (use weatherproof cable glands and sealed junction boxes at connection points). The machine itself is built for it — make sure the infrastructure around it matches.

What certifications does it have?
CE, FCC, and RoHS certified.

Get the Most From the Elemental Spark

Weatherproof the Whole Signal Chain — Not Just the Machine
The Elemental Spark is IPX5 waterproof, but your DMX cables, power connections, and signal chain may not be. For outdoor installations, use weatherproof cable glands at all connection points, sealed junction boxes for power distribution, and outdoor-rated DMX cable. The machine can handle the rain — make sure everything connected to it can too. A waterproof machine with a non-waterproof power connection is still a single point of failure.

Use Outdoor Powder for Outdoor Events (Every Time)
Outdoor powder is formulated to produce higher, brighter sparks that are visible in open-air environments with ambient light, wind, and distance. Indoor powder produces a lower, cooler output designed for enclosed spaces. Using indoor powder outdoors gives you underwhelming height and visibility. Using outdoor powder indoors is a fire risk. Match the powder to the environment — there's no universal formula.

Respect the 5-Meter Safe Distance
The Elemental Spark's safe distance is 16.4 feet — noticeably more than some compact cold spark machines. At full 19.7 ft output, the falling spark zone covers a wider radius. Map this clearance zone during advance and make sure it's respected during the event. Mark it with tape during setup. Brief the event team. This isn't a suggestion — it's the safety specification.

Run the Auto-Clean Cycle After Every Event
The three independent motors include a built-in auto-clean function. Run it after every use — especially in outdoor environments where moisture and particulates can accelerate residue buildup in the powder feed path. A clean machine is a reliable machine. Skipping the clean cycle leads to inconsistent output, feed blockages, and eventually a machine that won't fire when you need it.

Plan Reloads Into the Show Timeline
250g gives you 15–20 minutes of intermittent output. For a 4-hour outdoor event, that's 2–3 reloads per machine. Each reload requires powering off, allowing the machine to cool, opening the hopper, adding powder, and resealing. That's 5–10 minutes of downtime per reload. Plan reload windows during set breaks, DJ transitions, or program segments where sparks aren't called for. Don't wait until the machine runs dry during a key moment.

Respect the 10-Cycle Limit
Do not fire more than 10 consecutive spray cycles without allowing a cooldown period. The 1100W heating system generates significant internal temperatures, and continuous rapid cycling without breaks can trigger overheat protection or damage components over time. Program your show with natural pauses between spark cues — this is better for the machine and better for the audience (each burst feels fresh rather than constant).

Use Both DMX Connector Options Strategically
The Elemental Spark provides both 3-pin and 5-pin DMX. For festival rigs where you're patching into house infrastructure that varies venue to venue, this eliminates adapter hunting. For permanent installations, match the connector to whatever your venue's standard wiring uses. Having both options on the machine means one less adapter, one less potential failure point in the signal chain.

Stainless Steel Still Needs Maintenance

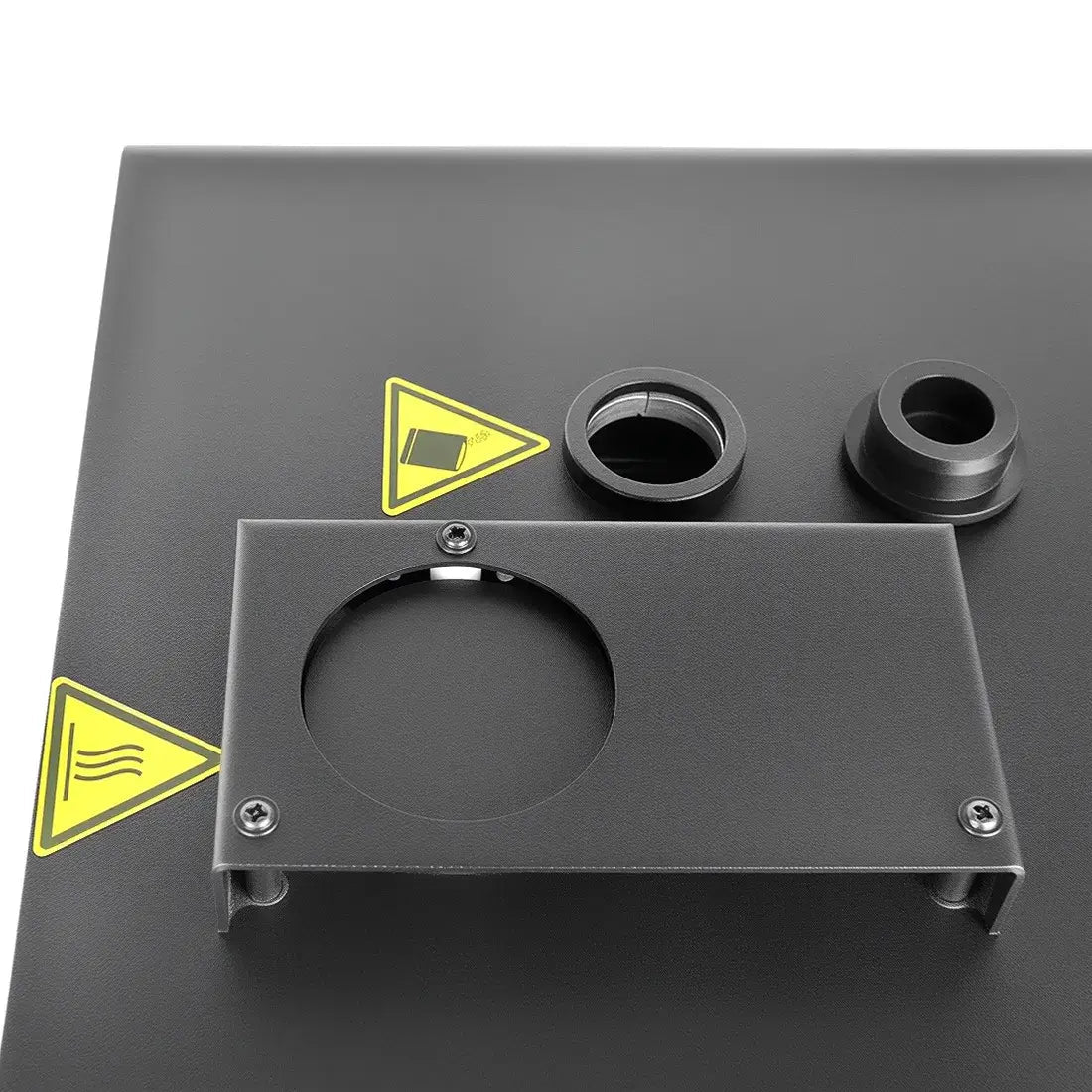

Stainless steel resists corrosion — it's not immune to it. In salt air environments (coastal venues, cruise ships, waterfront installations), rinse the exterior with fresh water after prolonged salt exposure. Inspect the nozzle opening for powder residue buildup after every use. Check DMX and power connection seals periodically if the machine is installed permanently outdoors. The housing is built for the environment, but proactive maintenance extends its lifespan significantly.

Test Before the Event — Especially After Transit
Run a full preheat and test fire during setup, before guests arrive. Verify DMX communication, check remote range from the operator position, and confirm spark height output. Transit can loosen connections or shift internal components. A 5-minute test fire during load-in catches problems while you still have time to troubleshoot. Finding out the machine won't fire during the grand entrance is not recoverable.
