SurgeFX Hydra Dual Output Ground Fog Machine – 3000W Low-Lying Fog Effect System

Built For Ground-Level Atmosphere

• Wedding First Dances — The signature "dancing on clouds" effect. Dense, ankle-to-knee-height fog blankets the dance floor and dissipates naturally within minutes. No residue, no lingering smell, no staining wedding attire.
• Theatrical Productions & Stage Shows — Graveyard scenes, dream sequences, forest floors, and ethereal transitions. Ground fog creates depth and atmosphere without obscuring performers or blocking sightlines from the audience.
• Concert & Live Event Production — Stage-level fog that adds visual dimension to front wash lighting and floor effects. Lighting designers use low-lying fog to define the stage plane and separate performers from the background.
• Haunted Attractions & Theme Parks — Dense ground fog in corridors, cemetery scenes, and walkthrough environments. The dual-head output covers wide paths and large rooms faster than single-output machines.
• Film & Photography Sets — Controlled, repeatable ground-level atmosphere for exterior cemetery shots, interior mood scenes, and product photography backgrounds. Water-based fog is residue-free and safe for enclosed studio spaces.
• Corporate Events & Galas — Grand entrance reveals, stage presentations, and award ceremonies. Low-lying fog adds production value without triggering smoke detectors or creating haze that obscures presentation screens.

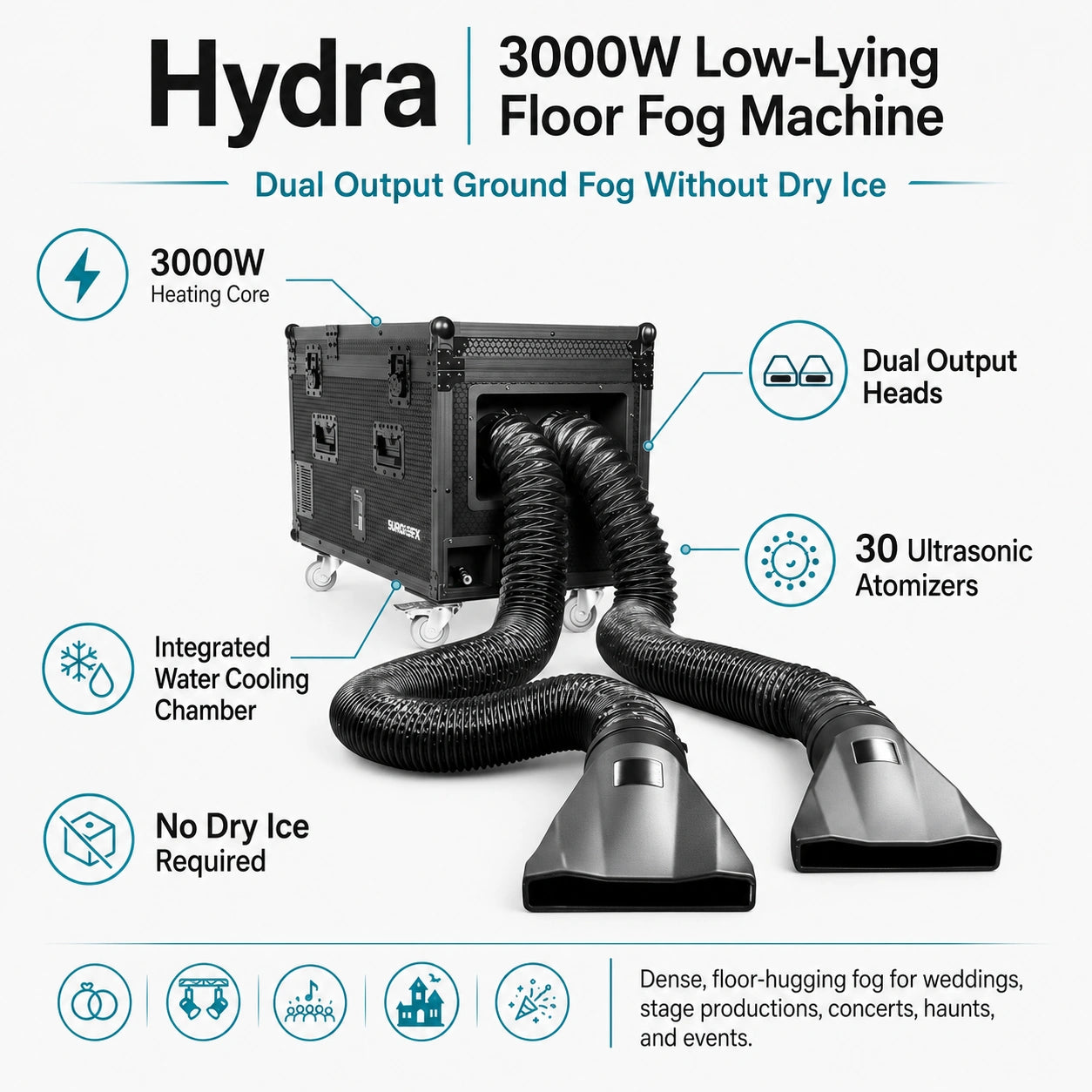

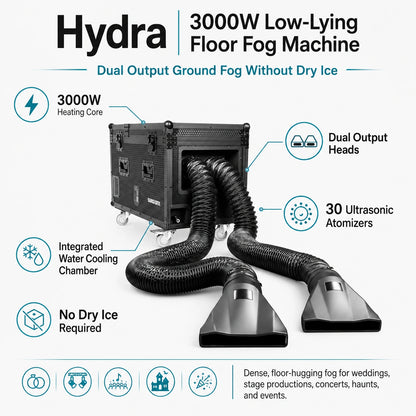

3000W Heating Core

High-wattage heating element produces dense, consistent fog output. The heater reaches operating temperature in approximately 4 minutes — fast enough to have the machine ready during a scene change, set break, or pre-ceremony setup window.

Integrated Water Cooling Chamber

The cooling chamber holds up to 10 liters of water and is responsible for the low-lying effect. Hot fog from the heater passes through this chamber, where 30 ultrasonic atomizers create a fine water mist that rapidly cools the fog. The cooled fog exits the machine denser and heavier than the surrounding air, causing it to stay on the ground rather than rise. This is the mechanical equivalent of dry ice cooling — without the dry ice.

Dual Output Heads

Two fog output heads release cooled fog in both directions simultaneously. This doubles your spread coverage compared to single-output machines and reduces the time needed to blanket a stage or dance floor. For large venues, position the machine center-stage and let both heads work outward — or aim both heads in the same direction for concentrated coverage on one side.

30 Ultrasonic Atomizers

The atomizer array creates an ultra-fine water mist inside the cooling chamber, producing smoother, denser fog with better ground adherence than older-generation water fog machines that used fewer atomizers. The finer the mist, the more effective the cooling — and the longer the fog stays low before dissipating.

Separated Mainboard Design

The control electronics are physically isolated from the water cooling chamber. In older designs, prolonged exposure to water mist degraded circuit boards and shortened machine life. The Hydra's separated architecture eliminates this failure mode, significantly extending the unit's service life and reducing maintenance costs over time.

Visible Water Level Indicator

An external water level line on the cabinet lets you monitor cooling water levels at a glance — no opening the machine mid-show to check. Combined with the external drain valve for easy water changes between events, the Hydra is designed for fast turnaround between shows.

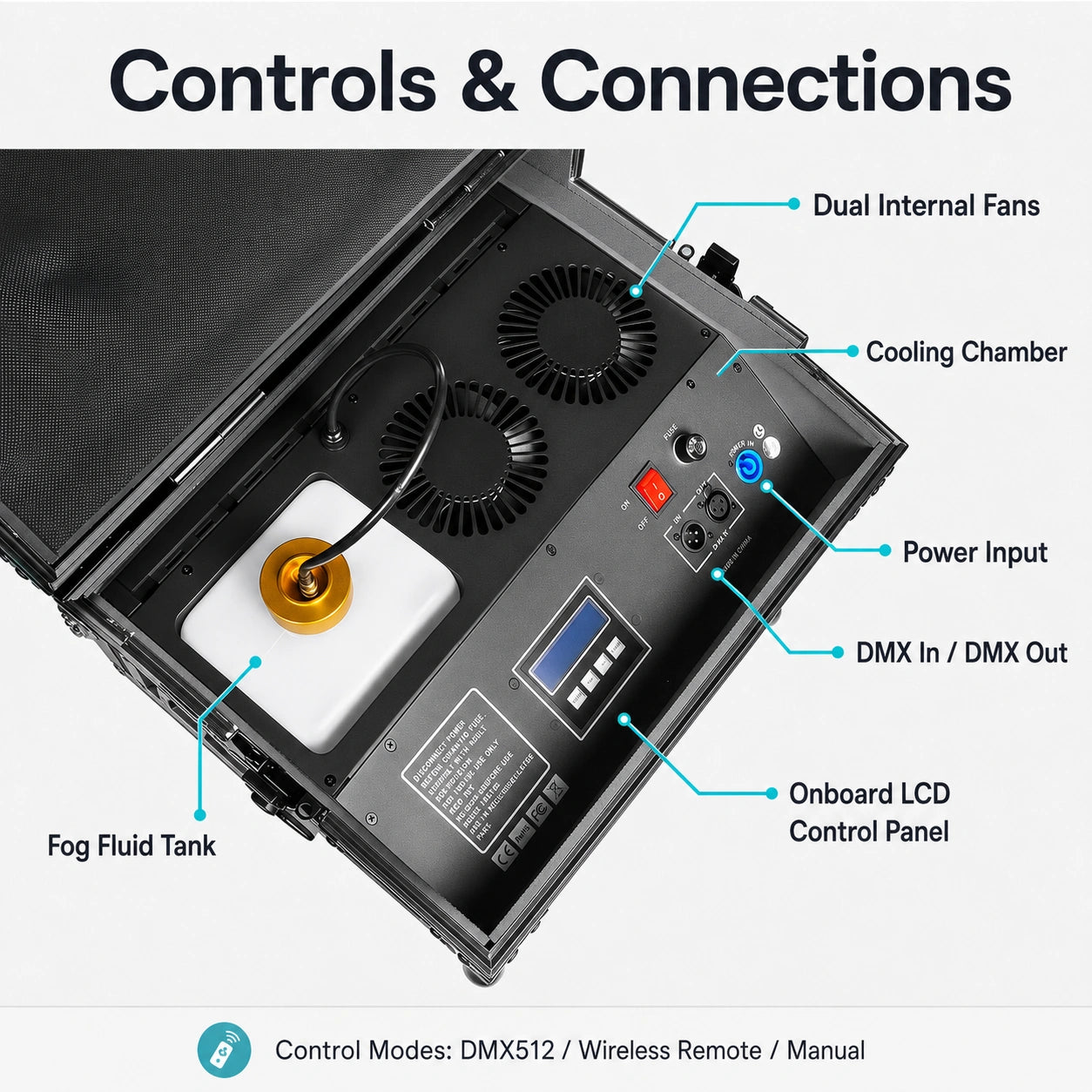

DMX512 2-Channel Control

Full DMX integration with 2 channels allows precise control from your lighting console. Channel 1 controls fog output volume, and Channel 2 controls timing/interval. Also includes a wireless remote control and manual on-board controls for standalone operation without a console.

Programmable Interval Timer

Set the duration and interval of each fog burst from the on-board controls or DMX. When output volume is set below approximately 29%, the machine produces water mist only — no fog — giving you an additional atmospheric option for lighter scenes or transitions.

Silent Wheels & Handle

At 119 lbs, the Hydra is a substantial unit. Silent-running wheels and an integrated handle let you reposition the machine during events without creating noise that disrupts performances. Roll it into position during setup, reposition between sets, or move it off-stage when the effect is complete.

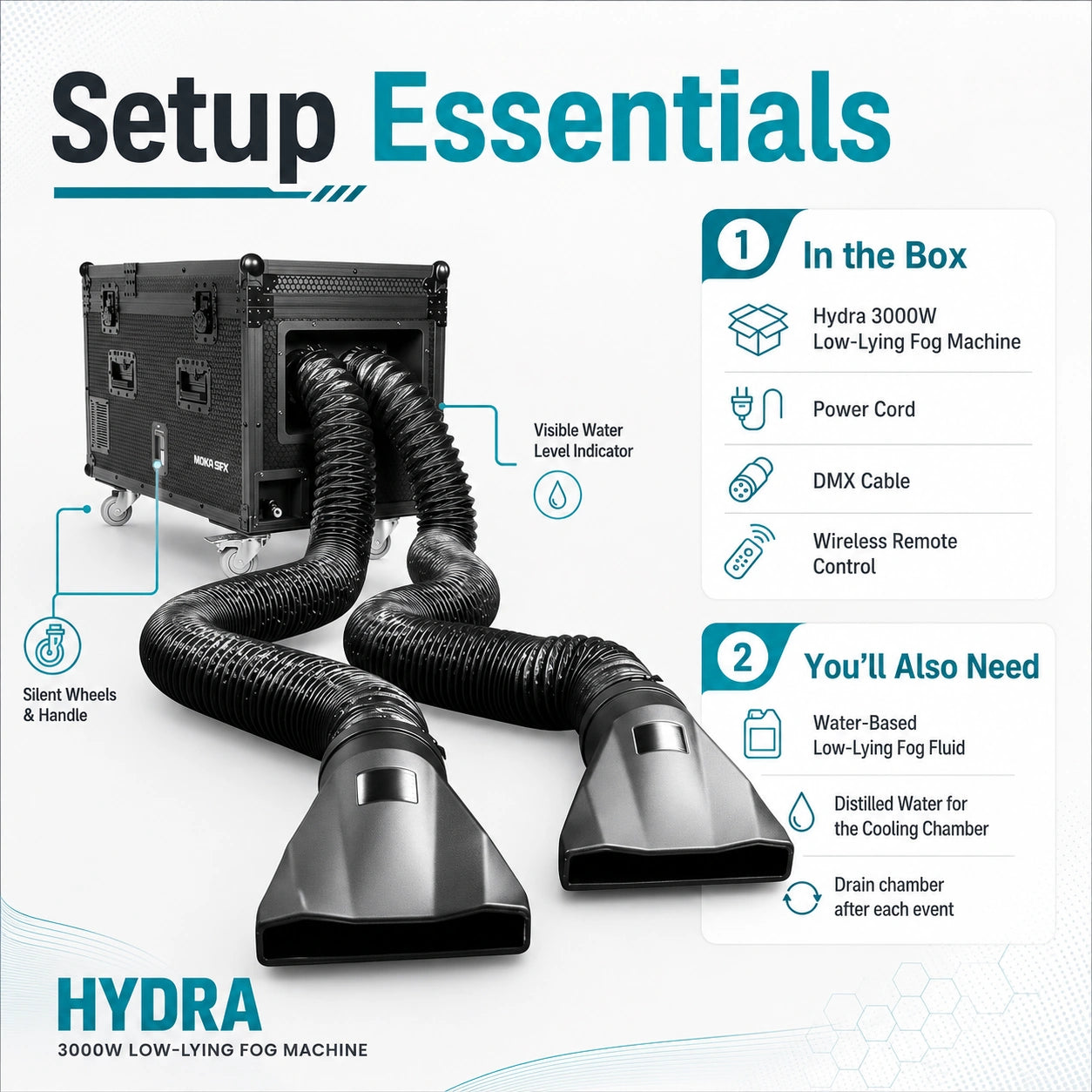

In the Box

• SurgeFX Hydra 3000W Low-Lying Fog Machine
• Power Cord
• DMX Cable
• Wireless Remote Control

You'll Also Need

• Low-Lying Fog Fluid — Water-based low-lying fog fluid required. We recommend SurgeFX Nebula™ Liquid Gravity for best results. Standard fog fluid will not produce the low-lying effect. Not included.
• Distilled Water — Required for the cooling chamber. Do not use tap water — mineral deposits will damage the ultrasonic atomizers over time. Available at any grocery or hardware store. Not included.

Complete the Effect

SurgeFX Nebula™ Liquid Gravity Fog Fluid →
Purpose-formulated low-lying fog fluid that produces denser, heavier vapor than standard fog fluid. The fluid formulation is critical — standard fog fluid will rise instead of staying on the ground, defeating the purpose of the cooling chamber. Liquid Gravity is designed specifically for water-cooled ground fog machines like the Hydra.

Stage Lighting →
Ground fog transforms dramatically under front wash lighting. Low-angle uplights positioned at floor level create glowing fog carpets, while overhead beams cut through the fog layer to define the edge between the fog and the clear air above. Color-matched lighting turns a white fog blanket into a fully designed scenic element.

Cold Spark FX →
Cold spark fountains rising through ground-level fog create one of the most dramatic visual combinations in live event production. The sparks pierce the fog layer from below, creating a fire-through-clouds effect that reads powerfully from any seat in the venue.

CO₂ FX →
Vertical CO₂ blasts punching through a blanket of ground fog add explosive moments to an otherwise serene atmosphere. The contrast between the slow, floor-level fog and the sudden vertical cryo blast creates high-impact reveal moments for entrances, key changes, or ceremony highlights.

Haze FX →
Layer a hazer for mid-air atmosphere with the Hydra for ground fog — and you get full-room atmospheric depth. Haze defines beams and moving heads overhead while ground fog adds a separate visual plane at floor level. The two effects occupy different vertical zones and don't interfere with each other.

Frequently Asked Questions

How is this different from a regular fog machine?

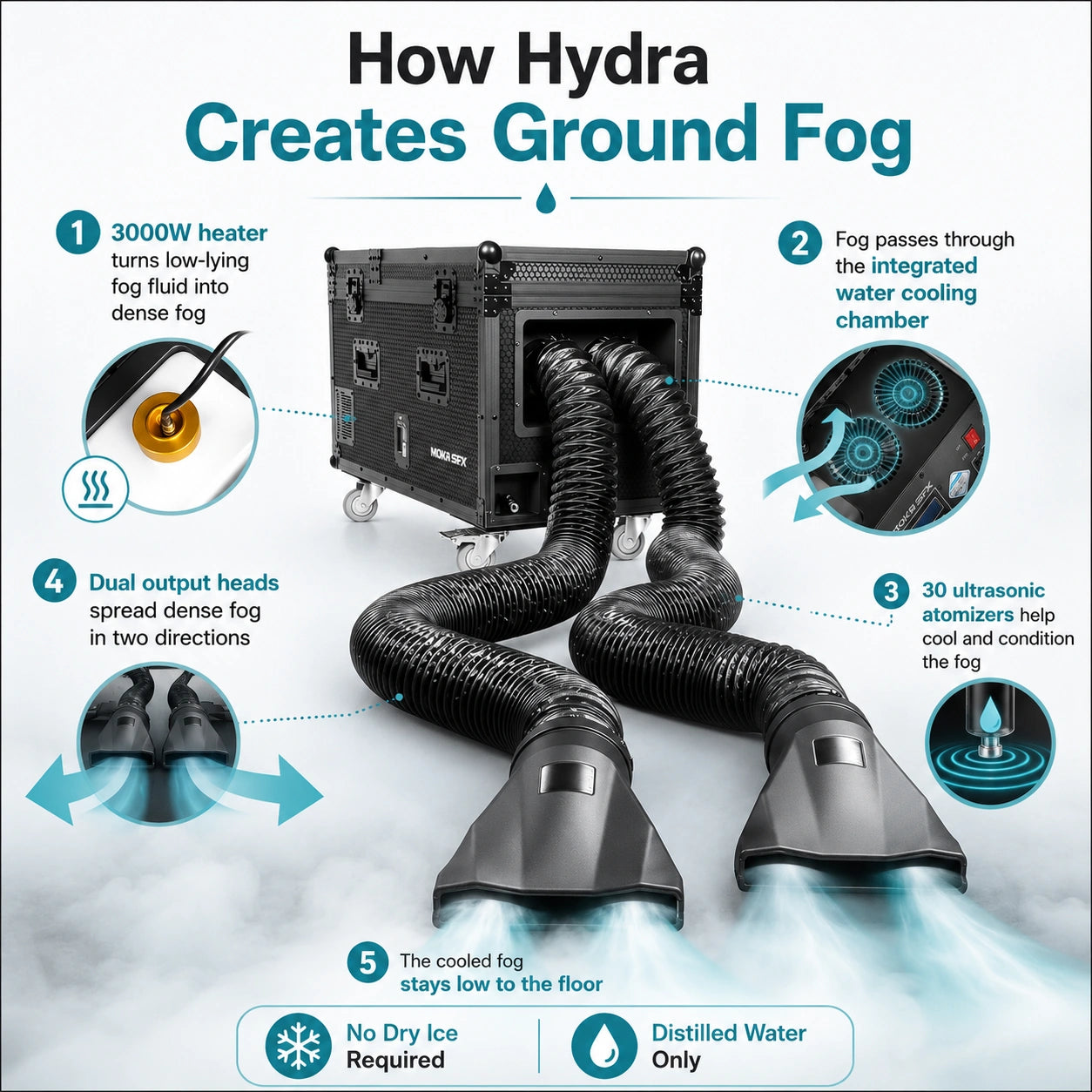

A regular fog machine (like the SurgeFX Tempest) heats fog fluid and releases hot vapor that rises and fills a room from top to bottom. The Hydra adds an integrated water cooling chamber between the heater and the output — the fog passes through cooled, atomized water before exiting, making it heavier than the surrounding air. The result is fog that stays on the ground for several minutes before warming up and dissipating naturally.

Does it replace dry ice?
Yes — that's the primary purpose. Traditional ground fog required blocks of dry ice dropped into hot water, which is expensive, requires constant replenishment, creates CO₂ ventilation concerns in enclosed spaces, and can cause burns from direct skin contact. The Hydra produces the same visual result using fog fluid and distilled water, with no handling hazards and consistent, repeatable output.

How long does the fog stay low?
In a typical indoor venue with moderate HVAC airflow, ground fog stays at floor level for approximately 2–4 minutes after the machine stops output. Warmer ambient temperatures and high air movement will cause the fog to rise faster. Cooler venues with minimal airflow will hold the ground fog effect longer. For sustained coverage, keep the machine running at a low output interval during the entire desired effect window.

Can I use regular fog fluid?
Technically, the machine will produce fog with standard water-based fog fluid. However, standard fog fluid is formulated to be lighter and will tend to rise faster even after cooling. Low-lying formulations like Nebula™ Liquid Gravity are denser and produce heavier vapor that stays on the ground significantly longer. Using the correct fluid makes a noticeable difference in effect quality.

Will it set off smoke detectors?
Low-lying fog stays at ground level, well below ceiling-mounted smoke detectors in most venues. Under normal operation with moderate output, the fog dissipates before reaching detector height. However, in small rooms with low ceilings, extended heavy output, or strong upward airflow from HVAC vents, fog can rise high enough to trigger detectors. Always notify venue management and test in the space before the event.

Why distilled water? Can I use tap water?
The 30 ultrasonic atomizers vibrate at extremely high frequencies to create the fine mist that cools the fog. Minerals in tap water — calcium, magnesium, iron — deposit on the atomizer surfaces over time, reducing their effectiveness and eventually causing failure. Distilled water has no minerals and keeps the atomizers clean. This isn't optional — tap water will void the warranty.

How heavy is it? Can one person move it?
The Hydra weighs 119 lbs (54 kg) — it's a substantial machine. The silent wheels and handle make it easy to roll on flat surfaces, but you'll want two people for loading/unloading from a vehicle or moving up ramps and stairs. Plan your venue positioning during setup, not during the show.

What are the two DMX channels?
Channel 1 controls fog output volume. Channel 2 controls timing and interval. For basic use, assign a single fader to Channel 1 and leave Channel 2 at default. For precise cueing, program both channels to control exactly when fog fires, how much output it produces, and the interval between bursts.

Get the Best Results

Pre-Cool the Water Chamber
For the densest, lowest-lying fog, use cold or ice-cold distilled water in the cooling chamber. Colder water = colder fog output = heavier fog that stays on the ground longer. Some operators add sealed ice packs around the chamber (not inside it) for an extra cooling boost during critical moments like a wedding first dance.

Manage HVAC Airflow
Ground fog's biggest enemy is air movement. Floor-level HVAC vents, open doors, and fans will push fog upward and scatter the effect. If possible, ask the venue to reduce or redirect HVAC airflow at floor level during the fog effect window. Even partial reduction makes a significant difference in fog hang time.

Position for Maximum Coverage
The dual output heads work best when the machine is positioned center-stage or center-dance floor, with both heads spreading fog outward in opposite directions. For one-directional coverage (like fog rolling toward the audience from upstage), aim both heads in the same direction. The machine's wheels make repositioning between effects easy.

Test the Timing Before the Event
Every venue behaves differently. Run a test cycle during setup to see how quickly fog spreads, how long it stays low, and how HVAC affects dissipation. For wedding first dances, start the fog 30–60 seconds before the couple steps onto the floor — you want the carpet fully formed when they arrive, not building while they wait.

Keep Extra Distilled Water On Hand
The 10L water cooling chamber runs out faster than the fog fluid tank during continuous operation (~1 hour). If you need more than an hour of cumulative fog time, bring extra distilled water. Refilling the water chamber takes less than a minute and doesn't require shutting down the machine — just pour through the fill port.

Drain After Every Event
Use the external drain valve to empty the water cooling chamber after every use. Stagnant water left in the chamber between events can develop mineral deposits, bacteria, or algae that affect the atomizers and fog quality. Drain it, let it air out, and refill with fresh distilled water at the next event.

Use the Mist-Only Mode for Subtle Effects
When fog output is set below approximately 29%, the machine produces a fine water mist without fog fluid vapor. This creates a lighter, more subtle atmospheric effect — useful for soft ambient visuals, photography backgrounds, or transitions where full ground fog would be too dramatic.

Layer with Uplighting
Ground fog looks good on its own, but it looks spectacular with floor-level uplighting. Place LED par cans or wash fixtures at floor level, angled into the fog. The light catches the fog particles and creates a glowing colored carpet. Match the lighting color to the event theme — warm amber for weddings, cool blue for concerts, green for haunted attractions.
