Stage Lighting for Events: A Practical Guide to Building Your DJ or Production Rig
Most first lighting rigs have one thing in common: they look fine from the DJ's side and flat from every other angle. A couple of LED bars, maybe a par can or two, and a moving head if the budget stretched — and the result is a stage that's lit but not compelling. The difference between a rig that works and one that creates actual atmosphere comes down to understanding what each fixture type contributes and where it belongs in the signal chain.
This isn't a gear list. It's a breakdown of lighting roles — what each type does, when you need it, and what to look for when you're ready to buy.
The Foundation: Wash Lights
Wash lights flood a surface with soft, even color. A stage with no wash looks like a presentation room. A stage bathed in deep blue or warm amber reads as an event. Wash is the visual foundation everything else builds on.
For mobile DJs and small-to-mid productions, LED wash bars give you the most flexibility per fixture. The SurgeFX SF-WM312 packs three separate LED systems into a single 41.7-inch bar: 12 × 3W warm white beam spots at a tight 6° angle, 156 SMD LEDs across 13 pixel-chase segments, and 96 RGB LEDs in 16 color-wash segments — 264 LEDs total, 100W draw, under 6.6 lbs. The warm white beams add structural shafts, the pixel chase adds movement, and the RGB layer handles color. Three visual layers from one bar. It runs at 5CH, 14CH, or 73CH depending on how much per-pixel control you want, and convection cooling means it runs completely silent — useful when it's 18 inches from a microphone.
Two SF-WM312 bars flanking a stage give you the wash base. Four mounted horizontally as a backdrop wall behind a band create a pixel-mapped surface with enough resolution to run chases and color blocks across it. That's a lot of visual range for something under 7 lbs per unit.
Beam Lights: Adding Depth and Height

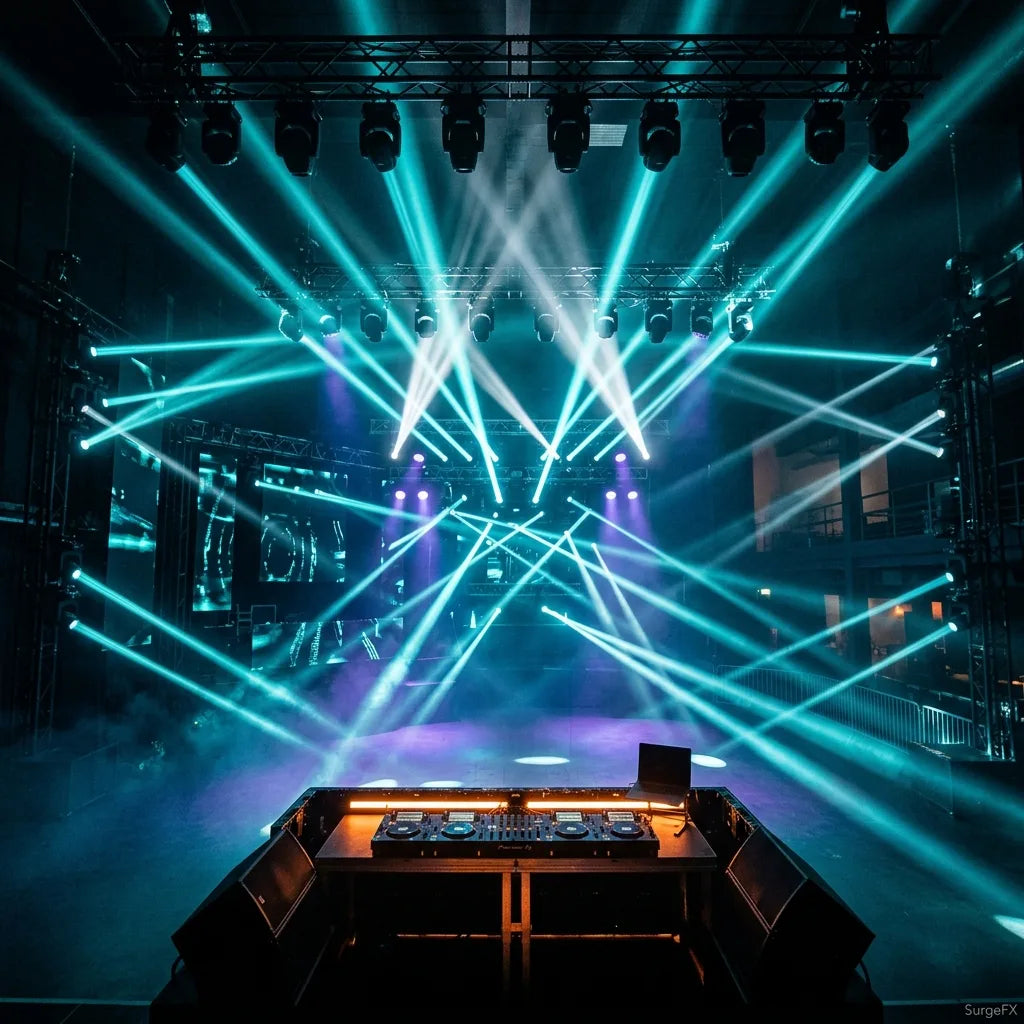

Beams are what make a stage look like a concert instead of a conference. Tight shafts of light cutting through haze — the mid-air effect you see at every arena show — come from moving heads running at 3° or tighter. Without them, even a well-washed stage reads flat. With them, it has vertical dimension.
For mobile work or your first moving head purchase, the SurgeFX SF-BM60 is the entry point that makes practical sense. It's a 60W moving head with a 7-color dichroic wheel, a 7-gobo wheel with variable rotation and shake, 540° pan and 270° tilt, strobe at 1–20 Hz, and CRI 90 color accuracy — all in a package under 9 lbs that fits on a standard T-bar. A pair of BM60s flanking your DJ setup produces moving gobo beams, color sweeps, and full overhead coverage from a rig you can carry in a duffel. At that wattage in a small-to-medium venue, the output competes with fixtures three times its size.
When venues get larger or the rig needs more output, the SurgeFX SF-BM200 is a 200W BSW (beam/spot/wash) moving head with motorized zoom from 0°–3° for tight aerial beams up to 3°–30° for spot projection, with a frost filter for ~8° wash coverage. Dual gobo wheels carry 15 patterns total — 8 rotating gobos that can be swapped for custom metal or glass designs, plus 7 fixed patterns. A 3-facet prism multiplies the beam into a triangle of shafts. CRI 90 color rendering keeps projected patterns accurate. The BM200's motorized zoom is what enables true BSW operation: you can sweep from a pinpoint beam to a wide spot mid-cue, entirely from the console, without touching the fixture.
Production-Scale Moving Heads
For larger shows — festivals, corporate productions, or any rig hung on truss where rigging time and truss load matter — the math on fixture count changes the equipment conversation.
The SurgeFX Kraken is a 480W LED CMY moving head with motorized zoom from 4° tight beam to 50° wide wash, 11 fixed gobos plus 7 rotating glass gobos, independent 6-facet and 8-facet prisms with dual-prism overlay capability, full CMY + CTO linear color mixing, an 8-color dichroic wheel, and 16-bit pan/tilt precision at 540°/270°. It runs DMX512 with RDM for remote fixture monitoring and address setting from the console. At 50.7 lbs it's a production fixture, not a mobile one — but for a mid-size touring rig or installed venue, it replaces separate beam, spot, and wash units at a single truss point, which cuts clamp count, cable runs, and DMX addresses significantly.
The CMY system is worth understanding specifically. Linear Cyan, Magenta, and Yellow flags mix to produce virtually any color from the console — not a fixed palette of dichroic chips, but continuous color selection across the spectrum. The CTO flag adds independent warm-white correction for matching other fixtures or adjusting skin tone rendering. For theater and corporate work where color accuracy matters, that's a different tool than a fixed color wheel.
Gobo Spots: Pattern and Texture
Wash and beam fixtures cover a room in color and aerial effects. A gobo spot puts something specific on a surface — a breakup pattern that textures a backdrop, a geometric projection that defines a stage area, or a custom logo on a dance floor. Gobos are the most direct way to add visual complexity to a blank wall without any physical set dressing.
The SurgeFX SF-SP90 is a 90W spot-type moving head built around two gobo wheels: 8 static metal gobos plus 6 individually rotating gobos, each DMX-controllable for speed and direction. The rotating wheel is where the effect lives — a water-ripple gobo spinning slowly reads as ambient and organic; at full speed it becomes kinetic. Engage both wheels simultaneously and the two patterns layer in the light path, creating compound projections that neither gobo produces alone. Seven dichroic colors apply to whatever pattern is active. The optical pipeline runs LED → color wheel → static gobo wheel → rotating gobo wheel → prism → focus optics, so effects stack downstream — color on patterned beams, prism multiplying the result, focus sharpening the projection at distance.
One or two SF-SP90s pointed at a backdrop or dance floor define the visual character of a room faster than almost any other fixture. The gobo determines the look; swap the gobo and the room changes.
Uplighting: The Room Layer
Uplighting is the first thing most event clients ask for by name — and for good reason. Placing fixtures at the base of walls or columns and pointing up changes how a room reads entirely. A plain banquet hall with 8 warm amber uplights looks intentional. The same room without them looks like the catering staff forgot something.
The operational problem with traditional wired uplights is cable management: one power cable and one DMX cable per fixture means 16 cable runs across floors and under carpets for an 8-uplight perimeter — 45 minutes of gaffer tape and routing before you've touched a light level.
The SurgeFX SF-BP618 removes all of that. Six 18W RGBWA+UV LEDs in a 5-lb aluminum housing, running off an 8,800mAh rechargeable lithium battery for up to 12 hours of single-color operation or 8 hours of auto-run color programs. The RGBWA+UV system matters more than the spec might suggest: the dedicated Amber emitter produces true warm amber and gold tones that RGB mixing cannot replicate — the color clients describe as "candlelight" or "warm and romantic" requires real amber output, not an RGB approximation. The dedicated White emitter produces clean white without the blue-pink tint of mixed RGB. WiFi app, IR remote, DMX-512, sound-active, and master/slave give you six different control modes. At 5 lbs per unit, you carry two in each hand and deploy an 8-unit perimeter in under 10 minutes with zero cable management.
Logo and Brand Projection
Corporate events, branded venues, and any show where a client's logo is part of the deliverable — logo projection is cleaner than vinyl banners and more flexible than printing. One fixture, swappable gobos, no teardown mess.
The SurgeFX Logo Pro 350 is a purpose-built gobo projector at 350W, with a 20° beam angle and 10–230 foot projection range. IP65 weatherproof aluminum alloy housing means it installs outdoors year-round. The 37mm custom glass gobo (ordered separately per client) carries the logo etched into the glass; the 350W LED behind it drives that image with enough output to read clearly in ambient light at event distances. Manual focus ring for sharpness at any throw distance. Static or rotating display via included remote. 50,000-hour LED life. For venues doing regular corporate work, the Logo Pro 350 is the fixture that earns back its cost quickly — the projector is the reusable asset, the gobo changes per client.
Putting It Together
A workable approach for a first serious rig: start with two SF-WM312 wash bars for the base layer, add a pair of SF-BM60 mini moving heads for aerial beam and gobo effects, then fill the room perimeter with six to eight SF-BP618 wireless uplights. That covers wash, beams, and room color without requiring a DMX controller for the uplights and without overloading a mobile carry case. The SF-BP618 units run off a phone app; the BM60s can run sound-active when there's no console operator. It's a self-contained mobile production rig at a realistic budget and a realistic weight.
From there, the path forward is clear: SF-BM200 or SF-SP90 when you need dedicated spot and gobo projection capability; the Kraken when truss work and production scale demand a fixture that consolidates three roles into one rigging point. Every room is different. The fixture categories — wash, beam, spot, uplight — stay consistent regardless of show size.
