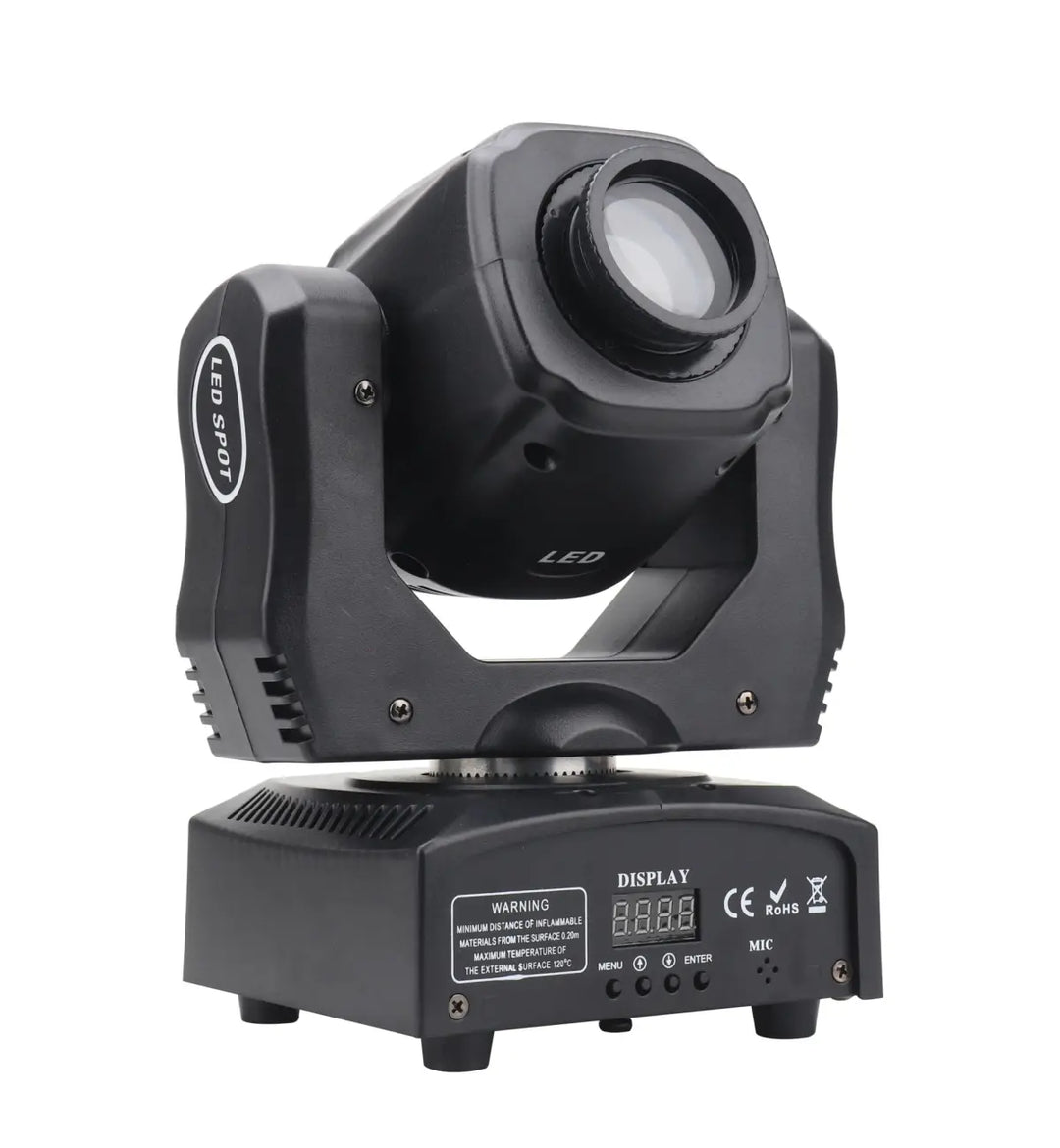

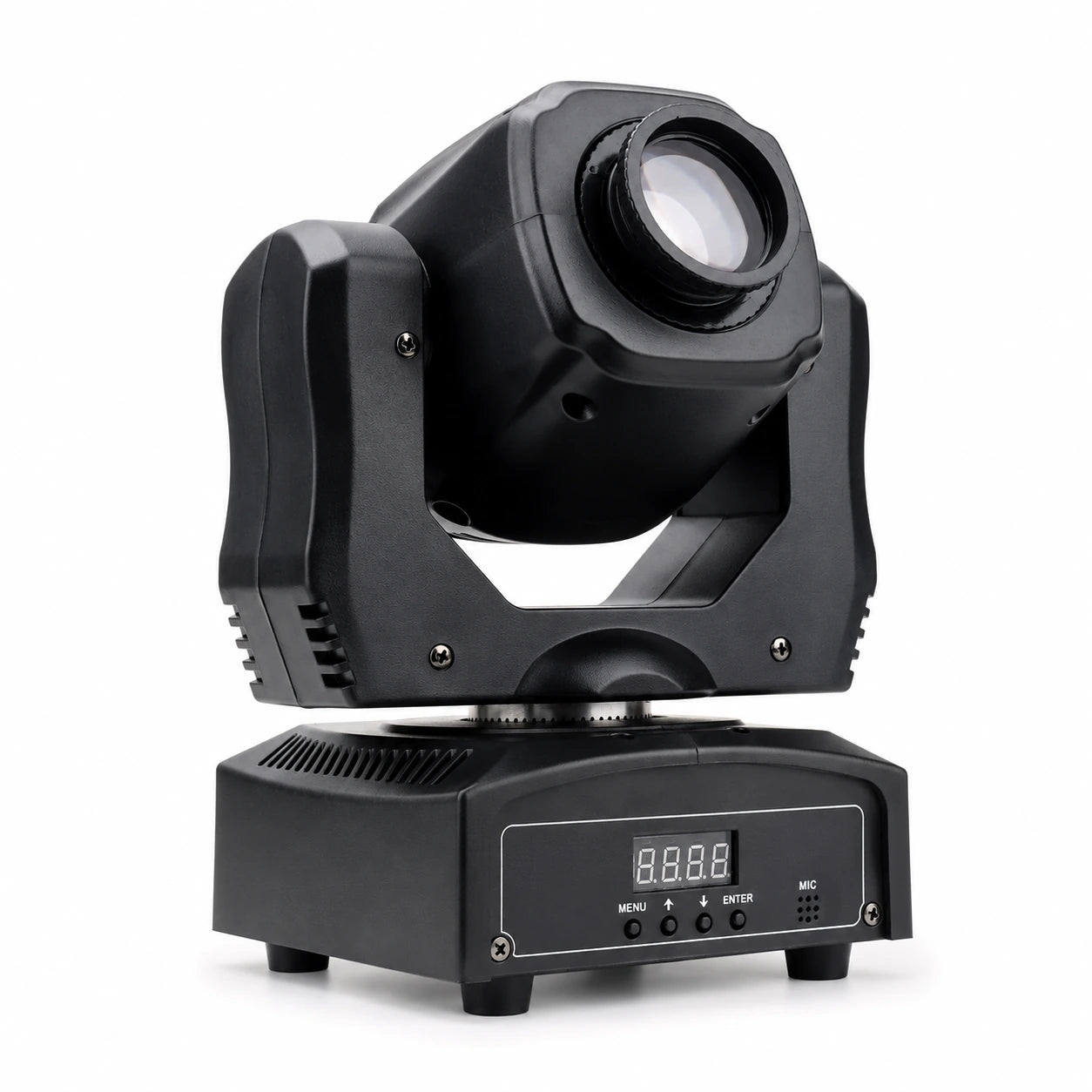

SurgeFX SF-BM60 Mini Beam LED Moving Head Light

What the SF-BM60 Does

The SF-BM60 is a mini beam — a compact moving head that produces focused beams of light with color and gobo pattern projection. It sits at the accessible end of professional lighting: small enough to fit on a DJ T-bar, light enough to carry under one arm, affordable enough to buy in multiples, and feature-rich enough to produce real visual impact in dimmed indoor environments. The "mini" refers to physical size — the beam effects and gobo patterns are full-featured.

What's Inside

Who It's For

The SF-BM60 is designed for three main audiences. Mobile DJs who need lightweight fixtures that set up fast, look professional, and run in sound-active mode when there's no time to program DMX. Small-to-mid venues — bars, clubs, restaurants, lounges, and event halls — that want moving head effects without the cost and complexity of full production lighting. And first-time moving head buyers stepping up from static par cans or LED bars into the world of pan/tilt movement, gobo projection, and DMX control. The BM60 is the entry point — and at $199, a low-risk one.

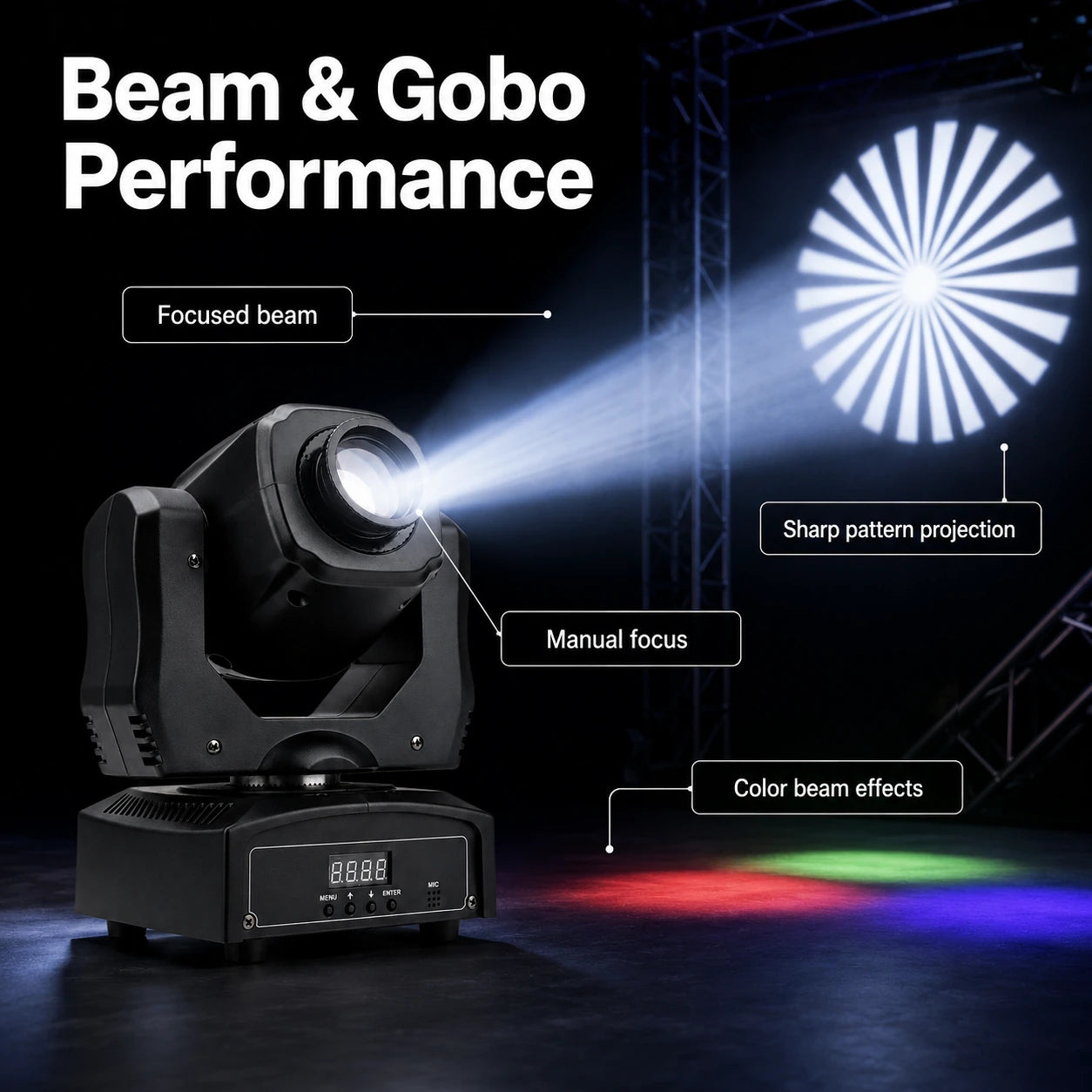

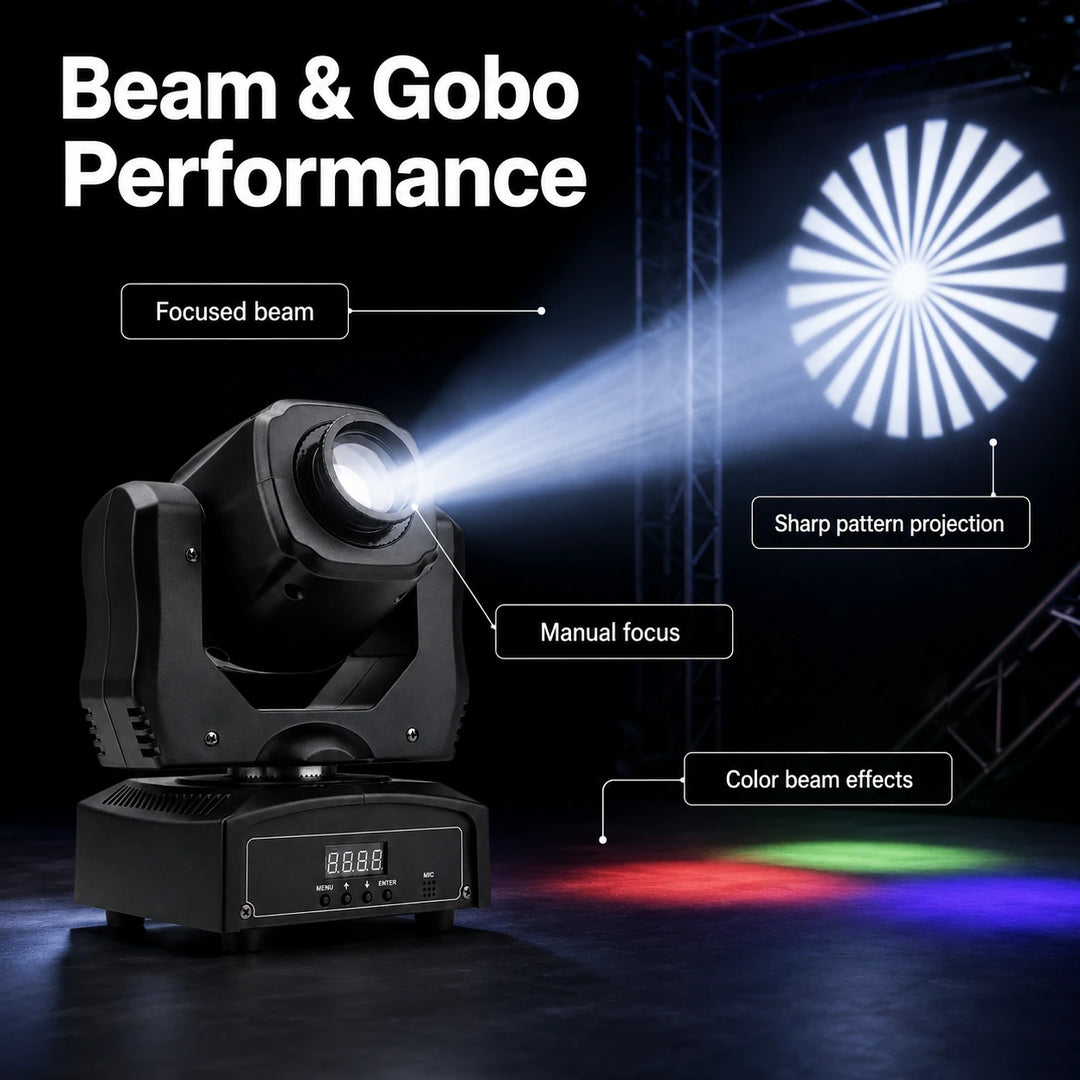

How Beams and Gobos Work Together

The 60W LED produces a concentrated beam of white light. The color wheel sits in the light path and filters that beam into any of 7 colors (or keeps it white). The gobo wheel sits further downstream and shapes the beam into a pattern — stars, circles, breakup textures, geometric shapes. The result: a colored pattern projected onto walls, floors, ceilings, or performers, all from a fixture that weighs less than 9 pounds. Add pan/tilt movement and the patterns sweep across surfaces. Add strobe and they pulse. Add gobo shake and they vibrate. The combinations are where the visual interest lives.

The Optical Pipeline

Light starts at the 60W LED and passes through the optical system in sequence: LED source → color wheel → gobo wheel → focus lens → output. Each layer adds to the effect — color applies to whatever gobo is active, and focus sharpens or softens the projected pattern. The system is straightforward by design: fewer optical elements means less light loss, simpler operation, and faster learning curve.

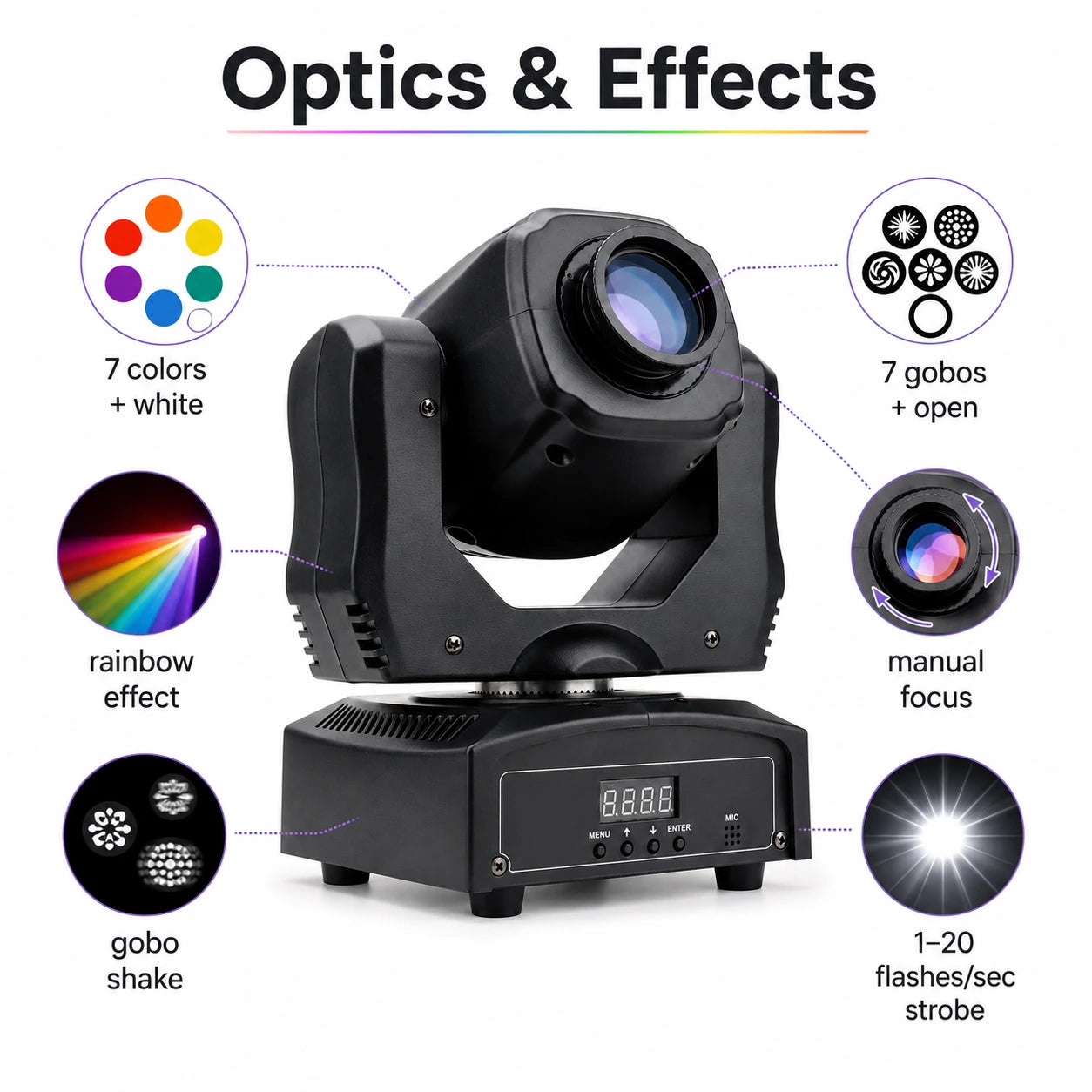

Color Wheel — 7 Colors + White

The 7 colors cover the professional essentials: typically saturated red, blue, green, yellow, orange, magenta, and a warm or cool correction filter. Half-color positioning between adjacent filters lets you blend colors — effectively doubling the palette. The rainbow effect spins the entire wheel continuously for rapid color cycling during high-energy moments. Every color applies to whatever gobo pattern is active, so 7 colors × 7 gobos = 49 unique color/pattern combinations before you touch any other controls.

Gobo Wheel — 7 Patterns + Open

The gobo wheel positions individual metal templates in the beam path. Each gobo blocks portions of the light, projecting the remaining shape outward. In "open" position (no gobo), the BM60 outputs a clean, unobstructed beam — useful for simple color washes and beam effects through haze. Gobo rotation scrolls the wheel continuously, cycling through all 7 patterns in sequence. Gobo shake rapidly oscillates between two positions, creating a vibrating visual that adds kinetic energy to the projection.

Manual Focus

A physical focus ring on the fixture adjusts the sharpness of gobo projections. At shorter throw distances (10–15 feet), one focus setting produces a crisp image. At longer throws (25–40 feet), you'll rotate the ring to refocus. Set focus during setup when the fixture is accessible — once mounted and running, focus stays where you set it. The key: a sharply focused gobo looks dramatically more professional than a soft, blurry one. Take 30 seconds to focus before the show.

Strobe — 1–20 Flashes Per Second

The electronic shutter delivers variable-speed strobe from a slow 1 Hz pulse (atmospheric) to a rapid 20 Hz flash (high-energy). Strobe applies to the full output — whatever color and gobo combination is active gets strobed. At lower speeds (1–3 Hz), the strobe creates a pulsing glow effect. At higher speeds (10–20 Hz), it produces the classic rapid-fire strobe for musical drops and peak-energy moments. Strobe is fully DMX controllable in extended mode.

Effects Combinations

Complete Specifications

Light Source Detail

Size and Weight in Context

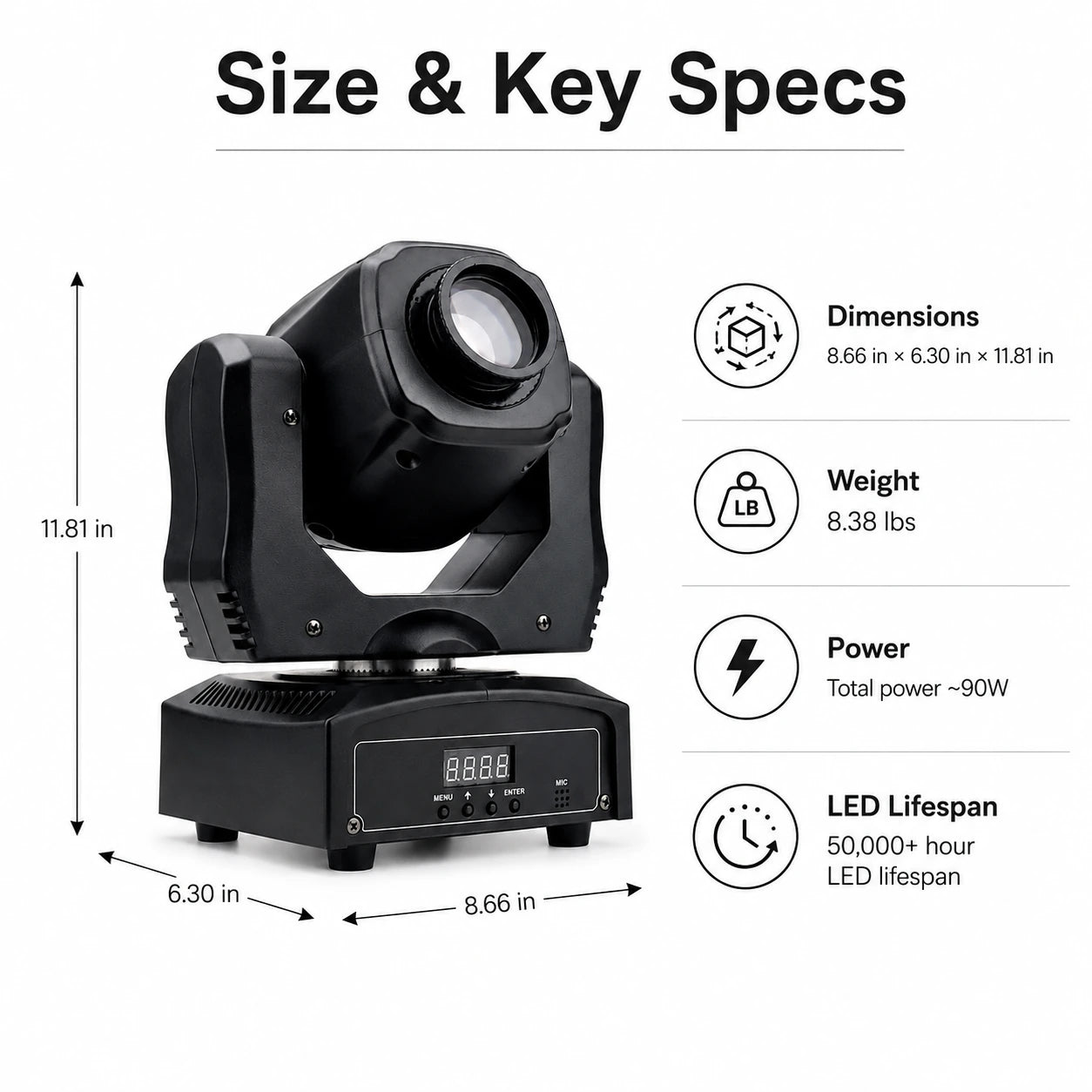

At 8.66" × 6.30" × 11.81", the SF-BM60 is roughly the size of a large water bottle laid on its side. At 8.38 lbs, it weighs less than a gallon of paint. Two BM60s in a padded bag weigh less than a single mid-range moving head. This matters for mobile professionals who load in and out of different venues every weekend — the BM60 is a fixture you can throw in the trunk of a car alongside your controller, cables, and speaker stands without rethinking your vehicle situation.

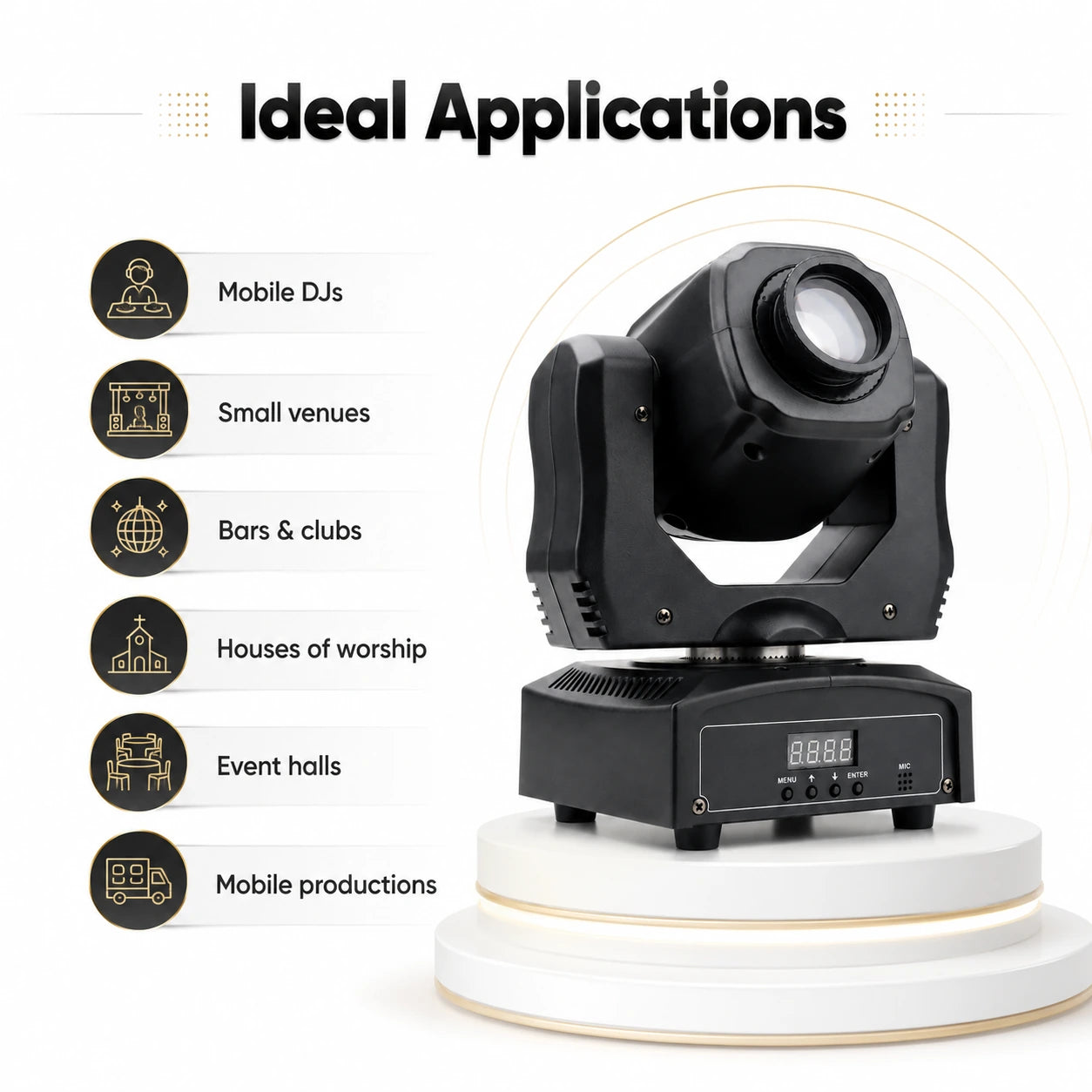

Applications

• Mobile DJ — Mount a pair on a T-bar or lighting stand. Run in sound-active mode for instant reactive effects, or program basic DMX for choreographed looks. Under 9 lbs each means your lighting rig adds almost nothing to your load-in weight.
• Small Venues — Bars, lounges, restaurants, and small clubs get moving head effects — gobo textures on walls, colored beams through haze, dynamic movement — without the budget or rigging infrastructure required for larger fixtures.
• Houses of Worship — Gobo projection adds visual depth to stages on a modest budget. CRI 90 ensures natural color for camera work. Sound-active or auto-run modes work for volunteer-operated tech teams.
• House Parties & Private Events — Plug in, set to auto or sound mode, and let the BM60 run. No DMX controller needed. Professional-looking moving head effects for birthday parties, holiday events, and celebrations.
• First Moving Head — The BM60 is an ideal entry point. Learn gobo projection, color effects, DMX programming, and pan/tilt movement on a forgiving fixture before investing in larger, more complex heads.
• Multi-Fixture Arrays — At $199 each, buying 4–8 BM60s for a beam array is financially viable. Multiple mini beams in master/slave sync create impressive multi-head effects at a fraction of the cost of larger fixtures.

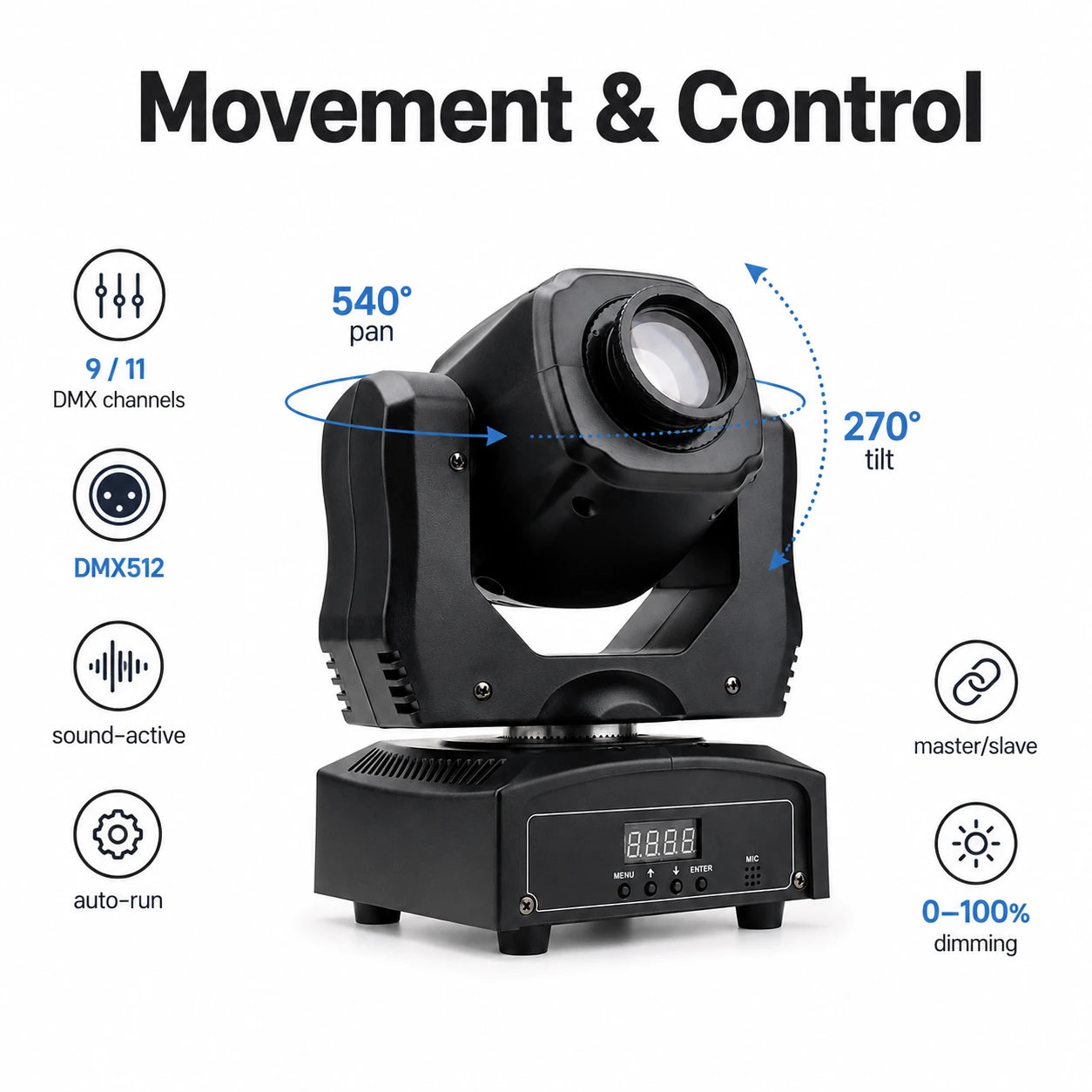

DMX-512 Control — Dual Channel Modes

The SF-BM60 connects via standard 3-pin XLR (in/out for daisy-chaining). Set the DMX start address and channel mode from the onboard LCD display. Two modes available:

What the Channels Control

DMX Universe Planning

In extended mode (11 channels): 46 SF-BM60 fixtures per DMX universe (46 × 11 = 506 of 512). In basic mode (9 channels): 56 fixtures per universe (56 × 9 = 504). The small channel footprint is a real advantage — you can run a large array of mini beams on a single universe with addresses to spare for other fixtures.

Non-DMX Control Modes

Frequently Asked Questions

How does the BM60 compare to the SF-SP90 or SF-BM200?

The SF-SP90 ($489) is a larger spot fixture with dual gobo wheels (14 patterns), a 3-facet prism, electronic focus, CRI 95, and 18-channel extended mode. The SF-BM200 ($949) is a full 3-in-1 BSW hybrid with motorized zoom, dual gobo wheels, frost, linear focus, and 15-channel DMX. The BM60 ($199) is the entry point — a compact, affordable mini beam with a single gobo wheel and manual focus. Choose the BM60 when budget and portability are priorities; step up to the SP90 or BM200 when you need more gobos, prism effects, or BSW versatility.

Do I need a DMX controller?

No. The SF-BM60 runs in sound-active mode (reacts to music via built-in mic), auto-run mode (built-in programs cycle automatically), and master/slave mode (sync multiple units without a controller). DMX gives you more precise creative control, but the BM60 is fully functional straight out of the box with just a power cable.

Do I need haze or fog?

For gobo projection onto surfaces — no. The patterns are visible on whatever they hit. For mid-air beam effects (shafts of light visible in the air) — yes, you need some atmosphere. Even light haze makes a dramatic difference — beams become visible, the room gains depth, and the lighting looks significantly more professional. A small haze machine paired with the BM60 is a high-impact upgrade.

Is 60W bright enough?

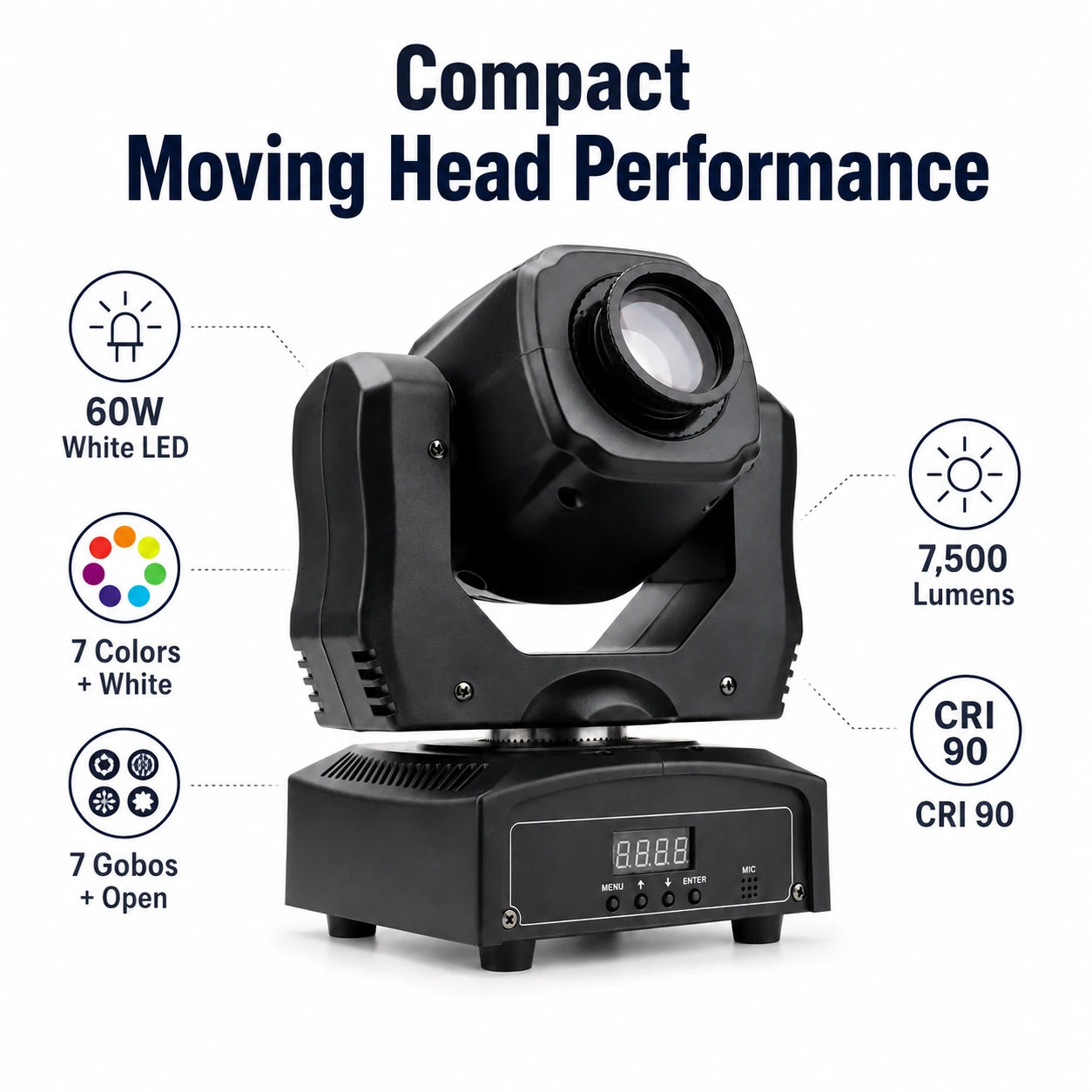

At 7,500 lumens focused through a concentrated beam angle, the BM60 produces a punchy, visible output in dimmed indoor environments — bars, clubs, event halls, churches, and DJ setups. It's designed for indoor use in controlled lighting conditions, not for daylight environments or outdoor stages. In its intended setting, 60W delivers clear gobo projections and vivid color beams.

What's the difference between 9-channel and 11-channel mode?

9-channel (basic) gives you core control: pan, tilt, color, gobo, dimmer, strobe, and speed. 11-channel (extended) adds fine pan and fine tilt channels for 16-bit precision — smoother, more precise movement especially visible during slow sweeps. Use basic mode for simple setups or small controllers; use extended mode when movement precision matters.

Can I mount it upside-down on truss?

Yes. The BM60 has a standard clamp-compatible yoke bracket. It works mounted upright on a stand/T-bar or inverted on truss. The LCD display is accessible from the base for address setting in either orientation.

How many can I run on one power circuit?

Each unit draws approximately 90W at full output. On a 15A/120V circuit (1,800W available): up to 18 fixtures with headroom (18 × 90W = 1,620W). On a 20A circuit (2,400W): up to 25 fixtures. The BM60's low power draw is a major advantage for multi-fixture setups — you can run a substantial array without dedicated power distribution.

Is it outdoor rated?

No. IP33 is an indoor rating. Not waterproof. Use indoors or under fully covered/tented outdoor stages only.

Can I replace the gobos with custom ones?

The BM60's gobo wheel uses fixed metal gobos. Custom gobo replacement depends on the gobo holder design and slot dimensions. For dedicated custom projection (logos, monograms), fixtures with confirmed-replaceable rotating gobos (like the SF-BM200) are a better choice.

How loud is the fan?

The BM60 uses dual fan cooling. Fan noise is present but moderate — typical for mini beam fixtures in this class. In a music or event environment, fan noise is inaudible over ambient sound. In quiet settings (theater, worship during prayer), fans may be faintly audible at close range. Positioning fixtures at a reasonable distance from the audience minimizes any perceptible noise.

Setup Tips

Focus Before You Mount

The BM60 uses manual focus (a physical ring on the fixture). Once mounted on a high stand or truss, adjusting focus requires reaching the fixture. Set the focus during sound check while the fixture is still accessible: power it on, select a gobo, project it onto your target surface, and rotate the focus ring until the pattern is sharp. A 30-second adjustment that transforms your entire show.

Buy in Pairs (At Minimum)

Moving heads look exponentially better in multiples. A single BM60 creates one beam — impressive, but limited. Two BM60s create crossing beams, mirrored movements, complementary colors. Four create arrays, fan effects, and synchronized patterns. At $199 each, the BM60 is one of the few moving heads where buying 4–6 units is financially realistic. Master/slave mode makes multi-head operation effortless.

Sound Mode for Quick Gigs

If you're running sound-active mode, position the BM60 where the built-in microphone can clearly pick up the music — near a speaker or subwoofer. The fixture responds to bass frequencies most reliably. Sound mode produces genuinely reactive, beat-synced movement and color changes with zero programming — the fastest path from "fixtures in the car" to "light show running."

Haze Makes Everything Better

A small haze machine is the single best upgrade for any beam fixture. Without haze, you see gobo patterns on surfaces. With haze, you see the beam shafts cutting through the air plus the gobo patterns on surfaces. The visual difference is dramatic. A SurgeFX Haze machine at low output provides the subtle atmospheric density that makes beam effects three-dimensional.

Use Gobo + Color, Not Just Color

An open colored beam is fine, but a colored gobo projection is significantly more visually interesting. Stars in blue. Breakup patterns in amber. Geometric shapes in magenta. The gobo adds texture and visual complexity that turns simple color washes into designed lighting looks. Cycle through gobo + color combinations during your show — each change creates a distinct visual chapter.

Pairs Well With

• Haze FX — The single best companion for any beam fixture. Light haze makes beams visible mid-air and adds professional depth to every look.
• Fog FX — Dense fog bursts paired with colored beams for dramatic reveals and high-impact moments.
• Cold Spark FX — Colored beams illuminating spark fountains create a layered, dynamic visual.
• CO₂ FX — CO₂ jets create instant dense atmosphere that catches beams perfectly.
• All Stage Lighting — Pair BM60 mini beams with wash bars or par cans for a complete rig: BM60s handle gobo effects and beam work, wash fixtures provide general stage illumination.
