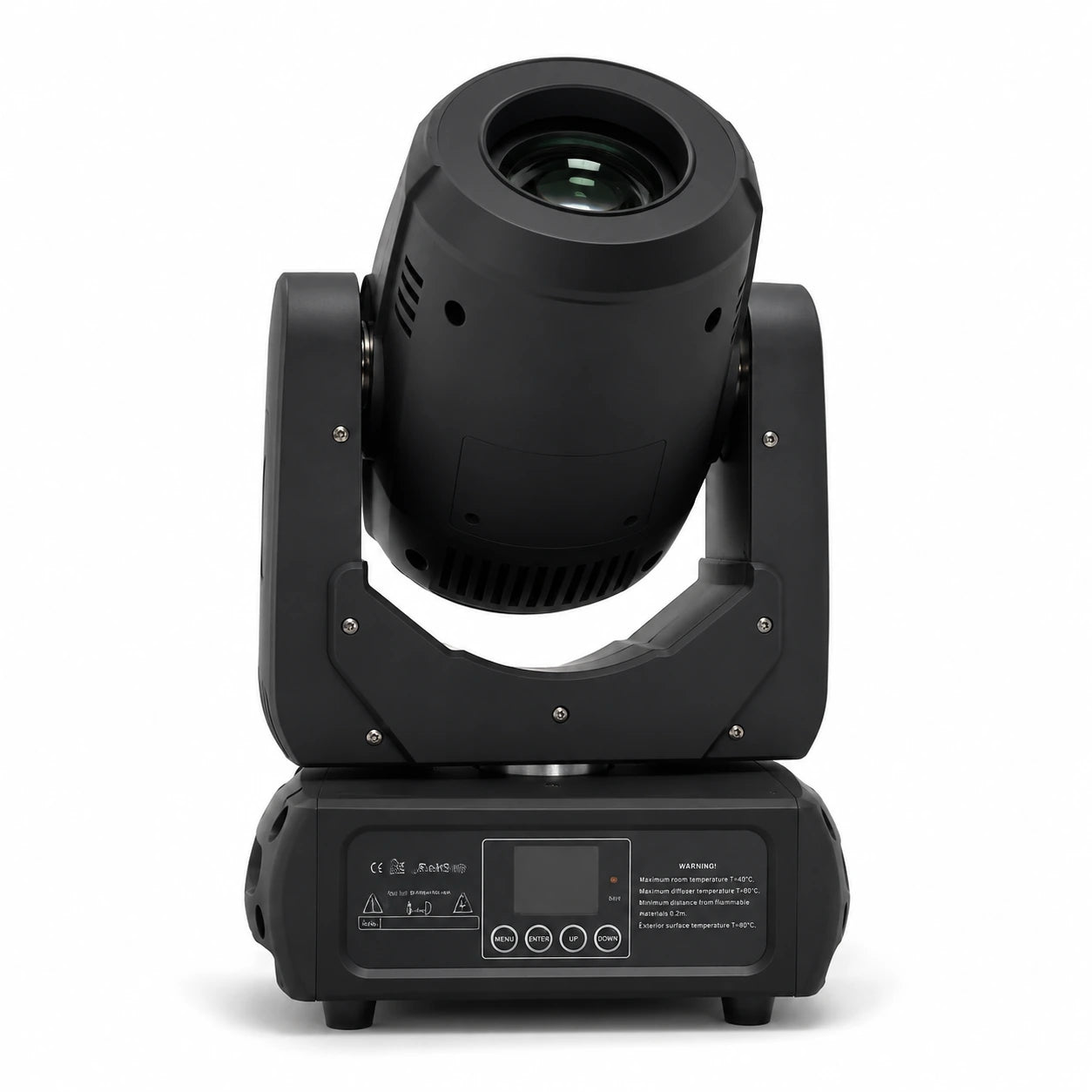

SurgeFX SF-BM200 3-in-1 LED Beam Moving Head Light

What "3-in-1 BSW" Means

BSW stands for Beam, Spot, Wash — the three fundamental types of stage lighting. Traditional setups require separate fixtures for each job. A BSW hybrid like the SF-BM200 combines all three into a single moving head using adjustable zoom optics, a frost filter, aperture control, and dual gobo wheels to transform the beam's character on the fly. One fixture. Three roles. Half the rigging, cabling, and DMX addresses.

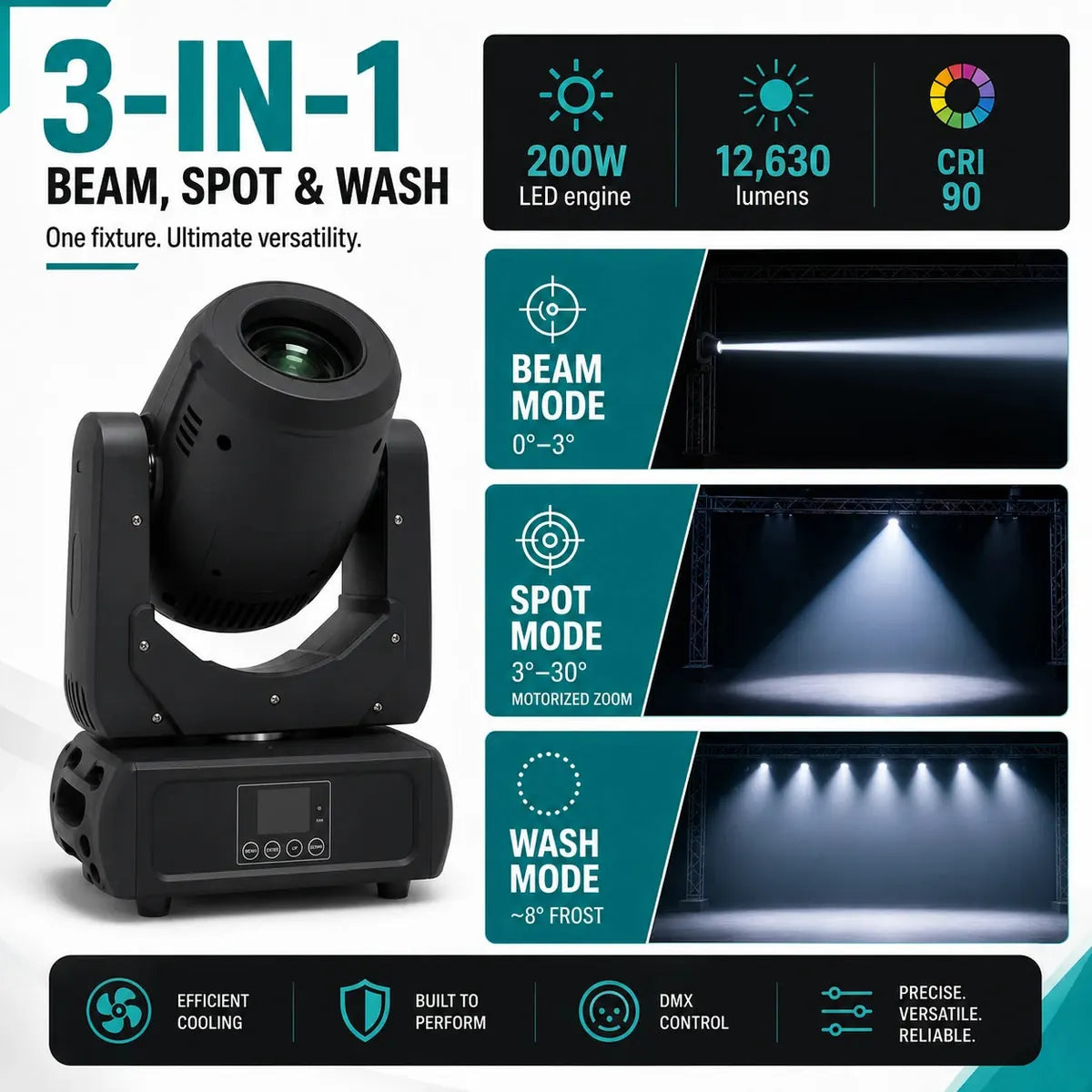

The Three Modes

Beam Mode — Mid-Air Impact (0°–3°)

At its tightest zoom setting, the SF-BM200 produces a near-parallel beam — an extremely narrow shaft that stays tight over long distances. This is the "concert beam" look: dramatic shafts of light cutting through haze. The 3-facet prism splits that beam into a rotating triangle of shafts. Engage a gobo and the prism multiplies patterned, colored beams. At 0°–3° with the 200W LED at full output, the SF-BM200 throws a punchy, concentrated beam that competes with dedicated beam fixtures while giving you the option to instantly zoom wider.

Spot Mode — Surface Projection (3°–30°)

Open the motorized zoom and the SF-BM200 becomes a spot fixture. The dual gobo wheels are where this fixture truly differentiates itself: the rotating wheel carries 8 replaceable gobos that spin, shake, and can be swapped for custom metal or glass patterns (including custom logos). The fixed wheel adds 7 additional patterns for quick selection. Linear focus ensures gobo projections are crisp at any throw distance. With CRI 90 color rendering, projected colors are accurate and natural — critical for events with photography or video.

Wash Mode — Soft Coverage (~8°)

Engage the frost filter and the SF-BM200's output diffuses into a soft, even wash at approximately 8° spread. The frost element scatters the light, eliminating hard edges and hot spots. Combined with the 8-position color wheel, wash mode delivers broad color floods for general stage illumination, architectural uplighting, or ambient mood lighting. The transition from beam to wash happens via DMX — no physical changes, no switching fixtures, just a cue change.

Replaceable Gobos — Custom Projection Capability

The rotating gobo wheel's 8 gobos are replaceable. This means you can remove the factory-installed patterns and insert custom metal or glass gobos — company logos, event monograms, themed patterns, architectural textures, or any custom design. Custom gobo services are widely available from specialty manufacturers. This makes the SF-BM200 a practical choice for corporate events (project your logo), weddings (project a monogram), and permanent installations (project architectural patterns) beyond just general-purpose stage lighting.

The Optical Pipeline

Light starts at the 200W LED module and passes through a series of mechanical and optical elements, each independently controllable via DMX: color wheel → gobo wheel 1 (rotating) → gobo wheel 2 (fixed) → prism → frost → aperture → zoom/focus optics → output. The effects stack — color applies to gobo patterns, prism multiplies colored gobo beams, frost softens everything downstream, and zoom controls the output angle.

Color Wheel — 8 Colors + Open

8 colors covers the essential palette for professional lighting: typically saturated red, blue, green, yellow, magenta, cyan, orange, and CTO (color temperature orange) for warm-white correction. Half-color positioning between adjacent filters effectively doubles the available options. The rainbow effect spins the wheel continuously for rapid multi-color strobing during high-energy moments.

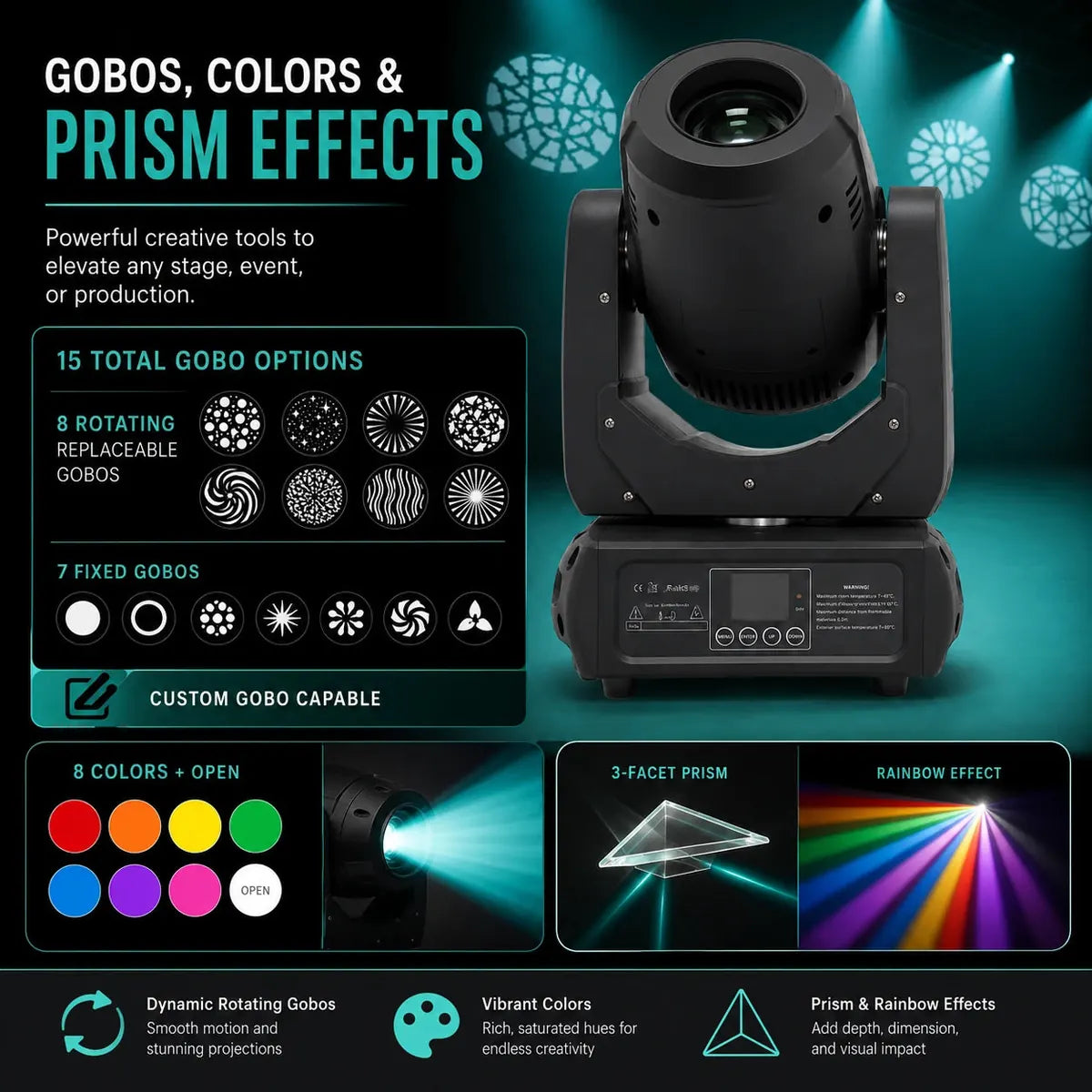

Dual Gobo Wheels — 15 Patterns Total

Two gobo wheels is a significant feature that separates the SF-BM200 from simpler moving heads. The rotating wheel's gobos spin individually — each gobo rotates on its own axis, creating dynamic spinning patterns. This is the classic "rotating gobo" effect used in theater, concerts, and architectural lighting. The fixed wheel's 7 patterns provide quick access to additional textures without using the rotating wheel's slots. Together, the two wheels give you 15 gobo options plus the ability to overlay patterns from both wheels simultaneously for complex layered projections.

Prism — 3-Facet with Bi-Directional Rotation

A 3-facet prism is the standard choice for BSW fixtures because it produces a clean, readable triangular beam pattern that works well in both beam and spot modes. In beam mode through haze, three shafts rotating in a triangle create a dramatic aerial effect. In spot mode, the prism splits a gobo projection into three overlapping copies — useful for filling more surface area with pattern. The prism's rotation speed is fully adjustable via DMX, from slow hypnotic turns to rapid kinetic spinning.

Zoom, Focus & Frost

Effects Layering

Complete Specifications

Light Source Detail

Applications

• Concerts & Touring — One fixture handles beams, gobo projection, and stage wash. Reduces truck pack and rigging time. BSW hybrids are the workhorse of modern concert lighting rigs.
• Houses of Worship — CRI 90 ensures natural skin tones on IMAG screens. Beam mode for dramatic moments, wash for congregational lighting, spot with custom gobo for architectural projection. All from one position.
• Clubs & Nightlife — Beam + prism for high-energy dance floor effects. Gobo projection for themed nights. Wash mode for ambient pre-show and VIP areas.
• Corporate Events — Custom gobos in the rotating wheel project logos on walls and screens. Wash mode in brand colors for ambiance. Beam arrays for high-impact opening moments.
• Theater & Dance — Rotating gobos for scenic textures (water ripple, fire, foliage). Wash mode for general stage illumination. Beam mode for dramatic reveals.
• Weddings & Social Events — Custom monogram gobos, soft wash in warm tones for ceremony/dinner, beam+prism for dance floor energy. CRI 90 ensures beautiful photos.

DMX-512 Control — 15 Channels

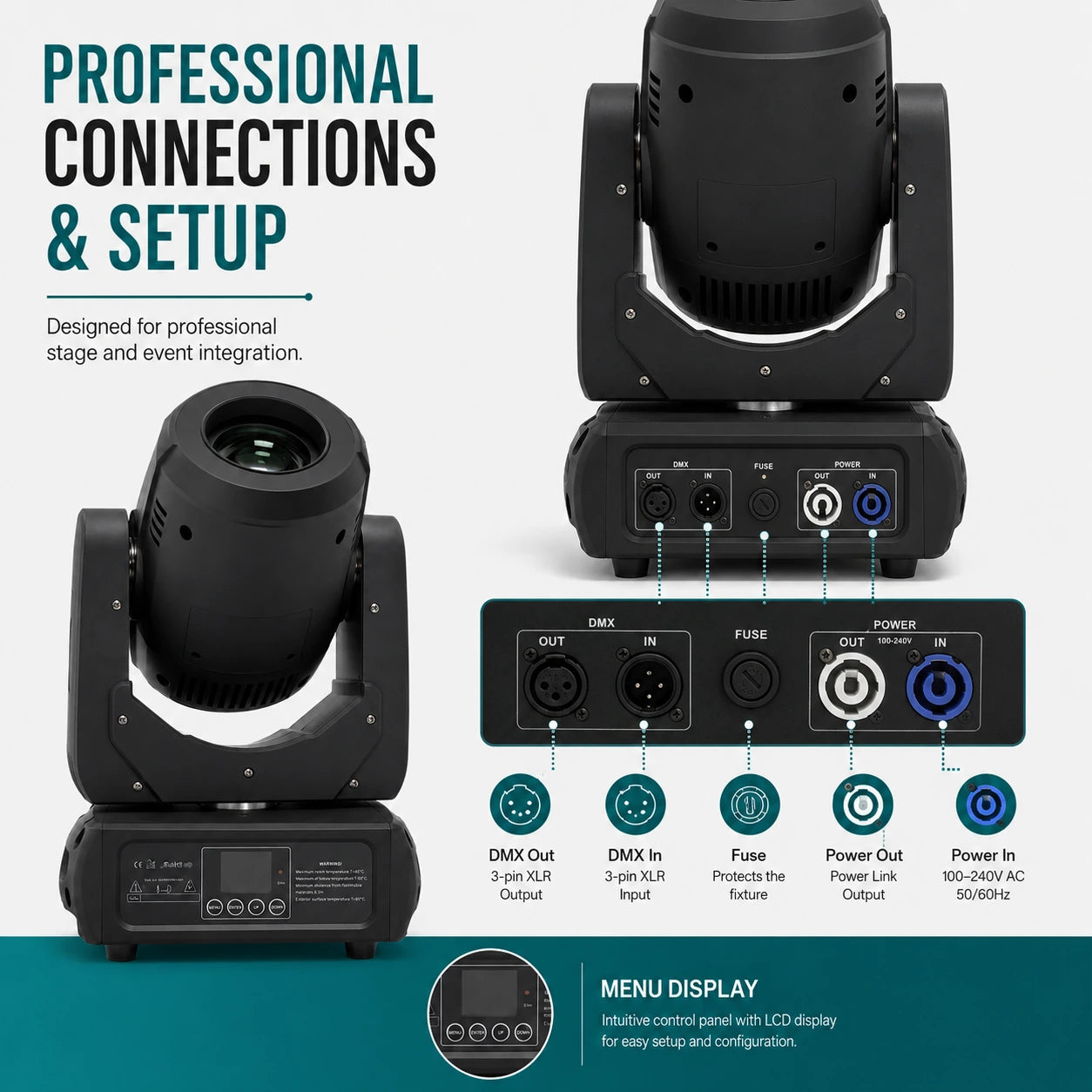

The SF-BM200 operates on 15 DMX channels via standard 3-pin XLR connectors (in/out for daisy-chaining). Set the DMX start address from the onboard LCD display. 15 channels provides independent control over every function: pan/tilt movement, zoom, focus, color wheel, both gobo wheels, prism, frost, aperture, dimmer, and strobe. The fixture also supports RDM for bi-directional communication with compatible consoles.

What 15 Channels Controls

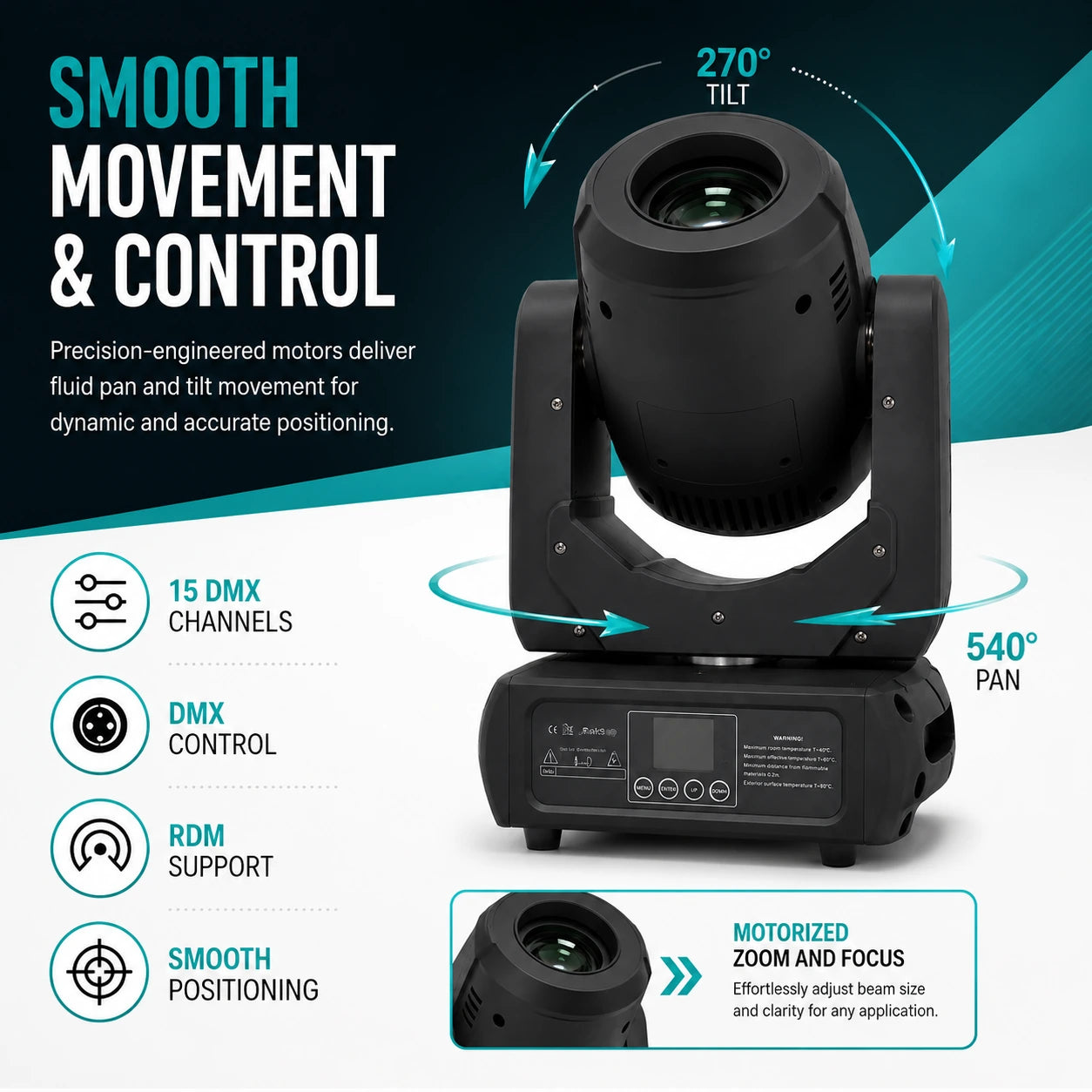

16-Bit Pan/Tilt Precision

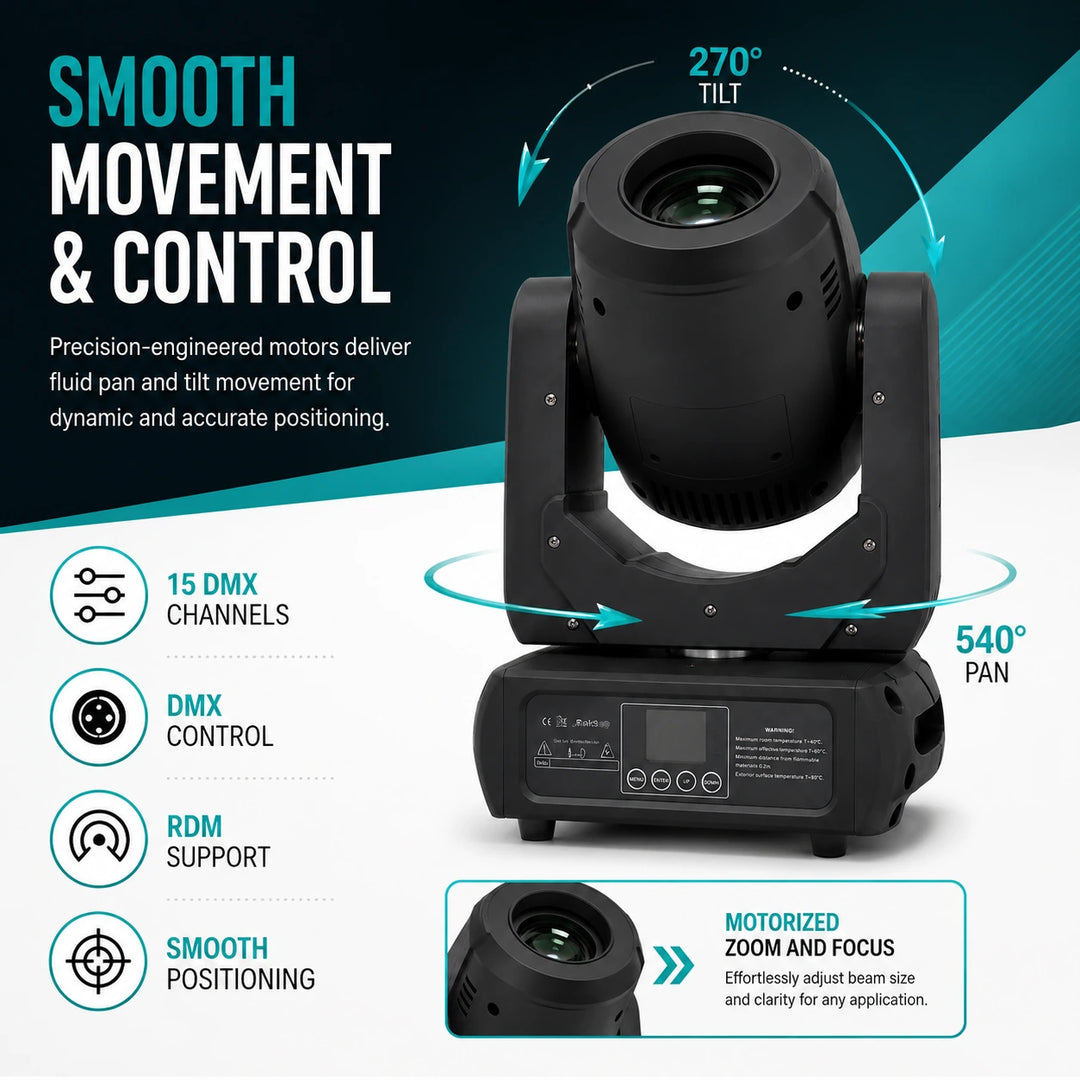

Each movement axis uses two channels (coarse + fine) for 16-bit resolution — 65,536 discrete positions across the full range. The result is smooth, fluid motion at any speed. The SF-BM200 completes a full 540° pan in 3.0 seconds and a full 270° tilt in 2.0 seconds — fast enough for snappy repositioning while remaining smooth during slow sweeps. Automatic electronic position correction compensates for drift or physical disturbance, keeping beams locked on target.

DMX Universe Planning

At 15 channels each, you can address 34 SF-BM200 fixtures per DMX universe (34 × 15 = 510 of 512 channels). The BSW advantage amplifies this: because each fixture replaces three separate beam/spot/wash units, 34 BSW fixtures provide the equivalent lighting coverage of over 100 single-purpose fixtures — all on a single universe.

Non-DMX Control

Frequently Asked Questions

What's the difference between the SF-BM200 and the SF-SB100?

The SF-SB100 is a pure beam fixture — it specializes in tight aerial effects with a dual prism system (16-facet + 8-facet), 13 colors, and 11 gobos, but has no zoom, no frost, and no wash capability. The SF-BM200 is a 3-in-1 BSW hybrid with motorized zoom, dual gobo wheels (including replaceable rotating gobos), frost for wash mode, linear focus, and aperture control. The BM200 is far more versatile; the SB100 is more specialized. Choose the SB100 if beam effects are your sole need. Choose the BM200 if you need one fixture to handle beams, spots, and washes.

Can I use custom gobos (logos, monograms)?

Yes. The rotating gobo wheel carries 8 replaceable gobos. You can remove factory patterns and insert custom metal or glass gobos — company logos, event monograms, themed patterns. Standard B-size or E-size gobos (verify slot dimensions before ordering). Custom gobo manufacturing is widely available online with turnaround times of a few days to two weeks.

Do I need haze?

For beam mode — yes. Aerial beam effects require particles in the air (haze or fog) to be visible. For spot mode (gobo projection) and wash mode — no. Those effects illuminate surfaces directly. Most professional productions use at least light haze, which benefits all three modes.

What does motorized zoom actually do?

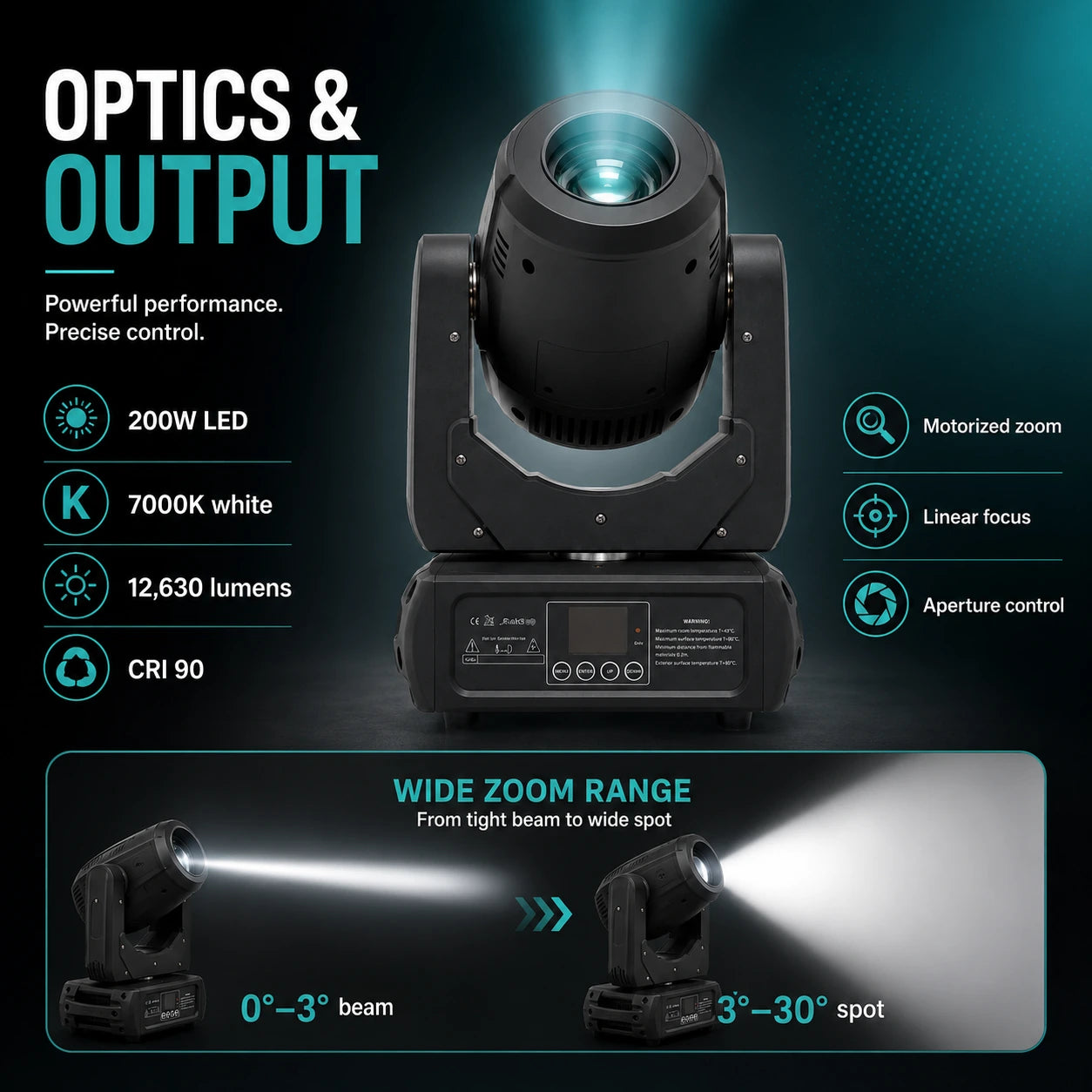

The zoom motor adjusts the beam angle from 0°–3° (tight parallel beam) to 3°–30° (wide spot) via DMX. This lets you switch between beam and spot modes in real time without touching the fixture. It also enables "zoom reveals" — programming the beam to open from a pinpoint to full width during a key moment. The zoom is continuous (not stepped), so any angle within the range is available.

What's the difference between zoom, focus, and aperture?

Zoom changes the beam angle (how wide the light spreads). Focus adjusts the sharpness of gobo projections at different throw distances — like focusing a camera lens. Aperture is a mechanical iris that adjusts the beam's diameter while maintaining its edge quality. All three are independently DMX controllable, giving you precise control over the output's size, shape, and sharpness.

What is RDM?

Remote Device Management — a bi-directional communication protocol built on top of DMX-512. Your console can query the fixture for status information (DMX address, lamp hours, temperature, errors) and remotely change settings. Standard DMX is one-way (console → fixture); RDM is two-way (console ↔ fixture). Extremely useful for troubleshooting and setup when fixtures are mounted on high truss.

How does it compare to a 230W/7R discharge beam?

Traditional 230W 7R fixtures use discharge lamps with limited life (~2,000 hrs), warm-up time, high heat, and no BSW versatility. The SF-BM200's 200W LED offers instant on/off, 50,000-hour lifespan, CRI 90 color quality, and true 3-in-1 operation. Raw beam intensity in a pure-beam comparison may favor the discharge fixture, but the LED wins on longevity, versatility, color quality, and operating efficiency.

How many can I run per power circuit?

Each unit draws approximately 250–300W at full output. On a 15A/120V circuit (1,800W available): 5–6 fixtures with headroom. On a 20A circuit (2,400W): 7–8 fixtures. Always calculate total circuit load including all connected equipment.

Is it outdoor rated?

No. IP33 is an indoor rating. Not waterproof. Use indoors or under fully covered/tented outdoor stages. Direct rain or moisture will damage the fixture.

Can I use frost and prism at the same time?

Yes. Both are independently controllable. Frost + prism creates a diffused triple-beam wash — the prism splits the light into three paths, and the frost softens each path. The result is a wider, more textured wash than frost alone.

Setup Tips

Master the Zoom for Mode Transitions

The zoom is the SF-BM200's defining feature. Practice programming zoom transitions: start a cue at 0°–3° beam, then sweep to 30° spot over 4–8 seconds. The beam literally opens before the audience's eyes. This transition is one of the most visually striking effects in lighting design and it costs nothing — just program the zoom channel to change over time.

Focus Your Gobos at Sound Check

Linear focus is DMX controllable, but take time during setup to find the right focus values for your throw distances. A gobo projected at 10 feet requires different focus than one projected at 30 feet. Note the DMX values for each distance and build them into your cues. Sharp gobos at any distance is what separates professional looks from fuzzy projections.

Rotate One Gobo, Not All of Them

The rotating gobo wheel's individual gobo rotation is a powerful tool, but restraint makes it more effective. A slowly rotating breakup gobo (like water ripple or foliage) on a colored wash creates organic, living texture. Save fast rotation for high-energy moments. A gobo rotating at 1–2 RPM creates atmosphere; the same gobo at 30 RPM creates chaos. Both have their place.

Use Mode Contrast for Show Arc

Build your show's lighting arc around mode transitions. Open with soft wash in warm tones. Build tension with gobo spot projections. Peak with tight beams and prism through haze. Each mode shift creates a visual chapter change. The audience doesn't need to understand lighting — they feel the shift.

Pairs Well With

• Haze FX — Essential for beam mode. Light haze makes beams visible and adds depth to spots and washes.
• Fog FX — Dense fog bursts paired with beam+prism for dramatic reveals.
• Cold Spark FX — Colored beams through spark fountains for layered impact.
• CO₂ FX — CO₂ jets create instant dense atmosphere that catches beams perfectly.
• Confetti FX — Confetti catches wash light and sparkles under beam illumination.
• All Stage Lighting — Pair with dedicated wash bars for fill, par cans for downstage, and beam fixtures for aerial density.
