The Foam Party Operator's Transfer Pump
-
Foam Party Operators Running Barrel-Fed Systems — This is the core use case. You've mixed your foam solution in a 53-gallon barrel (or similar container) and need to move it to the foam machine. The utility pump sits in the barrel and pushes solution through a hose to the machine's intake. No lifting, no pouring, no gravity-fed setups that lose pressure when the barrel level drops. Consistent flow from full barrel to empty barrel.
-
Multi-Barrel Events — Large foam parties and festivals often run through multiple barrels of mixed solution. The pump lets you switch barrels fast — pull it from the empty barrel, drop it in the next one, and you're flowing again in seconds. No re-priming, no complicated plumbing. The pump is submersible and self-priming by design.
-
Mobile DJs & Event Operators — If you're loading into a venue, setting up a foam machine, and running a party in the same afternoon, the utility pump eliminates one of the most physically demanding parts of the setup: moving 40+ gallons of mixed solution from barrel to machine. The pump weighs a few pounds. The solution weighs over 300 pounds. Let the pump move it.
-
School & Community Events — Volunteer crews and parent organizers who aren't professional event operators benefit from the simplicity. Drop the pump in the barrel, connect the hose, plug it in. No specialized knowledge needed. The garden hose adapter means the connection hardware is already familiar.
-
Foam Machine Rental Customers — If you rent out Foam Blaster units, including this pump in the rental package makes the customer's setup dramatically easier. It reduces support calls about "how do I get the solution to the machine" and improves the overall rental experience.
💡 Why Not Just Gravity Feed? Gravity-fed setups (barrel elevated above the machine) work in theory, but in practice: the barrel is heavy, elevating it is a safety risk, flow rate decreases as the barrel empties, and the foam machine needs consistent intake pressure to produce quality foam. A pump solves all of these problems and keeps the barrel safely on the ground where it belongs.

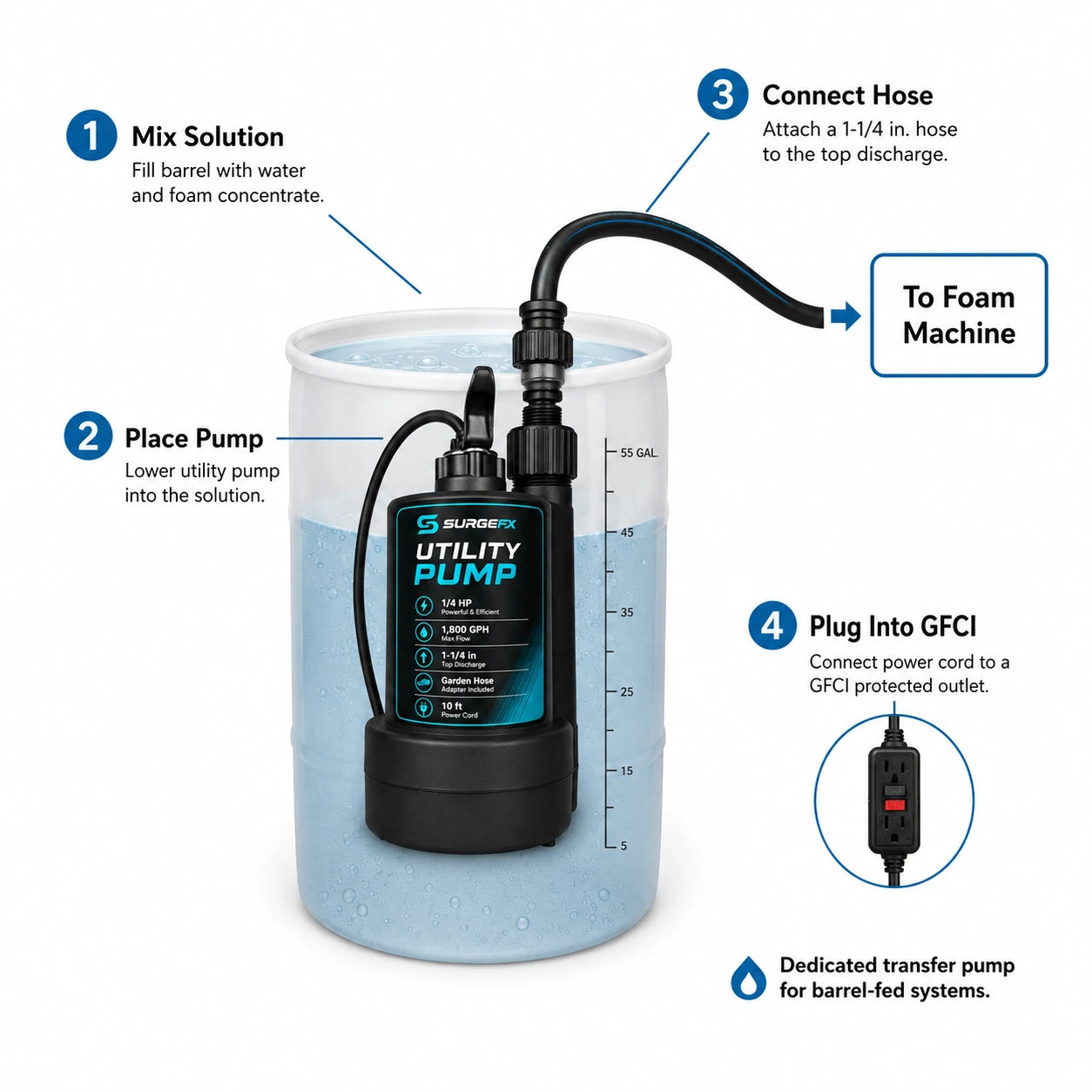

Simple Setup — Barrel to Machine
The utility pump is a submersible transfer pump. It sits inside your foam solution barrel and pushes liquid out through the top discharge to your foam machine. Here's the full workflow:
Step 1 — Mix Your Foam Solution
Mix your Ready to Run solution or broken-down Foam Gel in a 53-gallon barrel at the correct ratio (75:1 for Ready to Run). Fill the barrel with water first, then add the concentrate and stir.

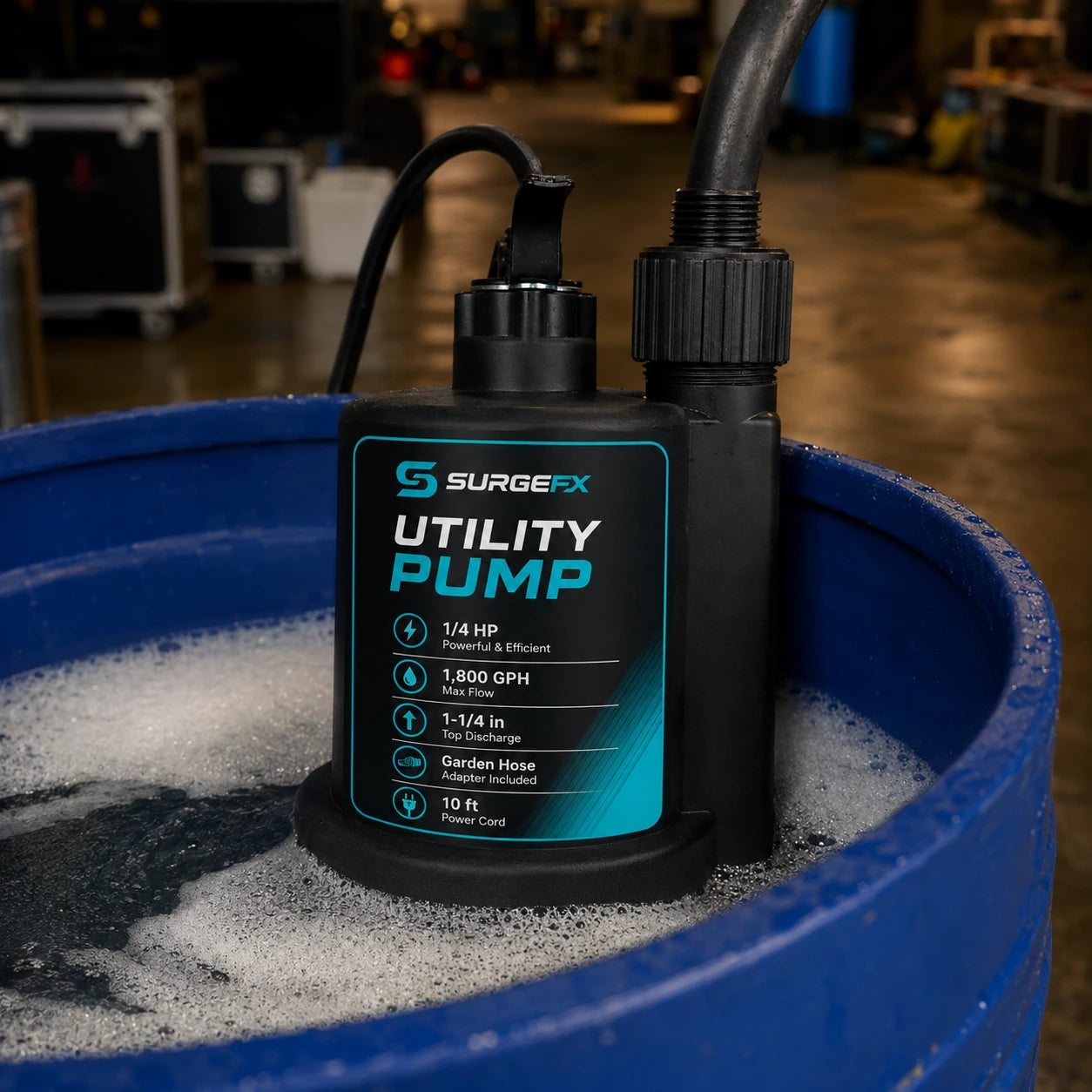

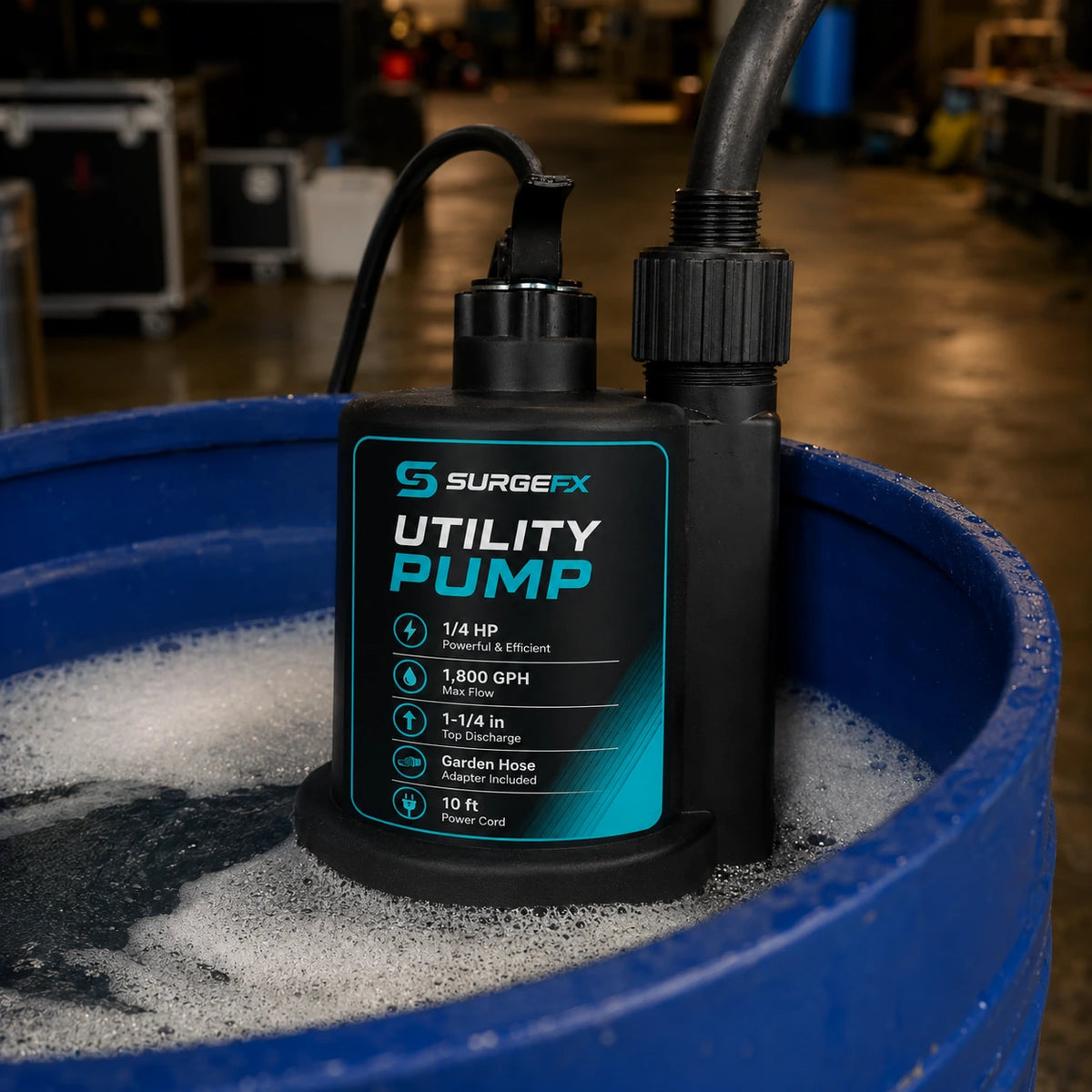

Step 2 — Place the Pump
Lower the utility pump into the barrel so it sits on the bottom. The pump draws solution from the base and pushes it out the 1-1/4" top discharge port. It pumps down to 1/8" from the surface, so you'll extract virtually all the solution from the barrel with minimal waste.
Step 3 — Connect the Discharge Line
Attach a garden hose or 1-1/4" discharge hose to the pump's top outlet using the included garden hose adapter. Run the hose from the barrel to your foam machine's solution intake.
Step 4 — Plug In and Run
Plug the pump into a GFCI-protected outlet. The pump is continuous-duty — it runs as long as it's plugged in and submerged. It delivers up to 1,800 GPH (30 GPM) at zero head, which is more than enough to keep any foam machine fed at full output.
Step 5 — Monitor and Switch Barrels as Needed
When the barrel runs low, the pump will begin to lose prime as it reaches the bottom. Unplug the pump, move it to a fresh barrel, reconnect, and plug back in. No re-priming procedure needed — the pump self-primes when submerged.

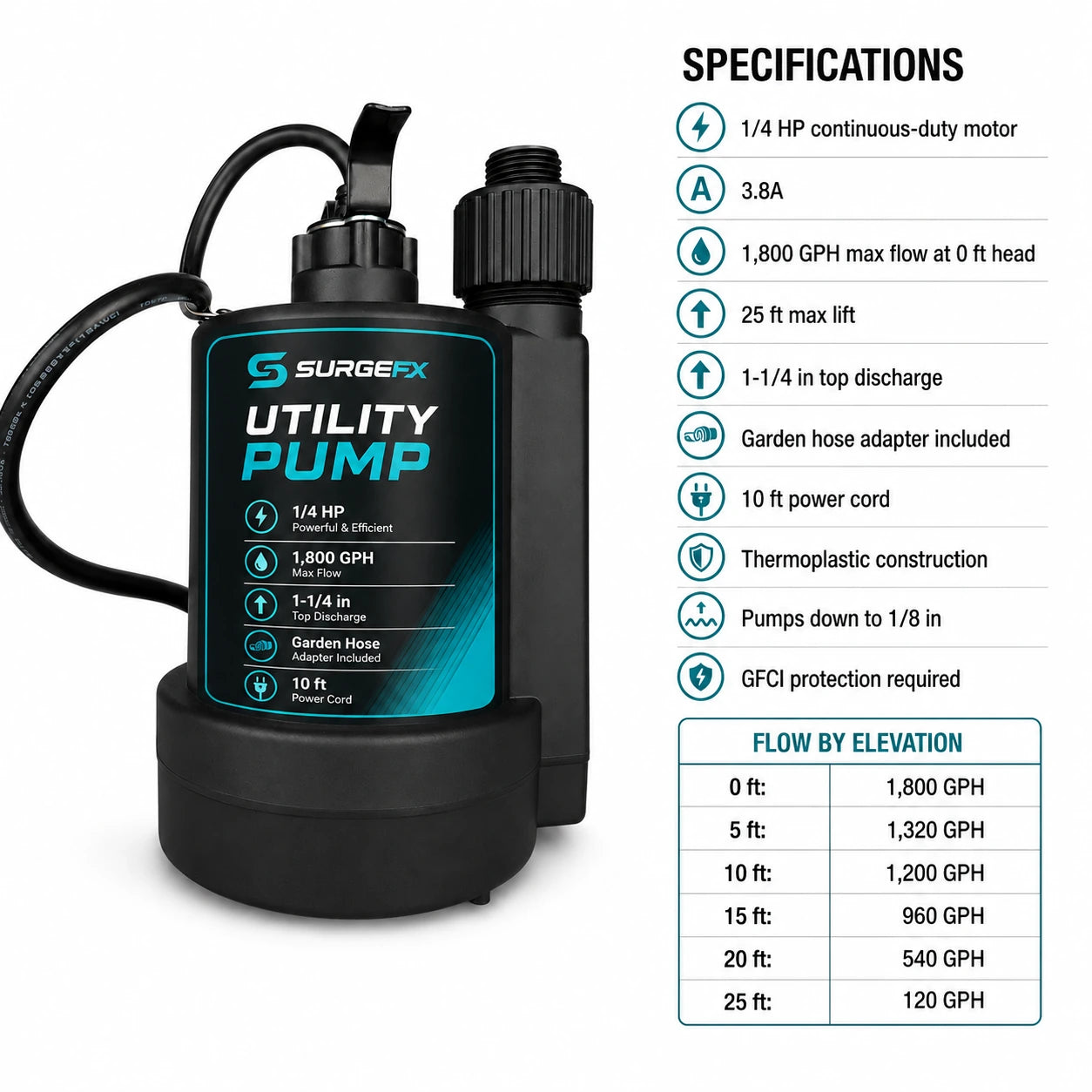

Flow Rate at Different Heights
If your foam machine intake is elevated above the barrel (on a stage, platform, or truck bed), the pump's flow rate decreases with height. Here's what to expect:
0 ft (ground level)
1,800 GPH (30 GPM)
5 ft elevation
1,320 GPH (22 GPM)
10 ft elevation
1,200 GPH (20 GPM)
15 ft elevation
960 GPH (16 GPM)
20 ft elevation
540 GPH (9 GPM)
25 ft (max lift)
120 GPH (2 GPM)
For most foam party setups where the barrel and machine are both on the ground or within a few feet of elevation, you'll get the full 1,800 GPH — far more than the foam machine needs. Even at 15 feet of elevation (machine on a high stage), 960 GPH is plenty.
💡 Black Box Users: If you're running the
SurgeFX Black Box Injection Blending System, the Black Box draws solution directly from the bag — you don't need this pump for that setup. This pump is for traditional barrel-fed foam machine configurations where you're manually mixing solution in a barrel and need to transfer it to the machine.

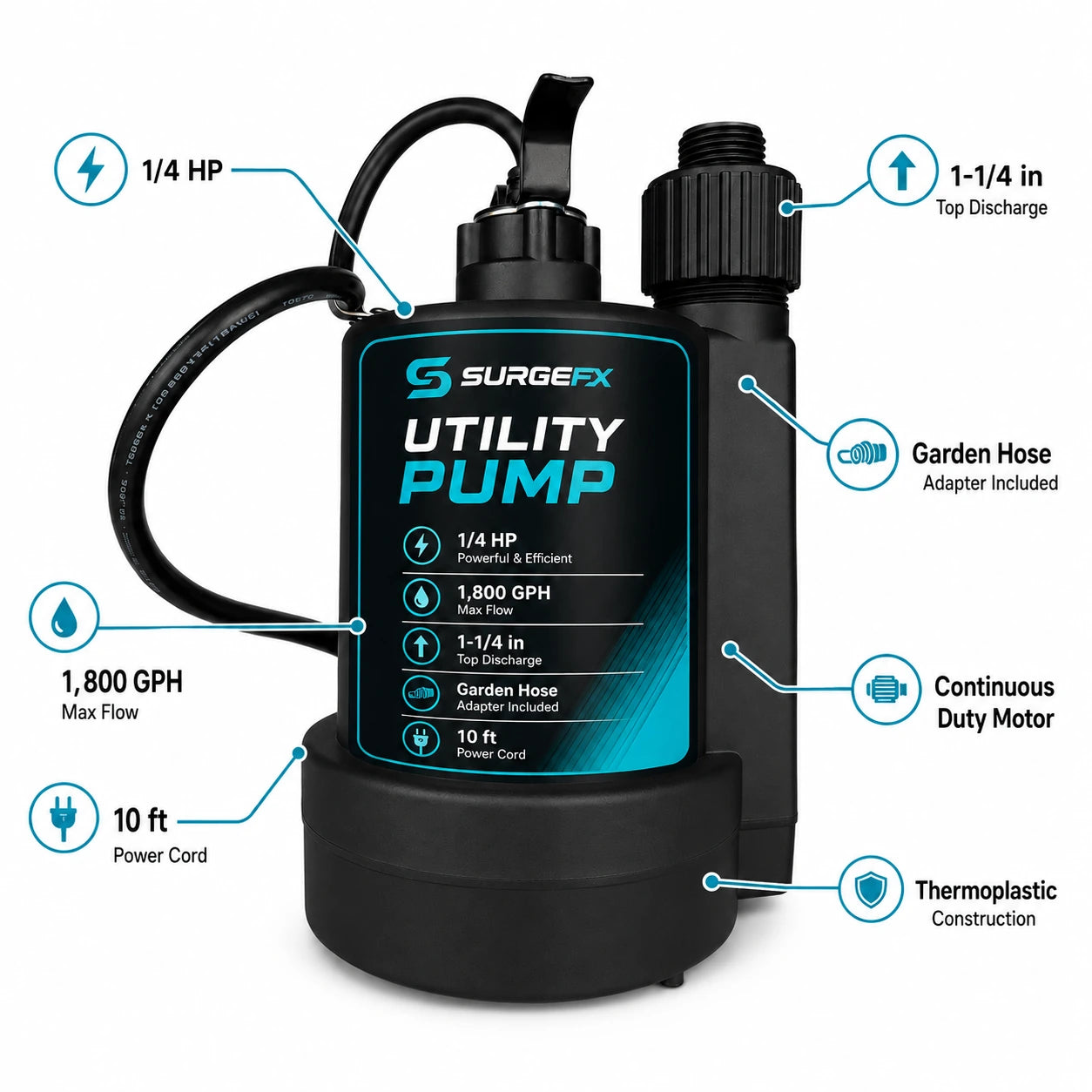

Motor
1/4 HP, continuous duty, thermally protected, split capacitor
Max Flow Rate
1,800 GPH (30 GPM) at 0 ft head
Construction
Thermoplastic (corrosion-resistant)
Discharge Size
1-1/4" (top discharge)
Adapter Included
Garden hose adapter
Solids Handling
1/8" (handles small particulates)
Pumps Down To
1/8" from surface (near-complete barrel extraction)
Thermal Protection
Yes — auto-shutoff on overheat, auto-restart on cool
⚠ GFCI Protection Required: This pump operates submerged in liquid. Always plug into a GFCI-protected outlet or use a GFCI extension cord. This is a mandatory electrical safety requirement for any pump operating in wet conditions.
Complete Your Foam Party Setup
Foam Blaster Maxx / Foam Blaster Pro-X →
The foam machines this pump is designed to feed. The utility pump sits in your solution barrel and pushes mixed foam solution to the machine's intake, replacing manual hauling and inconsistent gravity-fed setups. The pump's 1,800 GPH output exceeds what either foam machine requires, so you'll never starve the intake.
Foam Solution — Ready to Run →
The pre-broken-down concentrate that goes into the barrel. Mix 75:1 with water, drop the pump in, and start flowing. Ready to Run eliminates the 4:1 gel breakdown step — one mix, straight to the machine.
Collapsible 53-Gallon Foam Barrel →
The barrel the pump lives in. The collapsible design means the barrel and pump pack down together for transport. Drop the pump in the bottom, fill with mixed solution, connect, and run.
Foam Gel (Concentrate) →
If you're running the two-step mixing process (4:1 gel breakdown, then 75:1 into barrel), the utility pump transfers the final mixed solution to the foam machine the same way. The pump doesn't care which concentrate you used — it moves whatever's in the barrel.
Scented Foam Solution →
Add scented solution to your barrel mix for a sensory upgrade. The pump handles scented solution identically to standard solution — no changes to setup or operation.
💡 Don't Need a Pump? If you're running the
SurgeFX Black Box Injection Blending System, the Black Box draws directly from the solution bag and blends inline — no barrel, no mixing, no pump required. The Black Box is the zero-prep alternative. This pump is for operators running the traditional barrel-mix method.
Frequently Asked Questions
What does this pump actually do?
It transfers mixed foam solution from your barrel to your foam machine. You drop the pump in the barrel, connect a hose from the pump's discharge to the machine's intake, and the pump pushes solution to the machine at up to 1,800 GPH. It replaces manual pouring, bucket hauling, and unreliable gravity-fed setups.
Do I need this pump to run a foam machine?
Not technically — you can gravity-feed or manually fill. But practically, yes. A 53-gallon barrel of mixed solution weighs over 400 pounds. You're not lifting that. Gravity feeding requires elevating the barrel above the machine, which is both inconvenient and a safety hazard. The pump lets you keep the barrel on the ground and delivers consistent flow regardless of barrel level.
Will it work with my foam machine?
Yes. The pump has a standard 1-1/4" top discharge with an included garden hose adapter. It connects to any foam machine that accepts a hose-fed solution input, including the Foam Blaster Maxx and Foam Blaster Pro-X.
Can the foam solution damage the pump?
No. The pump uses thermoplastic construction (housing and impeller), which is corrosion-resistant and chemical-resistant. SurgeFX foam solutions are cosmetic-grade with neutral pH — they won't degrade thermoplastic components. Rinse the pump with clean water after each use to clear residual solution, and it will last.
How long can it run continuously?
The motor is rated continuous duty with thermal protection. It's designed to run for extended periods. If the motor overheats (from running dry, for example), the thermal protection shuts it off automatically and restarts when it cools. For a typical foam party running 2–4 hours, the pump handles the full duration without issues.
What does "pumps down to 1/8 inch" mean?
The pump can extract solution until only 1/8 inch of liquid remains in the barrel. You'll get virtually every drop of mixed solution out of the barrel with almost zero waste. When the pump starts sucking air, unplug it — the barrel is empty.
Why do I need a GFCI outlet?
The pump operates submerged in liquid, and the operator is working near the barrel and power cord. A GFCI (Ground Fault Circuit Interrupter) detects any current leak and shuts off power in milliseconds — preventing electrical shock. This is a standard electrical safety requirement for any submersible pump. If your outdoor outlet isn't GFCI-protected, use a GFCI extension cord (available at any hardware store).
Can it pump from the barrel up to a stage or truck bed?
Yes — the pump lifts water up to 25 feet of vertical height. At 10 feet of elevation, you still get 1,200 GPH. At 15 feet, 960 GPH. Even at 20 feet, 540 GPH — still plenty for any foam machine. Only at extreme heights near the 25-foot max does flow drop significantly.
Can I use it as a general-purpose pump?
Yes. It's a standard utility pump that also functions as a sump pump, water transfer pump, or emergency drainage pump. If you're using it outside of foam parties, it handles clean water, lightly dirty water, and solids up to 1/8 inch. An optional float switch (sold separately at hardware stores) converts it to an automatic sump pump.
What's included?
The pump, a garden hose adapter, and a 10-foot power cord (attached). Discharge hose is not included — use a standard garden hose or 1-1/4" discharge hose.
Get the Most From Your Utility Pump
Always Use a GFCI — No Exceptions
This is the number one safety rule. The pump runs submerged in liquid, and you and your guests are standing near it. A GFCI outlet or extension cord is not optional equipment — it's the electrical safety requirement that prevents a fatal shock hazard. If your venue doesn't have outdoor GFCI outlets, buy a GFCI extension cord before the event. They're under $30 at any hardware store. Don't skip this.
Rinse the Pump After Every Event
After the party, run the pump in a bucket of clean water for a minute or two. This flushes foam solution residue out of the impeller and discharge path. Foam solution is cosmetic-grade and won't corrode the thermoplastic, but dried residue can build up over time and reduce flow efficiency. A quick rinse after each use keeps the pump performing at full capacity.
Keep the Barrel on the Ground
The whole point of the pump is that you don't have to elevate the barrel. Keep it on level ground where it's stable and safe. A 53-gallon barrel of mixed solution weighs over 400 pounds — putting it on a table, tailgate, or platform is an accident waiting to happen. The pump gives you 1,800 GPH from ground level. Use it.
Don't Let It Run Dry
When the barrel gets low, the pump will start pulling air and lose prime. Unplug it immediately. Running dry doesn't instantly destroy the pump (the thermal protection will eventually shut it off), but it causes unnecessary wear on the motor and impeller. Listen for the change in sound — when the smooth hum turns to a sputtering rattle, the barrel is empty.
Pre-Stage a Second Barrel for Back-to-Back Running
If the event is large enough to burn through multiple barrels, have the next barrel pre-mixed and ready before the first one runs out. When the pump sputters, unplug it, lift it out of the empty barrel, drop it in the full barrel, reconnect, plug in. Total downtime: under 30 seconds. Your foam machine never has to stop.
Coil the Cord and Hose Together for Transport
The 10-foot power cord and your discharge hose are the two things that get tangled in transit. After rinsing the pump, coil the cord around the pump body and bundle the hose. Store them together so setup at the next event is fast.
Garden Hose Works Fine
Don't overthink the discharge connection. A standard garden hose screws directly onto the included adapter and connects to the foam machine. You don't need specialized plumbing. If you already have a garden hose, you already have the connection hardware.
