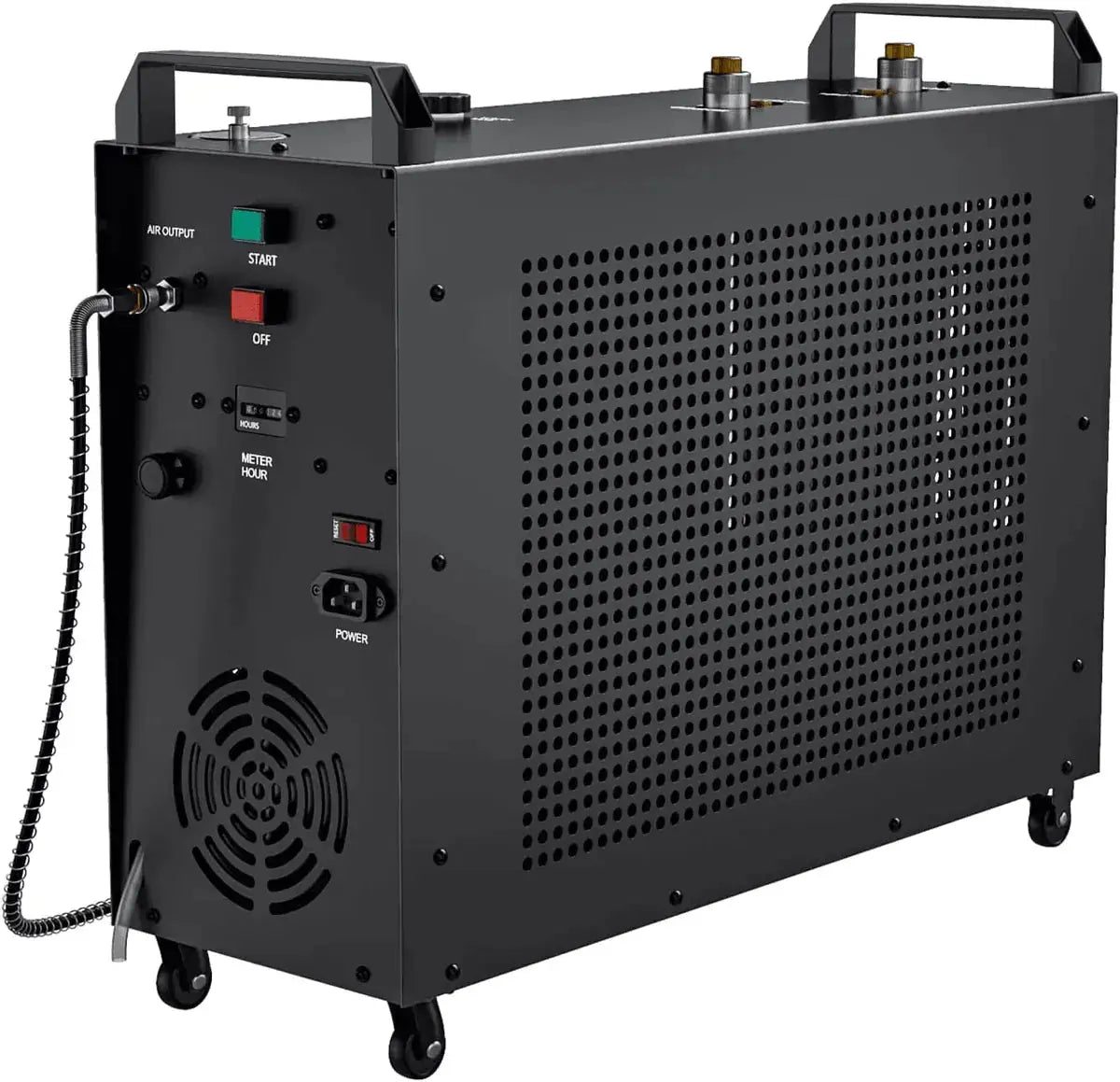

Air Blaster Maxx Ultra Fill:5800Psi Compressor Kit

Who Needs a Shop-Grade Compressor?

• Large Rental & Event Fleets — You're dispatching 5, 10, 15+ Air Blaster Maxx units per weekend across multiple events and multiple crews. That's dozens of tanks to fill before Friday. The UltraFill's 10-hour continuous duty cycle means you set up a fill station workflow and process tanks all day without the compressor needing rest. No cool-down pauses. No overheat shutdowns. Just continuous, sustained filling from the first tank to the last.
• Dedicated Fill Stations — If you've built (or are building) a fill area in your shop or warehouse — a workbench with tank storage, fill whips, pressure gauges, and a tagging system — the UltraFill is the centerpiece. It's the compressor that turns a corner of your shop into a professional fill station equivalent to what paintball fields and dive shops operate. Your operation becomes fully self-contained.
• Multi-Day Festival & Touring Operations — 3-day festival. Nightly confetti launches. Multiple stages. Dozens of tank cycles. The UltraFill fills faster and runs longer than any portable unit. Position it backstage near a power outlet and it becomes your air supply for the entire run. No trips to external fill stations. No portable compressor cool-down management. Just continuous availability.
• Operations Expanding Beyond 3,000 PSI Tanks — The Tippmann 48ci tanks that ship with the Air Blaster Maxx are rated at 3,000 PSI. If your operation is scaling to include higher-capacity 4,500 PSI tanks — or if you want the headroom for future hardware — the UltraFill's 5,800 PSI ceiling handles any HPA tank on the market. The QuickFill and PrecisionFill max out at 4,500 PSI. The UltraFill goes beyond.
• Companies That Value Infrastructure Over Per-Event Cost — At $3,499, the UltraFill is a capital investment in your business infrastructure. It eliminates all external fill dependencies permanently. It handles any volume you'll ever throw at it. It runs all day. It fills any tank. For operations where compressed air is a core operational need — not an occasional convenience — the UltraFill is the last compressor you'll buy.

Specifications

What Makes 4-Stage Compression Different?

Single and dual-stage compressors compress air from atmospheric pressure (~14.7 PSI) to thousands of PSI in one or two big jumps. Each jump generates significant heat, which limits how fast and how long the compressor can run. The UltraFill's 4-stage compression divides that work into four smaller, sequential pressure increases — each stage compresses the air a fraction of the total, with cooling between stages. This means less heat per stage, lower peak temperatures, faster pressure buildup, and dramatically longer continuous run times. It's the same engineering principle used in professional dive shop and industrial compressors, scaled down to a compact form factor.

Primary Compatibility

Fills the Tippmann 48ci 3,000 PSI tanks that ship with the Air Blaster Maxx Multi-Launcher. Also fills any larger or higher-pressure HPA tank on the market — the 5,800 PSI ceiling accommodates every tank rating currently available.

What's in the Box

Dual-piston 4-stage compressor unit, AC power cable, 8mm quick-connect fill whip, oil/water separator, moisture filter, and repair kit with replacement parts. Water tank ships empty for transport — fill with coolant before first use.

Setup & Fill Process

The UltraFill has one additional setup step compared to the portable compressors: the water cooling system must be filled before operation. After that, the fill process is the same connect-set-fill workflow.

First-Time Setup

Fill the Water Tank. The water cooling tank ships empty for safe transport. Before your first use, open the water tank cap on top of the unit and fill with coolant (distilled water recommended). A water level indicator on the side shows you when it's full. Do not operate the compressor with an empty water tank — running dry can damage the cooling system and the compression stages.

Filling a Tank

Step 1: Verify Coolant Level
Check the water level indicator before every fill session. Top off if needed. This takes 5 seconds and prevents the only maintenance-related issue you can encounter.

Step 2: Connect Power
Plug into a 110V or 220V wall outlet. The UltraFill draws 1,200W — ensure your outlet and circuit can handle the load. A dedicated circuit is recommended if running for extended periods.

Step 3: Set Target Pressure
Set the auto shut-off to your tank's rated pressure. For Tippmann 48ci tanks: 3,000 PSI. For 4,500 PSI rated tanks: 4,500 PSI. The UltraFill can reach 5,800 PSI — only set pressures this high if your tank is specifically rated for it.

Step 4: Connect Fill Whip & Start
Attach the 8mm quick-connect fill whip to the compressor output and connect to your tank's fill nipple. Turn on the compressor. The 4-stage compression system brings the tank to pressure efficiently — you'll notice the fill is faster than portable units, and the compressor runs noticeably cooler even during extended sessions.

Step 5: Auto Shut-Off, Disconnect, Next Tank
The compressor stops at your set pressure. Disconnect the fill whip, bleed residual line pressure, set the filled tank aside, connect the next empty tank. Repeat. The UltraFill is designed for exactly this kind of continuous cycling — tank after tank, hour after hour.

Three Compressors. One Ecosystem. Choose Your Scale.

SurgeFX offers three compressor tiers for the Air Blaster Maxx ecosystem. All three fill the same tanks. All three have auto shut-off. The differences are speed, duty cycle, maximum pressure, and power source.

Choose QuickFill ($399) If...

You fill 1–3 tanks per event with no time pressure. You need 12V field fills from a car battery. You want self-sufficiency at the lowest cost. The QuickFill is the entry point into owning your air supply.

Choose PrecisionFill ($799) If...

You fill 4–8 tanks with fast turnaround. You need both AC and DC power. You run back-to-back fills at events and can't afford long cool-down pauses. The PrecisionFill is the portable workhorse for active operators.

Choose UltraFill ($3,499) If...

You fill 10+ tanks regularly. You're building or running a dedicated fill station. You manage a multi-launcher fleet. You need all-day continuous operation without overheating. You want the highest pressure ceiling (5,800 PSI) for current and future tanks. The UltraFill is the professional infrastructure investment that scales with your business.

Many Pros Run Two Compressors

A common professional setup: the UltraFill in the shop for batch-filling all tanks before dispatch, plus a QuickFill or PrecisionFill in the field vehicle for on-location top-offs and emergency refills. The shop compressor handles volume. The portable compressor handles flexibility. Together, you're never without air regardless of location or situation.

Frequently Asked Questions

Can this really run for 10 hours straight?
Yes — the 4-stage compression architecture and water+fan cooling system are specifically engineered for extended duty cycles. The water cooling system absorbs and dissipates heat between compression stages, preventing the thermal buildup that forces portable compressors to rest. Monitor the coolant level during very long sessions and top off if needed, but the compressor itself is designed for sustained all-day operation.

Why can't it run on 12V car battery like the other two?
The UltraFill draws 1,200W — four times the power of the QuickFill. A car battery can't sustain that draw for meaningful fill sessions. The 110V/220V AC requirement is a design tradeoff: more power, more airflow, more continuous duty — but it needs a wall outlet. If you need field fills from a vehicle, pair the UltraFill with a QuickFill or PrecisionFill as your portable unit.

Do I need to fill the water tank? What kind of water?
Yes — the water cooling tank ships empty and must be filled before first use. Use distilled water to prevent mineral deposits in the cooling system. A water level indicator on the side of the unit shows the current level. Check before each session, top off as needed. Running the compressor with an empty water tank will damage the unit.

How fast does it fill a Tippmann 48ci tank?
Significantly faster than both the QuickFill and PrecisionFill. The 1,200W motor and 4-stage compression deliver higher air flow rates. Exact times vary with starting pressure and conditions, but the UltraFill is the fastest option in the lineup by a wide margin — and the difference becomes dramatic when filling larger tanks or filling from zero PSI.

Why does it go to 5,800 PSI if my tanks are 3,000 PSI?
The 5,800 PSI ceiling gives you maximum flexibility. Your current Tippmann 48ci tanks are 3,000 PSI — fill to that. Standard HPA tanks are 4,500 PSI — the UltraFill handles those too. Some specialized tanks (scuba, industrial) are rated higher. The auto shut-off means you always fill to exactly your tank's rating, regardless of the compressor's maximum capability. The 5,800 PSI ceiling means this compressor won't become obsolete if you acquire higher-pressure hardware in the future.

Is it portable? Can I bring it to events?
It's compact for its class but heavier than the portable units, and it requires AC power. You can bring it to events if there's a wall outlet available — backstage, in a production office, near a generator. But it's best positioned as a shop/warehouse compressor where it can be semi-permanently installed. For true field portability, the QuickFill and PrecisionFill are purpose-built for that role.

Does it need oil or regular maintenance?
Oil-free — no lubrication maintenance. The primary maintenance item is the water cooling system: keep the coolant level topped off with distilled water. The moisture filter should be checked periodically. A repair kit with replacement parts is included. Compared to industrial compressors, maintenance is minimal.

Can it fill CO2 tanks?
No. Compressed air (HPA) tanks only. CO2 is a liquefied gas requiring a completely different filling system.

Is the UltraFill overkill for my operation?
If you're asking, it probably is — today. But if your operation is growing, consider where you'll be in 6–12 months. The UltraFill is an investment in capacity you'll grow into. If you're currently at 4–6 tanks and scaling to 10+, buying the UltraFill now avoids upgrading twice. If you're steady at 1–3 tanks with no expansion plans, the QuickFill or PrecisionFill is the right choice.

How does this compare to going to a paintball shop for fills?
At $5–$6 per fill, a high-volume operator filling 10+ tanks per week spends $2,600–$3,100+ per year on external fills — before accounting for drive time, shop hours, and logistical overhead. The UltraFill pays for itself within the first year at high-volume usage. After that, every fill is essentially free, and you fill on your own schedule with zero external dependencies.

Build a Professional Fill Station

Designate a Fill Area in Your Shop
Give the UltraFill a permanent home: a sturdy workbench or table near a dedicated electrical outlet. Keep a supply of distilled water nearby for coolant top-offs. Mount a power strip with a surge protector. Store your fill whip, spare o-rings, and tank tags within arm's reach. Bolt down or stabilize the compressor if it's on a high surface. A dedicated fill area turns tank prep from a chore into a streamlined process.

Use a Dedicated Circuit
At 1,200W, the UltraFill draws significant current — especially during startup and peak compression. Running it on a shared circuit with other shop equipment can trip breakers during long sessions. A dedicated 15A or 20A circuit for the compressor eliminates this risk. If your shop has 220V available, use it — higher voltage means lower current draw for the same power output.

Distilled Water Only
Tap water works in a pinch, but mineral deposits will build up in the cooling system over time, reducing cooling efficiency and potentially clogging passages. Distilled water costs a dollar per gallon and prevents all of this. Stock a few gallons at your fill station. It's the cheapest maintenance investment you'll make.

Batch Fill Before Dispatch Days
Thursday night or Friday morning — whatever your dispatch day is — run through your entire tank inventory. Line them up, fill sequentially, tag each one "full" as it comes off the compressor. The UltraFill's 10-hour duty cycle means you can process your entire fleet in a single session regardless of size. Every tank that leaves your shop should be full and verified.

Pair with a Portable Unit for Field Coverage
The UltraFill handles shop volume. A QuickFill or PrecisionFill in the field vehicle handles on-location top-offs. This two-compressor strategy gives you complete air independence: batch fill at base, top off in the field, never depend on external fill sources for anything.

Keep the Moisture Filter Clean
The built-in oil/water separator keeps your tank air clean and dry, but the filter element does its job by trapping contaminants. Check it periodically — more often if you're running the compressor daily. A clogged moisture filter reduces air quality and fill efficiency. Replacement parts are included in the kit, and additional filters are inexpensive.

Log Your Fill Sessions
For fleet operations, a simple log — date, tank ID, fill pressure, any notes — creates an operational record that helps you track usage patterns, identify tanks that need hydro testing, spot tanks that aren't holding pressure, and forecast when you'll need to retest or replace hardware. The discipline of logging takes 30 seconds per fill and pays dividends in fleet management.

This Compressor Is Business Infrastructure
Think of the UltraFill the way you think of your vehicle, your road cases, or your inventory management system — it's not a single-event purchase, it's a capability investment. It eliminates an entire category of operational dependency (external air supply), converts a recurring cost (per-fill fees) into a one-time capital expense, and gives you complete control over your air supply chain. Every tank you fill yourself is a tank that doesn't depend on someone else's business hours, pricing, or availability.
