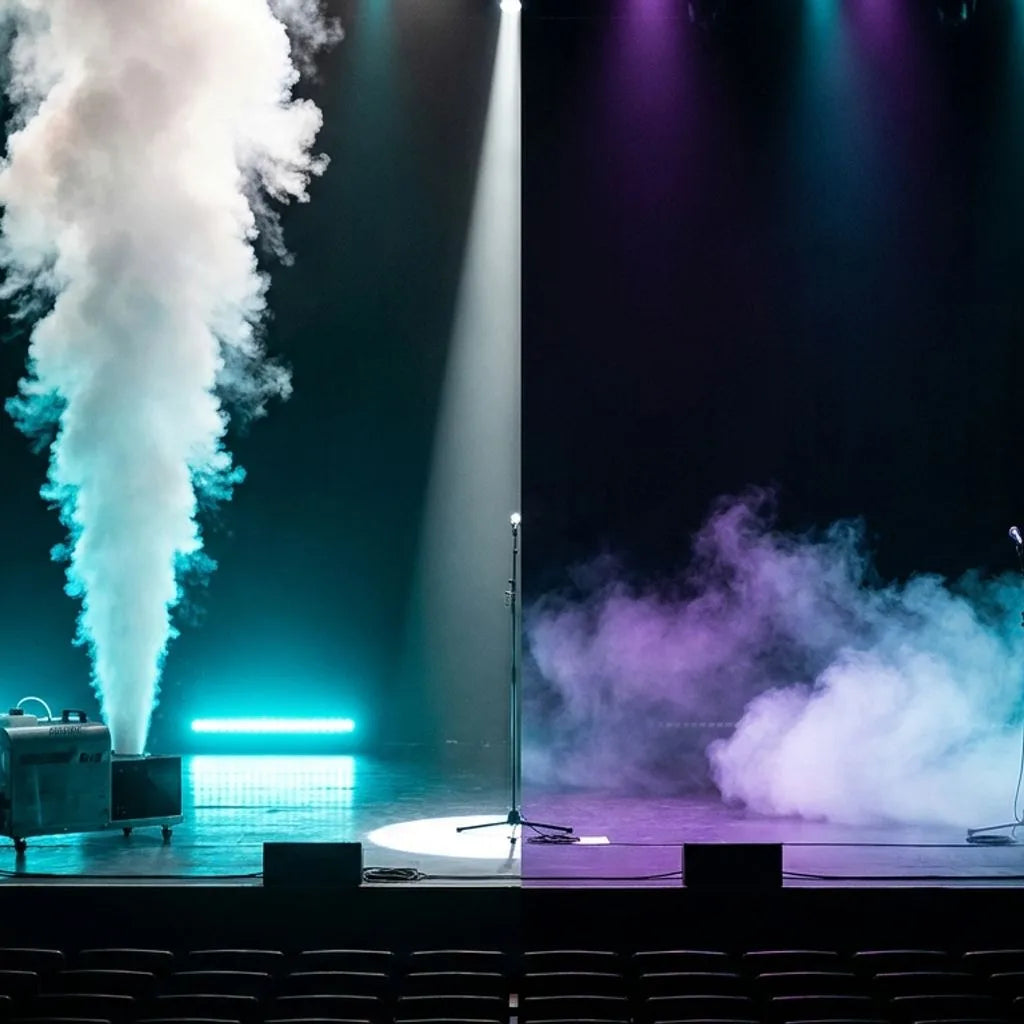

Vertical Fog Machine vs Low Fogger: Which Effect Belongs Where on Your Stage
Two Effects, Two Completely Different Jobs
Fog is fog until you watch a packed room react differently to a column of vapor blasting eight feet into the air versus a white cloud creeping silently across the stage floor. Those are not the same tool, and treating them like they are is one of the most common staging mistakes in live events. If you are producing concerts, running a DJ setup, or designing stage looks for venues, understanding the mechanical and visual difference between a vertical fog machine and a low-lying fogger is not optional. It changes everything about how an effect reads from the crowd.
Before going further, both effect types fall under the broader category of professional fog machines, but they behave in fundamentally different ways on stage. Knowing when to reach for each one is what separates a polished production from a hazy mess.
What a Vertical Fog Machine Actually Does
A vertical fog machine uses a high-pressure output nozzle oriented upward, pushing a dense burst of vapor in a tight column toward the ceiling or into overhead lighting rigs. The SurgeFX Aurora Jet is built specifically for this output style, delivering a controlled upward blast that interacts directly with beam lighting above the stage. Because the fog is traveling with velocity rather than simply dispersing, it holds its shape long enough to be visually dramatic before breaking apart in the ambient air.
The key physics here: vertical fog machines typically use standard water-based fog fluid heated to produce vapor at high output rates. The upward pressure keeps the column tight at the base and creates a spreading plume at the top, which is exactly what catches light beams and makes them visible from every seat in the venue. Position an Aurora Jet directly under a moving head fixture in beam mode, and the light column suddenly becomes three-dimensional. Without that fog column rising into the beam path, the light looks flat.
Vertical output also means the effect is localized. A single unit placed at the DJ booth creates a dramatic moment in a defined spot rather than flooding the entire floor. That makes it useful for cue-based operation, where you want the effect to hit on the drop and cut clean afterward.
What Low Foggers Do That Vertical Units Cannot
Low-lying foggers, sometimes called ground foggers or low fog machines, are engineered to keep the fog output below knee height across a wide surface area. They do this by chilling the vapor immediately after generation, which makes the fog denser than the surrounding air so it sinks and spreads horizontally instead of rising.
The visual result is completely different from a vertical fog machine effect. Low fog produces a carpet effect, a thick layer of white or slightly colored vapor that rolls across the stage floor and spills into the crowd area. It is the go-to for theatrical reveals, ceremony entrances, and any moment where you want the talent or performer to appear to emerge from a cloud at ground level. Wedding first dances, awards show entrances, theatrical acts, and slow-build concert openers all benefit from this type of output.
Low foggers require more planning around fluid type and environmental conditions. Chilling mechanisms need time to reach operating temperature, and the floor effect dissipates faster in warm rooms or spaces with active HVAC pushing air across the stage. Venues with low stage clearance and audience seating close to the floor get maximum visual impact from low fog because the audience sightlines align directly with the effect layer.
Reading the Moment: Which Effect Fits Which Cue
The decision between a vertical fog machine and a low fogger comes down to three variables: the visual geography of the shot, the energy level of the moment, and how the effect interacts with your lighting rig.
High-energy drops and DJ booth activation: Use vertical output. A DJ dropping a track at peak time benefits from an upward column that fires on the beat, rises through the beam lighting overhead, and creates an immediate physical reaction in the crowd. The Aurora Jet's fast heat-up and burst output make it a natural fit for this type of cue-heavy operation. Its compact footprint also allows placement in tight DJ booth setups without obstructing gear.
Dramatic reveals and stage entrances: Use a low fogger. If a performer is walking onto a darkened stage or an artist is being introduced, a low fog carpet covering the floor creates the kind of atmospheric depth that cameras and audiences both respond to. It suggests scale and mystery without competing with the lighting above the stage.
Aerial lighting definition throughout a set: Here, a vertical fog machine run at reduced, continuous output, or a haze machine running in the background, fills the air column above the stage so that beam lighting stays visible throughout the performance rather than only during active fog bursts. Haze and fog serve different functions: haze provides a constant atmospheric baseline while a vertical fog unit creates punctuation moments on specific cues.
Multi-zone stage design: Advanced stage layouts often combine both. Low fog at the stage floor establishes the ground layer, vertical fog units at key positions fire on cue during peak moments, and a haze machine keeps the air above the stage primed for beam definition. Each unit has a lane, and none of them step on each other visually.
Placement, Fluid, and Maintenance Considerations
Placement is where many producers leave performance on the table. A vertical fog unit placed behind a speaker stack loses most of its visual impact because the column is obscured from the audience sightline. The unit needs to be positioned in a clear sightline from the crowd, typically at the front edge of the stage, at the DJ booth, or along the downstage lip in a concert setup.
Low foggers need horizontal clearance. The fog carpet needs room to spread, which means avoiding placement against walls or in corners where the effect will pile up rather than roll. Elevated stage platforms with drop-off edges allow low fog to spill visually over the front of the stage, which reads dramatically from floor-level audience positions.
Fluid selection matters for both unit types. Always use manufacturer-approved fluid matched to your specific machine. Using incorrect fluid causes residue buildup inside the heat exchanger, shortens heater block life, and degrades output quality over time. SurgeFX equipment is designed to run with compatible fluid lines, and running the right fluid is the single most impactful maintenance decision an operator makes. After every event, run a short purge cycle through the machine with approved cleaning fluid before storage to prevent internal clogging from dried fluid deposits.
For low foggers specifically, keep the chilling chamber clean and inspect it between events. Residue in the chilling system reduces the temperature differential that keeps fog ground-level, which means the effect starts rising before it should and the carpet look disappears.
Building the Right Setup for Your Next Show
There is no single correct answer between a vertical fog machine and a low fogger. The right answer is understanding what each does and which moments on your show call for which behavior. High-energy cue-based moments with active beam lighting overhead call for vertical output. Atmospheric reveals, entrances, and theatrical depth call for low fog. Sustained haze fills in the gaps between both.
If your current stage setup relies on a single fog unit doing everything, you are likely getting average results from all of it rather than great results from any of it. Dedicated units for dedicated purposes is how professional productions get the looks that appear on highlight reels.
The SurgeFX Aurora Jet is built for exactly the kind of vertical output discussed throughout this post, with fast response times and burst-mode performance that fits cue-heavy DJ and concert applications. For full stage atmospheric coverage, pair it with the SurgeFX haze machine to keep your beam lighting defined between active fog cues. Browse the complete lineup and configure the right combination for your next production at the Aurora Jet product page.
