Stadium-Scale Celebration. Dual-Mode Power.

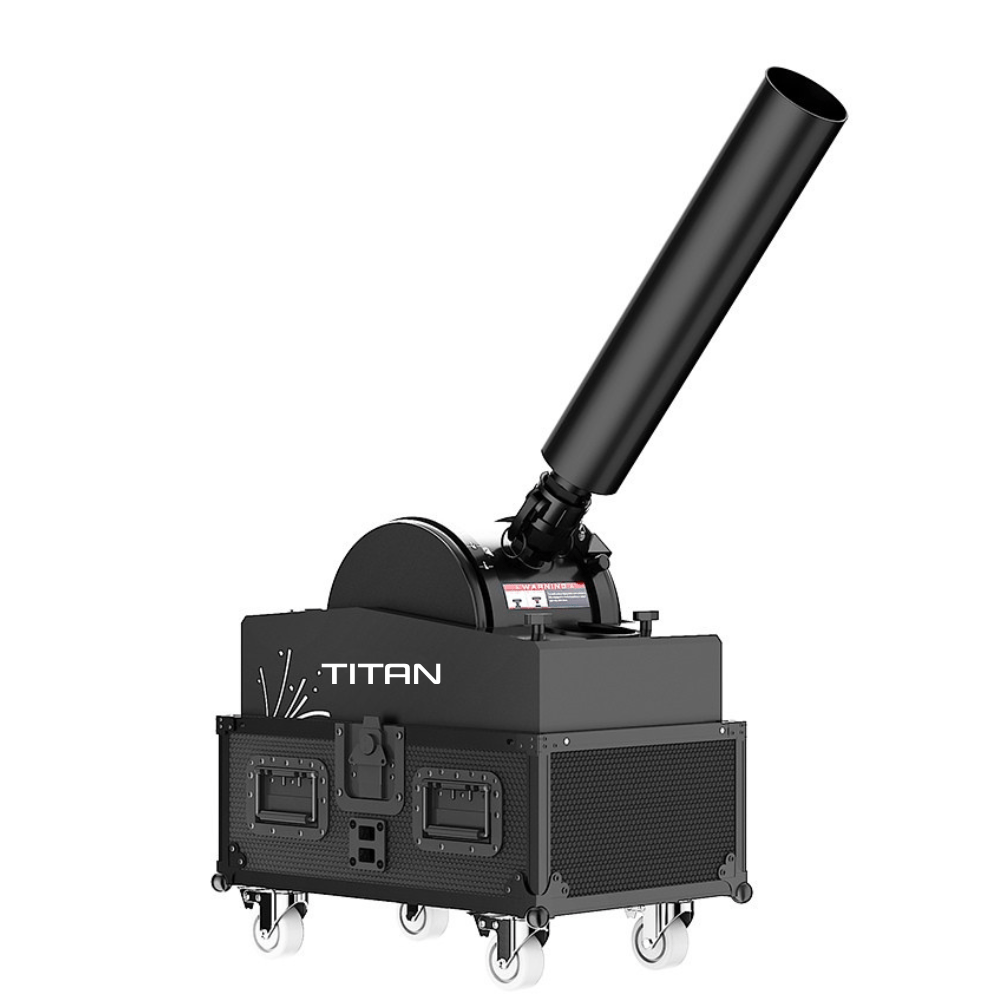

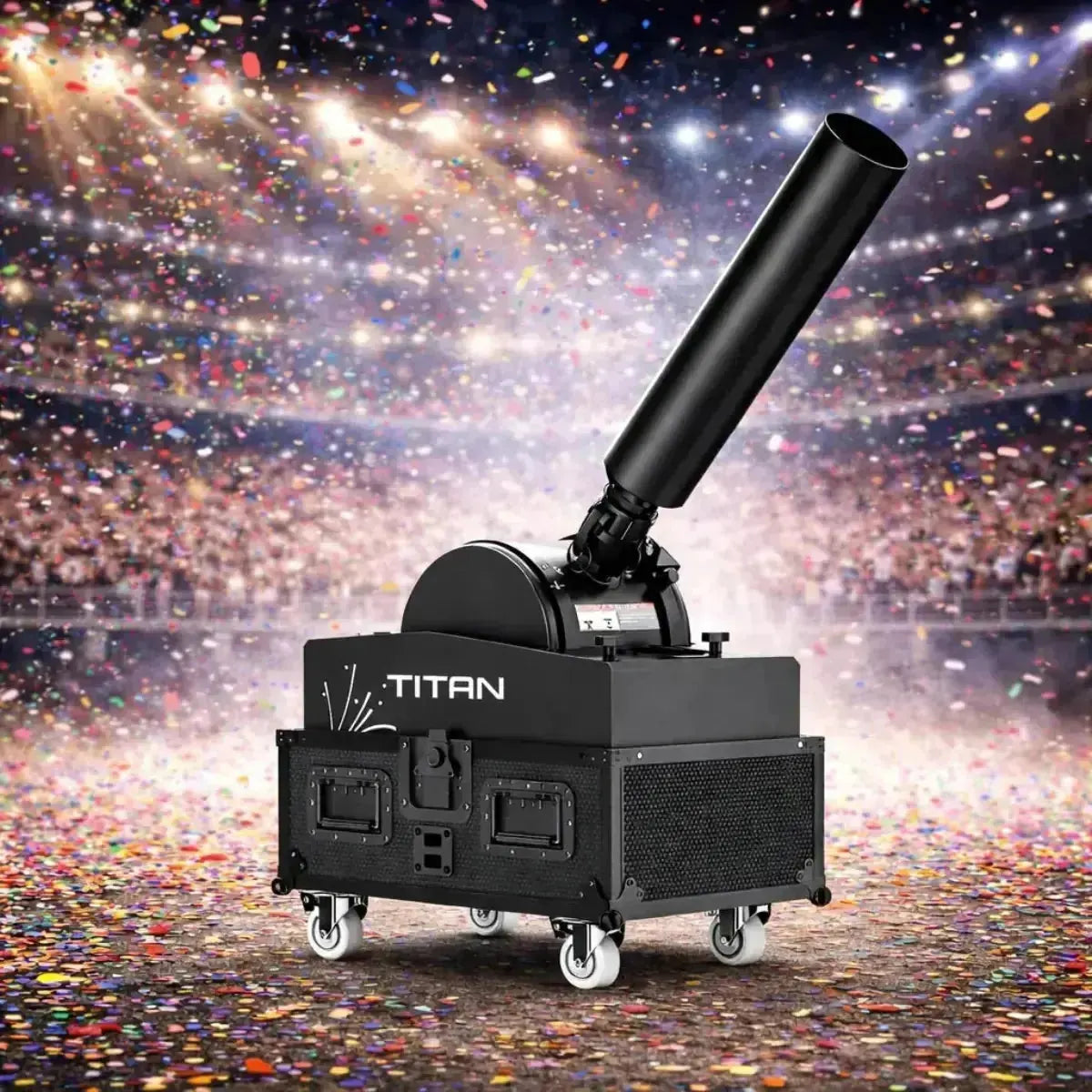

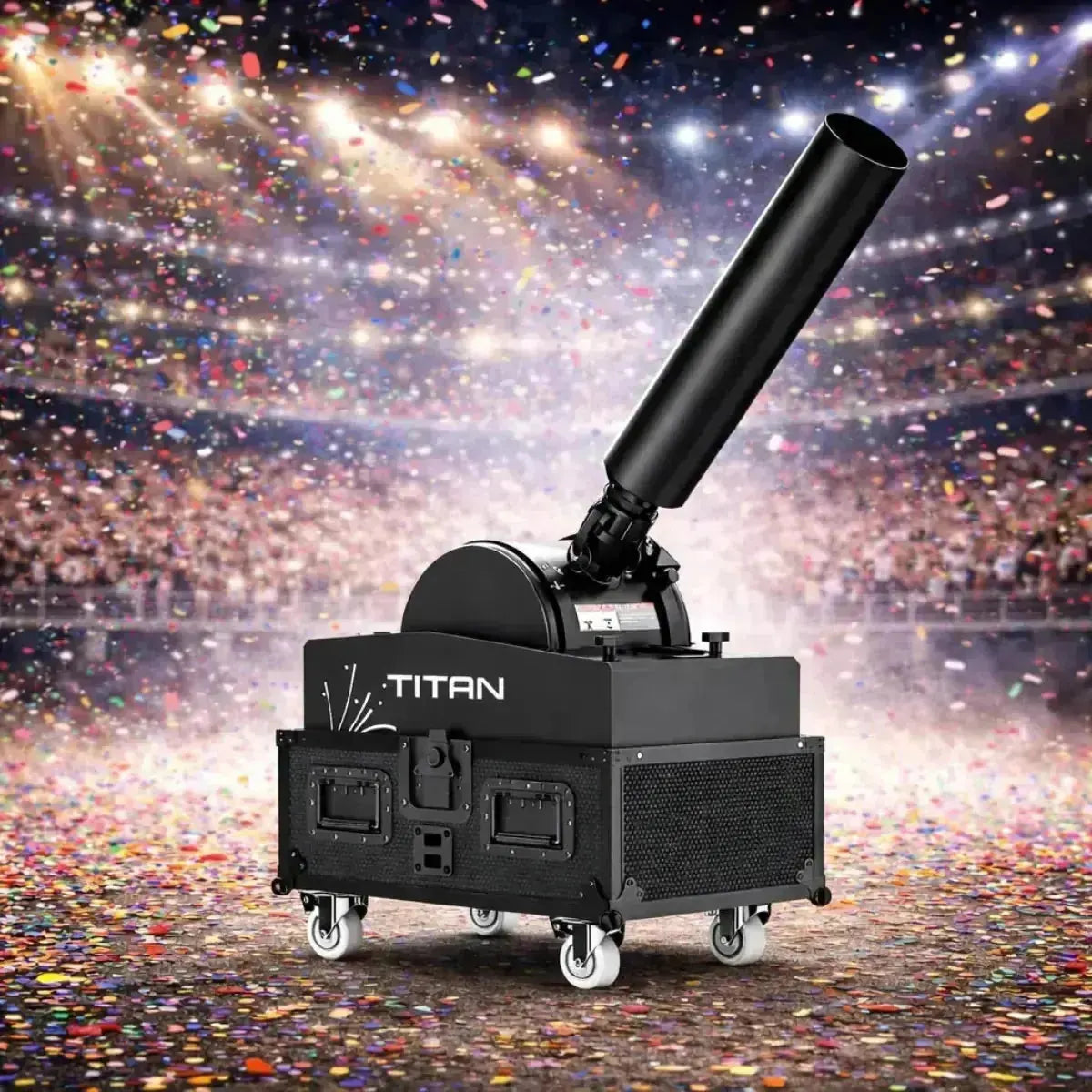

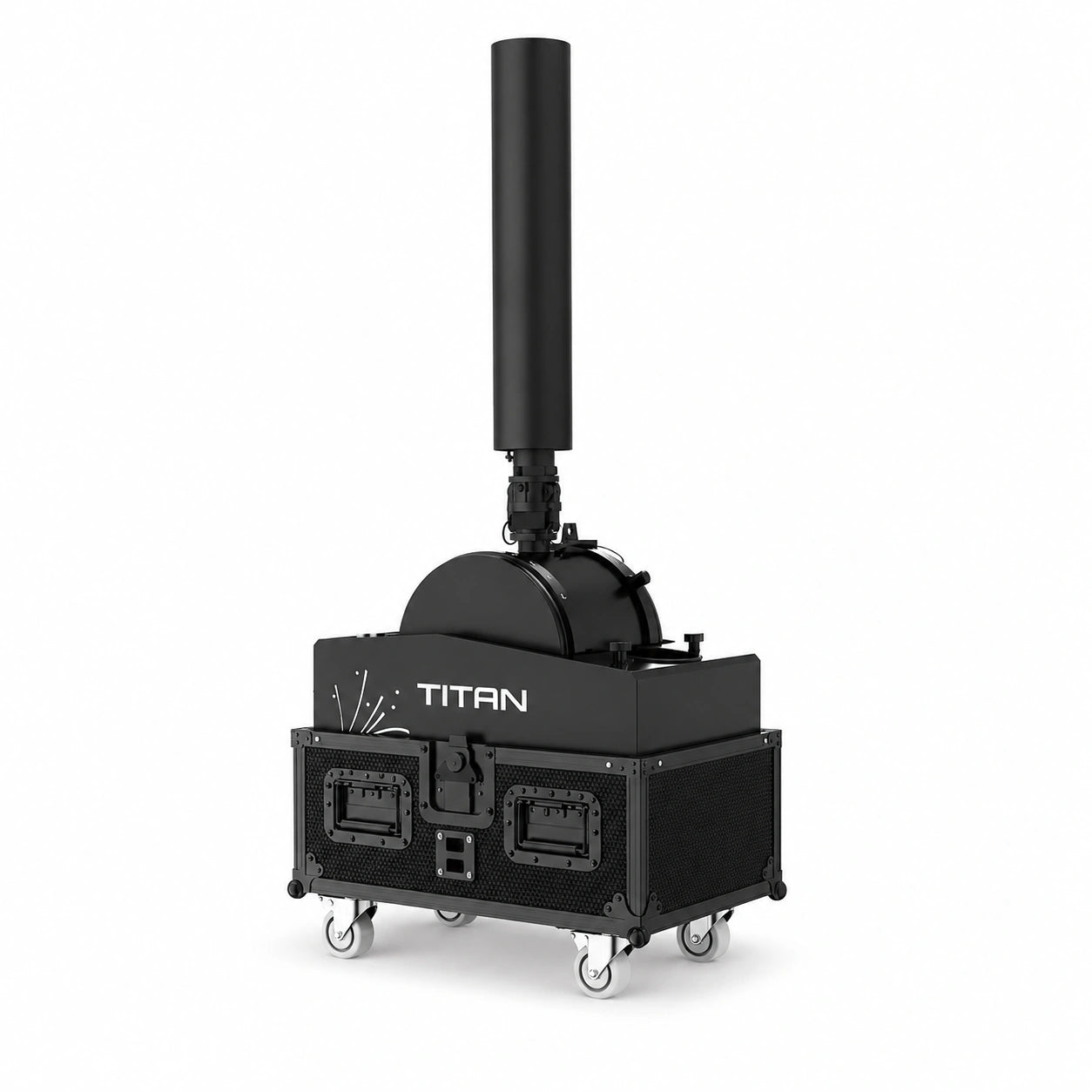

The SurgeFX Titan is the ultimate crowd-energizing machine — a professional-grade stadium launcher that fires both confetti up to 100 feet and water jets up to 50 feet. With its dual-tube exchange system, you can switch between confetti, streamers, powder, or water cannon effects in seconds.
Equipped with automatic inflation, DMX control, multi-angle adjustability, and built-in safety systems, the Titan is engineered for high-demand stadium events, concerts, sports celebrations, and large-scale productions where maximum visual impact is non-negotiable.

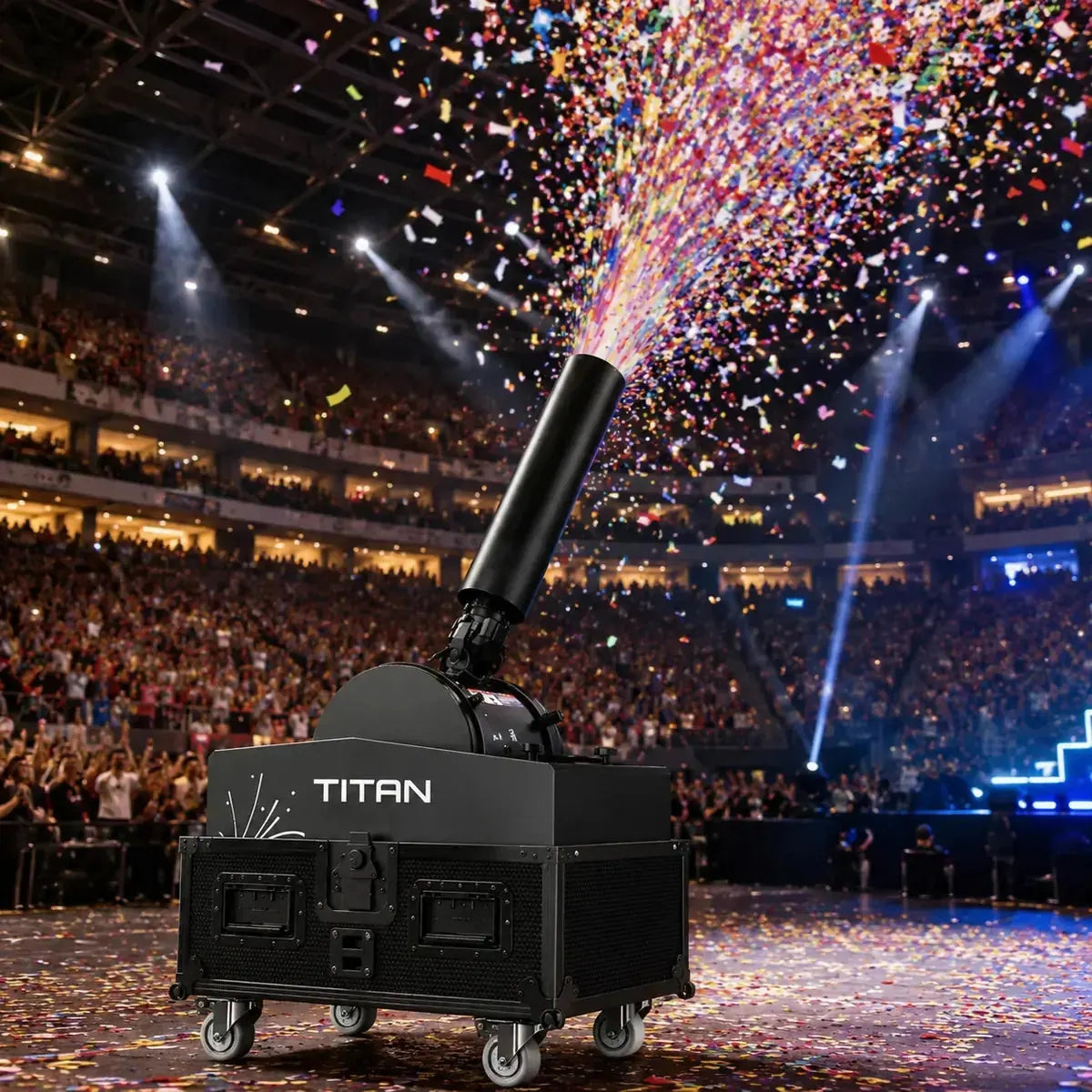

- Stadium Sports Events — Team entrances, victory celebrations, championship moments
- Concerts & Music Festivals — Drops, finales, artist entrances, crowd engagement
- Corporate Events & Product Launches — Grand reveals, milestone celebrations, brand activations
- Outdoor Festivals & Parades — National ceremonies, cultural celebrations, holiday events
- Large-Scale Weddings — Dramatic entrances, first dance moments, send-offs
- Theme Parks & Attractions — Immersive experiences, scheduled shows, special events
- Rental & Production Companies — Versatile dual-mode system for any large venue
Dual-Mode Versatility: Switch between confetti, streamers, powder, or water cannon effects with the quick-change dual-barrel system — one machine, endless possibilities.
| Feature | What It Means For You |
|---|---|
| Confetti Launch: Up to 100 ft | Massive stadium-scale coverage for confetti and streamers |

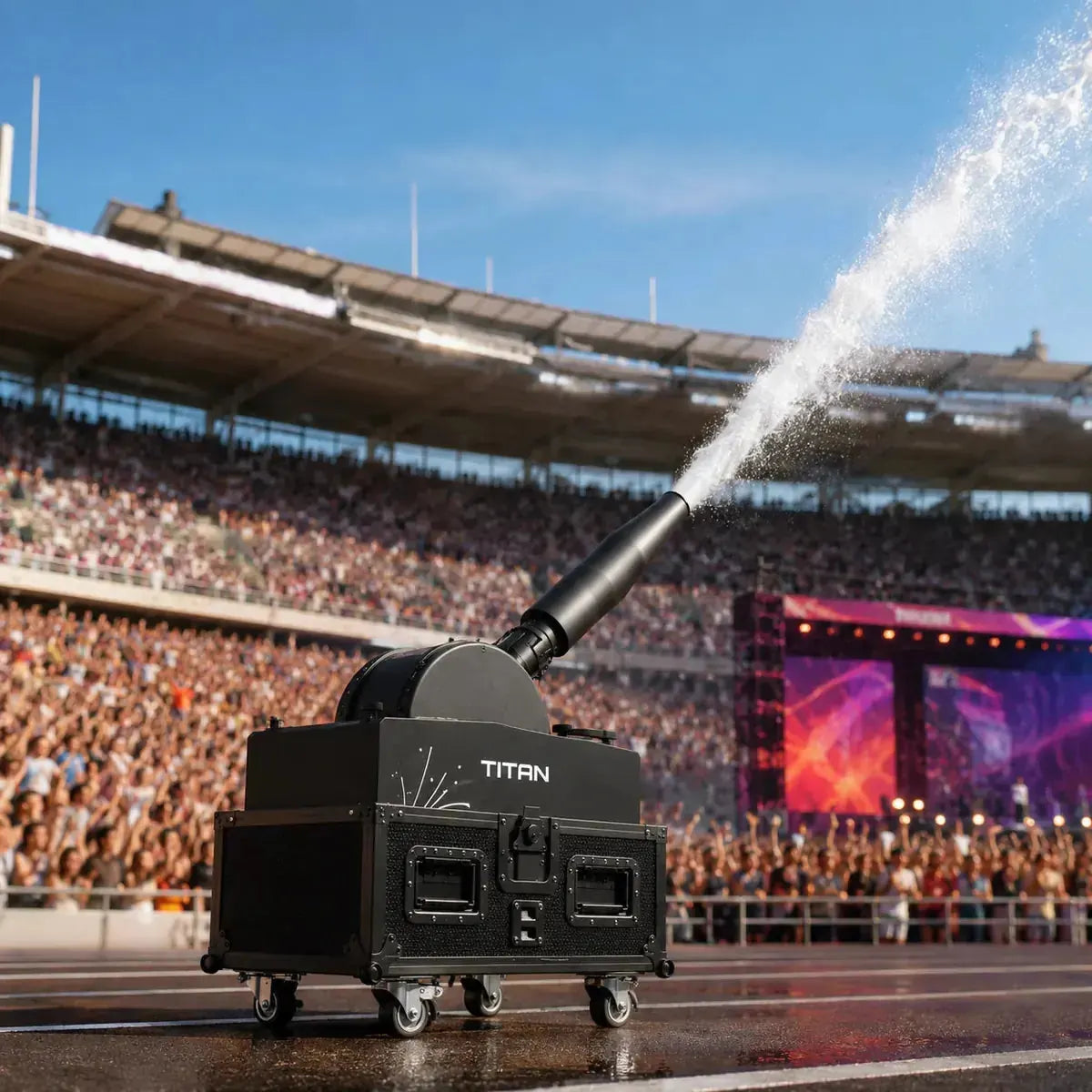

| Water Cannon: Up to 50 ft | Powerful water jets for outdoor crowd engagement |

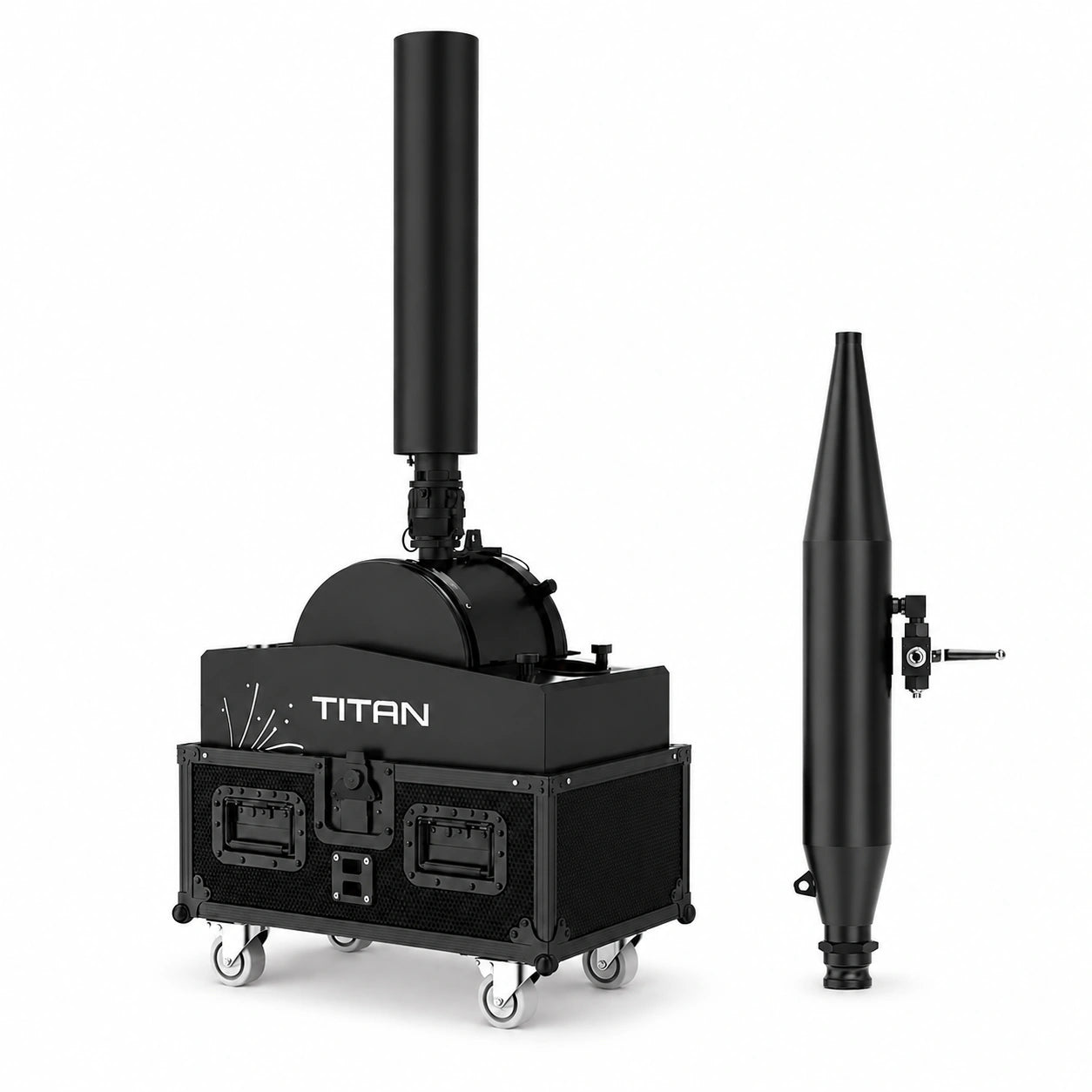

| Dual-Tube Exchange System | Quick-swap barrels for confetti, streamers, powder, or water |
| Automatic Inflation | Built-in air compressor — ready in ~4.5 minutes, no external pump needed |

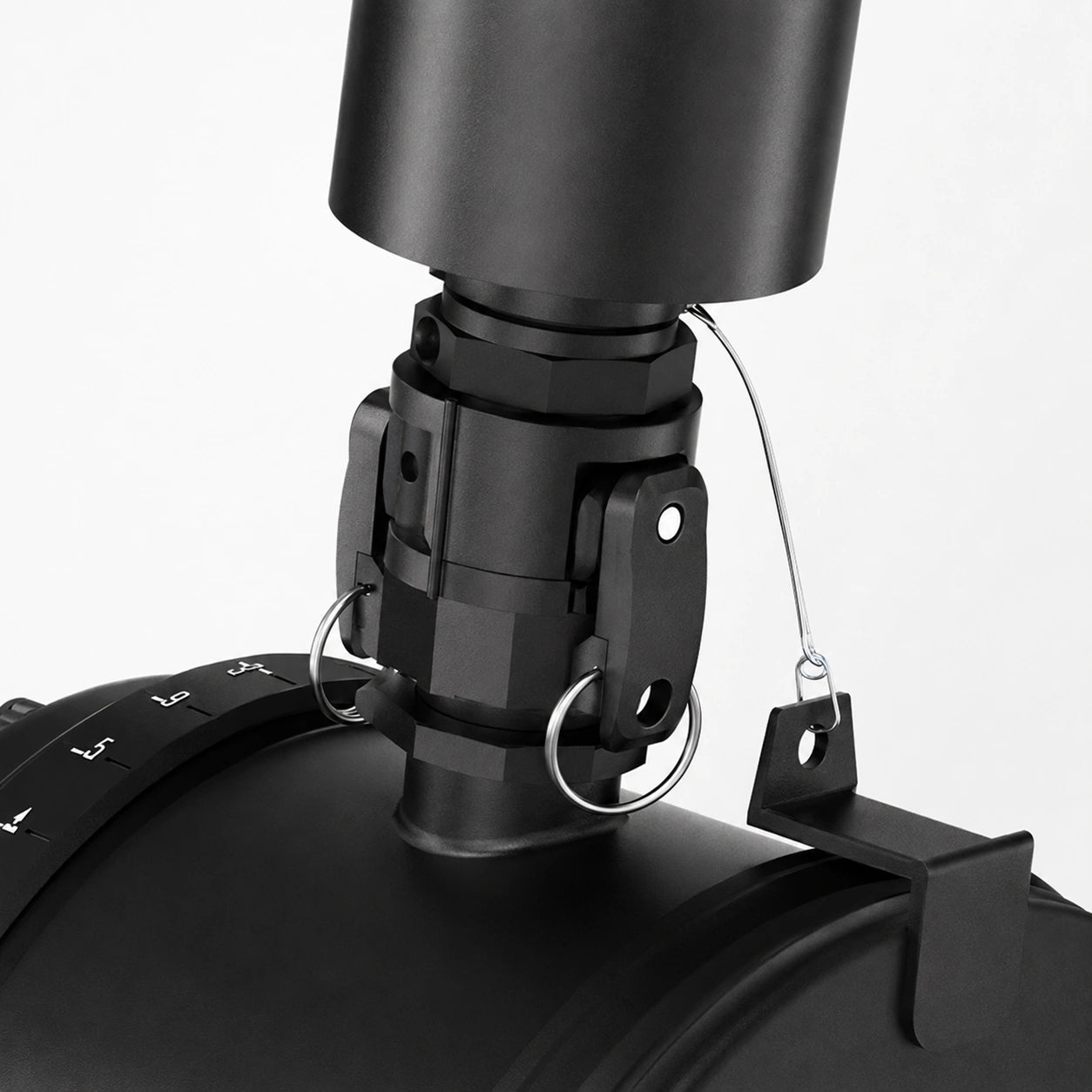

| Multi-Angle Adjustability (±45°) | Craft dynamic directional effects for any stage layout |
| DMX512 Control (3-pin + 5-pin) | Synchronized firing, chasing effects, programmable patterns |
| Safety Systems | Visual pressure gauge, safety valve, security key to prevent accidental firing |
| Mobile with Stability | Four caster wheels with brakes for easy repositioning and secure placement |
Power & Control
| Power | 750W |
| Voltage | 100–240V 50/60Hz |
| Control Modes | Electric Manual / DMX512 (3-pin + 5-pin) |
Launch Performance
| Confetti/Streamer Height | Up to 100 ft (30m) — no wind |
| Water Cannon Distance | Up to 50 ft (15m) — no wind |
| Angle Adjustment | ±45° multi-directional |
Pressure System
| Operating Pressure | 116 psi (8.0 bar) |
| Safety Valve Pressure | 131 psi (9.0 bar) |
| Auto-Inflation Time | ~4 minutes 30 seconds |
| Water Tank Capacity | 8.5 gal (32L) |

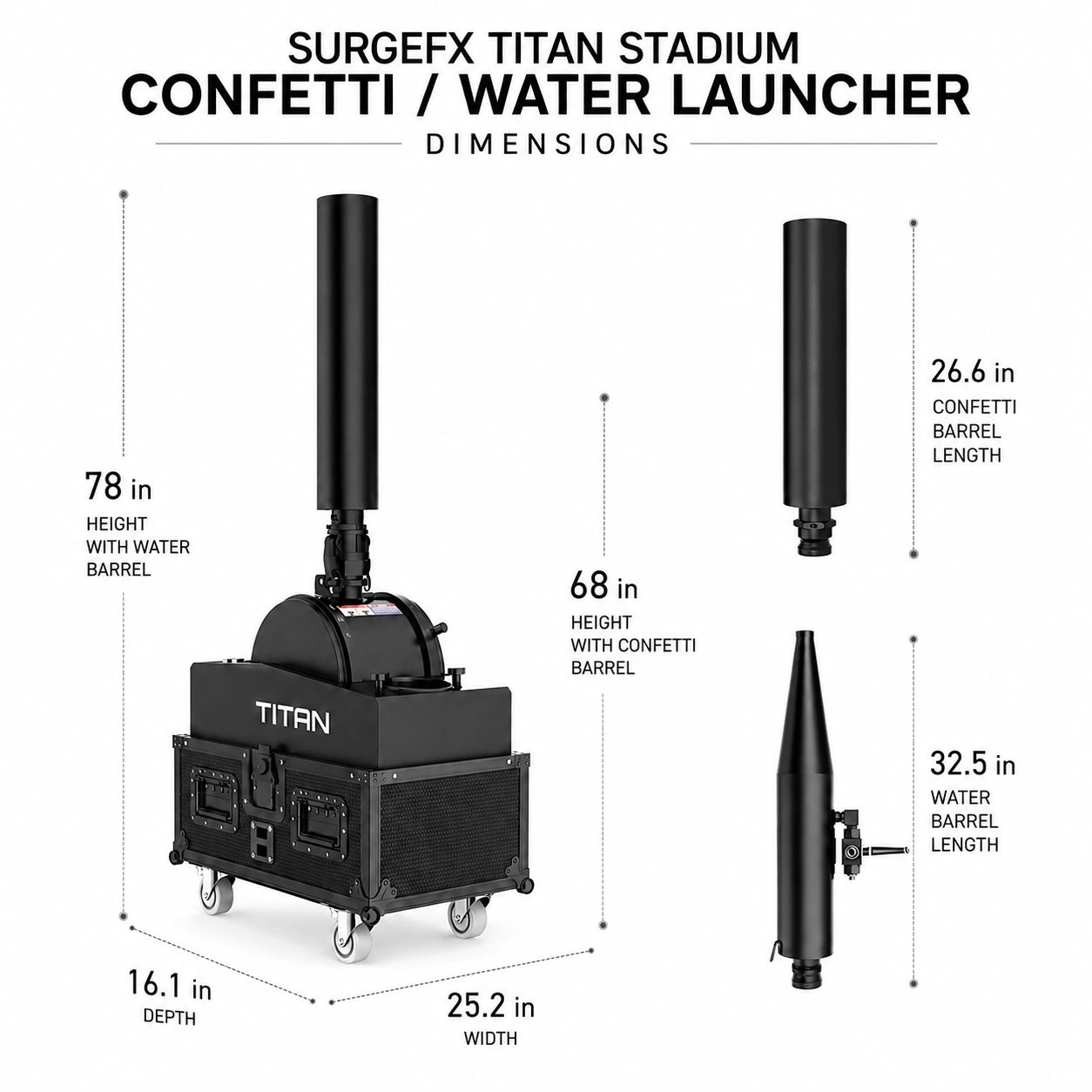

Physical
| Dimensions (Base) | 29.5" × 25.6" × 50.4" (75 × 65 × 128 cm) |
| Height with Water Tube | 78" (198 cm) |
| Height with Confetti Tube | 68" (172.5 cm) |
| Net Weight | 335 lbs (152 kg) |
| Gross Weight | 437 lbs (198 kg) |
| Mobility | 4 caster wheels with brakes |

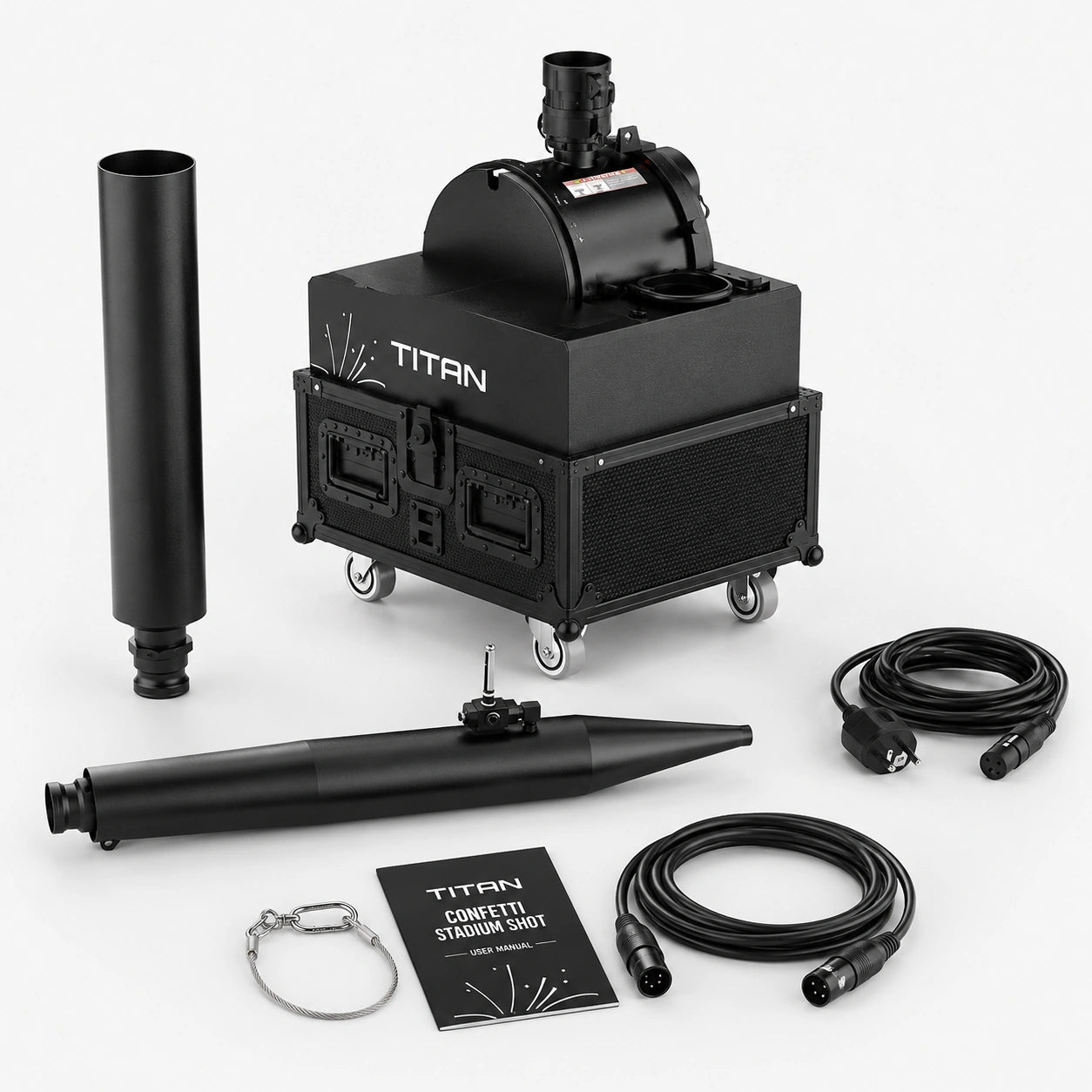

In The Box
- 1x SurgeFX Titan Stadium Launcher (base unit with built-in compressor)
- 1x Confetti/Streamer Barrel
- 1x Water Cannon Barrel
- 1x Power Cord
- 1x DMX Cable
- 1x Security Key
- 1x Instruction Manual
What You'll Need
- Confetti/Streamers — Load your choice of confetti, streamers, or powder
- Water Source — Fill the 32L tank for water cannon mode
- Power Source — 100–240V outlet
- DMX Controller — For synchronized multi-unit firing (optional for manual use)
Self-Contained System: The Titan includes a built-in air compressor — no external pump or CO₂ tanks required. Just power, load, and fire.
Confetti & Consumables
Load the Titan with your choice of launch materials:
- Metallic confetti (rectangular, square, or custom shapes)
- Paper streamers (single color or multi-color)
- Color powder (for color run / Holi-style effects)
- Tissue confetti (biodegradable options available)
Stack the Effects
Combine the Titan with other SurgeFX machines for layered production value:
- Cold Spark Machines — Add spark fountains during confetti bursts
- CO₂ Jets — Cryo blasts alongside confetti for temperature contrast
- Fog Machines — Atmospheric backdrop for confetti visibility
- Stage Lighting — Illuminate confetti for maximum visual impact
Multi-Unit Control
Link multiple Titans via DMX for synchronized firing patterns — left-to-right sequences, inward bursts, outward spreads, or simultaneous stadium-wide effects.
Does it require CO₂ tanks or an external compressor?
No. The Titan has a built-in air compressor that auto-inflates in approximately 4.5 minutes. Just plug in, wait for pressure, and fire.
How do I switch between confetti and water modes?
The Titan uses a dual-tube exchange system. Swap the barrels to switch between confetti/streamer mode and water cannon mode. The system expels residual moisture quickly when switching from water to confetti.
Can I use it indoors?
Confetti and streamer modes work great indoors. Water cannon mode is best suited for outdoor events or venues where water cleanup is acceptable.
What's the safety key for?
The security key prevents accidental firing. Remove the key when not in use or during setup to ensure the machine cannot be triggered unintentionally.
How many shots per fill?
Each pressurization cycle provides one powerful launch. After firing, the compressor automatically re-pressurizes for the next shot (~4.5 minutes between launches).
Can I fire multiple Titans simultaneously?
Yes. Use DMX control to link multiple units and program synchronized firing patterns, chasing effects, or simultaneous bursts across a stadium.
Is it weather-resistant?
The Titan is designed for outdoor use but should be protected from rain during extended operation. Use a waterproof cover when operating the water cannon function outdoors for prolonged periods.
How heavy is it? Can one person move it?
At 335 lbs, the Titan is a heavy-duty machine. However, the four caster wheels with brakes make repositioning manageable on flat surfaces. Plan for two or more people during loading/unloading.
Pre-Event Setup
Arrive early to allow time for inflation and positioning. The auto-inflation takes ~4.5 minutes per cycle. Connect all wiring before pressurizing the system.
Safety Zone
Maintain a 5-meter (16 ft) safety zone around the machine during operation. Keep people, animals, and equipment clear of the firing path.
Angle for Maximum Effect
Use the ±45° adjustment to direct confetti toward the crowd or stage. For water cannon, angle slightly upward for maximum arc and distance.
DMX Programming
When linking multiple Titans, program firing sequences for visual impact: left-to-right waves, inward bursts from the sides, or outward spreads from center stage. Synchronized firing creates the most dramatic stadium moments.
Switching from Water to Confetti
The pressure system quickly expels residual moisture when switching barrels. After removing the water tube, fire a brief air burst to clear the system before loading confetti.
Confetti Selection
Metallic confetti catches light best for indoor/nighttime events. Tissue/paper confetti is lighter and floats longer. For outdoor daytime events, consider bright colors that contrast with the sky.
Transport
Always depressurize the system before transport. Check the pressure gauge, turn off power, and disconnect cables. Never move the Titan while pressurized.
Post-Event
Clean the barrels and check for confetti debris in the launch mechanism. If using water mode, drain the tank and allow components to dry before storage.
🎯 Perfect For
- Stadium Sports Events — Team entrances, victory celebrations
- Concerts & Music Festivals — Drops, finales, crowd engagement
- Corporate Events — Grand reveals, product launches
- Outdoor Festivals & Parades — National ceremonies, holidays
- Large-Scale Weddings — Dramatic entrances, send-offs
- Theme Parks — Immersive experiences, scheduled shows
- Rental Companies — Versatile dual-mode system
Dual-Mode: Switch between confetti, streamers, powder, or water cannon with quick-change barrels.
✨ Features
| Feature | Benefit |
|---|---|
| Confetti: 100 ft | Stadium-scale coverage |
| Water: 50 ft | Powerful crowd engagement |
| Dual-Tube System | Quick-swap barrels |
| Auto-Inflation | Ready in ~4.5 min |
| ±45° Angle | Directional control |
| DMX512 Control | Synchronized firing |
| Safety Systems | Pressure gauge, key lock |
| Caster Wheels | Mobile with brakes |
📋 Specs
Power
| Power | 750W |
| Voltage | 100–240V 50/60Hz |
| Control | Manual / DMX512 |
Performance
| Confetti Height | Up to 100 ft |
| Water Distance | Up to 50 ft |
| Operating Pressure | 116 psi (8.0 bar) |
| Inflation Time | ~4.5 minutes |
| Water Tank | 8.5 gal (32L) |
Physical
| Base Size | 29.5" × 25.6" × 50.4" |
| Weight | 335 lbs (152 kg) |
| Mobility | 4 wheels w/ brakes |
📦 What's Included
In The Box
- 1x Titan Stadium Launcher
- 1x Confetti/Streamer Barrel
- 1x Water Cannon Barrel
- 1x Power Cord
- 1x DMX Cable
- 1x Security Key
- 1x Instruction Manual
What You'll Need
- Confetti/streamers/powder
- Water (for water mode)
- Power source
- DMX controller (optional)
🔗 Pairs With
Consumables
- Metallic confetti
- Paper streamers
- Color powder
- Tissue confetti (biodegradable)
Stack the Effects
❓ FAQ
Does it need CO₂ or external compressor?
No. Built-in compressor auto-inflates in ~4.5 minutes.
How do I switch modes?
Swap the dual-tube barrels. System clears moisture when switching from water.
Indoor use?
Confetti/streamers: yes. Water cannon: outdoor or water-safe venues only.
What's the safety key?
Prevents accidental firing. Remove during setup/storage.
Multi-unit sync?
Yes. Link via DMX for synchronized patterns.
Weight?
335 lbs. Caster wheels help, but plan for 2+ people for loading.
💡 Pro Tips
Setup
Connect wiring before pressurizing. Allow 4.5 min inflation per cycle.
Safety Zone
Maintain 5-meter (16 ft) clearance around machine during operation.
Angle Adjustment
Use ±45° control to direct effects toward crowd or stage.
DMX Programming
Link multiple units for left-to-right waves, inward bursts, or simultaneous firing.
Transport
Always depressurize before moving. Never transport while pressurized.
