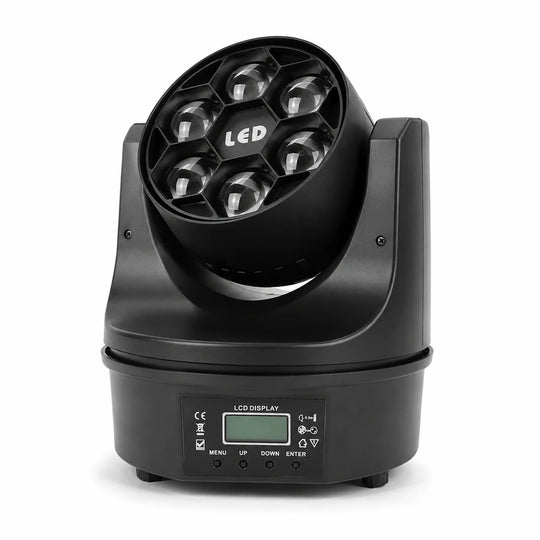

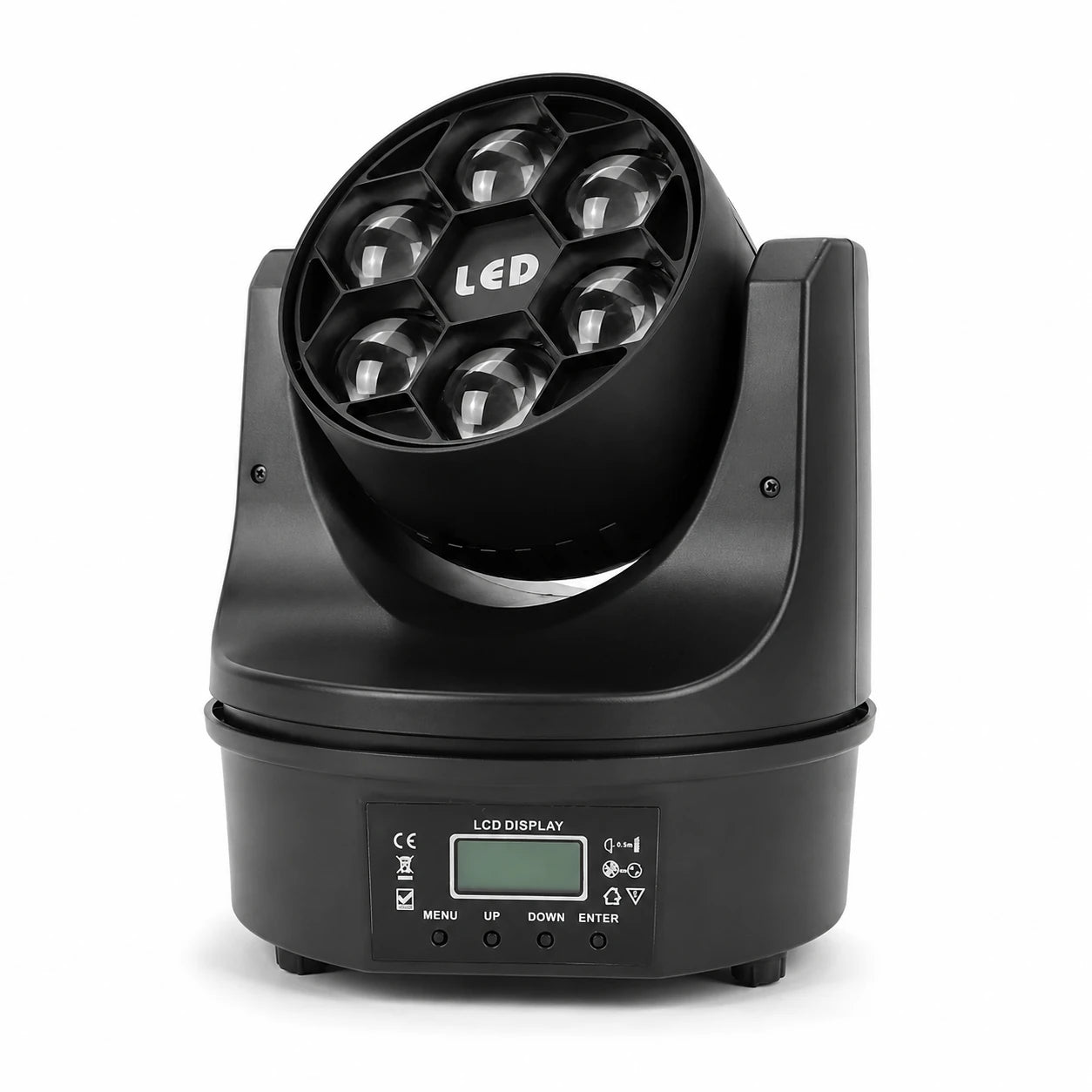

What the SF-BE615 Is
The SF-BE615 is a mini moving head light with a bee eye lens array. Unlike a par or wash light that sits in one position and projects a fixed pool of color, a moving head is a motorized fixture — the entire head pans left/right and tilts up/down under DMX or automatic control, sweeping beams across the room, tracking performers, or cycling through programmed positions. The SF-BE615 adds the bee eye effect on top of that movement: a rotating array of individual lenses in front of the 6 LEDs that splits the output into multiple beams, fans them outward, and spins them continuously to create kaleidoscopic, fractured light patterns.
The result is a fixture that produces three layers of motion simultaneously: the head pans and tilts (positioning), the lens array rotates (beam splitting and fanning), and the RGBW color mixing changes (color effects). All three layers can operate independently or in sync, creating complex visual movement from a single compact unit.

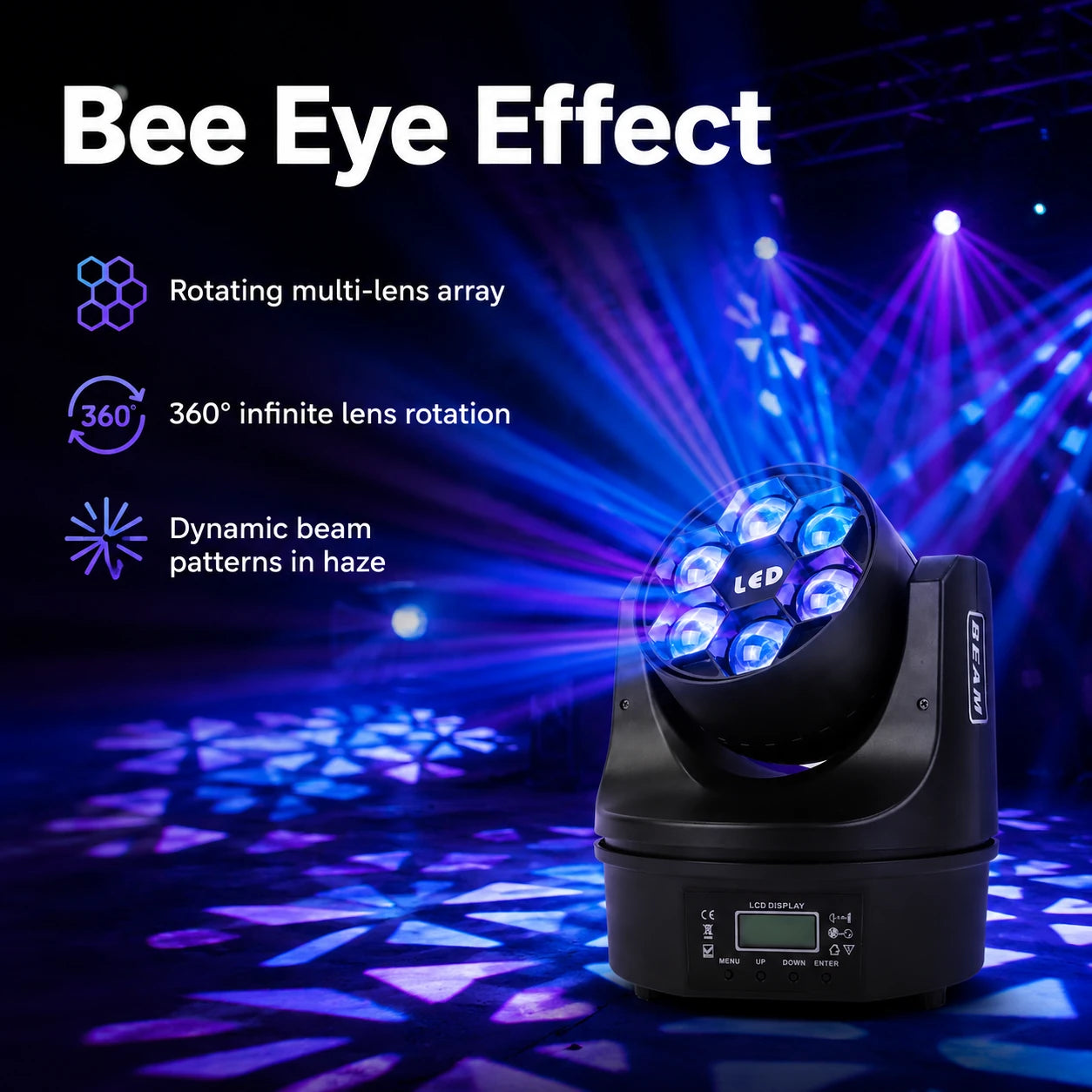

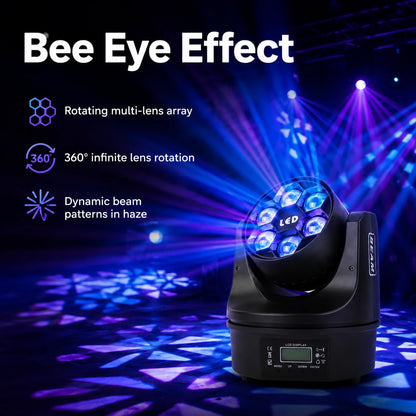

Bee Eye Effect — What It Actually Does
The "bee eye" name comes from the compound lens design — six individual lenses arranged in a cluster, one in front of each LED, resembling the compound eye structure of an insect. Each lens refracts its LED's output at a slightly different angle. When the lens array rotates 360° continuously, these individual beams fan out, overlap, separate, and recombine in a spinning kaleidoscope pattern. The effect is especially dramatic in haze or fog, where each individual beam becomes visible as a distinct ray of light sweeping through the air.
At the narrow end (6°), the bee eye produces tight, punchy aerial beams that cut through space — visible shafts of light that rotate and sweep. At the wide end (51°), the beams spread into an overlapping wash with a textured, faceted quality that's more dynamic than a flat par wash. The bee eye effect is what separates this fixture from a standard mini moving head wash — it adds visual complexity and motion that a flat-face wash head can't produce.

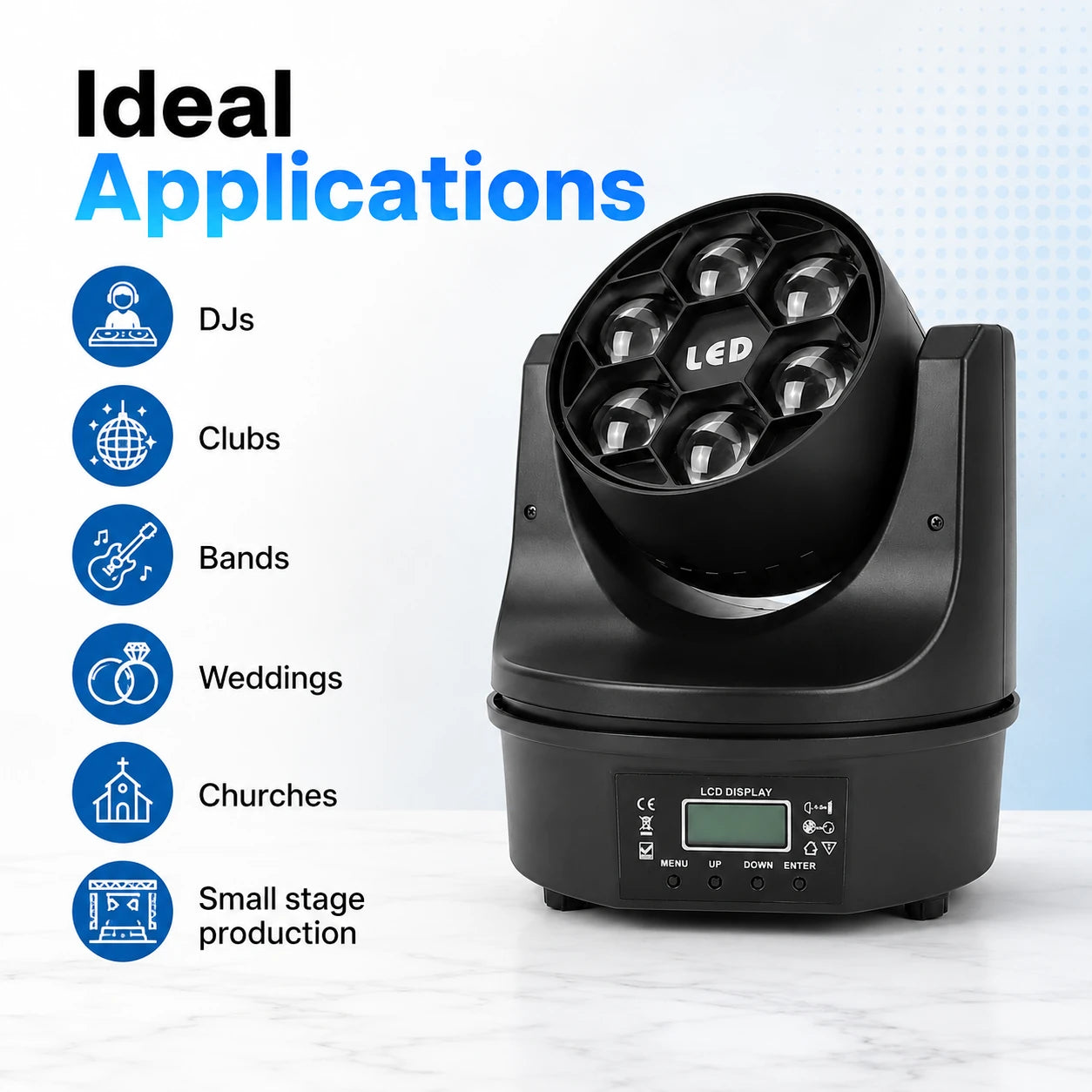

Who It's For
Mobile DJs, small-to-mid-size event production, bands, clubs, bars, churches, theaters, and anyone who wants moving, dynamic beam effects without the size, weight, and cost of full-size moving heads. The SF-BE615 weighs 8.4 lbs and runs on ~100W — you can run multiple units on a single circuit, mount them on lightweight truss or T-bars, and transport them easily. This is the fixture that turns a static lighting rig into a dynamic light show.

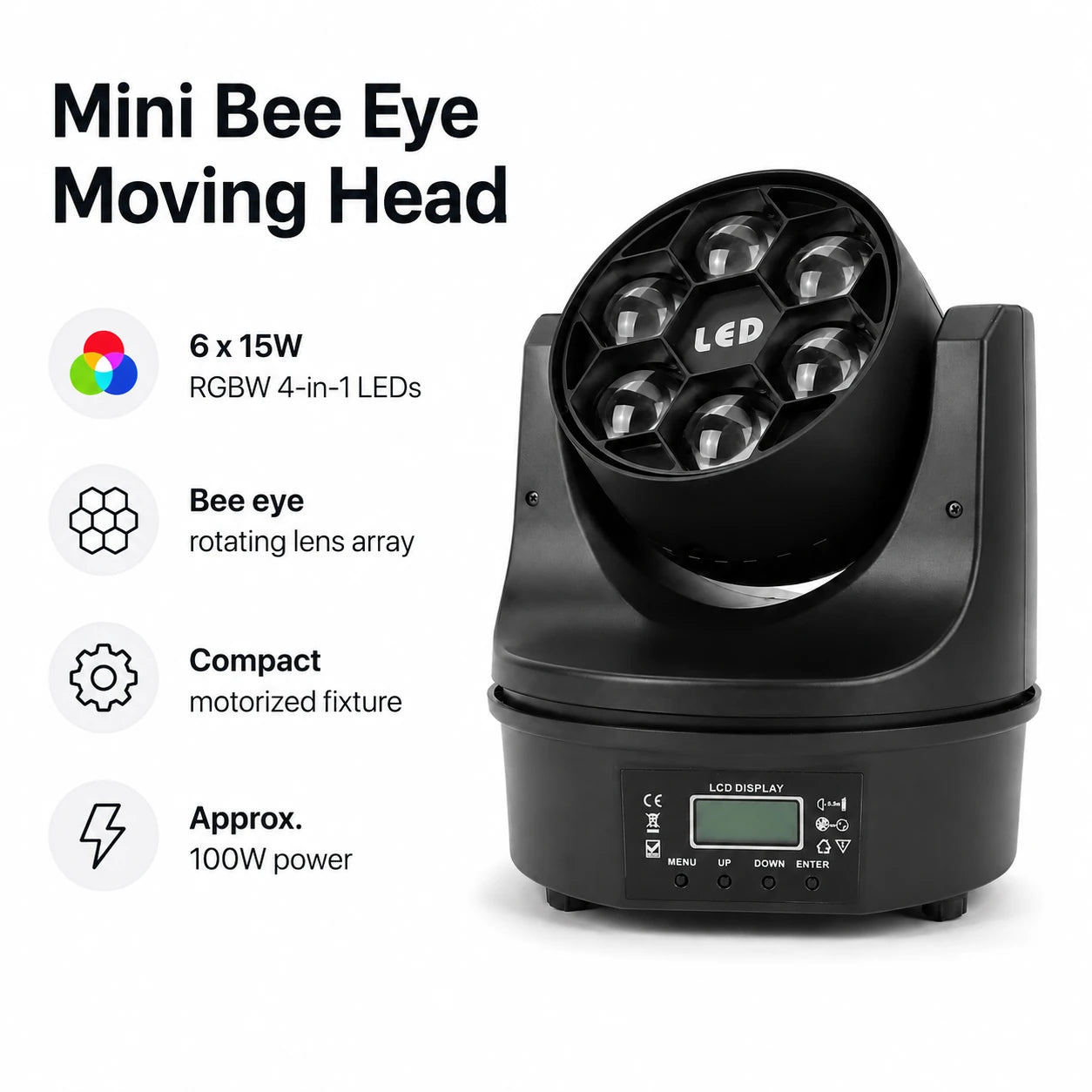

At a Glance: 6×15W RGBW 4-in-1 · bee eye rotating lens array · 540°/180° pan/tilt · 360° infinite rotation · 6°–51° beam angle · 10/17CH DMX · master/slave · sound-active · auto-run · ~100W · 8.4 lbs · IP33 · $229
RGBW 4-in-1 Color System
The SF-BE615 uses 6×15W RGBW 4-in-1 LEDs — each LED contains red, green, blue, and white emitters in a single package. Full RGB spectrum mixing gives you any color (16.7 million combinations), and the dedicated white emitter produces clean whites without the color tint of RGB-only mixing. The white channel also lets you create pastel tints (saturated color + white) and adjust color temperature for warmer or cooler looks.

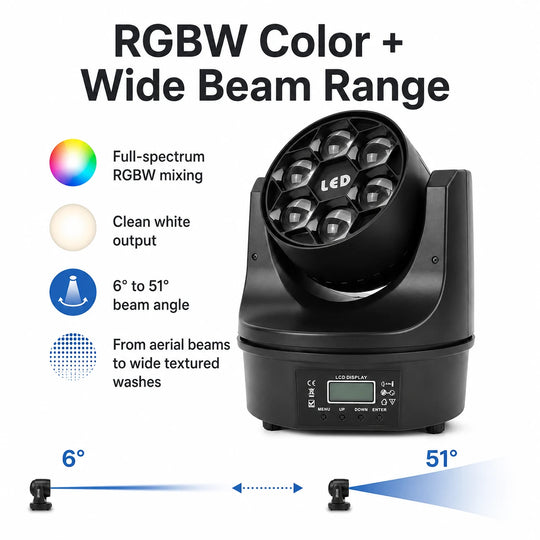

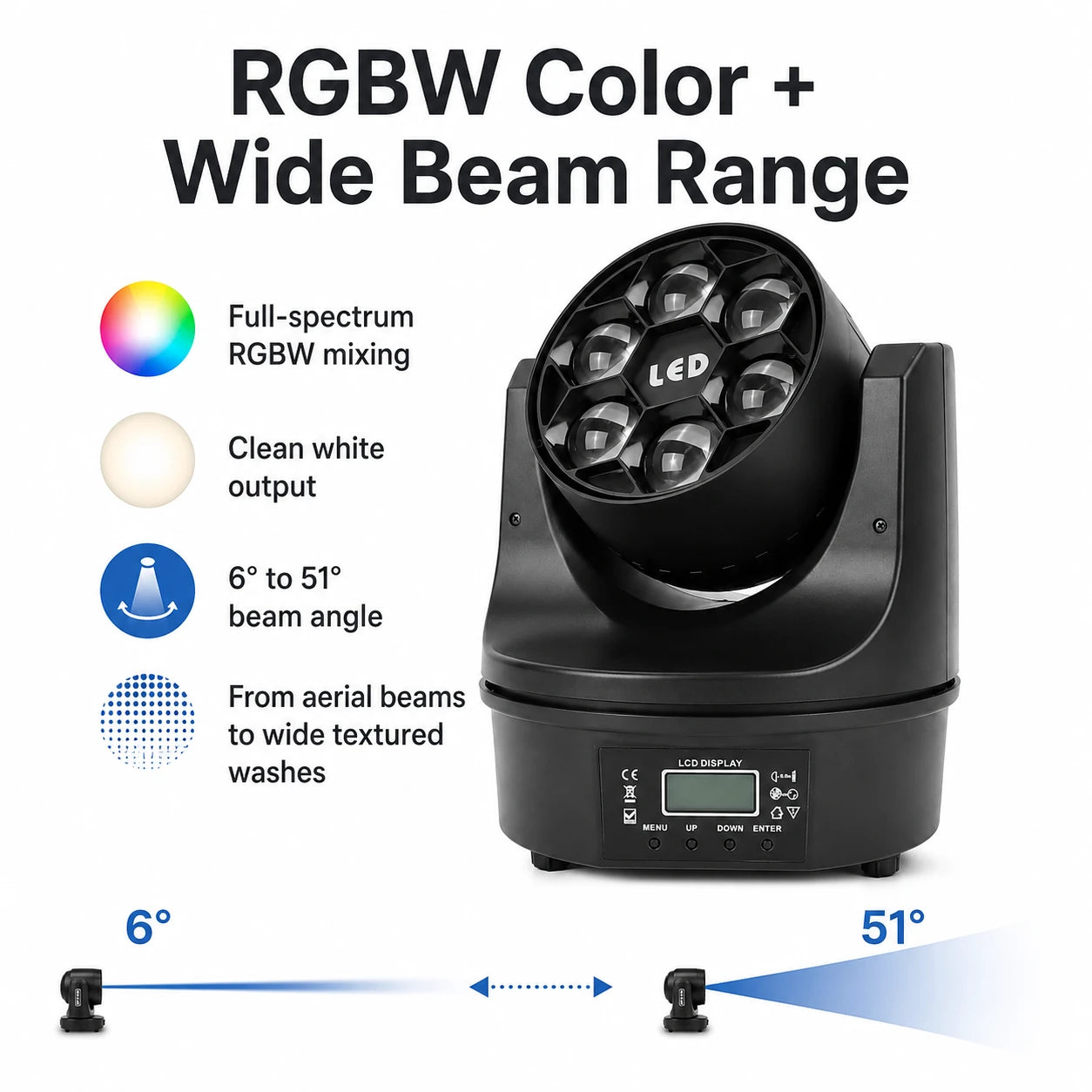

Beam Angle: 6° to 51°
The SF-BE615's beam angle range spans from a tight 6° beam to a wide 51° wash. This range is created by the interaction between the LED optics and the bee eye lens array position:
-
6° (narrow) — Tight, punchy beams. This is the aerial beam mode — visible shafts of light that cut through haze and fog. Maximum intensity, minimum spread. Best for beam shows, aerial effects, and dramatic sweeps across the room.
-
51° (wide) — Broad, overlapping wash. The individual beams fan out and merge into a wide field of textured, faceted color. Best for stage washes, dance floor fills, and wide area coverage where you want color with movement rather than defined beam shafts.
360° Infinite Lens Rotation
The bee eye lens array rotates continuously in either direction — not limited to a fixed arc, but a full 360° infinite spin. This rotation is what creates the kaleidoscope effect: as the lenses spin, the individual beams sweep, cross, separate, and recombine in constantly changing patterns. The rotation speed is DMX-controllable, from a slow, hypnotic crawl to a fast, energetic spin. Combined with RGBW color changes and pan/tilt movement, the rotation adds a third axis of visual motion that makes the fixture feel alive.

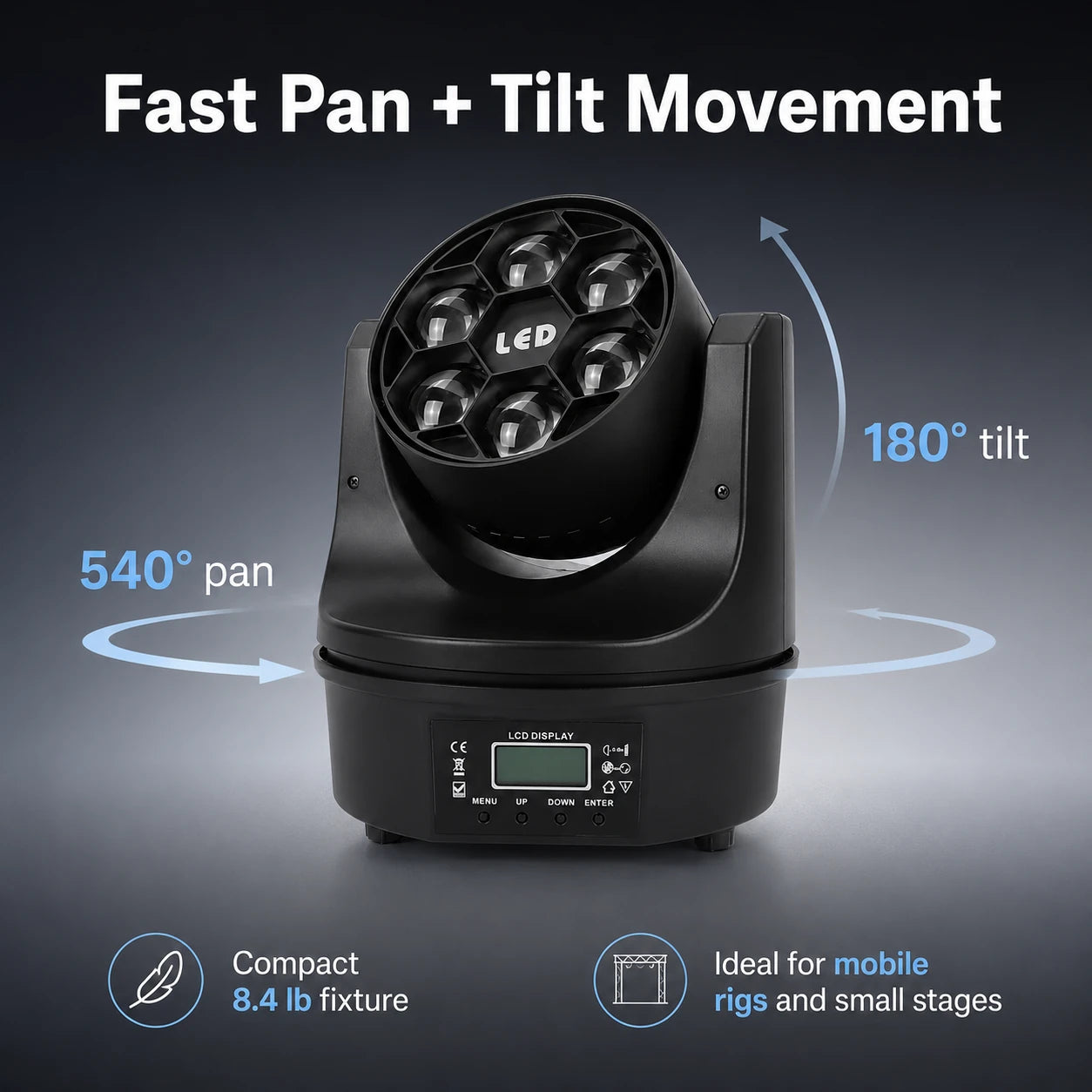

Pan/Tilt Movement
The motorized head provides 540° pan (horizontal) and 180° tilt (vertical) movement. The pan range of 540° means the head can sweep one and a half full rotations in either direction — more than enough to cover any room from any mounting position without dead zones. The 180° tilt range lets the head aim straight down (for floor effects from overhead), straight out (horizontal beams), and everywhere in between.
-
Pan speed: Full 540° sweep in approximately 1.5 seconds at maximum speed
-
Tilt speed: Full 180° sweep in approximately 0.5 seconds at maximum speed
Both pan and tilt support 16-bit fine control in 17-channel DMX mode, which enables smooth, precise positioning without the stepping or stuttering that 8-bit control can produce during slow movements.
Strobe & Dimming
The SF-BE615 includes electronic strobe from 1–30 flashes per second with random strobe capability, plus 0–100% linear dimming for smooth fades and intensity control. The linear dimming curve ensures gradual, flicker-free transitions — important for slow fades during ceremonies, speeches, and any moment where abrupt lighting changes would be disruptive.
LED Lifespan
The RGBW LEDs are rated for 50,000+ hours of operation. At 8 hours of use per day, that's over 17 years before the LEDs reach end of life.
Complete Specifications
| Specification |
Detail |
| Light Source |
6×15W RGBW 4-in-1 LED |
| Total Power |
~100W |
| Power Input |
AC100–240V, 50/60Hz |
| Beam Angle |
6°–51° |
| CRI |
80 |
| Color Temperature |
4100K (neutral white) |
| Color System |
RGBW 4-in-1 (16.7 million colors) |
| Pan Range |
540° |
| Tilt Range |
180° |
| Lens Rotation |
360° infinite (bi-directional) |
| Pan Speed |
540° in ~1.5 seconds |
| Tilt Speed |
180° in ~0.5 seconds |
| Strobe |
1–30 flashes/sec + random strobe |
| Dimming |
0–100% linear |
| DMX Channels |
10CH / 17CH |
| Control Modes |
DMX512 / Master-Slave / Sound-Active / Auto-Run |
| DMX Connector |
3-pin XLR In/Out |
| Display |
LED display (4-button control) |
| LED Lifespan |
>50,000 hours |
| IP Rating |
IP33 |
| Housing |
Aluminum + ABS plastic, black |
| Mounting |
Yoke bracket with omega clamp points |
| Dimensions |
10.24 × 10.63 × 13.78 in (26 × 27 × 35 cm) |
| Weight |
8.4 lbs (3.8 kg) |
| SKU |
SFX-BEE-002 |
IP33 Rating
The SF-BE615 is rated IP33, which provides protection against solid objects larger than 2.5mm and protection against water spray at angles up to 60° from vertical. This is a minimal splash protection rating — it means the fixture can tolerate incidental drips or very light spray, but it is not weatherproof. Do not use in rain, outdoors without full cover, or in high-humidity environments. The SF-BE615 is designed for indoor stages, venues, clubs, and controlled event spaces.
Power Planning
At approximately 100W per fixture, power planning is straightforward:
-
15A / 120V circuit (1,800W): supports up to 18 fixtures
-
20A / 120V circuit (2,400W): supports up to 24 fixtures
At under 1 amp per fixture on 120V, power is rarely a limiting factor with the SF-BE615. You'll run out of DMX channels (512 per universe) before you run out of power capacity.
What's in the Box
- SF-BE615 Mini Bee Eye Moving Head Light (1 unit)
- Power cable
- DMX cable
- Yoke mounting bracket with hardware
- User manual

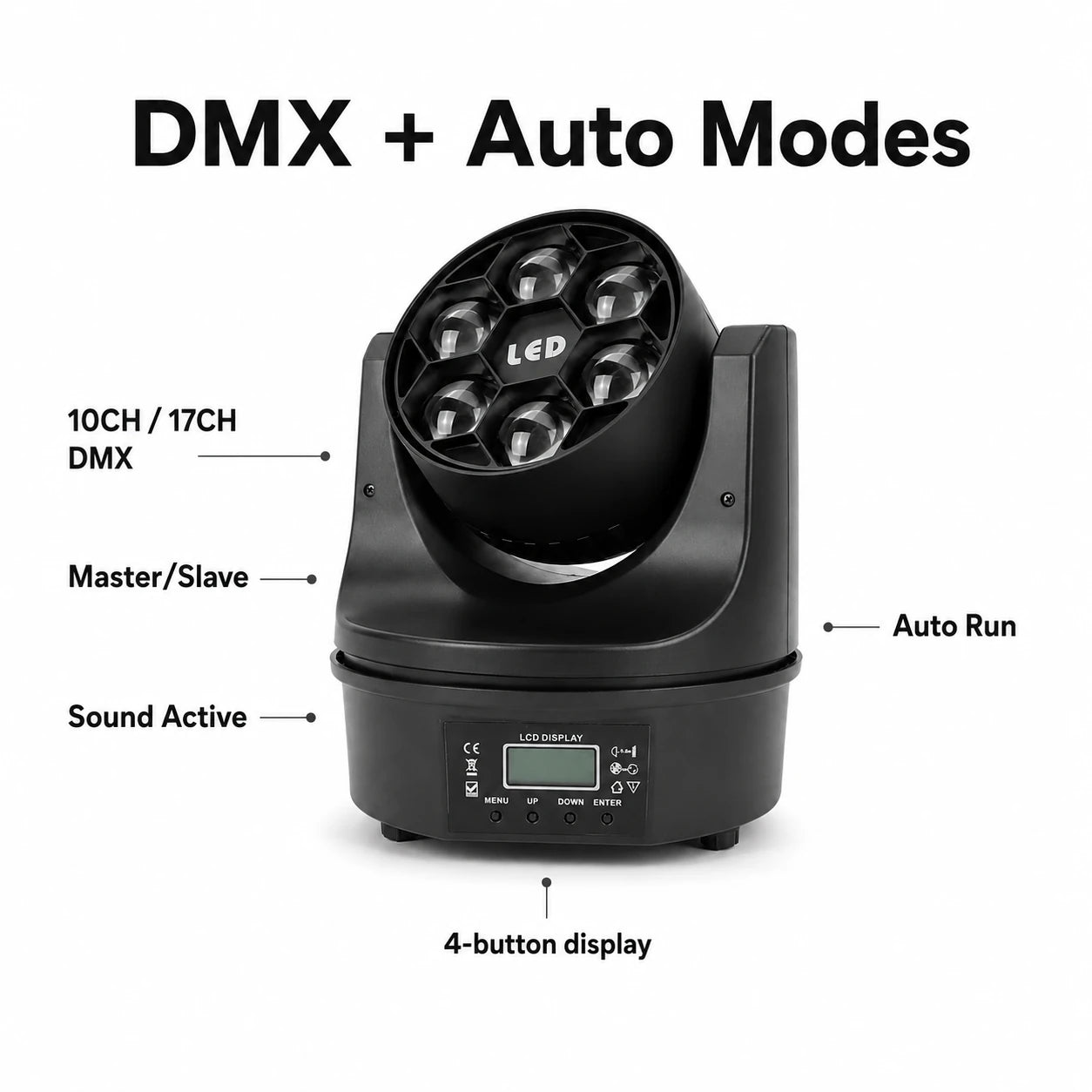

Control Modes
The SF-BE615 supports four control modes, selectable via the rear-panel LED display:
| Mode |
How It Works |
| DMX512 |
Full external control via wired DMX (3-pin XLR). All functions — pan, tilt, rotation, color, dimming, strobe, speed — are individually addressable from your console. Available in 10-channel (basic) or 17-channel (extended with fine positioning) modes. |
| Master/Slave |
One fixture acts as the master; all connected fixtures mirror its behavior via DMX daisy chain. No console needed. The master runs its own program or manual settings, and every slave follows in sync. Useful for synchronized multi-head shows without a controller. |
| Sound-Active |
Built-in microphone triggers movement, color changes, and effects in response to ambient audio (music, beats). The fixture reacts to bass hits and volume levels automatically. No controller or DMX connection required. |
| Auto-Run |
Built-in preprogrammed sequences run on power-up — the fixture pans, tilts, rotates, and changes colors through its internal program library automatically. Plug in and go. No controller, no DMX, no audio input needed. |
DMX Channel Layout — 10CH Mode (Basic)
| Channel |
Function |
| CH 1 |
Pan (0–540°) |
| CH 2 |
Tilt (0–180°) |
| CH 3 |
Master Dimmer (0–100%) |
| CH 4 |
Red (0–255) |
| CH 5 |
Green (0–255) |
| CH 6 |
Blue (0–255) |
| CH 7 |
White (0–255) |
| CH 8 |
Strobe (off → slow → fast) |
| CH 9 |
Lens Rotation (direction + speed) |
| CH 10 |
Auto Programs / Color Macros |
DMX Channel Layout — 17CH Mode (Extended)
The 17-channel mode adds 16-bit fine control for pan and tilt (separate coarse and fine channels), plus additional dedicated channels for program speed, movement macros, and reset functions. This is the mode to use when you need smooth, precise positioning — the fine channels give you 65,536 steps of resolution on pan and tilt instead of the 256 steps in 10-channel mode. The difference is visible during slow sweeps and precise position holds, where 8-bit control can produce visible stepping.
DMX Addressing: In 10CH mode — first fixture at 001, second at 011, third at 021 (incrementing by 10). One universe supports 51 individually addressed fixtures. In 17CH mode — first at 001, second at 018, third at 035 (incrementing by 17). One universe supports 30 individually addressed fixtures.
Wiring — DMX Daisy Chain
The SF-BE615 has 3-pin XLR DMX In and DMX Out connectors. Connect your console's DMX output to the first fixture's DMX In, then daisy-chain from each fixture's DMX Out to the next fixture's DMX In. For runs exceeding 300 feet total cable length or chains exceeding 32 fixtures, use a DMX splitter/booster. Terminate the last fixture in the chain with a 120-ohm DMX terminator if you experience erratic behavior.
Moving Head Programming Tips
Moving heads require more programming than static fixtures because they have position channels (pan/tilt) in addition to color and intensity. A few practical notes:
-
Start with positions. Before programming color or effects, set your pan/tilt positions first. Determine where you want the beams to point during different song sections or event phases, and save those as scenes or cues on your console.
-
Use 17CH mode for slow movements. If your show includes slow, dramatic sweeps or precise position holds (ceremonies, ballads, speeches), the 16-bit fine channels prevent visible stepping artifacts.
-
10CH mode is fine for fast shows. For DJ sets, dance parties, and high-energy shows with fast movement, the 8-bit resolution of 10CH mode is more than adequate — the speed of movement hides any stepping.
-
Lens rotation speed matters. Slow rotation creates a hypnotic, flowing effect. Fast rotation creates high-energy visual chaos. Match the rotation speed to the energy of the moment.
-
Haze makes it. Moving head beam effects are dramatically more visible in haze or fog. Without atmospheric haze, you see the beam endpoints (the spots on walls/floors) but not the beams in the air. With haze, every beam becomes a visible shaft of light — and the bee eye effect goes from subtle to spectacular.
Frequently Asked Questions
Can I use the SF-BE615 outdoors?
The SF-BE615 is rated IP33, which provides minimal splash protection but is not weatherproof. It can tolerate incidental drips in a covered environment, but it should not be used in rain, open-air venues without full overhead protection, or high-humidity conditions. For outdoor use, choose an IP65-rated fixture.
What is the "bee eye" effect?
The bee eye is a rotating multi-lens array in front of the LEDs. Each lens refracts its LED's beam at a different angle. When the array rotates, these individual beams split, fan, cross, and recombine in a continuous kaleidoscope pattern. The effect is most dramatic in haze, where each beam is visible as a distinct shaft of spinning light. It adds visual complexity and motion that a standard flat-face wash head cannot produce.
How is this different from a regular moving head wash?
A standard moving head wash produces a single, smooth field of color — like a motorized par light that can pan and tilt. The SF-BE615 adds the rotating bee eye lens array, which splits the wash into multiple individual beams and spins them. This creates textured, faceted, kaleidoscopic patterns instead of a flat wash. It's the difference between a smooth pool of color and a dynamic, fractured beam show.
Do I need a DMX controller?
Not necessarily. Sound-active mode responds to music through a built-in mic, auto-run plays built-in programs on power-up, and master/slave lets one unit control others without a console. However, a DMX controller unlocks the fixture's full potential — precise pan/tilt positioning, individual color control, rotation speed, and the ability to program cues and scenes for a coordinated show. For anything beyond basic DJ use, a controller is strongly recommended.
What DMX controller works with this?
Any standard DMX512 controller with 3-pin XLR output. Hardware consoles (ADJ, Chauvet, professional desks), USB-to-DMX interfaces (Enttec, DMXIS), and software controllers (QLC+, SoundSwitch, LightKey, myDMX) all work. Many moving head controllers have dedicated pan/tilt joystick or fader controls that make positioning much easier than trying to enter raw DMX values.
How many can I run on one power circuit?
At ~100W per fixture: up to 18 on a 15A/120V circuit or 24 on a 20A/120V circuit. Power is not typically the limiting factor with these fixtures.
How do I mount it?
The SF-BE615 comes with a yoke bracket that works in two ways: standing on a flat surface (the yoke acts as a base) or hanging from truss/pipe using a standard lighting clamp (C-clamp, O-clamp, or trigger clamp — sold separately) attached to the yoke. The fixture can also mount on a standard T-bar or lighting stand with the appropriate adapter. Always use a safety cable when mounting overhead.
Is it noisy?
The SF-BE615 uses internal cooling fans that produce some operational noise. In a loud environment (DJ set, concert, club), the fan noise is inaudible. In a quiet environment (ceremony, speech, theater), the fans may be faintly audible at close range. This is typical of all motorized fixtures — the motors for pan, tilt, and lens rotation also produce some mechanical noise during movement.
How heavy is it?
8.4 lbs (3.8 kg). Compact and light enough for T-bars, lightweight truss, and easy transport.
Setup Tips
Quick Start (No Controller): Plug the SF-BE615 into AC power. Use the rear LED display to select Auto-Run mode. The fixture will immediately begin panning, tilting, rotating, and cycling colors through its built-in programs. For sound-reactive operation, switch to Sound-Active mode — the fixture will respond to music and beat patterns through its built-in microphone.
-
Pair with haze. This is the single most impactful thing you can do for any moving head or bee eye fixture. Atmospheric haze makes every beam visible in the air. Without it, you only see the endpoints on walls and floors. With it, the bee eye rotation becomes a full 3D light sculpture.
-
Minimum two fixtures. Moving heads look best in multiples. Two SF-BE615 units (one on each side of a stage or DJ booth) create crossing beam patterns and symmetrical movement that a single fixture can't achieve.
-
Mount high when possible. Elevating moving heads on truss, T-bars, or tall stands gives the beams maximum travel distance and visibility. Floor-mounted moving heads still work, but the beams travel upward rather than sweeping across the audience's field of view.
-
Safety cable always. Any fixture mounted above people — regardless of weight — must have a secondary safety cable attachment. The SF-BE615 weighs 8.4 lbs and contains motors that create vibration during operation. The safety cable is non-negotiable for overhead mounting.
-
Master/slave for easy sync. If you have multiple SF-BE615 units but no DMX controller, use master/slave mode. Set one fixture as master, connect the others via DMX cable, and set them to slave. All units will run the same programs in sync — coordinated movement without any programming.
