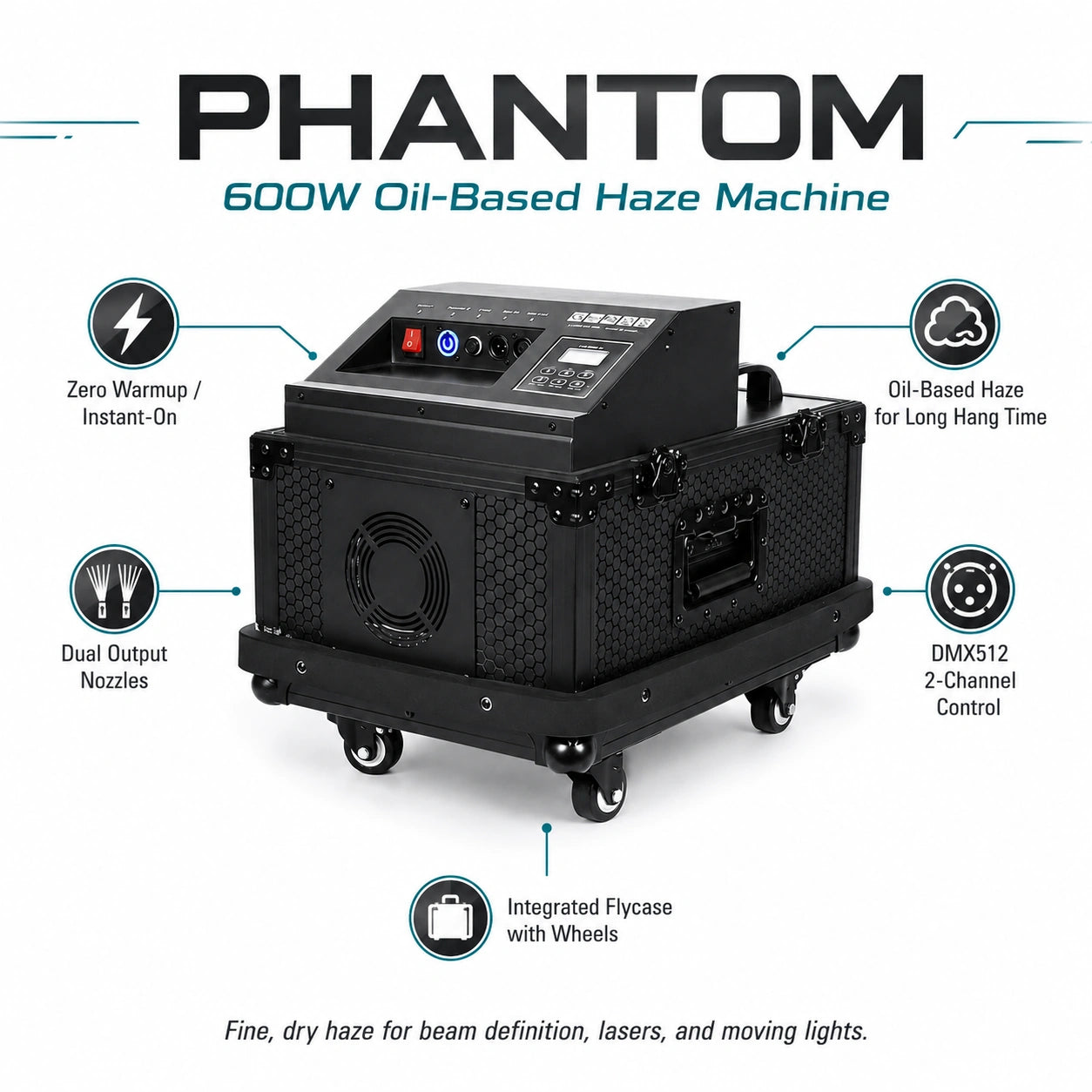

600W OIL-BASED HAZER. ZERO WARMUP. DUAL OUTPUT NOZZLES. DMX512 2-CHANNEL. INTEGRATED FLYCASE. 3 SILENT FANS. INTERVAL TIMER. INSTANT-ON.

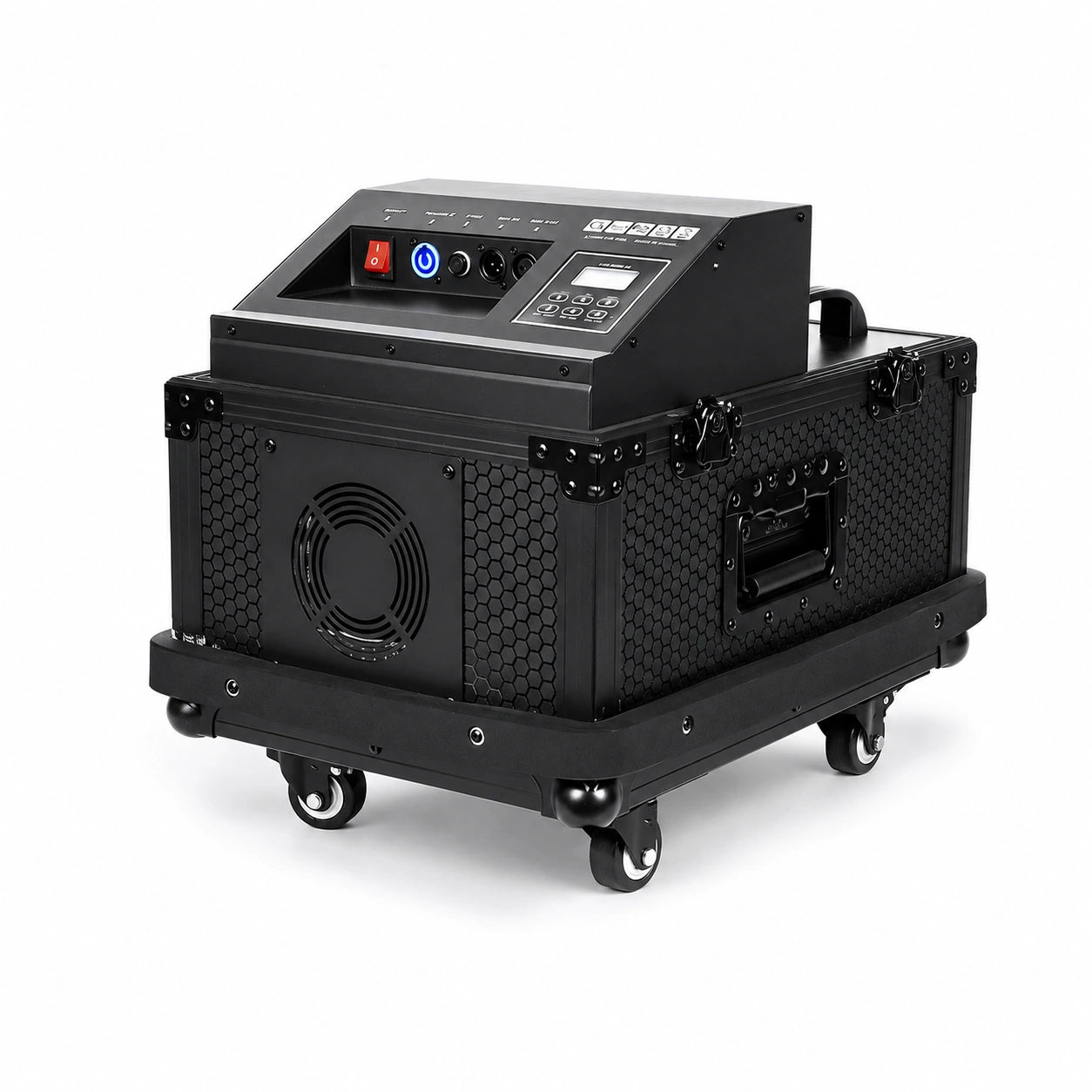

The SurgeFX Phantom is a 600W oil-based haze machine built for operators who need fine, dry haze with maximum hang time. Oil-based haze produces a thinner, more transparent atmosphere than water-based alternatives — it stays suspended longer, disperses more evenly, and delivers superior beam definition for moving heads, lasers, and beam fixtures.
Unlike water-based hazers that require a warmup cycle, the Phantom is instant-on — power up, press the button, and haze is flowing immediately. Dual output nozzles with adjustable angles spread haze from both sides of the unit simultaneously, covering wide stages and large rooms faster than single-output machines.
The Phantom ships in an integrated road case with heavy-duty wheels and safety brakes — no separate flight case needed. At 66.1 lbs, it's built for permanent installation or touring use, and the flycase protects it in transit while doubling as the operating enclosure on-site.
Who Uses the Phantom?
Touring & Concert Production — The Phantom's integrated flycase with locking wheels makes it purpose-built for the road. Roll it off the truck, plug it in, and you're hazing immediately — no warmup, no separate case to manage. Oil-based haze delivers the long hang time and fine particle distribution that professional lighting designers require for beam work, aerial effects, and laser shows.
Nightclubs & Permanent Venues — Clubs that run haze every night need a machine that starts instantly, runs reliably for hours, and produces dry, residue-free atmosphere. The Phantom's oil-based output won't leave a slippery film on floors or surfaces — a common complaint with water-based hazers in high-volume club environments. The dual output nozzles cover wide rooms without repositioning.
DJs & Mobile Entertainment — The flycase rolls directly from your vehicle to the stage. No warmup means haze is available the moment you need it during setup. The interval timer lets you automate output so you can focus on the mix instead of managing atmosphere manually.
Rental Companies & Event Production — The integrated flycase protects the machine in your warehouse and during delivery. Oil-based hazers command premium rental rates because clients recognize the superior haze quality. The DMX integration and instant-on capability make it fast to deploy and easy for on-site technicians to operate.
Theater & Performing Arts — Oil-based haze produces the finest, most transparent atmosphere available — ideal for theatrical environments where the haze itself should be invisible, only revealing itself when light passes through it. Three silent fans keep the Phantom quiet enough for dramatic performances.
Houses of Worship — Churches running modern worship lighting need consistent haze without mechanical noise or visible clouds. The Phantom's silent fan system and fine oil-based output provide exactly that — subtle atmosphere that enhances beam visibility without distracting the congregation.
Phantom vs. Banshee — Which Hazer Is Right? The Phantom is an oil-based hazer: finer particle output, longer hang time, zero warmup, and a drier feel — ideal for high-end lighting, touring, and environments where haze quality matters most. The Banshee is a water-based hazer: faster coverage, lower cost of operation, and simpler maintenance — ideal for clubs, churches, and venues that need reliable atmosphere without the premium of oil-based fluid. Both integrate via DMX. Compare Haze Machines →
Oil-Based Haze Output
The Phantom uses oil-based haze fluid to produce extremely fine, dry haze particles that stay suspended in the air significantly longer than water-based alternatives. Oil-based haze is thinner, more transparent, and disperses more evenly — delivering superior beam definition for moving heads, lasers, and beam arrays. The output is dry to the touch and won't leave residue on surfaces, equipment, or floors.
Zero Warmup — Instant Output
Unlike water-based hazers that require a 3-5 minute warmup cycle to heat their fluid, the Phantom is instant-on. Power up, press the button, and haze begins flowing immediately. This eliminates warmup delays during setup and means the machine is always ready when you need it — critical for fast load-ins, rental deployments, and live show environments.
Dual Output Nozzles
The Phantom features two output nozzles that distribute haze from both sides of the unit simultaneously. This provides wider, more even coverage than single-output machines — filling stages and rooms faster without needing to reposition the unit. Each nozzle angle is adjustable, allowing you to direct output exactly where it's needed.

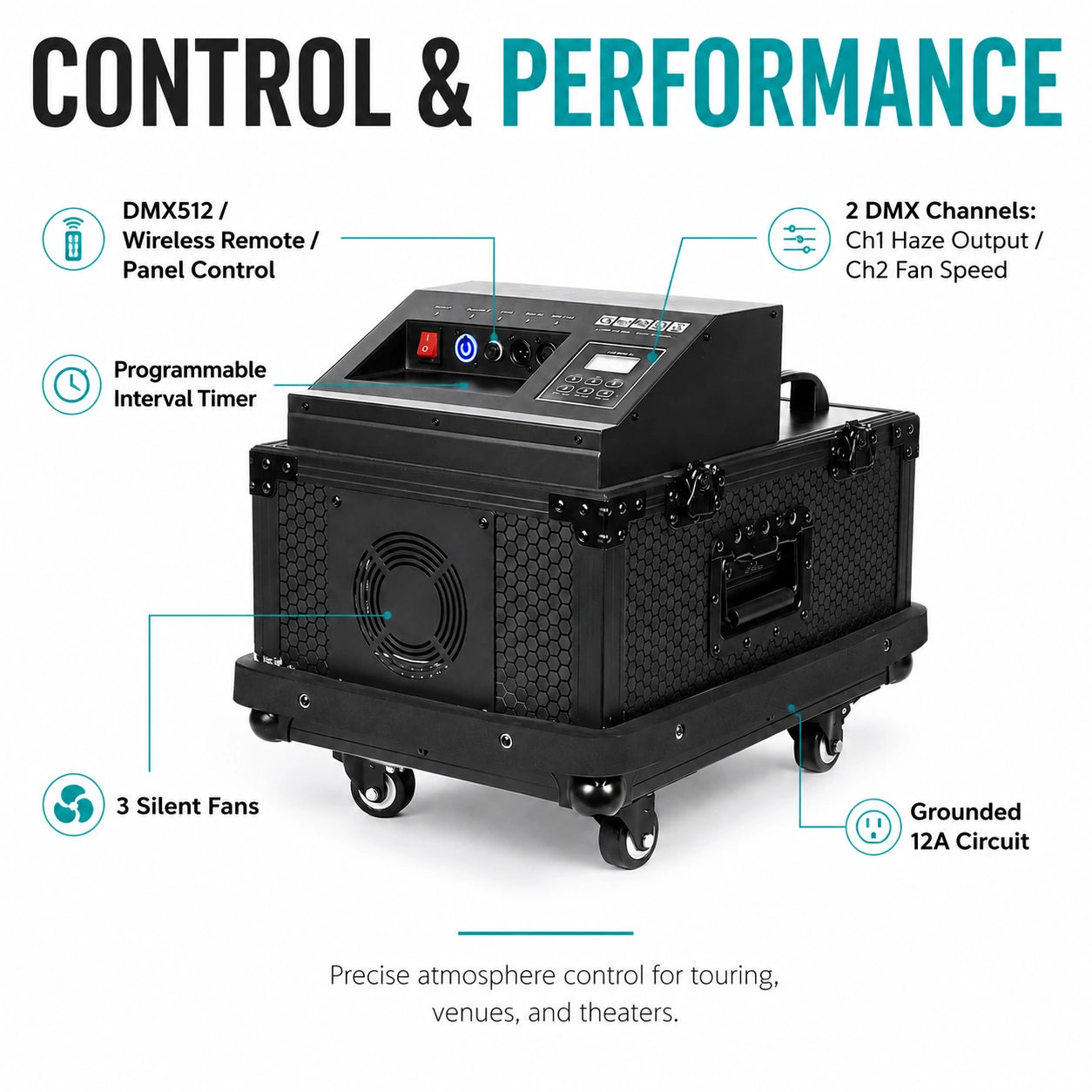

DMX512 Control — 2 Channels
Full DMX512 integration across 2 channels gives your lighting operator direct control: Channel 1 controls haze output level, Channel 2 adjusts fan speed. This allows independent tuning of haze density and dispersion rate — program subtle atmosphere for ballads and heavy haze for high-energy moments, all from your lighting console.
Timing / Interval Function
The Phantom's built-in interval timer allows automated haze output on a programmable cycle. Set the spray duration and interval period, and the machine operates unattended — maintaining consistent atmosphere without manual intervention. Ideal for permanent installations, long events, and situations where a dedicated operator isn't available.
Triple Control Modes
Operate via DMX512, wireless remote, or on-board panel controls. The DMX mode integrates into professional lighting rigs, the remote provides wireless convenience for mobile setups, and the panel allows direct manual operation without additional equipment.
3 Silent Fans
Three silent fans distribute haze output evenly while keeping noise levels low enough for theaters, churches, corporate events, and recording environments. Fan angle is adjustable for fine-tuning dispersion direction and reach.

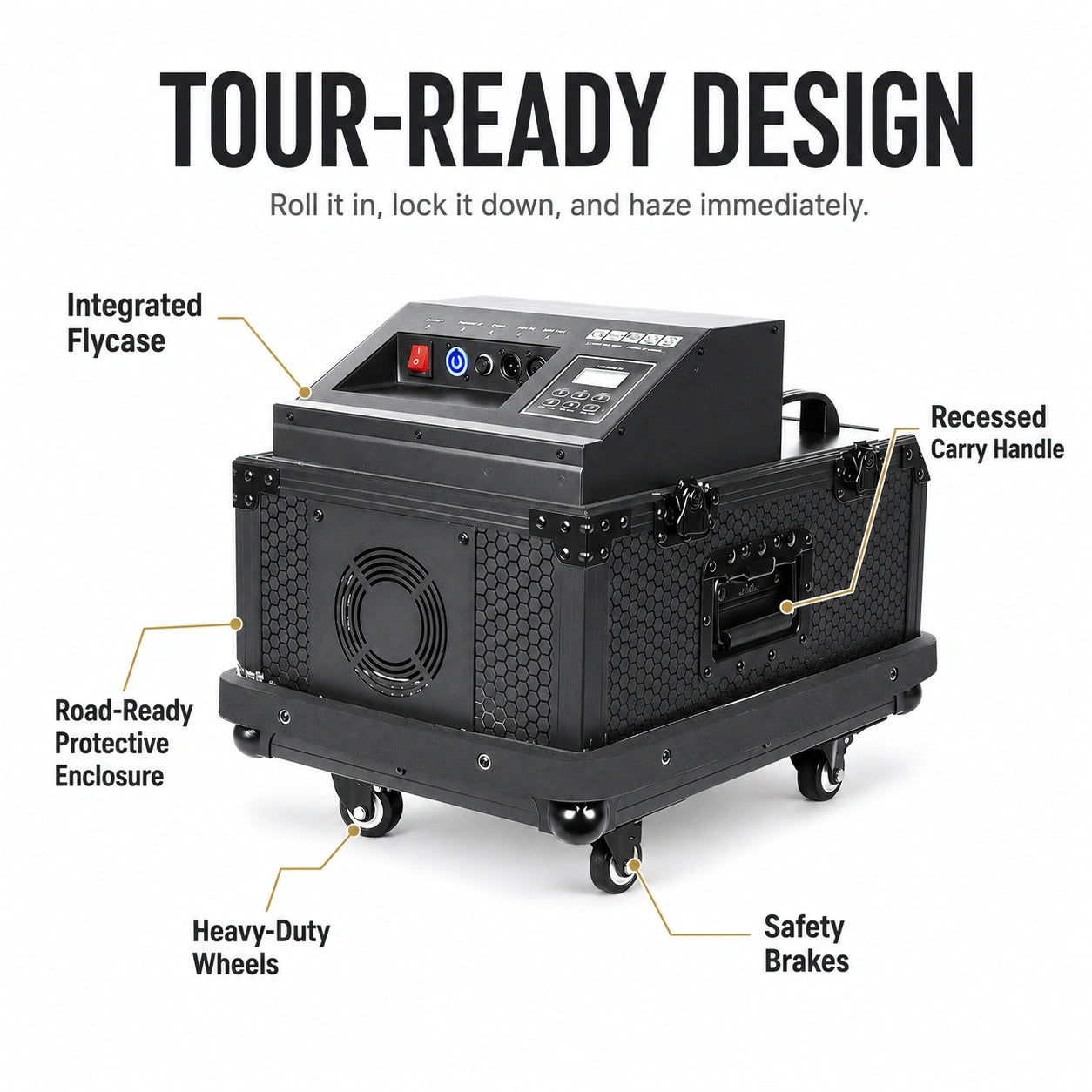

Integrated Road Case
The Phantom ships and operates inside an integrated flycase with heavy-duty wheels and safety brakes. The case protects the machine during transport and storage while serving as the operating enclosure on-site — no separate flight case to purchase or manage. Lock the brakes, connect power and DMX, and you're operational.
Oil Quantity Indicator
A fluid level indicator on the side of the machine lets you check remaining oil at a glance — no guessing whether you have enough fluid to get through the event. Monitor levels during operation and top off when needed without interrupting output.

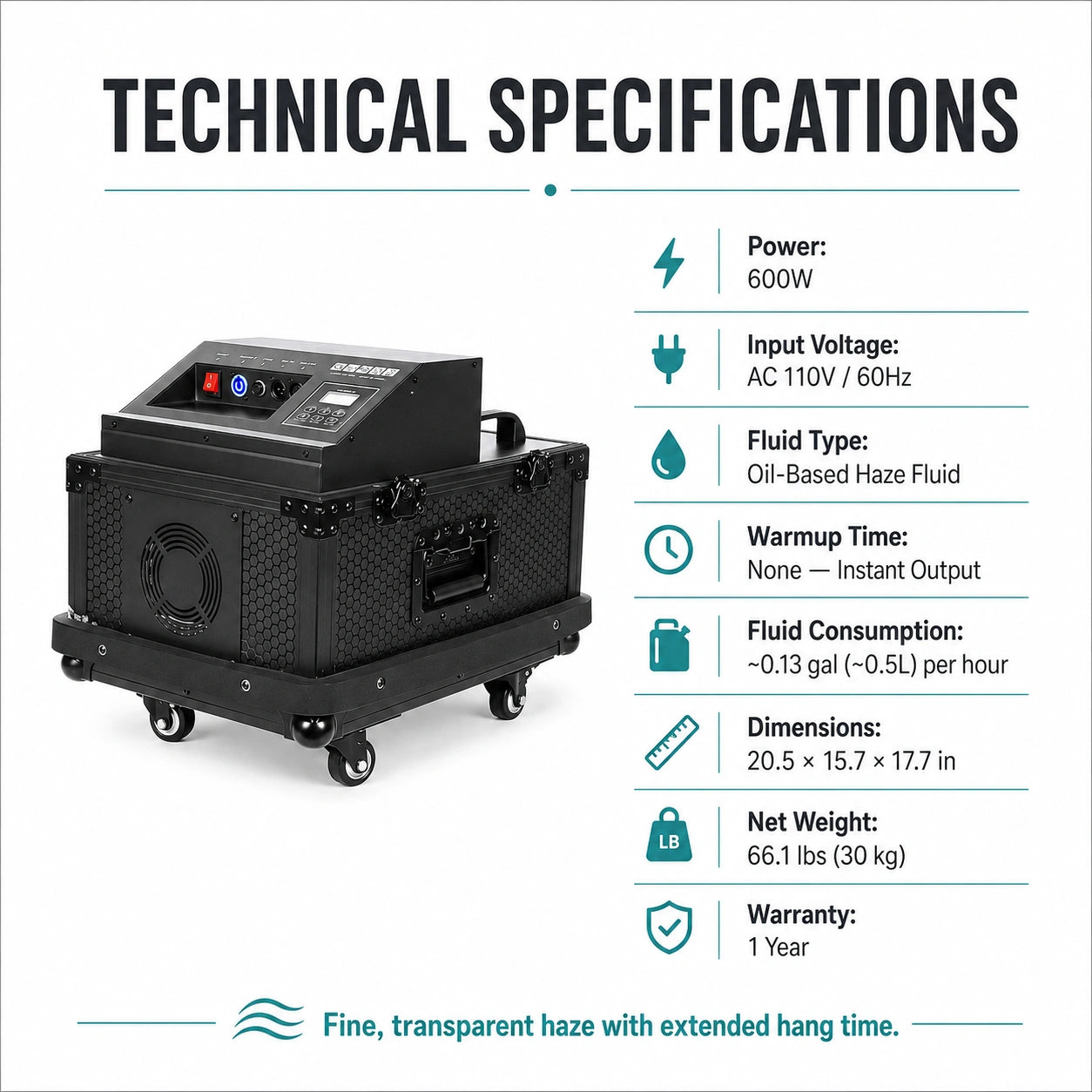

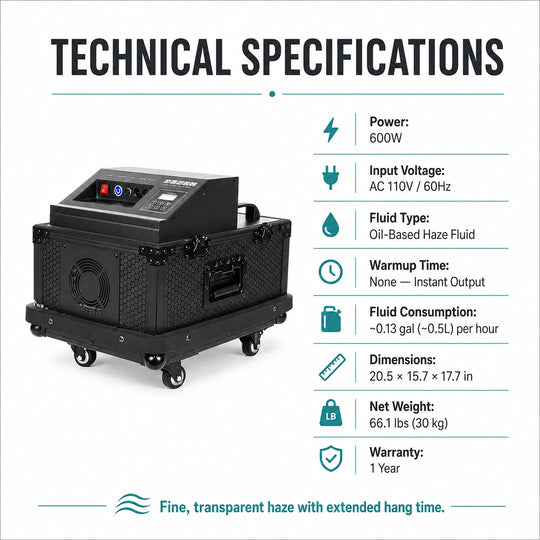

Technical Specifications
Power
600W
Input Voltage
AC 110V / 60Hz
Fluid Type
Oil-based haze fluid (required)
Warmup Time
None — instant output
Output
Dual nozzles, adjustable angle
Fan System
3 silent fans, adjustable angle
Control Modes
DMX512 / Wireless Remote / Panel
DMX Channels
2 (Ch1: haze output, Ch2: fan speed)
Timer Function
Programmable interval / duration
Fluid Consumption
~0.13 gal (~0.5L) per hour
Fluid Level
Side-mounted oil quantity indicator
Enclosure
Integrated flycase with wheels + safety brakes
Dimensions
20.5 × 15.7 × 17.7 in (52 × 40 × 45 cm)
Net Weight
66.1 lbs (30 kg)
Power Requirement
Grounded 12A circuit
Warranty
1 Year

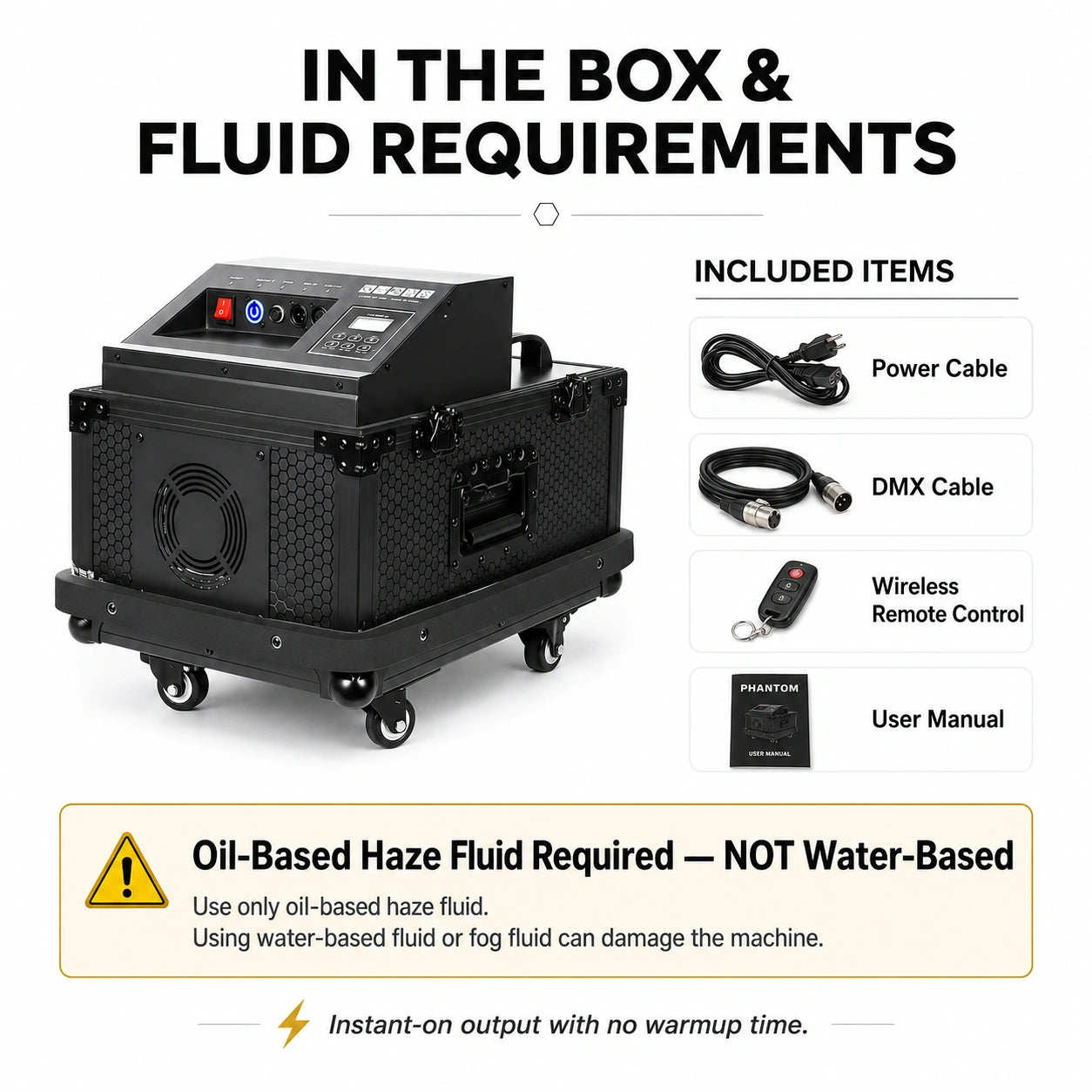

In the Box
- SurgeFX Phantom Oil-Based Haze Machine (600W, DMX512) — in integrated flycase
- Power Cable
- DMX Cable
- Wireless Remote Control
- User Manual
⚠ Oil-Based Haze Fluid Required — NOT Water-Based: The Phantom is designed exclusively for oil-based haze fluid. Using water-based haze fluid or fog fluid will damage the machine and void your warranty. For best performance, longest hang time, and cleanest atmosphere, use Aurà™ Pro Oil-Based Haze Fluid. Shop Aurà™ Haze Fluids →
Oil-Based vs. Water-Based Haze Fluid: Oil-based fluid produces finer particles with longer hang time and drier feel — ideal for premium lighting applications. Water-based fluid produces slightly thicker haze that dissipates faster but is less expensive per liter. The two fluid types are not interchangeable — each requires its own machine type. The Phantom uses oil-based only.
Complete Your Setup
Oil-based haze is the gold standard for professional lighting enhancement. Every beam, laser, and wash in your rig gains visible depth and definition when cutting through the Phantom's fine atmospheric output.
Aurà™ Haze Fluids
The Phantom requires oil-based haze fluid for operation. Aurà™ Pro is formulated for professional oil-based hazers — delivering fine, dry particles with extended hang time and zero residue. Using the correct fluid protects your machine and ensures consistent output quality.
Stage Lighting
Oil-based haze exists to make lighting visible. Moving heads, beam arrays, wash lights, and lasers all achieve their full visual potential only when cutting through a consistent atmospheric layer. The Phantom's DMX integration means haze levels can be programmed alongside your lighting cues for fully synchronized production.
Cold Spark Machines
Cold sparks fired through haze gain visible trails as the surrounding atmosphere catches and reflects the light. The Phantom's fine, even output provides a clean backdrop that amplifies spark effects without competing with them visually.
CO2 Effects
CO2 plumes create high-contrast burst effects against the Phantom's subtle atmospheric backdrop. The dense white CO2 stands out sharply against fine oil-based haze — giving you layered atmosphere for different production moments.
Fog Machines
Some productions need both — consistent haze for lighting enhancement throughout the show and dense fog bursts for specific dramatic moments. The Phantom handles the atmospheric base layer while a dedicated fog machine delivers the heavy visual effects on cue.
What makes oil-based haze different from water-based?
Oil-based haze produces finer, drier particles that stay suspended in the air longer and disperse more evenly. The output is nearly invisible until light passes through it, and it won't leave a wet or slippery film on surfaces. Water-based haze is slightly thicker, dissipates faster, and can leave light moisture residue in high-volume applications. Oil-based is generally considered the premium choice for professional lighting enhancement.
Does the Phantom require a warmup period?
No. Unlike water-based hazers that need 3-5 minutes to heat their fluid, the Phantom uses an oil-based atomization system that produces haze instantly. Power on, press the button, and output begins immediately.
Can I use water-based haze fluid or fog fluid in the Phantom?
No — oil-based haze fluid only. The Phantom's internal pump and atomization system are designed specifically for oil-based fluid. Using water-based haze fluid or fog fluid will damage the machine and void your warranty. We recommend Aurà™ Pro Oil-Based Haze Fluid for best results.
How long does a fill of fluid last?
At the rated consumption of ~0.5L per hour, runtime depends on the amount of fluid loaded and your output settings. On lower output or interval timer settings, consumption decreases significantly and a fill can last through extended events. The side-mounted oil quantity indicator lets you monitor remaining fluid at a glance.
Why is the Phantom so much heavier than the Banshee?
The Phantom weighs 66.1 lbs compared to the Banshee's 33.1 lbs primarily because it includes an integrated road case (flycase) with heavy-duty wheels and safety brakes. The flycase is the machine's permanent enclosure — it protects the unit during transport and serves as the operating housing on-site. You don't need to purchase a separate flight case.
How do the dual output nozzles work?
The Phantom has two output nozzles positioned on opposite sides of the unit, distributing haze simultaneously in two directions. Each nozzle angle is adjustable, allowing you to direct output toward specific areas — lighting rigs, across the stage, or into the house. This provides wider, more even coverage than single-nozzle machines without repositioning.
What do the 2 DMX channels control?
Channel 1 controls haze output level (how much haze is produced). Channel 2 controls fan speed (how quickly and how far haze is dispersed). This gives your lighting operator independent control over haze density and distribution from the console.
Is the Phantom quiet enough for churches and theaters?
Yes. The Phantom uses three silent fans designed for noise-sensitive environments. While it's not completely silent — no mechanical device is — the fan noise is low enough for worship services, theatrical performances, and corporate presentations where equipment noise isn't acceptable.
Does oil-based haze leave residue?
Quality oil-based haze fluid produces dry, residue-free output when used as directed. Unlike some water-based hazers that can leave a light moisture film on surfaces, the Phantom's fine oil-based particles remain suspended in the air and evaporate cleanly. Using the recommended Aurà™ Pro fluid ensures the cleanest possible operation.
First Fill — Getting Started
Before first use, add at least 1 liter of oil-based haze fluid to the tank. This initial fill primes the pump system and ensures smooth, consistent output from the start. Check the side-mounted fluid indicator to confirm the level before powering on. The oil used should be clear — cloudy or discolored fluid indicates contamination and should not be used.
Dual Nozzle Positioning
Take advantage of the Phantom's dual output by angling each nozzle independently. For stage applications, angle one nozzle upward toward lighting rigs and the other outward across the stage. For rooms or clubs, angle both nozzles outward to fill the space from a central position. The adjustable angles mean you rarely need to physically reposition the machine to change coverage.
DMX Channel Strategy
Use Channel 1 (haze output) and Channel 2 (fan speed) together for precise atmospheric control. High output + low fan speed produces dense, concentrated haze near the machine — good for creating visible atmosphere in a specific zone. Low output + high fan speed disperses a thin, even layer across a wider area — ideal for subtle full-room atmosphere. Program transitions between these settings to match the energy of your show.
Interval Timer for Unattended Operation
For permanent installations or long events without a dedicated operator, program the interval timer to maintain consistent atmosphere automatically. Set a short spray duration with a longer interval to keep haze levels steady without over-saturating the room. This is especially useful for churches, theaters, and venues that run haze for hours at a time.
Flycase Brake Management
Always lock the safety brakes on the flycase wheels before operating. The Phantom weighs 66 lbs and can shift during operation if the brakes are disengaged, potentially changing your nozzle angles and coverage direction. On uneven surfaces or raked stages, braking is essential for safe, consistent operation.
Oil-Based Fluid Storage
Store oil-based haze fluid in a cool, dry location away from direct sunlight. Unlike water-based fluids, oil-based formulations have a longer shelf life but can degrade if exposed to extreme temperatures. Always check fluid clarity before filling — clear fluid produces clean output, while cloudy or discolored fluid can clog the system and reduce haze quality.
Phantom vs. Banshee — Choosing by Application
If your priority is haze quality, hang time, and instant availability — and you're working in touring, concert, or premium club environments — the Phantom's oil-based output is the better choice. If your priority is faster coverage, lower fluid cost, and lighter weight — and you're working in churches, corporate events, or general venue applications — the Banshee is a strong, cost-effective alternative. Many production companies keep both on hand.
Post-Event Care
After each use, let the fans run for a few minutes to clear residual haze from the internal chamber before powering down. This prevents fluid from settling inside the machine between uses. If the Phantom won't be used for an extended period, consult the user manual for long-term storage procedures to protect the pump and fluid lines.
