SurgeFX Indoor LED Video Wall Panels

High-resolution indoor LED display system

Cabinet Size

500x500mm

1000x500mm

Quote-only system. Select your pixel pitch and cabinet size, then request a project quote for display sizing, mounting, processing, shipping, and install needs.

Request a Quote

Project-based quoting

500x500mm and 1000x500mm cabinet options

Expert Support: Call (866) 577-8743

LED display systems ship by quote based on cabinet size, quantity, freight method, and destination. Our team will confirm shipping details before finalizing your project.

SurgeFX equipment includes warranty support against manufacturing defects. Final warranty details depend on the configured display package and will be confirmed with your quote.

[{"id":51648031064362,"title":"P1.25 \/ 500x500mm","option1":"P1.25","option2":"500x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P1.25 \/ 500x500mm","public_title":"P1.25 \/ 500x500mm","options":["P1.25","500x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648045547818,"title":"P1.25 \/ 1000x500mm","option1":"P1.25","option2":"1000x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P1.25 \/ 1000x500mm","public_title":"P1.25 \/ 1000x500mm","options":["P1.25","1000x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648031097130,"title":"P1.538 \/ 500x500mm","option1":"P1.538","option2":"500x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P1.538 \/ 500x500mm","public_title":"P1.538 \/ 500x500mm","options":["P1.538","500x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648045580586,"title":"P1.538 \/ 1000x500mm","option1":"P1.538","option2":"1000x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P1.538 \/ 1000x500mm","public_title":"P1.538 \/ 1000x500mm","options":["P1.538","1000x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648031129898,"title":"P1.86 \/ 500x500mm","option1":"P1.86","option2":"500x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P1.86 \/ 500x500mm","public_title":"P1.86 \/ 500x500mm","options":["P1.86","500x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648045613354,"title":"P1.86 \/ 1000x500mm","option1":"P1.86","option2":"1000x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P1.86 \/ 1000x500mm","public_title":"P1.86 \/ 1000x500mm","options":["P1.86","1000x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648031162666,"title":"P2 \/ 500x500mm","option1":"P2","option2":"500x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P2 \/ 500x500mm","public_title":"P2 \/ 500x500mm","options":["P2","500x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648045646122,"title":"P2 \/ 1000x500mm","option1":"P2","option2":"1000x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P2 \/ 1000x500mm","public_title":"P2 \/ 1000x500mm","options":["P2","1000x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648031195434,"title":"P2.5 \/ 500x500mm","option1":"P2.5","option2":"500x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P2.5 \/ 500x500mm","public_title":"P2.5 \/ 500x500mm","options":["P2.5","500x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648045678890,"title":"P2.5 \/ 1000x500mm","option1":"P2.5","option2":"1000x500mm","option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SurgeFX Indoor LED Video Wall Panels - P2.5 \/ 1000x500mm","public_title":"P2.5 \/ 1000x500mm","options":["P2.5","1000x500mm"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Fine-Pitch Indoor LED Walls Built Around Your Space.

SurgeFX Indoor LED Video Wall Panels are modular, high-resolution display systems built for churches, corporate spaces, venues, showrooms, trade shows, schools, and permanent indoor visual installations.

Each system is quoted around your screen size, viewing distance, pixel pitch, cabinet format, mounting method, control package, and installation requirements. Select a pixel pitch and cabinet size, then request a quote so we can configure the right wall for the room.

OverviewFeaturesSpecsIncludedFAQQuote

Perfect For

Church stages and worship spaces
Corporate presentation walls and conference rooms
Indoor venues, auditoriums, and schools
Trade show booths and branded backdrops
Retail showrooms and lobby displays
Immersive entertainment spaces

Close-viewing clarity: Fine-pitch options give indoor audiences a sharper image when the screen is viewed from shorter distances.

Key Features

Fine-pitch indoor LED display options from P1.25 through P2.5

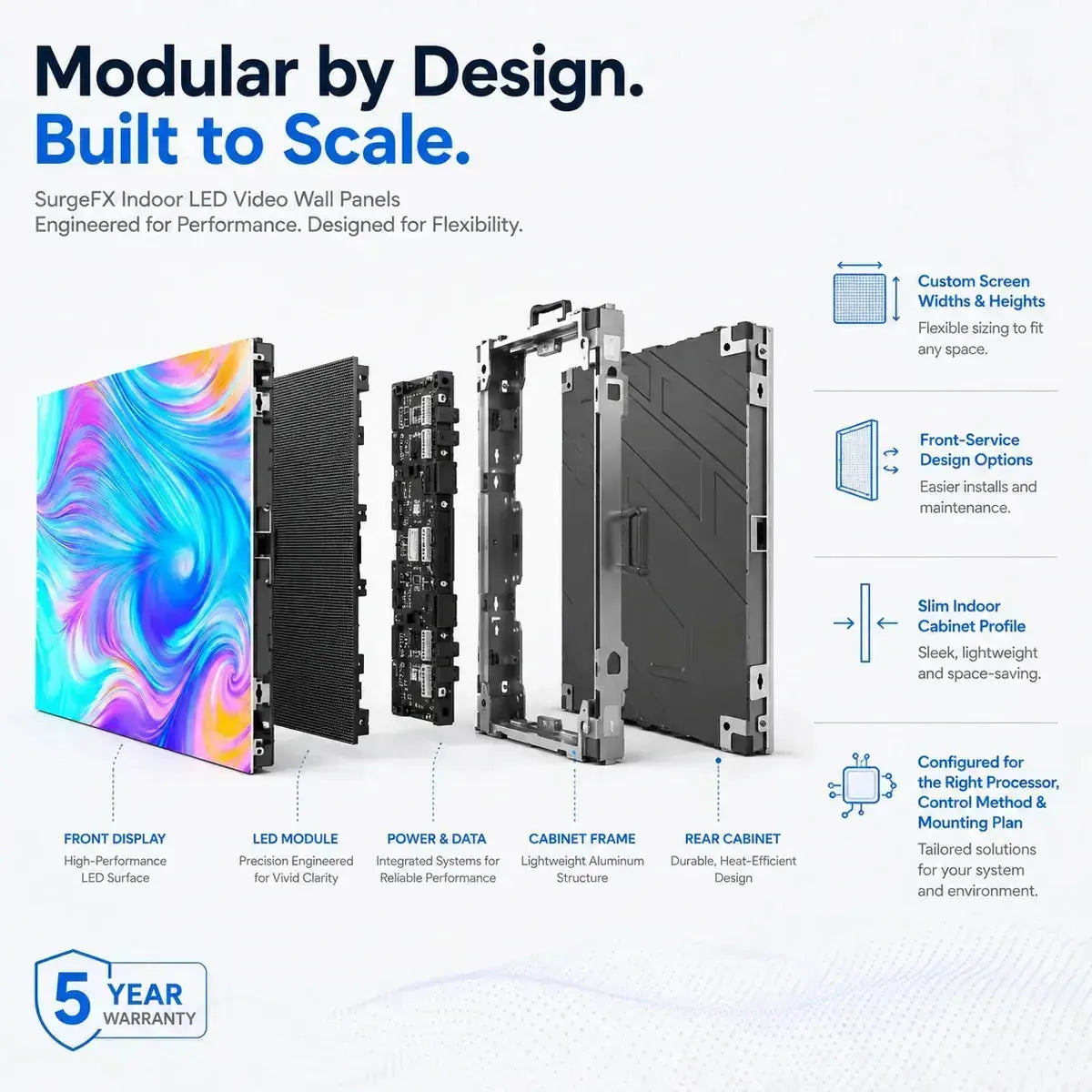

Modular cabinet system for custom screen widths and heights
High refresh rate for clean camera capture and smooth motion
Front-service design options for easier maintenance in fixed installs
Die-cast aluminum cabinet construction on the fine-pitch series
Configured with the right processor, control method, and mounting plan for your project

Available Options

Option	Available Choices
Pixel Pitch	P1.25, P1.538, P1.86, P2, P2.5
Cabinet Size	500x500mm and 1000x500mm modular cabinet options

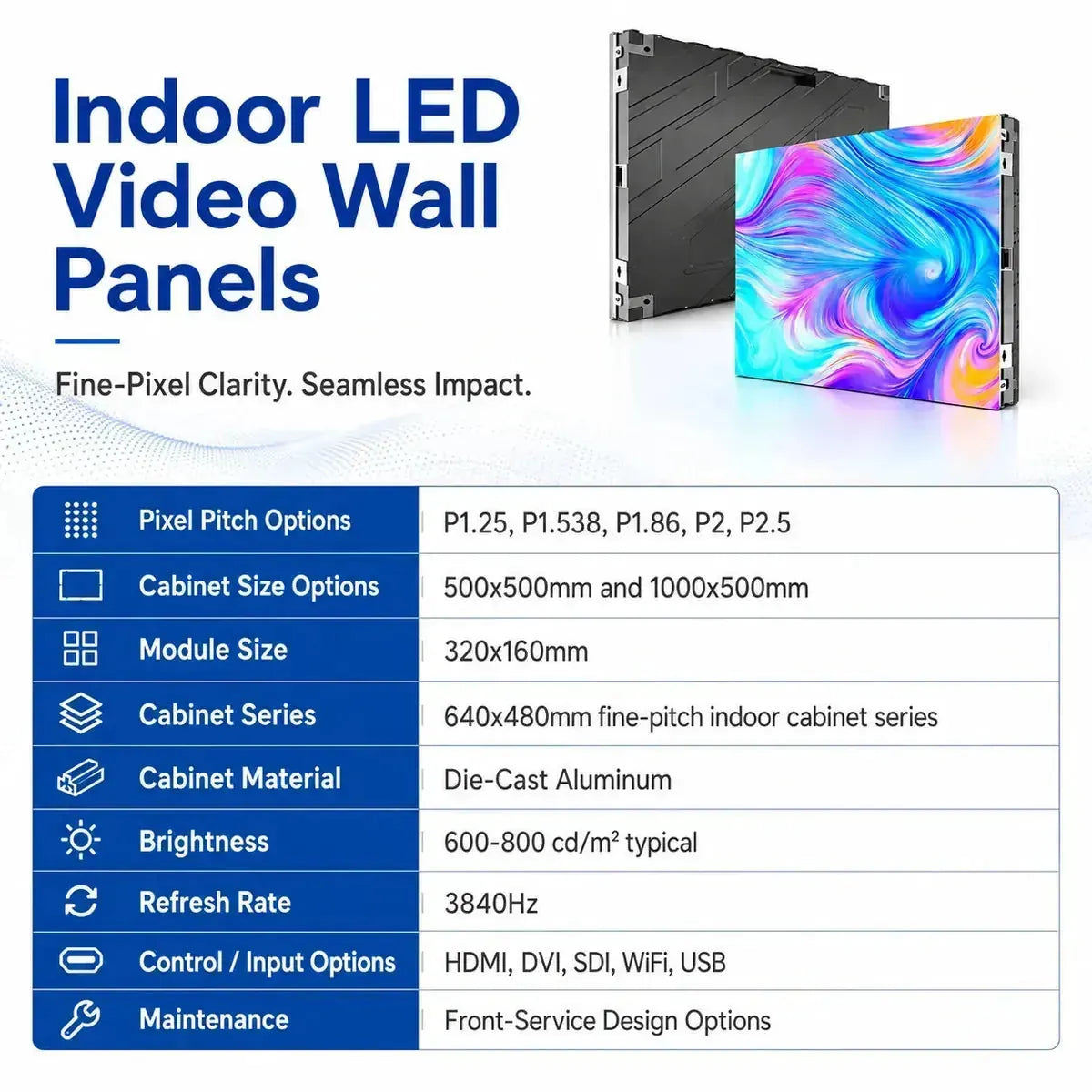

Technical Data

Module Size

320x160mm

Cabinet Series

640x480mm fine-pitch indoor cabinet series

Cabinet Material

Die-cast aluminum

Brightness

600-800 cd/m² typical

Refresh Rate

3840Hz

LED Package

SMD series package, confirmed by selected pitch

Control / Input Options

HDMI, DVI, SDI, WiFi, USB, plus project-specific control packages

Maintenance

Front-service design options available

Quote-confirmed specs: Final cabinet package, processor, receiving cards, mounting hardware, and electrical requirements are confirmed before ordering.

Configured Quote Package

Video walls are built as project packages, not one-size-fits-all boxed products. Your quote may include:

LED display cabinets and modules
Video processor and control hardware
Main power and signal cabling
Inter-panel power and signal cables
Mounting or rigging hardware, if required
Spare parts package
Shipping and install support options

FAQ

Which pixel pitch should I choose?
The closer the audience is to the screen, the tighter the pixel pitch should be. P1.25 and P1.538 are best for premium close-viewing installs, while P2 through P2.5 can work well for larger indoor walls and longer viewing distances.

Can SurgeFX help size the wall?
Yes. Send us the approximate width, height, viewing distance, and where it will be installed. We can help match the panel layout to the space.

Can these be purchased online?
No. These are quote-only systems because screen size, mounting, processing, freight, and install needs change from project to project.

Request a Quote

Use the video wall quote form to send us your pixel pitch, cabinet size, approximate screen dimensions, mounting style, and timeline.

Request a Quote

Overview

Perfect For

Church stages and worship spaces
Corporate presentation walls and conference rooms
Indoor venues, auditoriums, and schools
Trade show booths and branded backdrops
Retail showrooms and lobby displays
Immersive entertainment spaces

Close-viewing clarity: Fine-pitch options give indoor audiences a sharper image when the screen is viewed from shorter distances.

Features

Key Features

Fine-pitch indoor LED display options from P1.25 through P2.5
Modular cabinet system for custom screen widths and heights
High refresh rate for clean camera capture and smooth motion
Front-service design options for easier maintenance in fixed installs
Die-cast aluminum cabinet construction on the fine-pitch series
Configured with the right processor, control method, and mounting plan for your project

Specs

Available Options

Option	Available Choices
Pixel Pitch	P1.25, P1.538, P1.86, P2, P2.5
Cabinet Size	500x500mm and 1000x500mm modular cabinet options

Technical Data

Module Size

320x160mm

Cabinet Series

640x480mm fine-pitch indoor cabinet series

Cabinet Material

Die-cast aluminum

Brightness

600-800 cd/m² typical

Refresh Rate

3840Hz

LED Package

SMD series package, confirmed by selected pitch

Control / Input Options

HDMI, DVI, SDI, WiFi, USB, plus project-specific control packages

Maintenance

Front-service design options available

Quote-confirmed specs: Final cabinet package, processor, receiving cards, mounting hardware, and electrical requirements are confirmed before ordering.

Included

Configured Quote Package

Video walls are built as project packages, not one-size-fits-all boxed products. Your quote may include:

LED display cabinets and modules
Video processor and control hardware
Main power and signal cabling
Inter-panel power and signal cables
Mounting or rigging hardware, if required

FAQ

Can SurgeFX help size the wall?
Yes. Send us the approximate width, height, viewing distance, and where it will be installed. We can help match the panel layout to the space.

Can these be purchased online?
No. These are quote-only systems because screen size, mounting, processing, freight, and install needs change from project to project.

Quote

Request a Quote

Use the video wall quote form to send us your pixel pitch, cabinet size, approximate screen dimensions, mounting style, and timeline.

Request a Quote
