Inverta Spark 600 Waterfall Cold Spark Machine

Designed For Overhead Spark Effects

• Concerts & Live Touring — Mount a line of Inverta Sparks across the front truss and fire a synchronized waterfall cascade during the chorus, drop, or finale. The falling sparks create a curtain effect between the performers and the audience — visible from every seat and dramatic on camera. DMX sequencing lets you build L-to-R sweeps, center-out bursts, and converging patterns that evolve through the song.
• Weddings & Receptions — A waterfall of sparks cascading down around the first dance, cake cutting, or grand entrance creates a once-in-a-lifetime visual that photographs and films beautifully from any angle. The downward cascade has an elegant, almost magical quality that fits formal settings better than aggressive upward fountains. Compact enough to hide on overhead structure without dominating the room's aesthetics.
• Theatrical Productions — Rain effects, magical transformations, forge scenes, falling stars, dimensional portals. The downward spark cascade is a natural fit for any theatrical moment that involves something descending, appearing, or transforming. The compact body hides easily behind overhead scenic elements, black masking, or lighting bars.
• Corporate Events & Product Launches — Reveal moments where sparks cascade down around a product, keynote speaker, or brand element as it's unveiled. The waterfall effect frames the reveal subject and draws every eye to center stage. Multiple units create a wall-of-sparks backdrop that reads as premium production value.
• Nightclubs & DJ Events — Overhead spark waterfalls above the dance floor or DJ booth create an immersive ceiling-to-floor effect. Pair with upward-firing cold spark machines on the floor for a dual-direction spark moment — sparks raining down while columns shoot up simultaneously.
• TV & Film Production — Controlled, repeatable waterfall spark effects for set pieces, reveals, and background ambiance. The compact size and DMX precision make the Inverta Spark 600 practical for studio environments where space is limited and repeatable cue timing is critical.

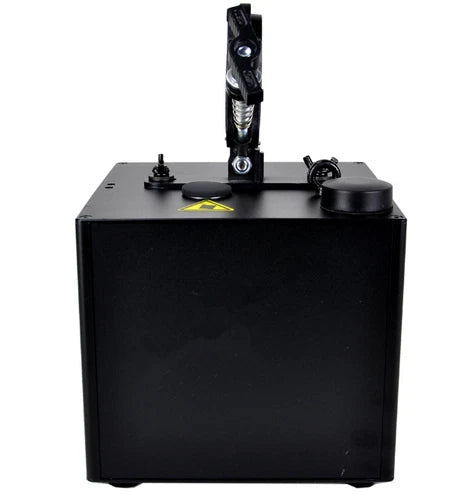

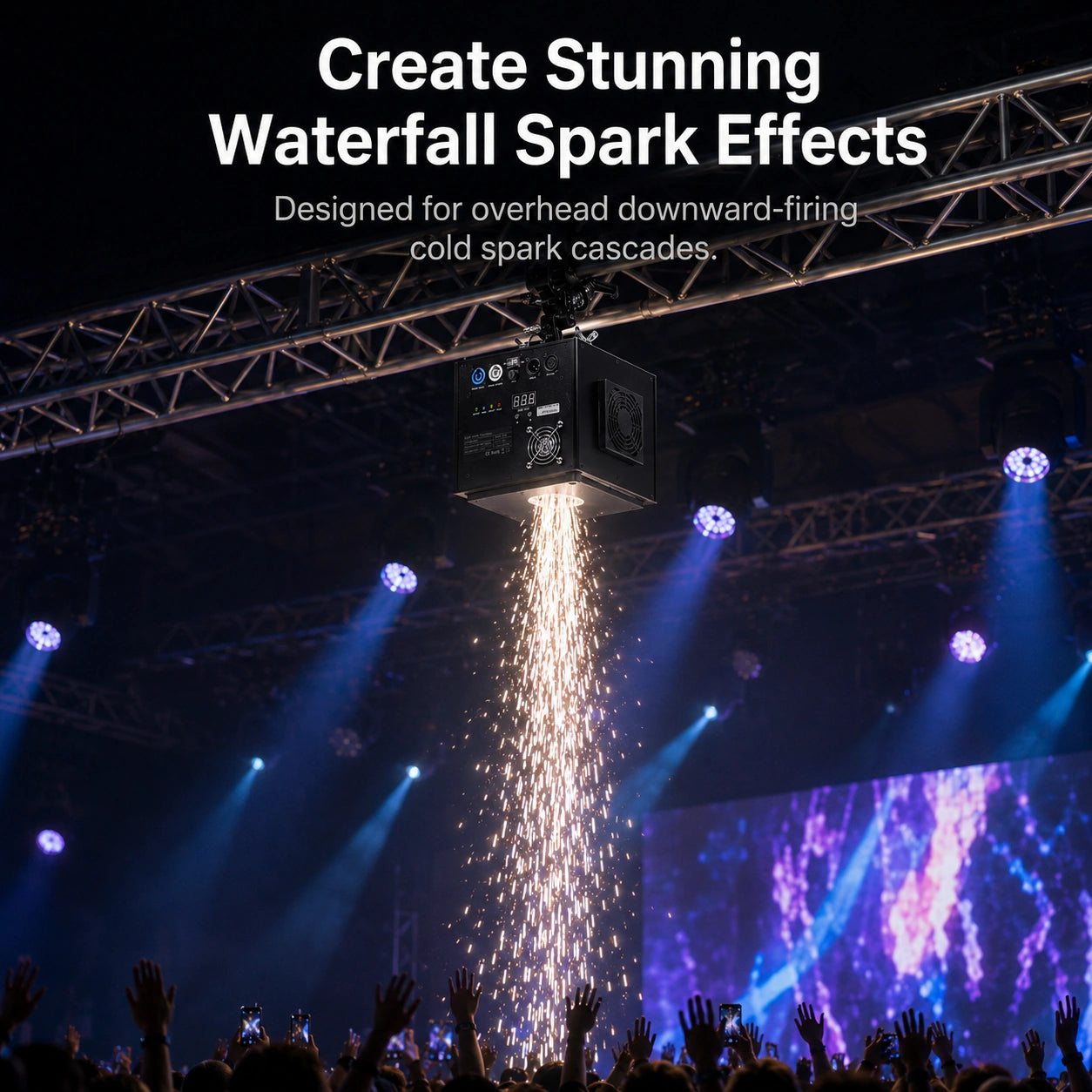

Inverted Hanging Design — Downward-Only Spark Direction

The Inverta Spark 600 is purpose-built to hang upside down and fire sparks downward only. This isn't a standard cold spark machine flipped over — it's engineered specifically for inverted operation with the powder hopper, heating element, and nozzle oriented for gravity-fed downward output. The spark cascade falls naturally, mimicking the visual of a silver waterfall or sparkling rain.

Adjustable Spark Fall Distance — 6.5 ft to 16.4 ft (2–5 m)

Control the cascade length from a subtle 6.5-foot shimmer to a dramatic 16.4-foot full-length waterfall. Adjustable via DMX or remote to match your rigging height and venue clearance. For installations where the machine is mounted high (20+ feet), maximum fall distance creates floor-to-overhead visual coverage. For lower rigging points, dial it back to keep sparks well above the audience.

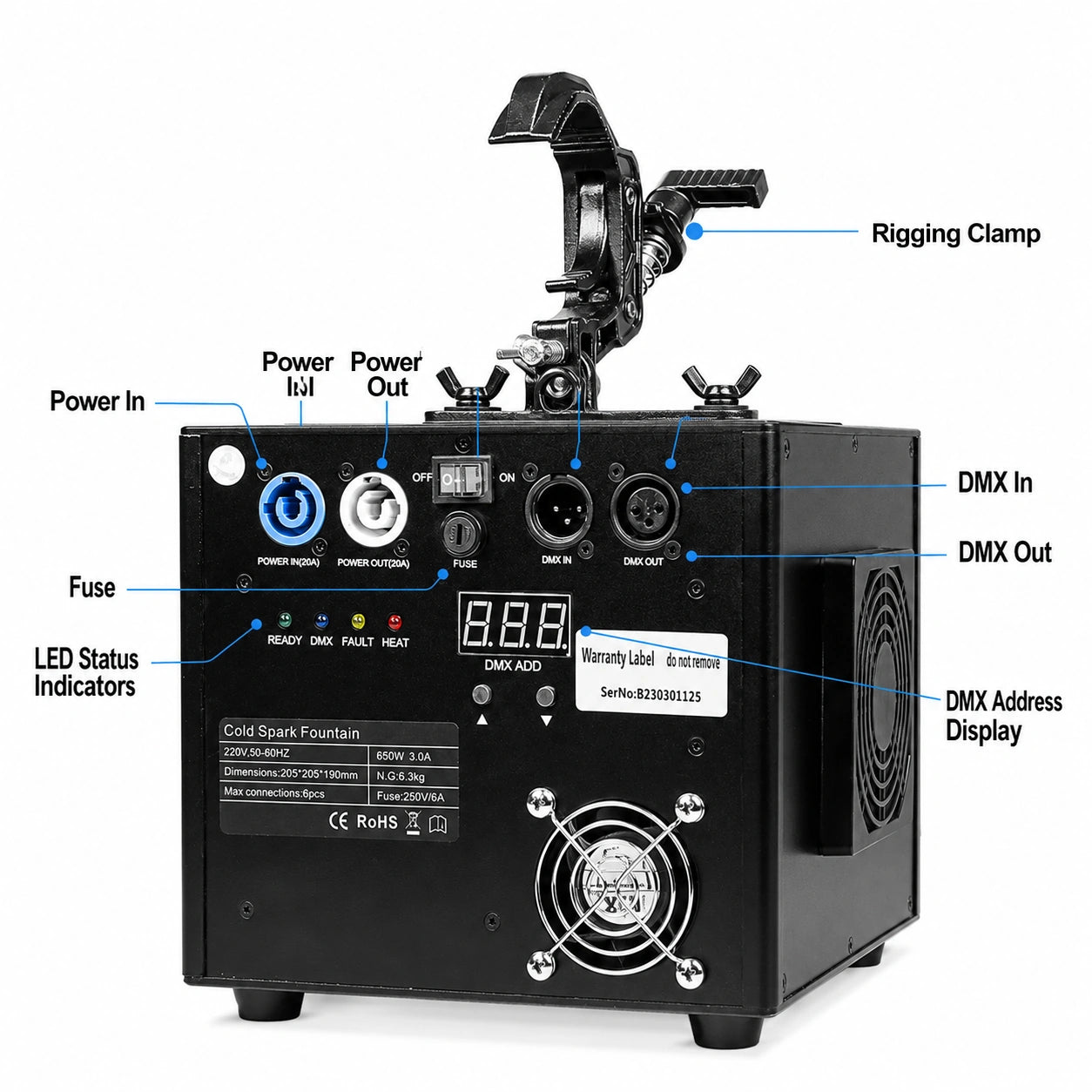

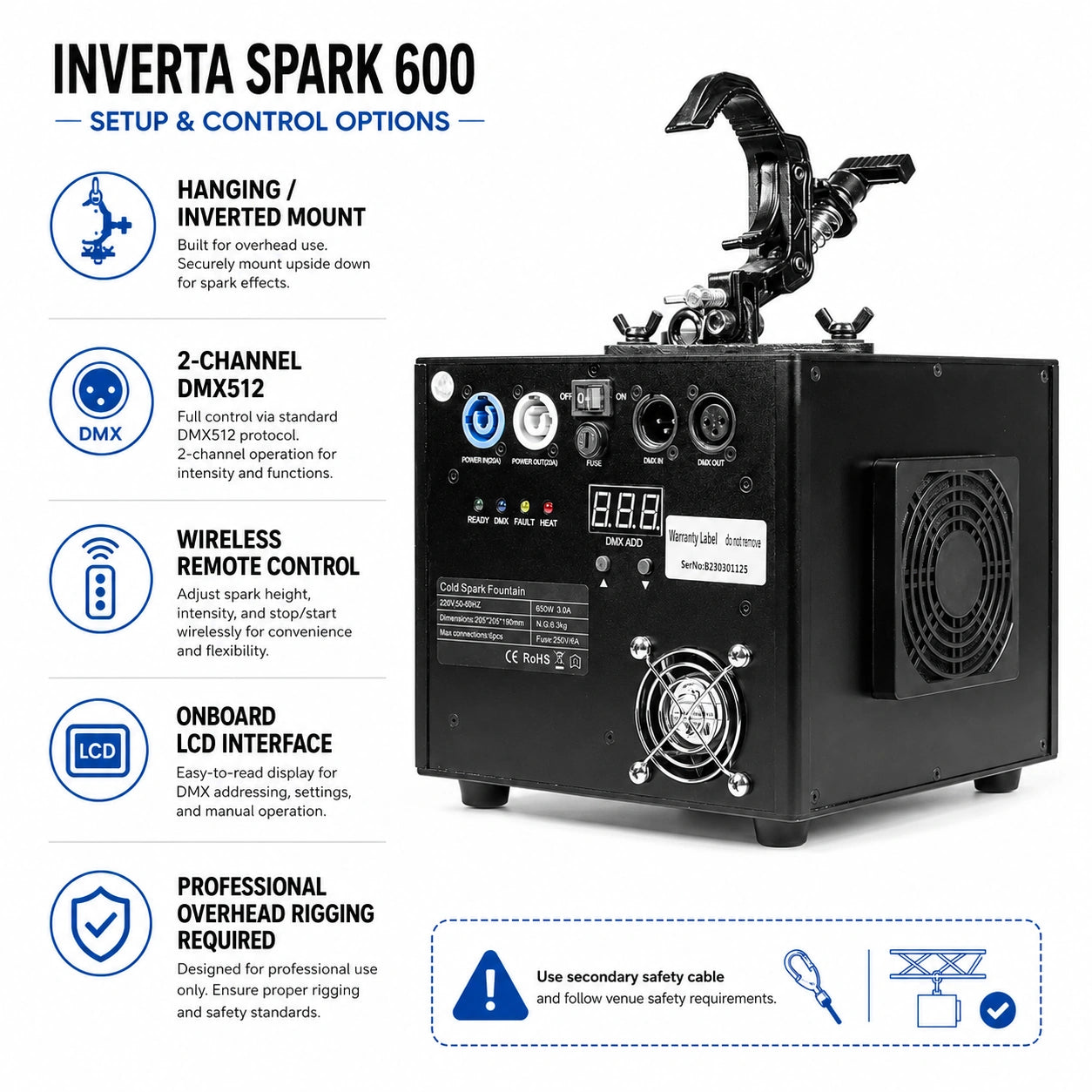

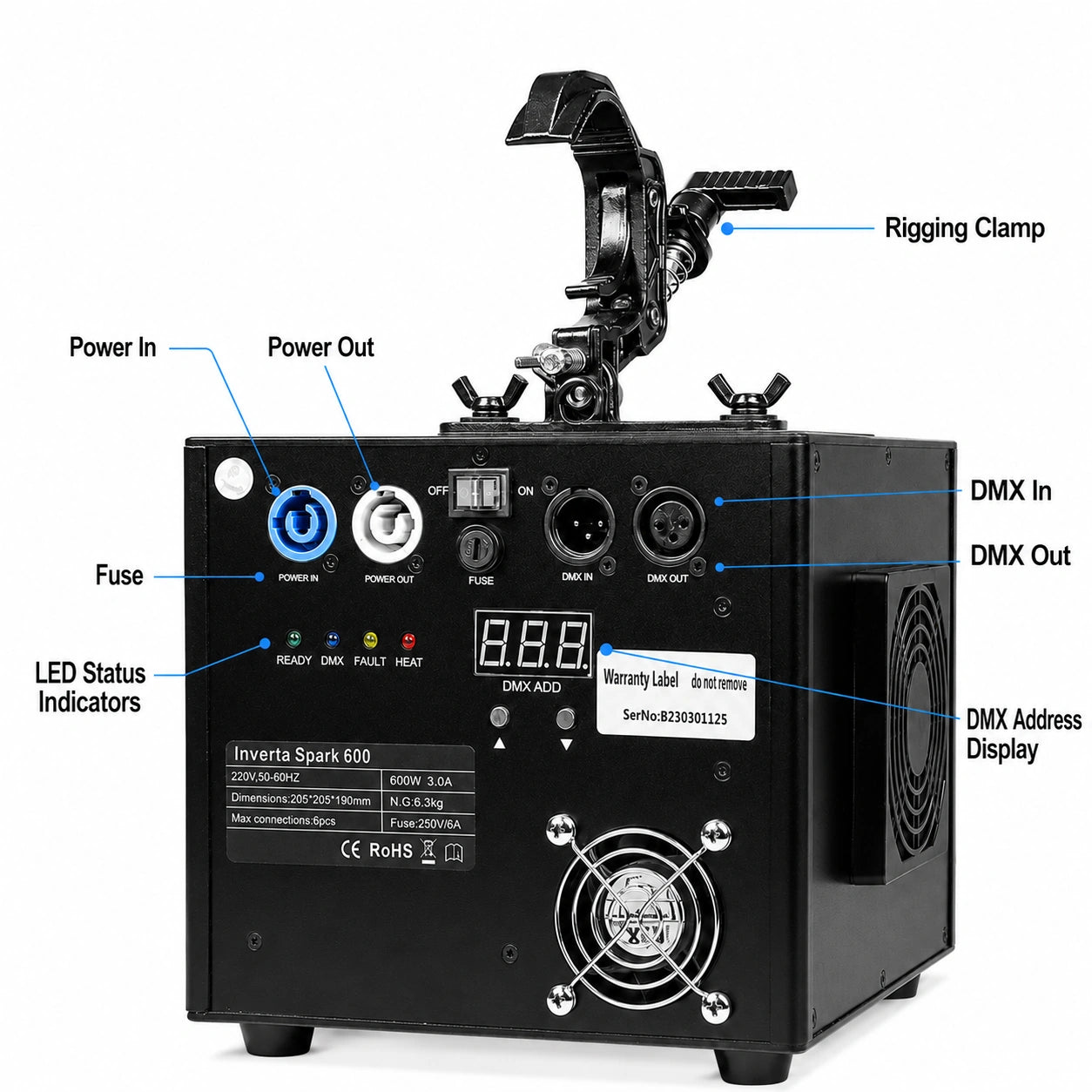

2-Channel DMX512 Control

Standard DMX512 protocol with 2-channel operation. Channel assignments allow independent control of spark output and timing. In multi-unit setups, sequential DMX addressing enables choreographed patterns: left-to-right sweeps, right-to-left sweeps, center-outward bursts, sides-to-middle convergence, or full-line simultaneous cascade. These sequenced patterns are what make multi-unit Inverta Spark installations visually spectacular — the movement across the spark curtain creates dynamic visual motion that a single unit can't achieve.

Wireless Remote Control

Built-in wireless receiver for remote triggering without DMX infrastructure. Ideal for single-unit installations, mobile setups, and events where running DMX cable to overhead rigging isn't practical. Start, stop, and adjust spark output from the ground without climbing to the unit.

Onboard LCD Interface

Direct control and configuration from the unit itself. Set DMX address, adjust parameters, and test-fire during setup — useful when the machine is still accessible during rigging before it's raised to final height. Once it's in the air, switch to DMX or remote for show control.

~3 Minute Preheat

The internal heating element reaches operating temperature in approximately 3 minutes after power-on. Plan your show timeline accordingly — power on during the preceding segment so the unit is ready to fire on cue. The LCD and/or DMX status indicators confirm when preheat is complete and the unit is ready.

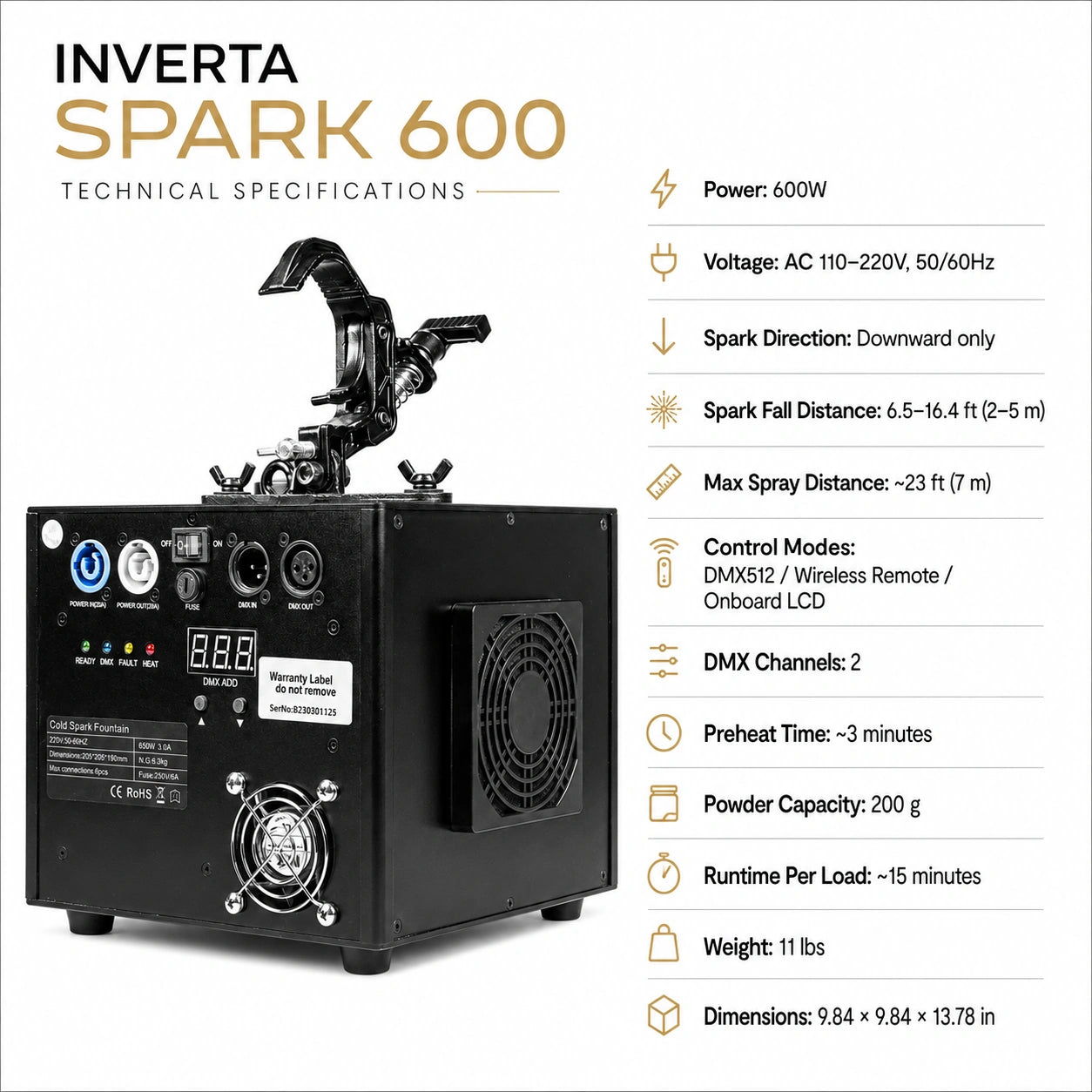

Compact, Lightweight Body — 11 lbs

At 9.84 × 9.84 × 13.78 in and only 11 lbs, the Inverta Spark 600 is one of the lightest cold spark machines available. Overhead rigging load calculations are straightforward — even a modest truss or pipe grid can support multiple units without significant additional load concerns. The compact body hides easily behind truss members, scenic elements, or masking — keeping the magic invisible until the sparks appear.

200 g Powder Capacity — ~15 Min Runtime

Each load of 200 g of cold spark powder delivers approximately 15 minutes of spark effect. For events with multiple cue points spread across a long show, plan powder consumption by total output time, not show duration. The machine is refillable — when powder runs low, power off, let it cool, reload, and it's ready for another cycle.

In The Box

• Inverta Spark 600 Cold Spark Machine — Hanging-mount waterfall unit, ready to rig
• Power Cord
• DMX Cable — For console connection or daisy-chaining multiple units
• Instruction Manual — Setup, rigging, DMX addressing, operation, and safety procedures
• 1-Year Limited Warranty — Parts and labor against manufacturing defects

Complete Your Spark Production

Cold Spark Powder — Indoor Formula →
The consumable that powers the Inverta Spark. Each 7 oz (200 g) bag delivers approximately 15 minutes of effect. Indoor formula for enclosed venues. Stock 1–2 bags per machine for typical events with multiple cue points — most shows don't run sparks continuously, so a single load covers several burst sequences.

SurgeFX Cold Spark Machines (Floor-Standing) →
The most dramatic cold spark combination: floor-standing machines firing upward while overhead Inverta Sparks cascade downward simultaneously. Sparks rising from below and falling from above creates a full-height, dual-direction spark moment that fills the entire vertical space. One of the highest-impact multi-effect combinations available.

Fog FX →
Falling sparks through a fog-filled stage create visible descending light trails as the sparks illuminate the suspended fog particles on their way down. The fog catches and scatters the spark light, extending the visual reach of the cascade effect. Especially effective when the fog layer sits at mid-height — the sparks appear above the fog, pierce through it, and continue below.

Haze FX →
Haze makes the falling spark trails visible from greater distances across the venue. Without haze, sparks are points of light. With haze, each spark draws a visible descending streak through the suspended particles — the cascade effect becomes a curtain of light trails instead of individual points.

CO₂ FX →
Overhead spark waterfalls combined with ground-level CO₂ cryo jets create a top-to-bottom effects sandwich — sparks falling from the ceiling while cryo fog erupts from the floor. Two effects, two directions, full venue coverage.

Stage Lighting →
Beam fixtures and moving heads cutting upward through a descending spark waterfall create intersecting vertical light planes. The sparks catch and scatter the beam light, making both effects more visible. Program beam movements to sweep through the cascade zone for maximum interaction.

Frequently Asked Questions

How is this different from a regular cold spark machine?
Standard cold spark machines sit on the floor and fire sparks upward. The Inverta Spark 600 hangs overhead and fires sparks downward — creating a waterfall or cascading curtain of sparks instead of a fountain column. The visual effect is fundamentally different: falling sparks feel like rain, magic, or transformation, while rising sparks read as celebration and energy. The Inverta Spark is engineered specifically for inverted operation — it's not a standard machine flipped over.

Can I use it right-side-up on a surface?
No. The Inverta Spark 600 is designed exclusively for inverted (hanging) operation. The powder feed, heating element, and nozzle are oriented for downward output. Operating it upright will cause powder feed problems and unreliable results. If you need upward-firing sparks, use a standard cold spark machine from the SurgeFX lineup.

What do I mount it on?
Any overhead structure rated for the weight: truss, pipe grid, rigging points, overhead beams, or purpose-built mounting structures. The machine weighs 11 lbs — well within the capacity of standard event truss and rigging hardware. Always use appropriately rated clamps and a secondary safety cable/bond in addition to the primary mount. Mounting hardware is not included — use clamps and safety cables appropriate to your specific structure.

How far do the sparks fall?
Adjustable from 6.5 ft (2 m) to 16.4 ft (5 m) via DMX or remote. Maximum spray distance can reach approximately 23 ft (7 m) under optimal conditions. Adjust fall distance based on your rigging height and required clearance from the audience below. For a machine rigged at 20 ft, a 10 ft cascade creates a dramatic visual without sparks reaching the floor.

What clearances are required for falling spark effects?
Cold sparks are lower-temperature after leaving the machine — the same operating characteristics as standard upward-firing cold spark machines apply. The sparks cool rapidly after leaving the nozzle and are not flammable by the time they've traveled any significant distance. However, maintain required clearance distances, especially at maximum output settings. Keep a minimum of 16.4 ft (5 m) ceiling height for indoor use, and don't position the machine directly above performers' faces at close range.

Can I sequence multiple units?
Yes — this is where the Inverta Spark shines. With 2-channel DMX and sequential addressing, you can program multi-unit patterns: left-to-right sweeps, right-to-left sweeps, center-outward bursts, sides-to-middle convergence, or full-line simultaneous cascades. Line 4–8 units across a truss and the sequenced patterns create a moving wall of falling sparks that's one of the most visually striking cold spark effects available.

How long does the powder last?
Each 200 g load provides approximately 15 minutes of spark effect. Most events fire sparks in timed bursts, not continuously. For an event with 5–8 cascade cues at 30–60 seconds each, a single load covers the entire show with margin. For extended productions, reload during breaks — power off, let cool, refill, power back on (~3 min preheat).

Can I reload it during the show?
Only if you can properly access the machine. Since it's mounted overhead, mid-show reloading typically requires the machine to be at an accessible rigging height or on a motorized line set that can be lowered. For most events, pre-load the machine with a full 200 g charge before the show and plan your cue density within the 15-minute runtime. If the show demands more, rig additional units rather than planning mid-show reloads.

Does it work outdoors?
Yes, with appropriate rigging and environmental considerations. Wind will affect the cascade pattern — falling sparks drift with air movement, which can scatter the waterfall effect. In light wind, this can actually look interesting (a drifting cascade). In strong wind, the visual coherence breaks down. Plan outdoor installations with wind protection or accept that the cascade pattern will be less precise than indoors.

How loud is it?
Cold spark machines produce a moderate hissing sound during operation — audible at close range but typically masked by event music and ambient sound. The Inverta Spark's overhead position places it farther from the audience than floor-standing machines, so the operational sound is less noticeable.

Get the Most From Your Inverta Spark

Combine Overhead + Floor for Dual-Direction Spark Moments
The single most impactful cold spark setup: Inverta Sparks cascading down from overhead while standard cold spark machines fire columns upward from the floor. Sparks falling and rising simultaneously fills the entire vertical space and creates a visual that audiences rarely see. Time the triggers together from your DMX console for a synchronized moment, or stagger them — floor first, then overhead a beat later — for a visual build.

Use DMX Sequencing Across Multiple Units
A single Inverta Spark creates a waterfall. Four or more in a line with sequential DMX triggering creates a moving wall of falling sparks. Program L-to-R sweeps to match a visual transition, center-outward bursts for a reveal moment, or sides-to-middle convergence to draw attention to center stage. The sequenced patterns are what elevate this from "a spark machine" to "a production effect."

Set DMX Addresses During Rigging, Not After
Once the Inverta Spark is in the air, accessing the onboard LCD is impractical. Set your DMX address and test-fire from the LCD before raising the unit to final height. Confirm the address, verify operation, then raise and secure. From that point forward, all control happens via DMX or remote from the ground.

Pre-Load Powder Before Rigging
Same logic as DMX addressing — once the machine is overhead, loading powder is difficult. Fill the hopper with a full 200 g charge while the unit is still at accessible height. If your rigging system allows lowering (motorized line sets, chain motors), you have the option to reload between acts.

Account for Drift at Long Fall Distances
At maximum 16.4 ft fall distance, sparks have more time to drift laterally — even in still indoor air, convection currents from stage lighting and HVAC can push the cascade off-center. At shorter fall distances (6–8 ft), the cascade stays tighter and more defined. Match fall distance to your desired visual: long cascades for dramatic scale, shorter cascades for precision.

Power On Early for Preheat
The ~3 minute preheat means you need power on the unit well before the cue. If sparks are part of a specific show moment, power on during the preceding segment. Don't wait until the cue is approaching to start preheat — 3 minutes of dead time while the audience waits kills the moment.

Always Use a Safety Cable
This applies to everything that goes overhead, not just spark machines. Primary clamp plus secondary safety cable, rated for the load, independently anchored. If the primary mount fails, the safety cable catches the unit before it falls. No exceptions. No shortcuts.

Clean Before Storage
After the event, remove remaining powder from the hopper and store it in a sealed container. Wipe down the nozzle and feed mechanism to clear residual dust. Leftover powder absorbs moisture between events, causing clumping and feed issues at the next show. Store the machine in its case in a dry location.
