6×100W WARM WHITE COB + 144 RGB LEDs. NEARLY 6 FEET TALL. CRI 95. DMX PIXEL CONTROL.
The RetroLux 6 is a vintage-inspired LED stage lamp that doubles as a professional lighting fixture and a visual design element. Six 100-watt warm white COB lamps produce a rich, golden glow reminiscent of classic stage lighting — the kind of warm, flattering light that makes everything it touches look better. 144 RGB SMD LEDs surrounding each lamp head add full-color pixel effects: chases, strobes, color washes, and programmable patterns. Standing nearly 6 feet tall with a CRI of 95, the RetroLux 6 is designed to be seen — a statement piece that transforms stages, backdrops, head tables, and event spaces into something unforgettable. DMX-512 with up to 114-channel pixel control gives lighting designers full creative authority over every COB segment and every RGB zone independently.
What the RetroLux 6 Does

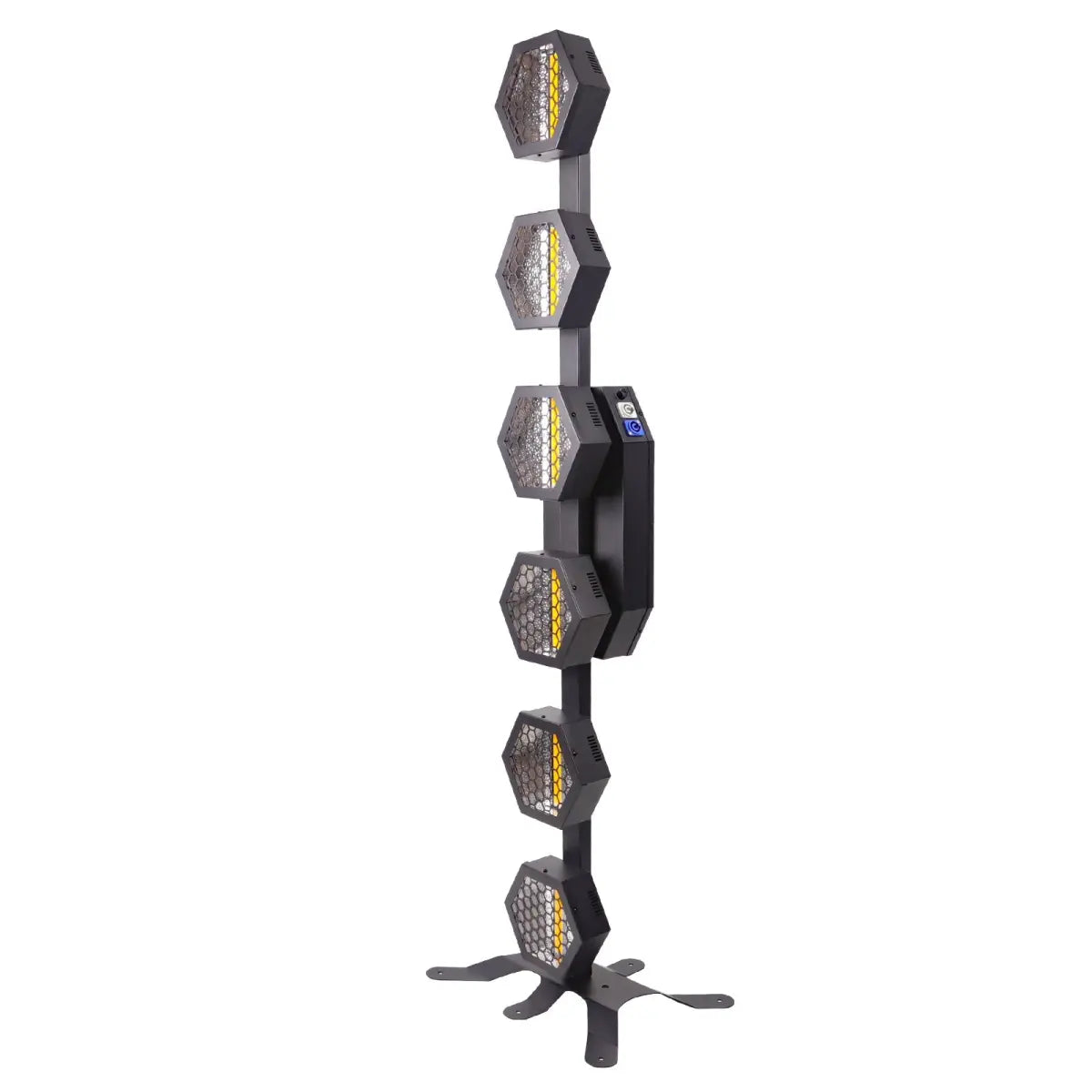

The RetroLux 6 is a vertical LED retro lamp — a tall, freestanding (or wall-mounted) lighting fixture with six oversized warm white COB lamp heads arranged in a column, each surrounded by a ring of RGB LEDs. It's part stage light, part décor piece, and entirely a showstopper. At nearly 6 feet tall (68.9"), a pair of RetroLux 6 units frames a stage, a DJ booth, a ceremony arch, or a head table with the kind of warm, golden presence that transforms any space.
Unlike utility fixtures designed to be hidden (uplights, wash lights, pars), the RetroLux 6 is designed to be visible. The vintage-style exposed lamp heads create that coveted classic stage aesthetic — the look of old Hollywood, jazz clubs, concert halls, and speakeasy bars — while the RGB LED system adds a modern layer of programmable color, pixel effects, and dynamic chasing patterns that vintage fixtures could never achieve.
The Dual Light System
Every RetroLux 6 contains two independent lighting systems working together:
| System | Source | What It Does |
|---|---|---|
| Warm White COB | 6×100W COB LEDs | Produces the signature warm golden glow. Each COB segment is individually dimmable via DMX — run all six at full for a wall of warm light, or dim individual segments for dramatic patterns. 3200K–5600K color temperature range covers warm candlelight through clean daylight. |
| RGB Pixel Strip | 144×0.3W SMD RGB 3-in-1 LEDs | Full-color LED rings around each lamp head. Produces saturated reds, greens, blues, and every mix in between. Individually controllable in zones for chasing effects, color washes, strobe patterns, and pixel-mapped sequences. Runs independently of the warm COB system. |
These two systems operate independently. Run the warm COBs alone for a vintage golden look. Run the RGB strips alone for vibrant color effects. Run both simultaneously for layered warmth-plus-color combinations that no single-system fixture can produce. A wedding ceremony with soft amber COB glow transitions to a reception with RGB color chases without touching the fixtures — just update the DMX cues.
Designed to Be Seen: Most professional lighting is meant to be invisible — hidden uplights, concealed pars, overhead wash fixtures out of the audience's sightline. The RetroLux 6 breaks that rule. It IS the visual. The warm, glowing lamp heads behind a band, flanking a DJ booth, or lining a ceremony aisle are as much a part of the design as the flowers and the furniture. This is a fixture that clients notice, photograph, and ask about.
Who It's For
- Wedding & Event Designers — Retro lamps behind head tables, flanking ceremony arches, lining aisles, and framing cake tables. The warm golden glow photographs beautifully (CRI 95) and the RGB adds color accents for reception transitions.
- Bands & Live Performers — Backline lighting that makes a stage look like a real production. Line 4–8 RetroLux units across the back of a stage for that classic concert backdrop look. Individual COB dimming and RGB chasing sync with the music.
- DJs & Nightclub Operators — Frame the DJ booth, line the back bar, create VIP section ambiance. Sound-active mode responds to the beat. The vintage aesthetic contrasts modern EDM production in a way that feels intentional.
- Corporate Event Producers — Brand-color RGB lighting with warm COB accent for awards galas, product launches, and keynote stages. CRI 95 means presenters look natural on camera.
- Venue Owners & Rental Companies — A premium fixture that elevates rental inventory. Clients will request these by name once they've seen them at a competitor's event.
Warm White COB — The Heart of the Retro Look
The six 100-watt COB (Chip-on-Board) LEDs are the defining feature. COB technology packs multiple LED chips into a single high-density emitter, producing a smooth, uniform light output with no visible individual LED dots — just a clean, bright, warm glow that resembles a traditional incandescent or tungsten stage lamp.
The color temperature range of 3200K to 5600K spans from warm tungsten (that golden, flattering warmth you see in vintage stage photography) to clean neutral daylight (crisp and natural for corporate and video applications). For most retro lamp applications, you'll run the COBs in the warm 3200K range — that's where the vintage magic lives.
Each of the six COB segments is individually controllable via DMX. This means you can:
- Run all six at full intensity for maximum warm wash output
- Dim individual segments to create vertical patterns (top-heavy, bottom-heavy, alternating)
- Chase warm light up and down the fixture in sequence
- Strobe individual segments for dramatic pulsing effects
- Set different intensity levels per segment for custom static looks
RGB Pixel LEDs — Color Without Limits
The 144 SMD RGB 3-in-1 LEDs are arranged in rings around each of the six lamp heads. Each LED contains red, green, and blue emitters, allowing full-spectrum color mixing at every position. The RGB system is controllable in zones — each lamp head's surrounding LEDs operate as an independent pixel group.
This gives you:
- Full RGB color mixing — Any color from deep saturated reds and blues to soft pastels and whites
- Zone-based pixel control — Each of the six RGB zones responds independently, enabling chasing effects, alternating colors, rainbow sequences, and pixel-mapped patterns
- Strobe effects — 0–20Hz across the full RGB spectrum, from subtle slow-pulse to rapid-fire strobe
- Independent operation — The RGB system runs completely separately from the warm COBs, allowing layered looks (warm glow + colored accents) or standalone color effects (RGB only, COBs off)
CRI 95 — Camera-Ready Color Rendering
The Color Rendering Index of 95 (out of 100) means the RetroLux 6 renders colors with exceptional accuracy. Skin tones look natural. Fabric colors appear true. Floral arrangements show their full palette. For wedding photographers, videographers, and live-stream operators, CRI 95 means the beautiful warm light you see in person translates faithfully to camera. Budget fixtures with CRI in the 70–80 range wash out colors and make skin look flat or unnatural — the RetroLux 6 doesn't.
Luminous Efficiency — 90 lm/W: At 90 lumens per watt, the RetroLux 6 converts power to light efficiently. For comparison, traditional tungsten stage lamps produce around 15–20 lm/W. You're getting the vintage warm look with 4–5× the efficiency — more light, less heat, lower power draw, and a 100,000-hour LED lifespan instead of replacing tungsten bulbs every few hundred hours.
Dimming & Strobe
0–100% linear dimming on both the COB and RGB systems provides smooth, flicker-free intensity control across the entire range. The dimming curve is linear, meaning 50% DMX value = 50% perceived brightness — predictable and easy to program. Strobe runs from 0 to 20 flashes per second on both systems independently. Slow pulse at 1–3Hz creates a breathing, organic effect. Full 20Hz strobe delivers high-energy concert and club dynamics.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | SurgeFX RetroLux 6 (SF-RL6) |
| SKU | SFX-RET-001 |
| Type | LED retro lamp / background effect light |
| Primary Light Source | 6×100W warm white COB LEDs |
| Secondary Light Source | 144×0.3W SMD RGB 3-in-1 LEDs |
| Color Temperature | 3200K–5600K (warm to daylight) |
| CRI | 95 |
| Luminous Efficiency | 90 lm/W |
| Dimmer | 0–100% linear |
| Strobe | 0–20 Hz |
| DMX Channels | 6 / 9 / 24 / 114 CH (selectable) |
| Control Modes | DMX-512, Master/Slave, Sound-Active, Auto-Run |
| DMX Connector | 3-Pin XLR In/Out |
| LED Lifespan | 100,000 hours |
| Input Voltage | AC100–240V, 50/60Hz |
| IP Rating | IP20 (indoor use) |
| Working Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dimensions | ~9.4" × 8.3" × 68.9" (240×210×1750mm) |
| Weight | 36.38 lbs |
| Mounting | Freestanding or wall-mount |
| Body Material | Aluminum + ABS plastic |
What IP20 Means
IP20 provides protection against solid objects larger than 12.5mm (fingers). This is an indoor fixture — designed for stages, ballrooms, reception halls, clubs, studios, churches, and covered event spaces. It is not rated for rain, moisture, or outdoor weather exposure. For outdoor events, the RetroLux 6 must be placed under hard cover (tent, awning, roofed stage) and kept away from water, sprinklers, and condensation.
AC Power Required: The RetroLux 6 is AC-powered only — no internal battery. Each fixture requires a power outlet within cable reach. For stage and event deployment, plan your power distribution in advance. At approximately 600W draw, each unit should be on a dedicated 15A circuit or shared carefully with other fixtures. Standard daisy-chain power connections are supported for cleaner cable runs.
What's in the Box
- RetroLux 6 LED Retro Lamp (1×)
- Power Cable (1×)
- DMX Cable (1×)
- User Manual (1×)
Applications
- Wedding & Event Backdrops — Behind the head table, flanking the ceremony, lining the aisle, framing the cake table. Warm COB glow for ceremony transitions to RGB color for reception.
- Concert & Band Stages — Backline retro lamps are a staple of professional stage design. Line 4–8 units across the rear of a stage for that classic concert look with modern pixel control.
- DJ Booths & Nightclubs — Frame the booth, line the back bar, create VIP ambiance. Sound-active mode syncs RGB effects to the music.
- Corporate Events & Galas — Keynote stage backdrops with brand-color RGB and warm COB presenter lighting. CRI 95 for camera-ready appearances.
- Film, Photo & Video Studios — Practical lighting that appears in-frame as a design element while providing high-CRI illumination.
- Houses of Worship — Warm, inviting stage lighting for services and holiday productions with color capability for special events.
- Restaurants, Bars & Lounges — Permanent or semi-permanent installation for upscale ambiance. The retro aesthetic complements industrial, Art Deco, and speakeasy-inspired interiors.
Four Control Modes
| Mode | How It Works | Best For |
|---|---|---|
| DMX-512 | Full control via DMX lighting console. 3-pin XLR daisy-chain. Supports 6, 9, 24, or 114-channel modes for basic through advanced pixel control. | Professional stage productions, concerts, corporate events, touring rigs — anywhere a lighting designer is running a console. |
| Master/Slave | One RetroLux 6 set as master, others as slaves. Slaves mirror the master's output. No console needed. | Synchronized multi-unit setups without DMX infrastructure. Line 4–6 units across a stage, program one, all match. |
| Sound-Active | Built-in microphone triggers effects and color changes in response to music and ambient sound. | DJ events, parties, club installations, live music — dynamic lighting that reacts to the energy in the room. |
| Auto-Run | Built-in programs cycle through color effects, fades, chases, and strobe patterns automatically. | Installations, ambient décor, permanent fixtures, any scenario where set-and-forget operation is preferred. |
DMX Channel Modes
The RetroLux 6 offers four DMX channel configurations, from simple to full pixel control:
| Mode | Channels | What You Control |
|---|---|---|
| Basic | 6 CH | Master dimming, strobe, RGB color (3 channels), warm white master. Quick setup for simple warm glow + single RGB color across the entire fixture. |
| Standard | 9 CH | Adds individual COB dimming control and expanded RGB control. More nuance for static looks and basic chases without full pixel commitment. |
| Extended | 24 CH | Per-zone control of COB segments and RGB groups. Program different colors and intensities for each of the six lamp positions. Enables vertical chases, alternating patterns, and zone-based effects. |
| Full Pixel | 114 CH | Complete individual control of every COB segment and every RGB zone. Full pixel-mapping capability for advanced lighting designers using visualization software and media servers. Maximum creative freedom. |
Start Simple, Scale Up: If you're new to retro lamps or want fast deployment, start with 6-channel mode. Set the warm COBs to a golden glow and pick an RGB accent color — done. As you grow comfortable, move to 24-channel mode for zone-based effects. The 114-channel pixel mode is there when you're ready for full creative control, but it's not required to get beautiful results from day one.
DMX Addressing & Daisy-Chaining
The RetroLux 6 uses standard 3-pin XLR DMX connectors (In/Out) for daisy-chain connections. In 6-channel mode, a single 512-channel DMX universe supports 85 fixtures. In 24-channel mode: 21 fixtures per universe. In 114-channel mode: 4 fixtures per universe. For most deployments (4–8 retro lamps across a stage), even full pixel mode fits comfortably in a single universe.
Built-In Programs
The auto-run mode includes built-in programs for color changes, fades, chasing effects, dimming sequences, and strobe patterns — all running without any external controller. Cycle through programs and adjust speed using the on-board LED digital display and controls. For installations, ambient décor, or events where a lighting operator isn't present, auto-run provides professional-looking effects out of the box.
Can I use the RetroLux 6 outdoors?
The RetroLux 6 is rated IP20 — indoor use only. It is not sealed against rain, dust, or moisture. For outdoor events, it must be placed under hard cover — a tent with solid roofing, a covered stage, a roofed patio. Do not expose it to rain, sprinklers, fog machine output aimed directly at the fixture, or condensation from extreme temperature changes.
How tall is the fixture?
Approximately 68.9 inches (5 feet 9 inches / 175cm). This is a commanding vertical fixture — taller than most people. When placed on the floor behind a stage, it rises well above seated performers and fills the backdrop with warm light and color. Factor in the height when planning ceiling clearance and sightlines.
How much power does it draw?
Approximately 600W at full output (all COBs and all RGB at maximum). On a standard 120V/15A circuit (1,800W capacity), you can safely run 2–3 RetroLux 6 units per circuit at full power. In practice, most lighting looks don't require every emitter at 100% simultaneously — moderate intensity usage allows more fixtures per circuit.
Can I mount it on a wall?
Yes. The RetroLux 6 supports both freestanding floor placement and wall mounting. Wall mounting creates a vertical column of warm light and color along a wall surface — effective for long hallways, venue lobbies, stage side walls, and architectural accent lighting. Ensure the mounting hardware supports the fixture's weight (36+ lbs) and provides proper ventilation behind the unit.
Do I need a DMX controller?
No. The RetroLux 6 works in four standalone modes (auto-run, sound-active, master/slave) without any external controller. However, DMX control unlocks the fixture's full potential — per-zone dimming, precise color selection, pixel effects, and cue-based programming. For simple warm glow deployment, standalone modes are sufficient. For dynamic shows and professional productions, a DMX console is recommended.
Can I run just the warm white COBs without the RGB?
Absolutely. The COB and RGB systems are completely independent. Set all RGB channels to zero and the RetroLux 6 becomes a pure warm white retro lamp — six golden glowing lamp heads with no color distraction. This is the most popular look for wedding ceremonies, upscale galas, and any setting where the vintage aesthetic is the goal. Add RGB later for the reception or after-party without changing the fixture setup.
How many do I need?
It depends on the application:
- Band/stage backdrop: 4–8 units evenly spaced across the rear of the stage
- DJ booth flanking: 2 units (one per side)
- Wedding ceremony: 2–4 units flanking the altar/arch or lining the aisle
- Head table backdrop: 2–4 units depending on table width
- Full venue décor: 6–12+ units distributed at focal points around the room
Setup Tips
- Plan power first — At ~600W each, you need dedicated circuits. Map your power distribution before placing fixtures. Carry heavy-gauge extension cables rated for the draw.
- Start with warm COBs only — Set the golden glow first. Get the warm base look dialed in, then layer RGB on top. It's easier to add color than to fix a look that's over-saturated from the start.
- Use master/slave for matching — When deploying multiple RetroLux units for a uniform look (e.g., backline behind a band), master/slave mode ensures every fixture matches without programming each one individually.
- The 70% rule — COBs at 70–80% intensity often look better than 100%. Full blast can overwhelm the vintage softness. Dimming slightly creates a warmer, more flattering quality — and extends LED life.
- Pair with haze — The warm COB beams become dramatically visible when haze is present. Even a light atmospheric haze reveals the light shafts between the lamp heads and adds three-dimensional depth to the retro look.
- Two-person carry — At 36+ lbs and nearly 6 feet tall, have a second person when positioning and mounting.
Pairs Well With
- SurgeFX Stage Lighting — RetroLux for the warm backdrop layer. Moving heads (BM100, BM60, SP90) for beams and spots over the top. Classic concert lighting combination.
- Haze FX — Light atmospheric haze makes the warm COB beams visible and three-dimensional. The single most impactful pairing for retro lamp setups.
- Cold Spark FX — Warm retro glow behind cold spark fountains creates a dramatic contrast of golden light and white sparks.
- Fog FX — Low fog with retro lamps behind the stage creates a glowing golden floor cloud effect.
💡 Overview & Design
The RetroLux 6 is a vertical LED retro lamp — nearly 6 feet tall (68.9") — with six oversized 100W warm white COB lamp heads arranged in a column, each surrounded by a ring of 144 RGB LEDs. Unlike utility fixtures designed to be hidden, the RetroLux 6 is designed to be seen. It's part stage light, part décor — a statement piece that transforms stages, backdrops, head tables, and event spaces.
Dual Light System
| System | What It Does |
|---|---|
| 6×100W Warm COB | Signature golden glow. Each segment individually dimmable. 3200K–5600K range. The retro look. |
| 144 RGB LEDs | Full-color pixel rings around each lamp head. Chases, strobes, washes, and patterns. Independent of COB system. |
Run warm COBs alone for vintage gold. RGB alone for vibrant color. Both together for layered warmth-plus-color. CRI 95 means everything looks beautiful on camera.
Designed to Be Seen: Retro lamps aren't hidden — they ARE the visual. Warm glowing lamp heads behind a band, flanking a DJ booth, or lining a ceremony aisle become part of the event design itself. Clients notice, photograph, and ask about them.
Who It's For
- Wedding & Event Designers — Head tables, ceremony arches, aisle lighting. CRI 95 for photography.
- Bands & Live Performers — Classic concert backline look. 4–8 units across a stage.
- DJs & Clubs — Frame the booth, line the bar. Sound-active mode.
- Corporate Events — Brand-color RGB + warm COB for galas and keynotes.
- Venues & Rentals — Premium inventory piece clients request by name.
🎨 Light & Color
Warm White COB
Six 100W COB LEDs produce smooth, uniform warm light — no visible LED dots, just a clean golden glow. 3200K–5600K color temp range covers warm tungsten through neutral daylight. Each COB is individually controllable via DMX for dimming, chasing, and patterns.
RGB Pixel LEDs
144 SMD RGB 3-in-1 LEDs in rings around each lamp head. Full-spectrum color mixing. Zone-based pixel control enables chasing effects, alternating colors, and pixel-mapped sequences. Runs independently of the COB system.
CRI 95
Renders colors with exceptional accuracy. Skin tones look natural. Fabric colors appear true. Wedding photographers and videographers get faithful color translation from what they see in person to what the camera captures.
90 lm/W Efficiency: 4–5× more efficient than traditional tungsten stage lamps. Same vintage warm look, fraction of the heat, 100,000-hour lifespan.
Dimming & Strobe
0–100% linear dimming — smooth, flicker-free. 0–20Hz strobe on both COB and RGB independently. Slow 1–3Hz pulse for organic breathing effects. Full 20Hz for concert/club energy.
📐 Full Specs
| Spec | Detail |
|---|---|
| Model | RetroLux 6 (SF-RL6) |
| Type | LED retro lamp / background effect light |
| COB LEDs | 6×100W warm white |
| RGB LEDs | 144×0.3W SMD RGB 3-in-1 |
| Color Temp | 3200K–5600K |
| CRI | 95 |
| Efficiency | 90 lm/W |
| Dimmer | 0–100% linear |
| Strobe | 0–20 Hz |
| DMX Channels | 6 / 9 / 24 / 114 CH |
| Control | DMX-512, Master/Slave, Sound, Auto |
| DMX Connector | 3-Pin XLR In/Out |
| LED Lifespan | 100,000 hours |
| Voltage | AC100–240V, 50/60Hz |
| IP Rating | IP20 (indoor) |
| Working Temp | -20°C to 50°C |
| Dimensions | ~9.4" × 8.3" × 68.9" |
| Weight | 36.38 lbs |
| Mounting | Freestanding / Wall-mount |
IP20 = Indoor fixture. Not rated for rain or outdoor weather. For outdoor events, place under hard cover only.
AC Power Required: No internal battery. Each fixture needs a power outlet. At ~600W draw, plan 2–3 units per 15A circuit. Daisy-chain power connections supported.
In the Box
- RetroLux 6 LED Retro Lamp (1×)
- Power Cable (1×)
- DMX Cable (1×)
- User Manual (1×)
🎛️ DMX & Control
Control Modes
| Mode | Best For |
|---|---|
| DMX-512 | Full console control. 6/9/24/114CH. Professional productions. |
| Master/Slave | Multi-unit sync without a console. Set one, all match. |
| Sound-Active | Built-in mic reacts to music. DJ events, parties, clubs. |
| Auto-Run | Built-in programs. Set and forget. Installations, ambient décor. |
DMX Channel Modes
- 6 CH (Basic) — Master dim, strobe, RGB, warm white. Quick single-color setup.
- 9 CH (Standard) — Adds per-COB dimming and expanded RGB. More control without pixel complexity.
- 24 CH (Extended) — Per-zone control of each COB + RGB group. Vertical chases, alternating patterns.
- 114 CH (Full Pixel) — Complete individual control. Full pixel-mapping for advanced designers.
Start Simple: 6CH mode gives you beautiful warm glow + RGB accent in minutes. Scale to 24CH or 114CH when you're ready for pixel effects. No pressure.
No DMX controller? No problem. Auto-run, sound-active, and master/slave modes work without any external hardware.
❓ FAQ & Tips
Can I use it outdoors?
Indoor only (IP20). For outdoor events, place under hard cover — tent, covered stage, roofed patio. No direct rain or moisture exposure.
How tall is it?
68.9 inches (5'9" / 175cm). Taller than most people. Factor in ceiling clearance and sightlines when planning.
How much power?
~600W at full output. 2–3 units per standard 15A/120V circuit. Moderate intensity allows more per circuit.
Can I run just warm white?
Yes — COB and RGB systems are independent. Set RGB to zero for a pure vintage golden lamp look. Most popular for wedding ceremonies and upscale events.
Do I need a DMX controller?
No. Auto-run, sound-active, and master/slave modes work without one. DMX unlocks full pixel control and per-zone programming.
How many do I need?
- Stage backdrop: 4–8 units
- DJ booth flanking: 2 units
- Wedding ceremony: 2–4 units
- Head table: 2–4 units
- Full venue: 6–12+ units
Tips
- Plan power first — Map circuits before placing fixtures. ~600W each.
- Start with warm COBs — Dial in the golden glow first, then layer RGB.
- Use master/slave — Multi-unit uniform looks without per-fixture programming.
- The 70% rule — COBs at 70–80% look warmer and more flattering than 100%.
- Add haze — Even light haze makes warm COB beams dramatically visible.
- Two-person carry — 36+ lbs, nearly 6 feet tall.
Pairs Well With
- Stage Lighting — RetroLux for backdrop warmth. Moving heads for beams on top.
- Haze FX — Makes warm COB beams visible. The #1 pairing.
- Cold Spark FX — Golden glow + white sparks = dramatic contrast.
- Fog FX — Low fog + retro glow = glowing golden cloud.
