How CO2 Jets Work: Setup, Output, and What to Expect at Your First Show

CO2 jets are one of the most visually immediate effects in live production. A well-timed blast can punctuate a drop, mark a crowd moment, or transform a stage entrance. But the first time you're standing in front of a tank and a trigger, there's a lot you need to know before the show starts. This guide covers the mechanics, the setup process, what you'll actually see when you fire one, and the mistakes that catch first-timers off guard.

Perfect For

CO2 jets are built for high-energy, high-impact moments. They show up in a wide range of event formats because the effect scales from intimate club stages to stadium floors.

• DJ sets and club nights — The CO2 jet became a staple of DJ production because it fires on cue, resets fast, and reads in any lighting environment. DJs use them to mark drops, peaks, and set climaxes. A pair of jets flanking a DJ booth is the most common configuration in the industry.
• Festivals and outdoor concerts — Outdoors, the blast disperses faster, but the visual impact at the fire point is still dramatic. Front-of-stage positions and truss rigs both work. Wind is a factor (more on that later), but experienced crews plan for it.
• Corporate events and product launches — High-end corporate productions use CO2 jets for reveal moments, speaker entrances, and closing beats. The effect is clean, controllable, and doesn't leave residue on surfaces or guests.
• Nightclub installs — Fixed-mount CO2 jets wired into a venue's DMX system are common in clubs that run high production value shows regularly. The effect becomes part of the room's signature.
• Weddings and private events — Reception DJs have been integrating CO2 jets into their setups for years. First dances, grand entrances, and last-song moments all land harder with the right blast.
• Sports and arena entertainment — Player entrances, halftime shows, and arena DJ sets all use CO2 effects. The instant visual drama of a CO2 blast is hard to replicate with any other tool.

How It Works

The mechanics of a CO2 jet are straightforward. Compressed CO2 is stored in a standard high-pressure tank. When the trigger fires, a solenoid valve opens, releasing the gas through a nozzle at high velocity. The rapid pressure drop causes the CO2 to expand and cool dramatically, creating the visible white blast you see on stage.

That white effect is not smoke — it's a combination of condensed water vapor from the ambient air and fine CO2 particles, created by the rapid adiabatic cooling as the gas expands. It's visible for a few seconds before dispersing, and it catches stage lighting extremely well.

The Signal Chain

1. CO2 tank — Compressed liquid CO2, typically at 800–1000 PSI at room temperature
2. Regulator — Steps down pressure for consistent output; some jets have built-in regulators, others require an external one
3. Solenoid valve — An electronically controlled valve that opens on trigger and closes when released
4. Nozzle — Shapes and directs the blast; different nozzle geometries produce different column heights and spread patterns
5. Trigger — DMX controller, wireless trigger, or manual footswitch

Tank Sizes and Shot Counts

Tank size directly determines how many shots you get per set. CO2 tanks are rated by weight of CO2 they hold, not volume.

• 5 lb tank — Compact, easier to transport, fits in tight stage positions. Roughly 6–12 full-length bursts depending on burst duration and nozzle size. Good for short sets or backup tanks.
• 10 lb tank — The most common DJ and mobile production choice. Balances portability with capacity. Expect 12–25 bursts depending on how you're triggering.
• 20 lb tank — Standard for venue installs and high-frequency festival use. More shots per tank means fewer changeovers during a long show. Heavier to move, but the math works out for big productions.

Actual shot counts vary based on burst length, ambient temperature, and whether the tank is fully charged. Cold environments slow down CO2 output because the liquid-to-gas conversion rate drops. If you're running an outdoor winter show, budget more tank capacity than you think you need.

Cryo CO2 vs Standard CO2

Both use the same CO2 gas, but cryo-grade CO2 (sometimes called food-grade or high-purity CO2) has lower moisture content and fewer impurities. Standard CO2 will work in most jets, but if you're running a high-end show where nozzle clogging or output inconsistency could be a problem, cryo-grade is the better spec. Many production professionals use food-grade CO2 as their standard. Check with your local gas supplier — availability varies by region.

Setup

A clean CO2 jet setup takes 10–15 minutes if you know the steps. Rush it and you'll be troubleshooting mid-show.

Step 1: Tank Connection

CO2 tanks use CGA-320 fittings in the US. Connect the tank to the jet using the appropriate hose and fitting. Hand-tighten first, then snug with a wrench — do not over-torque. Inspect the fitting and hose for cracks or worn seals before every show. A bad seal will frost over and leak, costing you shots and creating noise on stage.

Step 2: Pressure Check

Open the tank valve slowly to pressurize the line before going full open. Check the gauge — a full 10 lb tank at 70°F will read around 850–900 PSI. If pressure is significantly lower, the tank may be low on CO2 or the ambient temperature is cold (which drops the reading). Once you've confirmed pressure, open the valve fully so the dip tube can draw properly during firing.

Step 3: DMX vs Manual Trigger

Most professional CO2 jets support both DMX control and manual triggering via a wired button or wireless remote.

• DMX — Connects via standard 3-pin or 5-pin XLR. Set the jet's DMX address on the unit's display. A single channel controls the solenoid on/off; some jets also support intensity or duration channels depending on the model. DMX gives you tight show control from a lighting console or dedicated trigger system.
• Manual/wireless trigger — For DJ setups where a lighting board isn't in the signal chain, wireless triggers let you fire from anywhere on stage. RF triggers are more reliable in environments with line-of-sight obstacles than infrared options.

If you're running DMX, address your jets before the show and test fire from the console during load-in. Don't assume the address carried over from a previous event — confirm it every time.

Step 4: Positioning and Rigging

Positioning affects both impact and clearance. Standard placements include:

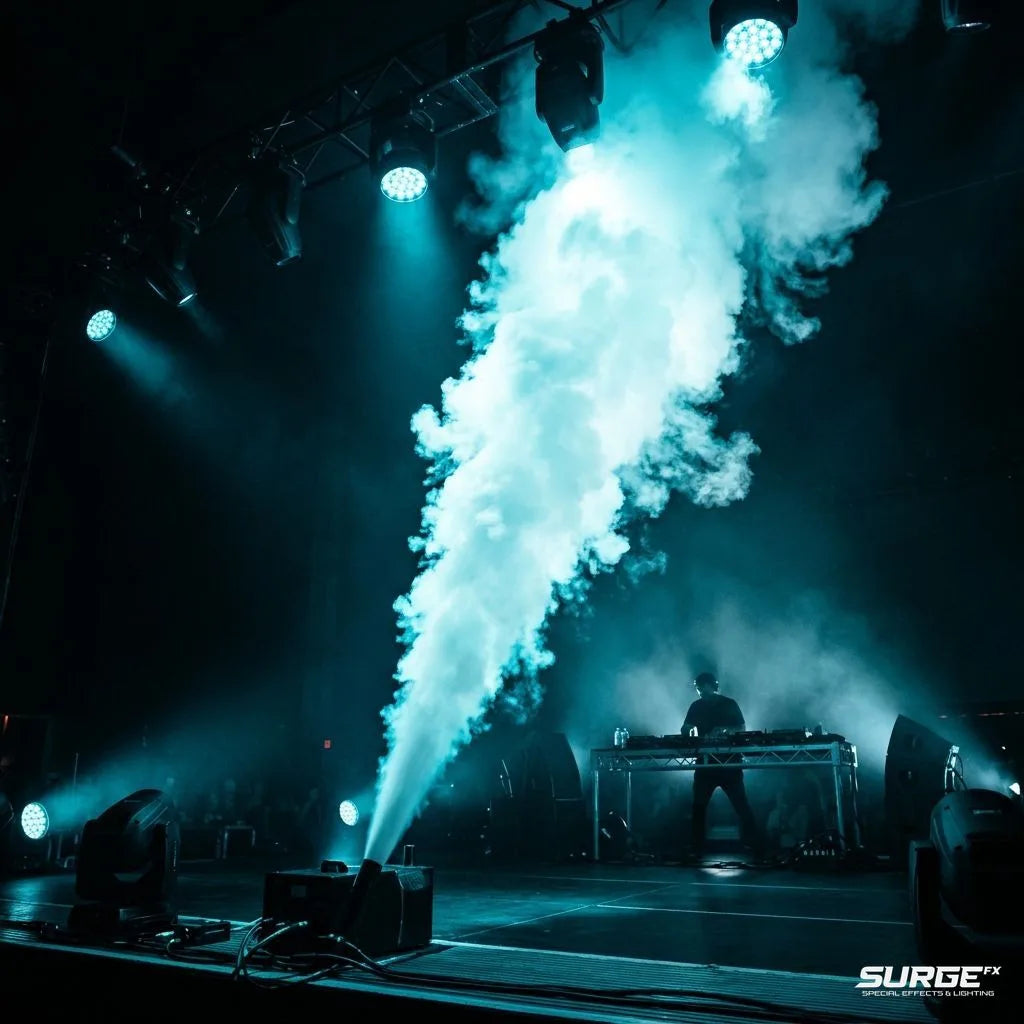

• Floor mount, flanking the DJ booth — Most common setup. Aim slightly outward (not straight up) to clear overhead obstructions and create a wider spread. Keep the blast path clear of any rigging, lighting, or truss within the first 6–8 feet.
• Truss mount, angled downward — Creates a crisscross or downward blast effect. Requires secure mounting hardware rated for the jet's weight plus vibration load. Check venue ceiling height — you need clearance above the audience.
• Stage wings — Positioned to blast across the stage rather than into the crowd. Common for performer entrances and side-stage moments.

Always verify overhead clearance. The blast from a CO2 jet can reach 10–20 feet depending on tank pressure and nozzle geometry. Fabric banners, acoustical tile, and lightweight lighting fixtures all react when a CO2 jet fires directly beneath them.

What to Expect

The first time you fire a CO2 jet live, the output will either match your expectations or exceed them — rarely the other way. Here's what the effect actually does.

Output Height and Distance

A well-pressurized CO2 jet firing vertically will produce a column 10–20 feet tall on a single burst. The column spreads as it rises, creating that iconic fountain shape. Horizontal or angled positions throw the blast further across the stage floor, which works well for T-bar setups aimed at the crowd or cross-stage wash effects.

Effect Duration Per Trigger

Most solenoid-triggered CO2 jets produce the visible effect for the duration of the trigger plus a second or two of residual dissipation. A half-second trigger produces a sharp, punchy blast. A 2–3 second hold gives you a sustained column. Most DJs use short bursts (0.5–1 second) for drops and save the longer holds for peak moments.

Temperature of the Blast

The CO2 exiting the nozzle is extremely cold — temperatures at the nozzle outlet can reach -78°C (-109°F). The frost that forms on the jet housing and nozzle after repeated firing is normal. Keep hands and exposed skin away from the nozzle and output path during operation. The cold dissipates rapidly in the air column, but the immediate blast zone is not something you walk through mid-show.

Indoor vs Outdoor Behavior

Indoors, with low ceilings and controlled airflow, the CO2 column holds shape longer and creates a thicker visual. The effect lingers in the air before dispersing. Outdoors, even a light wind will shear the column sideways, reducing visual height and pushing the blast off-axis. Position outdoor jets with the prevailing wind direction in mind — a jet firing into the wind performs considerably worse than one firing with it.

Common First-Show Mistakes

• Not accounting for tank temperature — Cold tanks output less efficiently. Warm your tanks to room temperature before the show if they've been sitting in a cold van.
• Over-firing early in the set — Using too many blasts in the first 20 minutes burns through your tank before the main moments. Map your shots to your setlist.
• Wrong DMX address — Firing the wrong fixture or getting no response is almost always an address error. Double-check before doors open.
• Loose tank connection — If the fitting isn't sealed properly, you'll hear a steady hiss. Fix it before the show starts. Mid-show reconnections waste CO2 and kill momentum.
• Positioning too close to overhead obstacles — The blast has force. Fabric banners, paper décor, and lightweight lighting fixtures all react when a CO2 jet fires directly beneath them.

Pairs With

CO2 jets are a strong standalone effect, but they hit harder when the rest of your rig is working with them.

• Fog and haze machines — This is the most important pairing. CO2 blasts are visible partly because of the condensation effect, but a room with ambient haze turns every beam of light into a visible column. The CO2 blast cuts through the haze dramatically, creating contrast that's impossible to achieve in a clean-air environment. Run a hazer throughout the show, not just during effects moments.
• Cold spark machines — Cold sparks and CO2 jets are complementary in rhythm and visual texture. Cold sparks fountain upward slowly and hold; CO2 fires and dissipates fast. Running them together on a climax moment — sparks building, CO2 punctuating the peak — is one of the most effective one-two combinations in DJ production.
• Confetti cannons — A CO2 blast followed immediately by a confetti burst creates a layered visual moment that photographs and films exceptionally well. The CO2 lifts the energy, the confetti sustains it.
• Moving head and beam lighting — CO2 jets are most dramatic when lit from multiple angles. Beams tracking through the CO2 column during the blast turn a good effect into a great one. Coordinate your lighting console triggers with your jet firing cues.
• LED uplighting and par cans — Color-washed CO2 is a different effect than white-lit CO2. Blues and purples create a colder, more dramatic look. Reds and oranges push toward an explosive visual. Dial in your color palette before the show, not during it.

FAQ

Do I need a special CO2 tank for a CO2 jet?

Standard siphon (dip tube) CO2 tanks are required — not the kind used for carbonating beverages or welding. Siphon tanks draw liquid CO2 from the bottom of the tank, which converts to gas at the nozzle. Tanks without a dip tube will deliver inconsistent output, especially as they empty. When you rent or buy CO2, confirm it's siphon-type.

Where do I refill CO2 tanks?

Gas supply companies, fire extinguisher service shops, homebrew supply stores, and some welding supply houses all fill CO2 tanks. Call ahead — not every supplier carries siphon-grade CO2 or can fill the larger tank sizes. Building a relationship with a reliable local supplier before your first show is worth the effort.

Can I run CO2 jets at an indoor venue without special permits?

Requirements vary by jurisdiction and venue. Many venues treat CO2 jets the same as other atmospheric effects and require advance notice to the venue manager and sometimes the fire marshal. Always check with the venue before the show. Showing up with pressurized tanks and no approval is a quick way to get shut down at load-in.

How do I know when my tank is running low during a show?

A few indicators: the blast height and force drop noticeably, the tank body feels lighter when you knock on it, or the pressure gauge (if your setup has one inline) is reading below 400 PSI. Experienced operators weigh their tanks before and after shows to track consumption. Keep a spare tank on hand for shows where you're firing frequently.

Can CO2 jets be used outdoors at daytime events?

Yes, but the visual impact is significantly reduced in daylight. The white CO2 column is much harder to see against a bright sky without the contrast of darkness or stage lighting. If you're running a daytime outdoor event, position your jets low and aim for cross-stage blasts rather than vertical columns — you'll get more visual impact at audience level than from a column disappearing into daylight.

How far apart should I space two CO2 jets for a DJ booth setup?

Standard DJ booth setups position jets 6–10 feet apart, one on each side of the booth. This creates a wide visual frame and keeps the blast zones separate. Spacing them too close together wastes the stereo visual effect; too far apart and they start to look disconnected. Your booth width and stage dimensions should drive the final call.

Pro Tips

Pre-chill your tanks before a long show

If you're running a 4+ hour event, transport your tanks in a cool environment the night before. Warmer tanks vent gas faster and can create inconsistent output as liquid CO2 turns to gas too quickly inside the tank. A tank that's been stored around 50–60°F will give you more consistent shot-to-shot output than one that's been sitting in a hot vehicle.

Mark your tank levels before every event

Weigh empty and full tanks once, then mark the tare weight on the tank with a paint marker. Before every show, weigh the tank and subtract the tare to know exactly how much CO2 you have. This eliminates guesswork and lets you plan your firing map confidently.

Build your fire cues around the music, not the other way around

The best CO2 moments in any DJ set are ones where the blast feels like a physical extension of the music. Work backward from your setlist — identify 4–6 key moments (main drop, first build peak, closing track) and assign blasts to those. Firing on everything dilutes impact. Restraint makes the moments that count hit harder.

Test your full signal chain at load-in, not at soundcheck

CO2 jet failures almost always trace back to one of three things: a loose connection, a wrong DMX address, or an empty tank. Run a quick test blast (away from any overhead rigging or people) as part of your load-in checklist, before the venue fills up. Fixing a connection issue at 6 PM is easy. Fixing it at midnight is a different experience entirely.

Pair your firing cues with your lighting board

If you're running DMX, program your CO2 jet cues directly into your lighting timeline rather than firing manually. This eliminates the reaction-time gap between when the drop hits and when you fire, and it frees you to focus on the mix. Even a 250ms delay on a CO2 blast can make the effect feel like it missed the moment.
