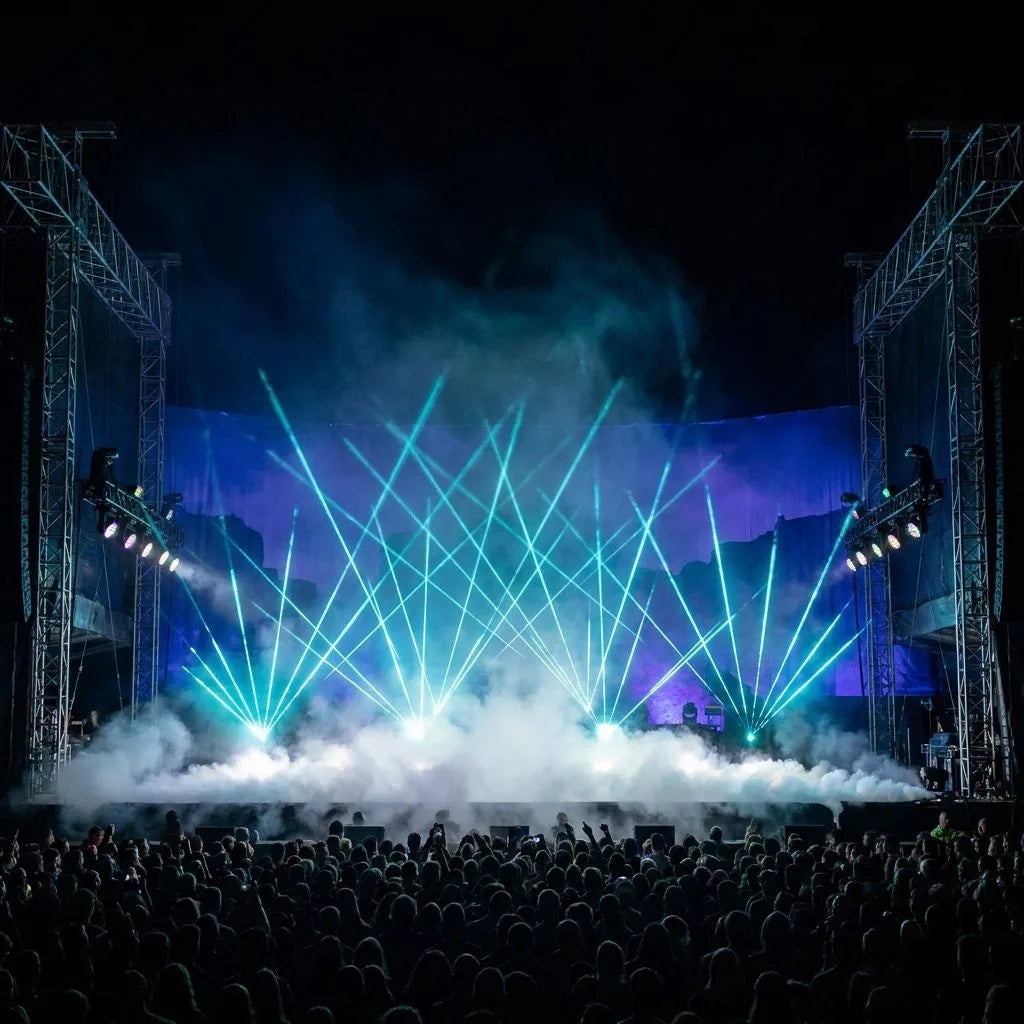

Festival Stage Design Principles: How Layered Effects Create Depth

A festival stage with a flat visual plane is a festival stage that loses the audience's attention fast. No matter how much lighting rig you hang, no matter how many effects units you fire, if the design doesn't communicate depth, it reads as a single shallow surface rather than an environment. The fix isn't more gear. It's thinking in layers before the first truss goes up.

Foreground, midground, and background staging theory comes from film and theatrical set design, but it applies directly to live production, especially to how atmospheric and special effects interact with beam lighting, scenic elements, and the audience sightline. Getting this right is what separates a memorable festival stage from a technically adequate one.

The Three-Plane Framework and Why It Changes Everything

Start with the simplest version of the model: every audience member is looking at a stage that has three distinct spatial zones. The foreground is the area closest to them: the downstage edge, the thrust, and the crowd barrier line. The midground is where most of the performance action lives: center stage, the primary lighting position, the main PA hang. The background is upstage: the scenic wall, the LED wall, and the truss towers framing the back of the stage.

The common mistake is treating all three planes the same way. Lights point everywhere. Effects fire without a spatial logic. That creates visual noise, not depth. When you assign a specific role to each plane and choose effects that support it, the stage starts to feel three-dimensional even from 200 feet back in a field.

How Atmospheric Effects Build the Midground

Haze may be the most underused tool in festival production, and it often gets misapplied. The instinct is to saturate the air with as much particle density as possible so beams are visible everywhere. The result is a stage that looks foggy rather than dimensional.

The midground is where haze earns its keep. A haze machine positioned at the midstage line, instead of purely upstage or at FOH, creates a particle field that beam fixtures can cut through at oblique angles. When a sharp beam travels from a rear truss position forward through haze and lands on a performer or the stage floor, it draws the eye along a diagonal path that communicates depth. That's the geometry doing the work.

Haze density matters here more than most operators realize. Oil-based haze holds a finer particle and stays suspended longer, making it ideal for beam definition in outdoor environments where air movement is a factor. Water-based haze dissipates faster and works better in enclosed tented or pavilion stages where you need more control. Neither is universally better. The venue geometry determines the call.

What you want to avoid is haze so dense it softens the beam edges. A crisp, defined beam cutting through medium-density haze communicates midground depth. A soft, diffused beam in heavy haze just reads as glow.

Foreground Effects: Anchoring the Audience's Eye

The foreground plane is where the audience lives, and it's the most emotionally direct zone of the stage design. Effects placed here don't need to travel far to make an impact. They need to activate the space immediately in front of and around the performance.

CO2 jets positioned at the downstage edge are a textbook foreground tool. A CO2 burst fires vertically and creates a fast, high-contrast visual event that snaps attention to the front of the stage. Because CO2 dissipates quickly, it doesn't pollute the midground haze field. The burst registers, then clears, leaving your beam geometry intact. Timing CO2 hits to drops or peak moments in the mix creates a punctuation that audiences feel as much as they see.

Low-lying fog, the dense ground-hugging fog produced by a chilled output fog machine, serves a different foreground function. Instead of punctuation, it creates a continuous visual floor that the performers appear to rise out of. This technique works particularly well during slower build sections or opening moments when you want to establish atmosphere before the energy escalates. The key is keeping the output chilled enough that the fog stays below knee height rather than rising and contaminating the haze layer above it.

Some festival productions, particularly those with outdoor crowd entertainment zones or high-energy activation areas, incorporate a foam machine as part of the foreground experience. When a foam machine solution is designed into the crowd engagement space rather than onto the performance stage itself, it creates a participatory foreground layer that extends the production into the audience. That creates a completely different spatial dynamic than any aerial effect can achieve.

Background Design: What the Scenic Wall Actually Does

The background plane's job is to provide visual scale and contextual framing. An LED wall, a printed scenic backdrop, or even a raw truss tower system defines the outer boundary of the stage world, and the lighting you apply to it should reinforce that boundary rather than compete with the midground.

Background wash lighting should be lower in intensity than midground beam elements. This is counterintuitive because the upstage wall is large and designers instinctively want to fill it. But when the background is brighter than the midground, the depth perception collapses. Your eye reads the brightest element as the closest, and the stage flattens. Use background fixtures to set a color temperature and mood, then let the beam elements in the midground carry the visual energy.

Aerial effects positioned upstage, such as a CO2 cannon firing upward and backward, reinforce the background plane by creating vertical movement that emphasizes height and scale rather than forward projection. This is a different application than downstage CO2 jets and serves an entirely different staging purpose.

Timing, Transitions, and Making the Layers Work Together

A layered stage design is only as effective as its cue structure. The visual depth you've built physically can be reinforced or undermined by how effects are triggered relative to each other and to the music.

The most effective festival designs use effects to transition between planes rather than firing everything simultaneously. A build section might start with haze slowly thickening in the midground, then beam fixtures sweeping forward from upstage, then a foreground CO2 burst at the peak. That sequence physically moves the audience's eye from background to foreground over 16 or 32 bars of music. That's staging theory functioning as dramaturgy.

Over-triggering breaks the layering logic. When CO2, haze output, and scenic lighting all fire at maximum simultaneously, the planes merge and depth disappears. Think of the layers as instruments in a mix: they work because they occupy different frequency ranges. Give each plane its moment, and the cumulative effect reads as a fully realized environment.

The mechanics of any individual effect, including output volume, beam angle, and coverage radius, matter less than their spatial assignment. A fog machine running at half output in the right position does more for a stage design than the same unit maxed out in the wrong one. That's the principle worth carrying into every festival build this season.
