🎥 What Is a Video Wall? A Beginner’s Guide to LED Walls + Free Video Wall Builder Tool

Thinking about adding a video wall to your next event, venue, or installation? Whether you’re building a jaw-dropping concert setup or just exploring your options, this post will walk you through exactly what a video wall is, how it works, and how to design one — even if you’ve never done it before.

We’ll also introduce you to our free SurgeFX Video Wall Builder Tool to help you create your layout in minutes.

---

🔍 What Is a Video Wall?

A video wall is a large display made up of multiple LED panels arranged to act as one seamless screen. These modular panels can be configured in nearly any shape or size — from a classic rectangular display to curved or multi-panel installations.

You’ve likely seen them at:

• 🎤 Concerts and music festivals

• 📺 Broadcast studios

• 💼 Corporate events and trade shows

• 🎧 Nightclubs and entertainment venues

• 🙌 Churches and houses of worship

• 🛍️ Retail stores and digital signage displays

Unlike projectors or TVs, LED video walls offer scalability, brightness, and durability for indoor and outdoor environments — with no shadows or washed-out colors.

---

🧠 How Do Video Walls Work?

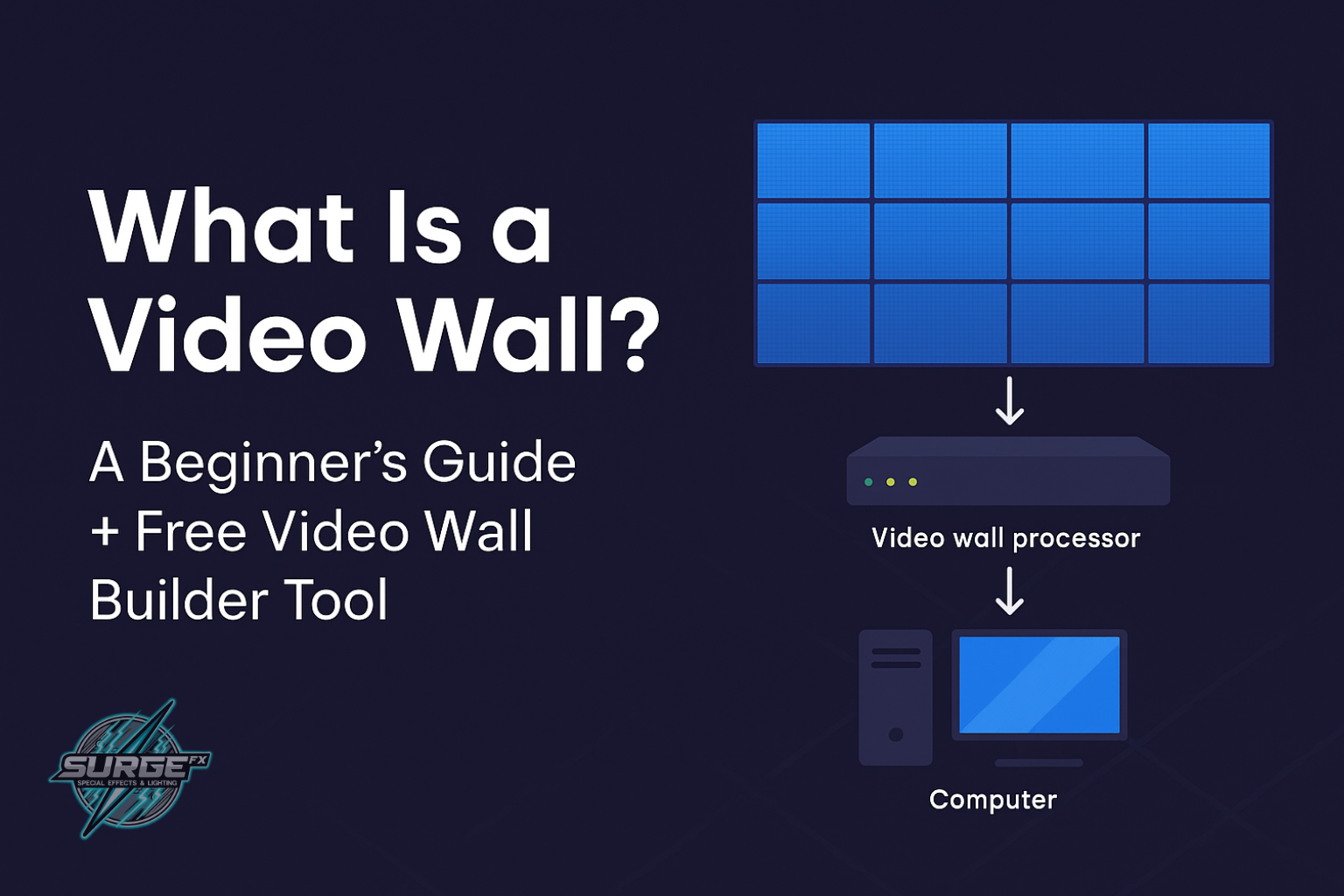

To fully understand how a video wall functions, you need to know the three core components:

1. 🧱 LED Panels (aka Cabinets)

These are the building blocks of the video wall. They’re modular screens that tile together to form the final image. Each panel contains rows of LED pixels, and the clarity of the display depends on how tightly packed those pixels are — more on that below.

2. 🧠 Video Wall Processor

This is the brain behind the wall. The processor takes your content and distributes it evenly across all the LED panels, ensuring the image is perfectly scaled and synchronized. It also handles resolution, brightness, input switching, and effects.

3. 💻 Content Source (PC or Media Player)

This is where your video or visual content comes from — whether it’s a laptop running PowerPoint, a media server, a DJ visualizer, or a camera feed. The signal goes from the source to the processor, which maps it to the wall.

---

🧬 What Is Pixel Pitch and Why Does It Matter?

One of the biggest factors in choosing a video wall is understanding pixel pitch.

Pixel pitch is the distance between the center of one LED pixel and the next, measured in millimeters. It determines how crisp your image will look and how close viewers can be to the wall before the image becomes pixelated.

The rule:

• Lower pixel pitch = higher resolution (better up-close)

• Higher pixel pitch = lower cost (better for long-distance viewing)

---

✅ SurgeFX Pixel Pitch Options

We offer a full range of indoor and outdoor panels to suit any application, broken down into five categories:

🔹 Indoor Panels

🌦️ Outdoor Panels

📏 Viewing Distance Cheat Sheet

Here’s how close your audience can be before the image starts to break up:

➡️ Need a crisp image up close? Go with a smaller pixel pitch.
➡️ Audience far away? You can save money with a larger pitch.

---

🛠️ Plan Your Setup with the SurgeFX Video Wall Builder

No more guessing. No more spreadsheets. We built the SurgeFX Video Wall Builder to help you plan, visualize, and scale your design before you commit to hardware.

With our free builder, you can:

✅ Choose your pixel pitch
✅ Lay out panels to scale
✅ Preview your build visually
✅ Get measurements and layout specs
✅ Share or export your design for quoting

It's the easiest way to turn your vision into reality.

👉 Try the Video Wall Builder Now

---

💬 Still Have Questions?

We’re here to help you choose the right setup for your event, venue, or install — whether you need a few panels or a full-scale wall with processor and media server.

📞 Call us: 866-577-8743
📩 Email us: info@surgefx.com

Let SurgeFX help you create a brighter, sharper, and bolder experience.
